THE SL200 1TB

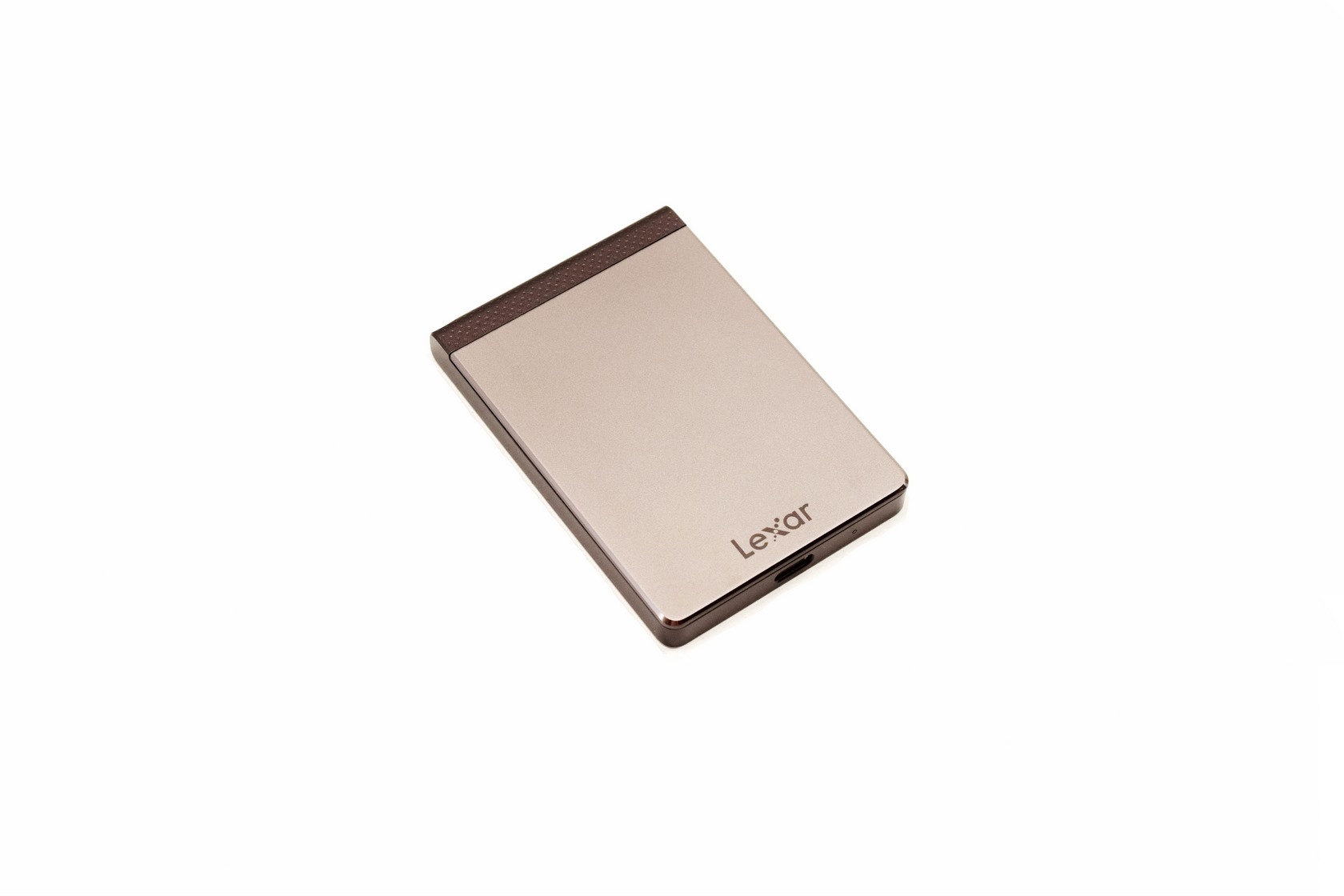

The plastic enclosure of the SL200 measures 86mm in length, 60mm in width and 9.5mm in thickness/height.

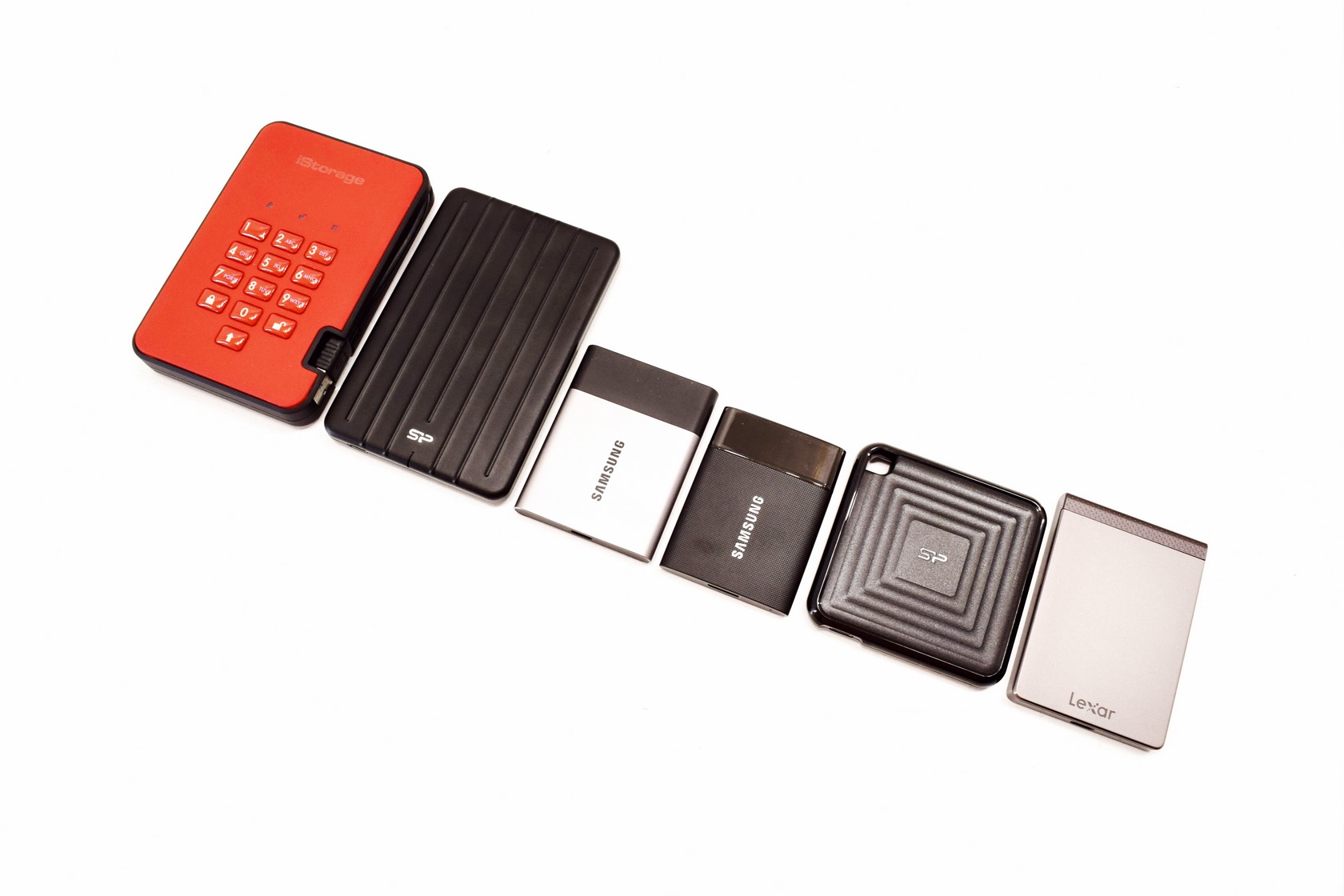

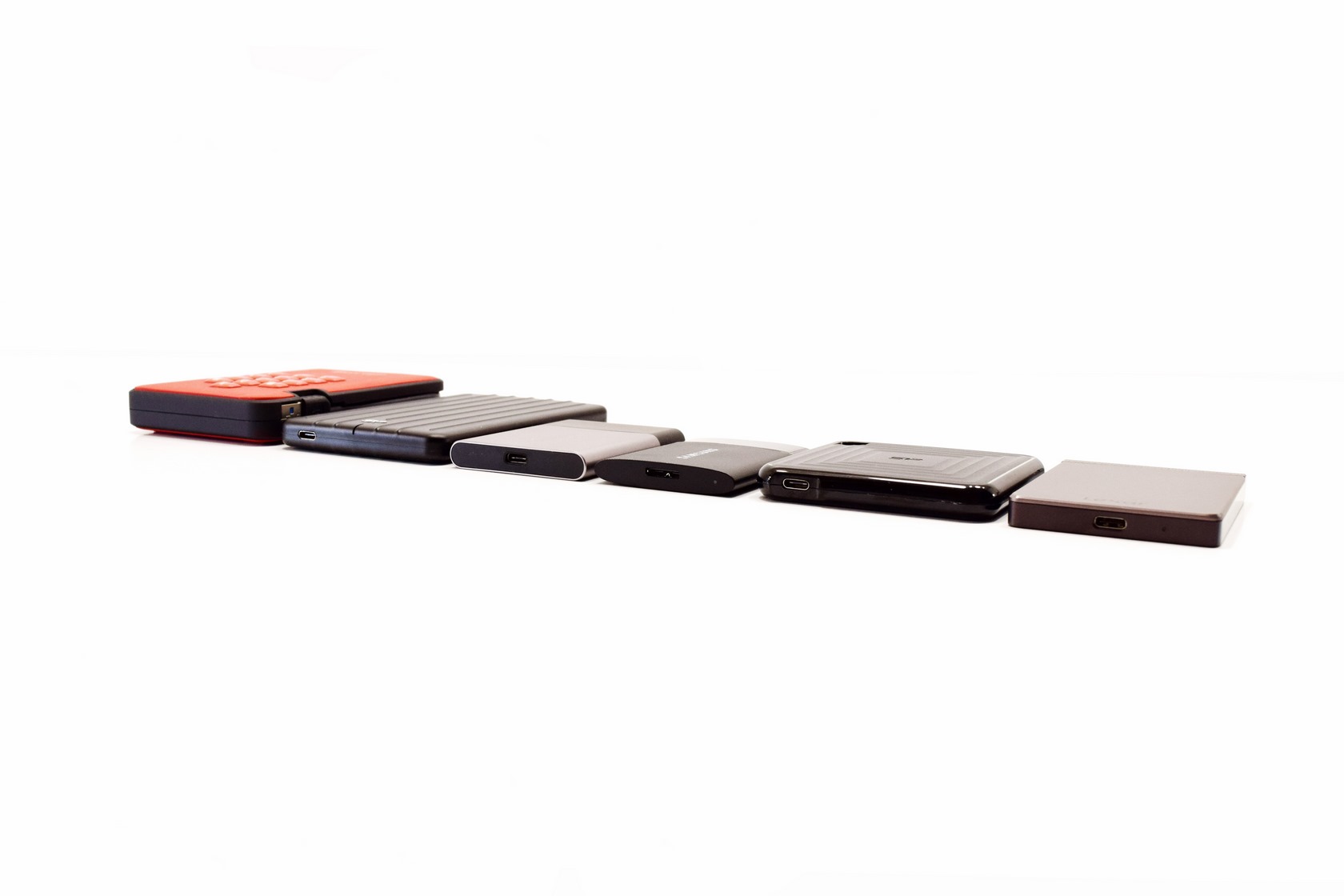

Typically to give all of you a better idea about size i placed the SL200 right next to the iStorage diskAshur2 SSD, Silicon Power Bolt B75 Pro, Samsung T3 and T1 and the Silicon Power PC60.

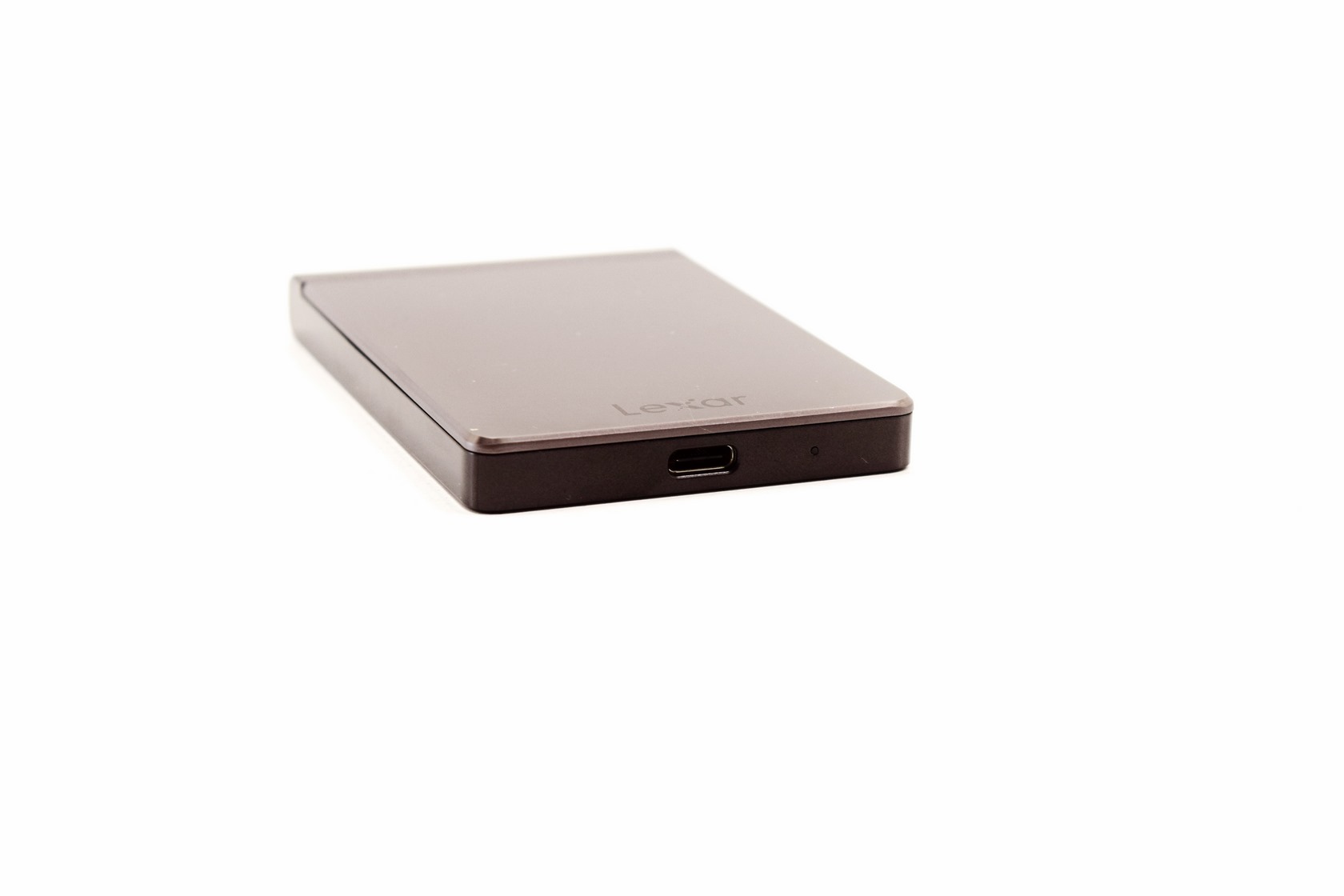

Lexar placed both the USB-C port and the activity LED at the front of the drive.

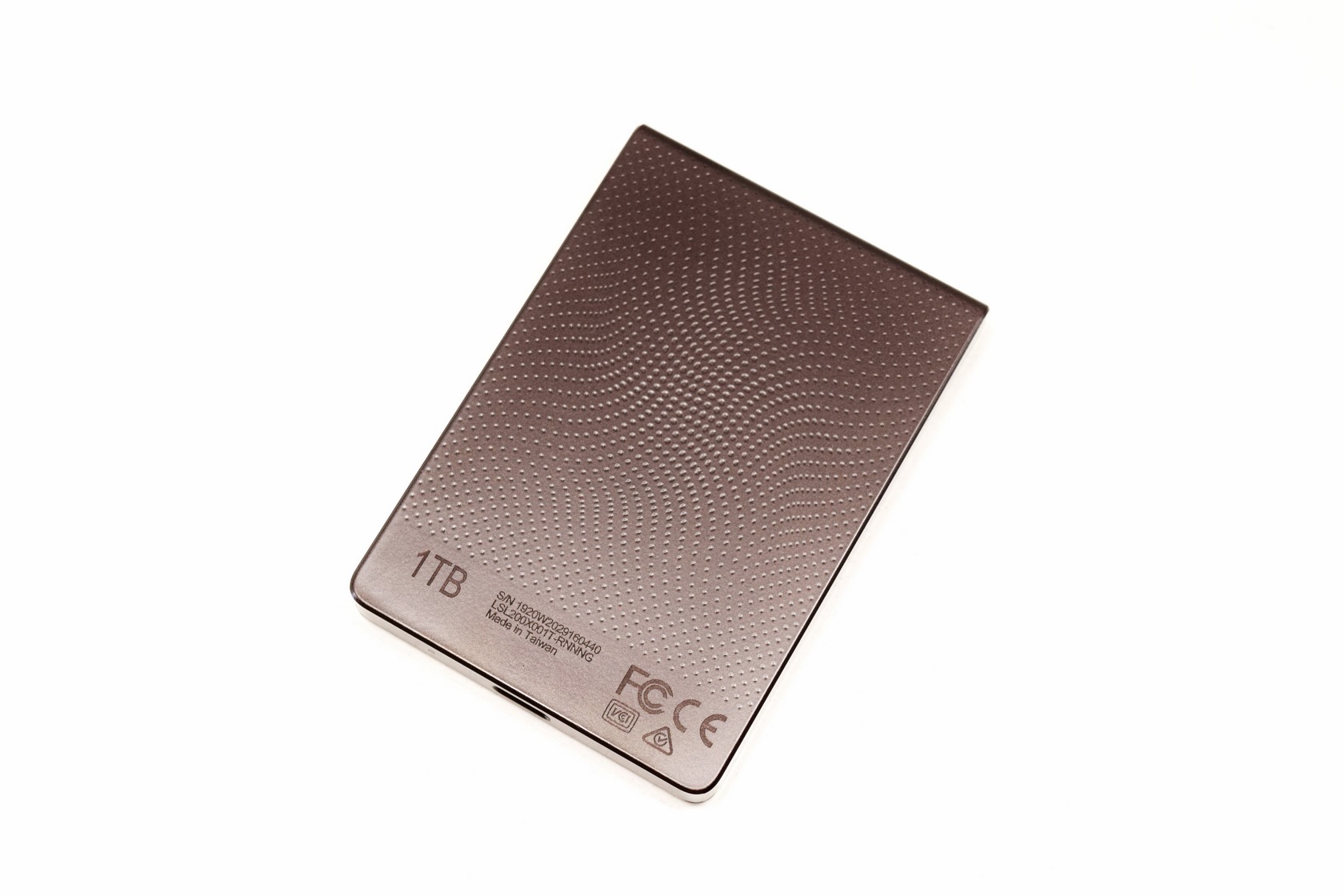

The serial number is printed at the rear of the enclosure along with the drive capacity.

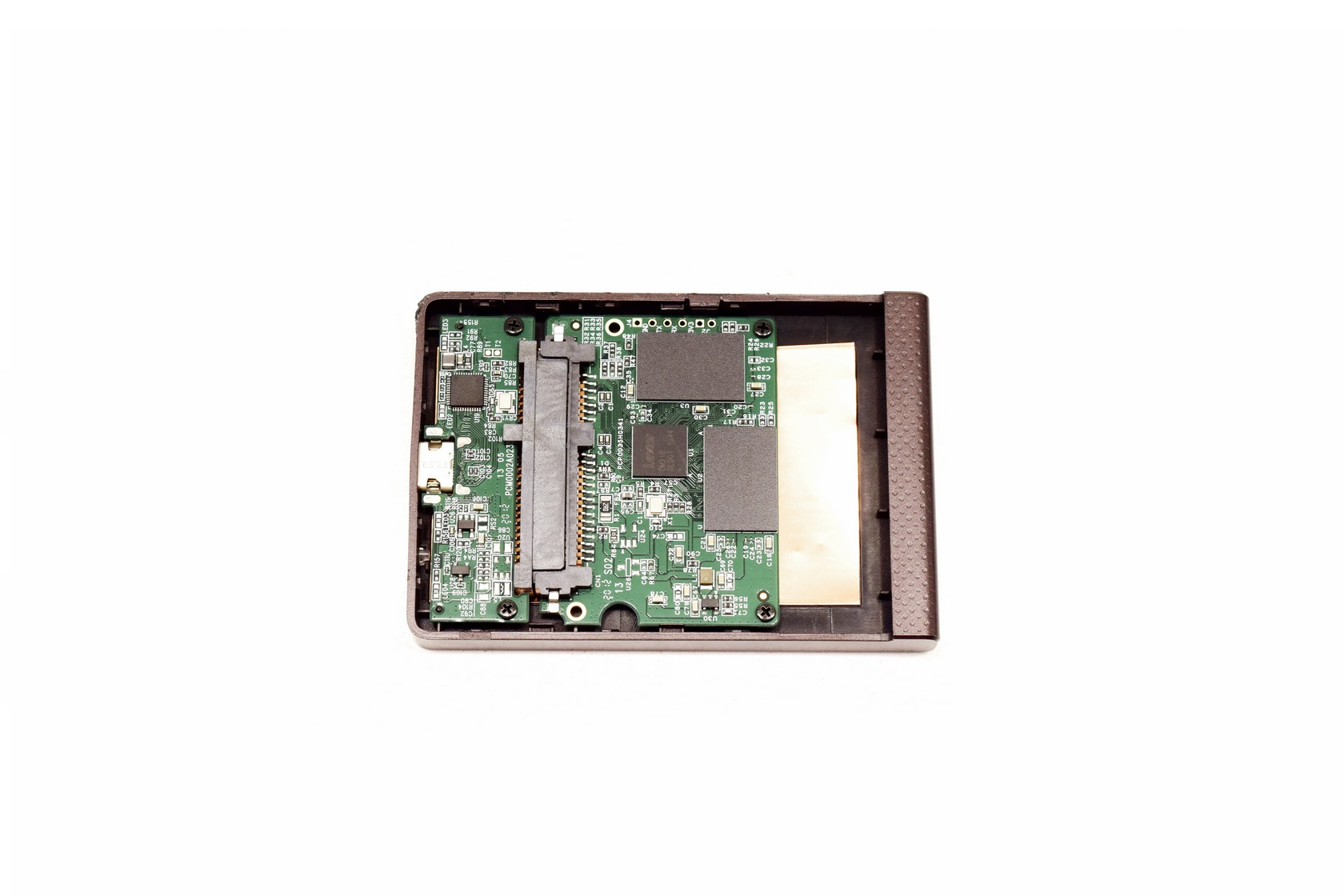

Just like with the PC60 the plastic enclosure of the SL200 uses clips so removing the top is easy.

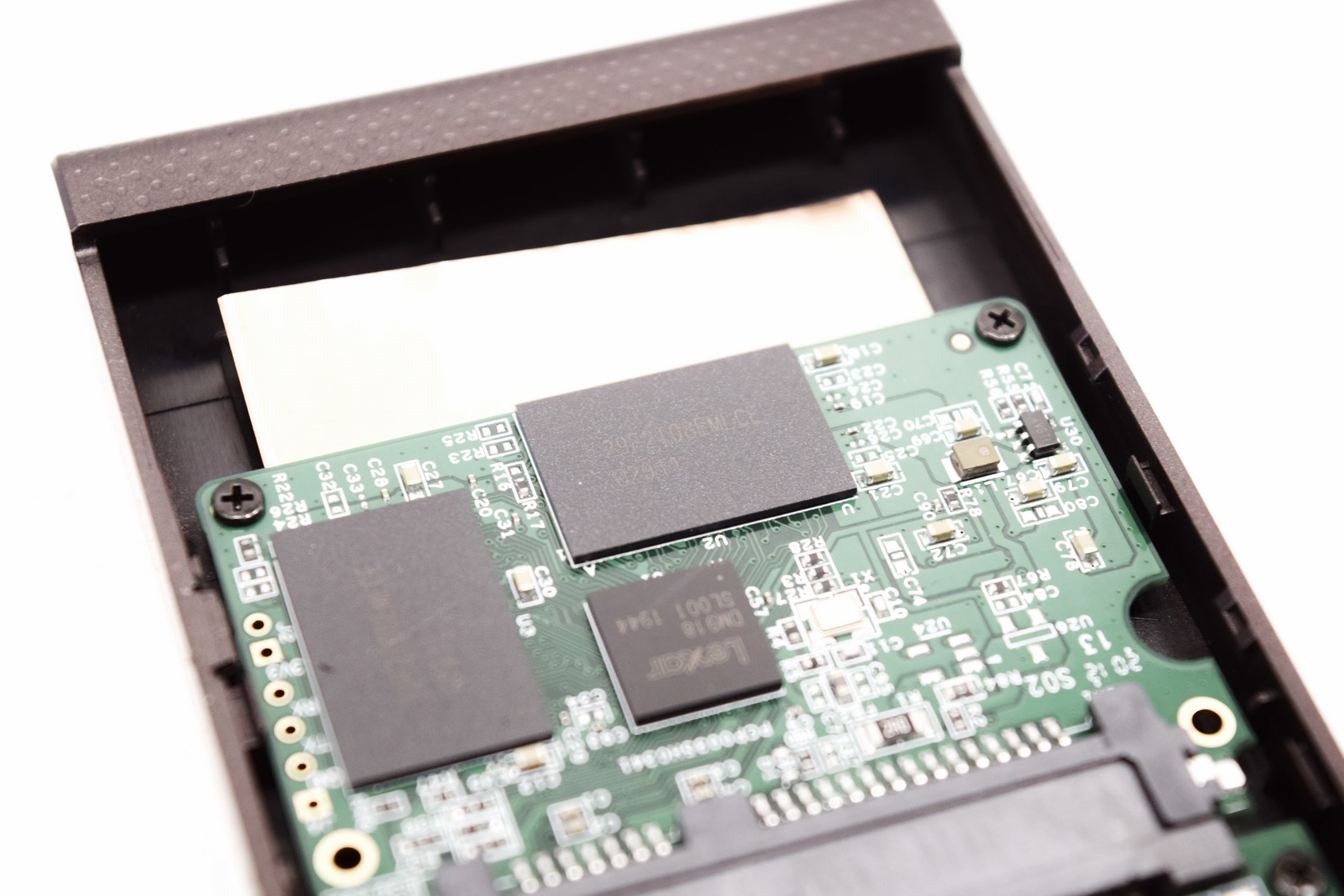

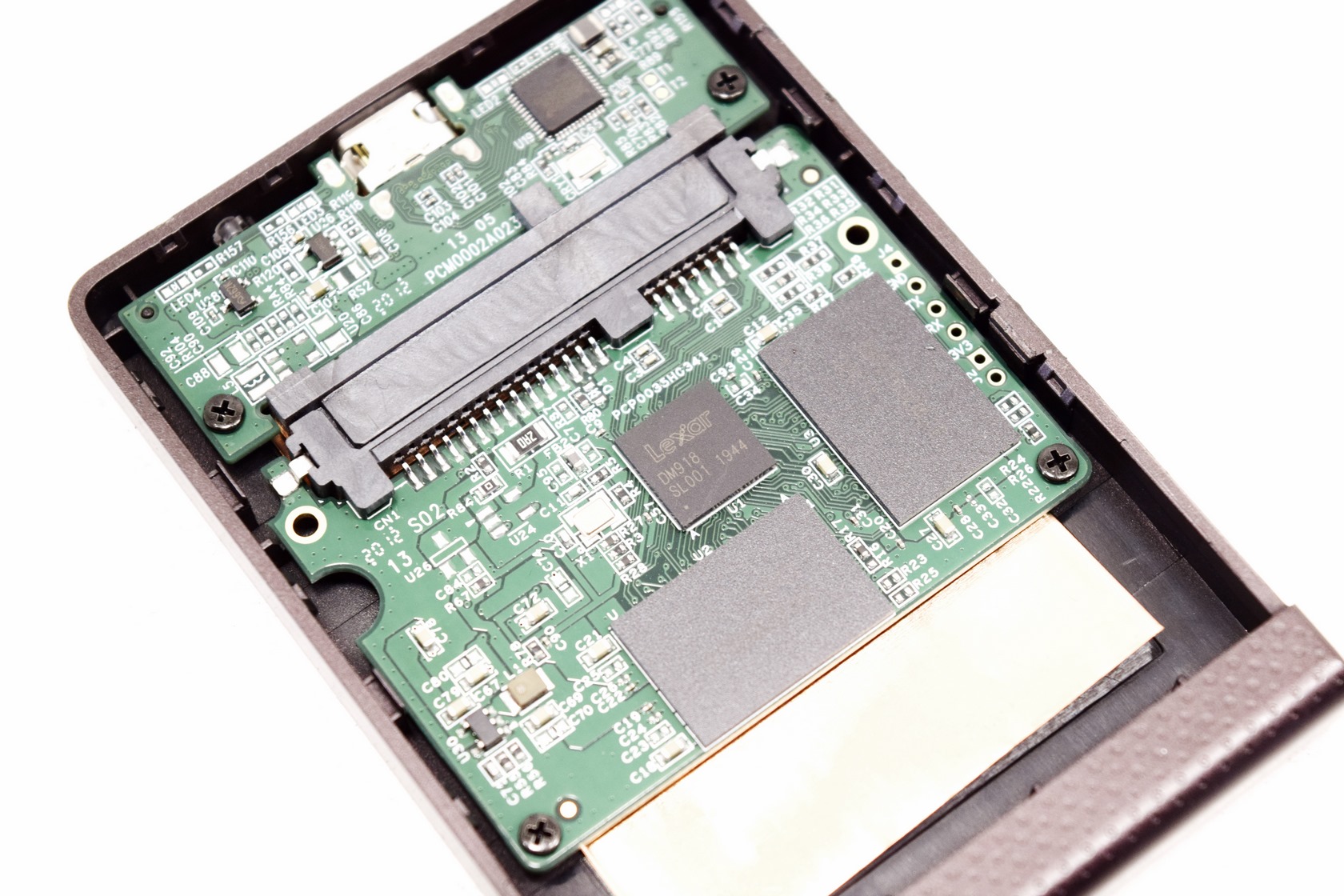

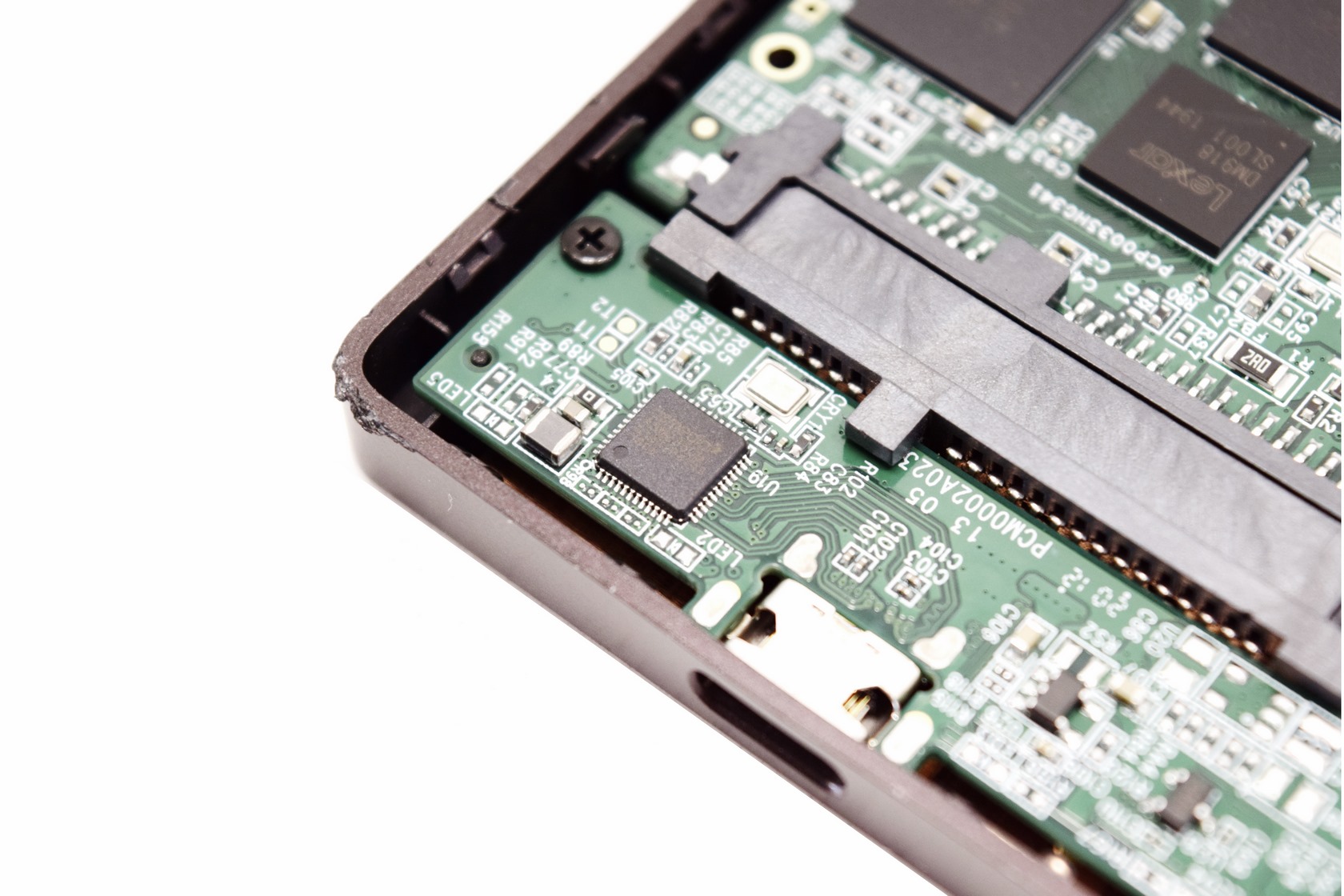

At the top of the PCB we find the 88NV1120 controller by Marvell, two NAND flash modules and the asmedia bridge chip.

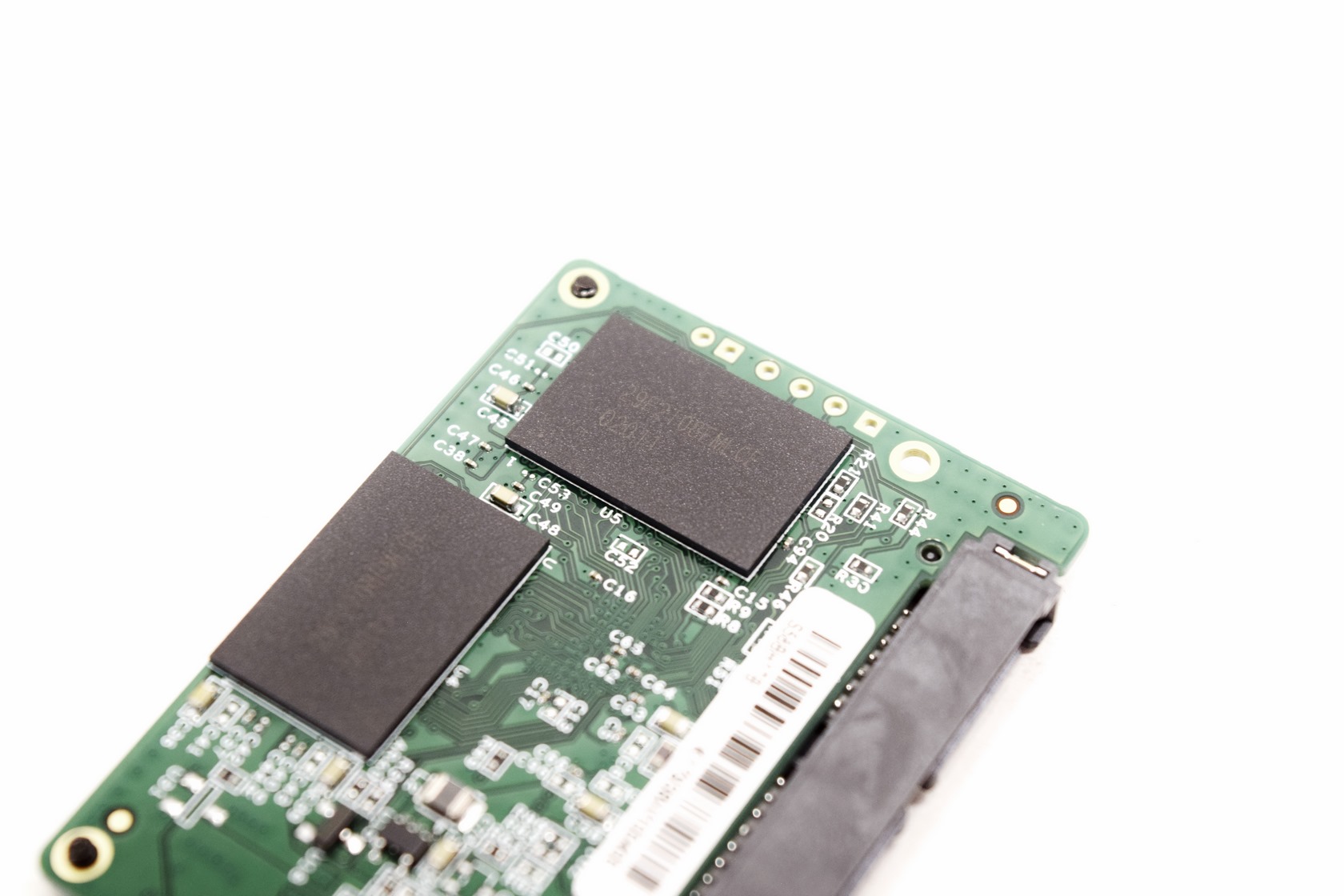

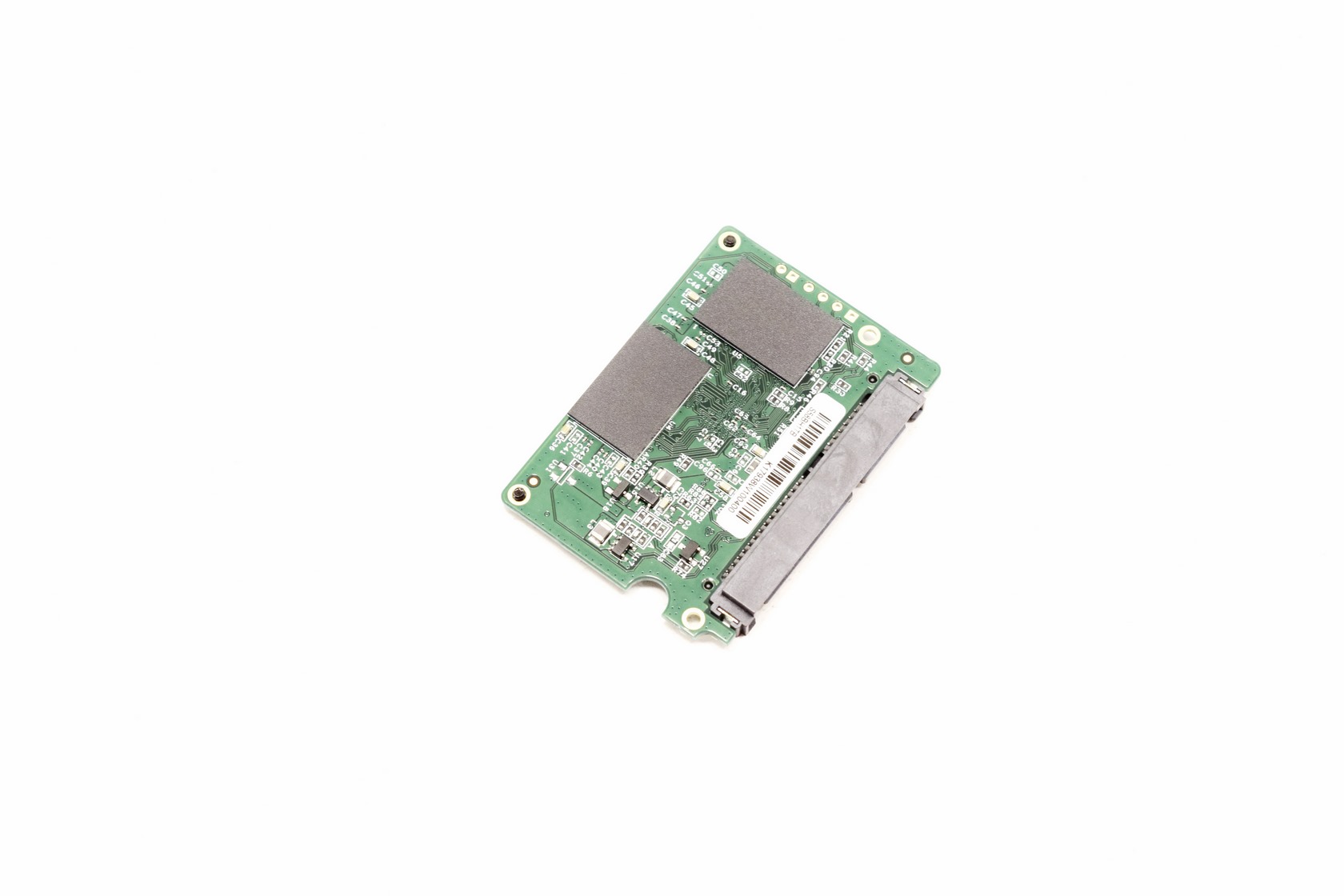

Two more NAND flash modules are located on the other side of the PCB.

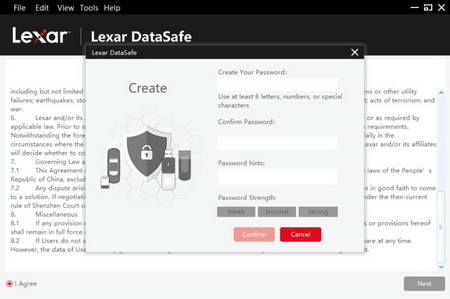

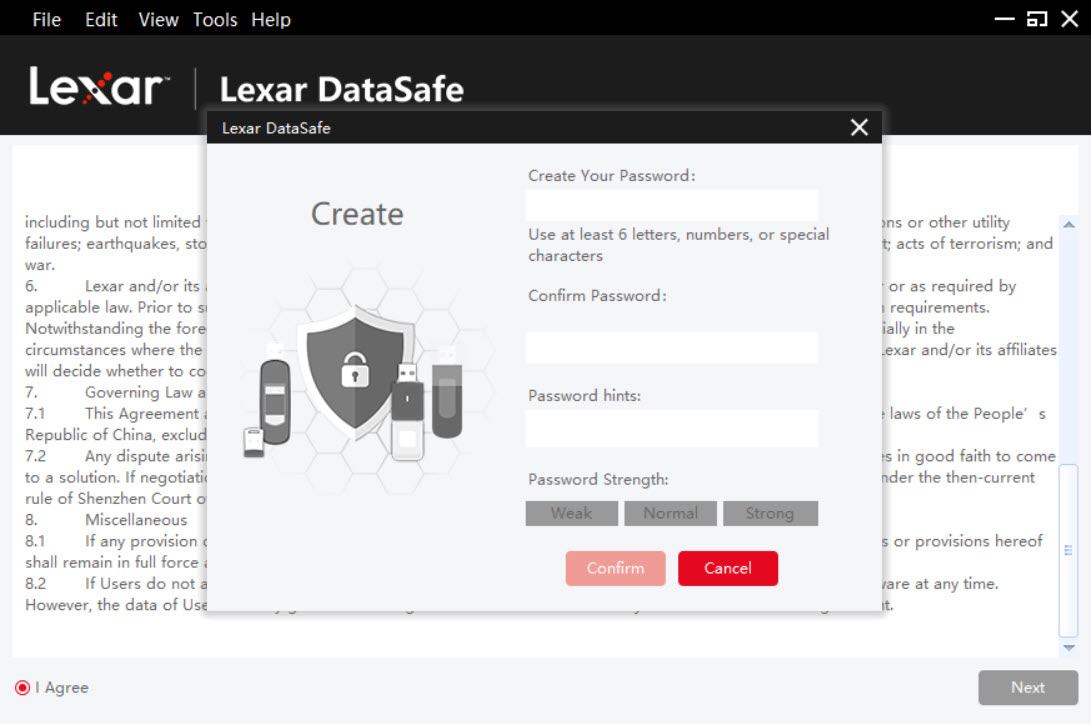

Worth pointing out is that the SL200 fully supports the Lexar DataSafe AES-256 encryption software.
