THE BLAZE SL660 1TB INTERIOR

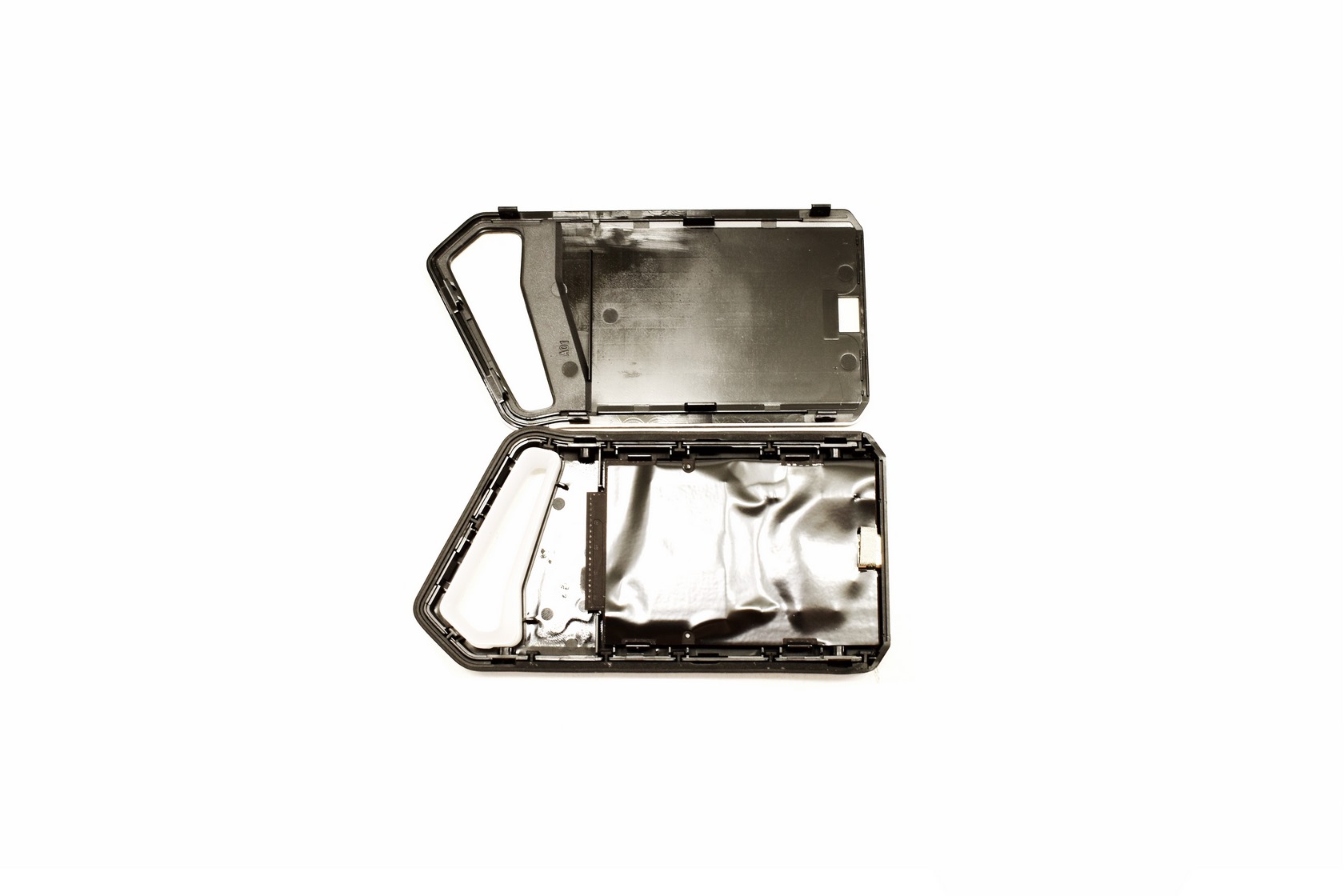

Opening the enclosure is very easy and as you can see the SSD is covered with a black sticker.

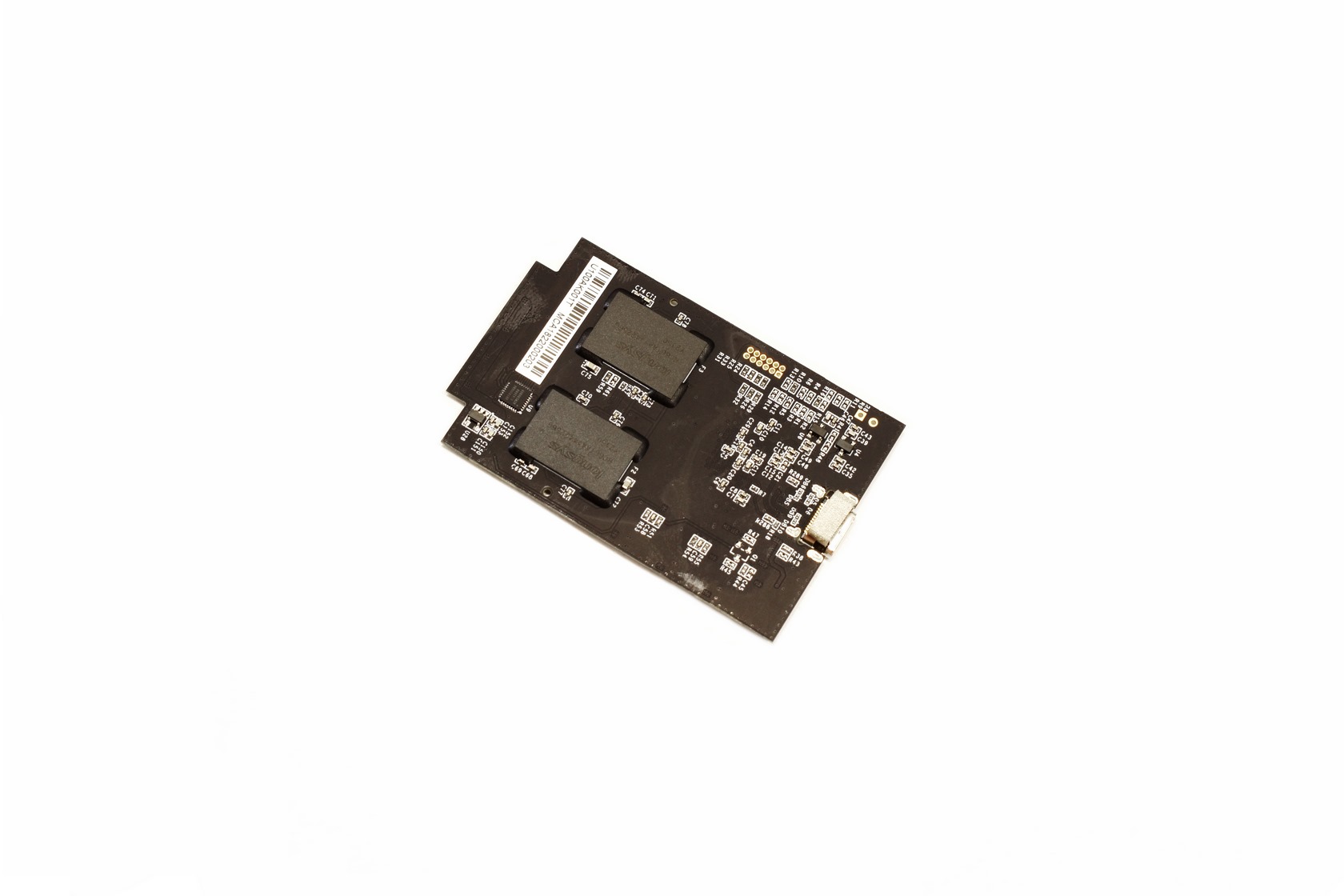

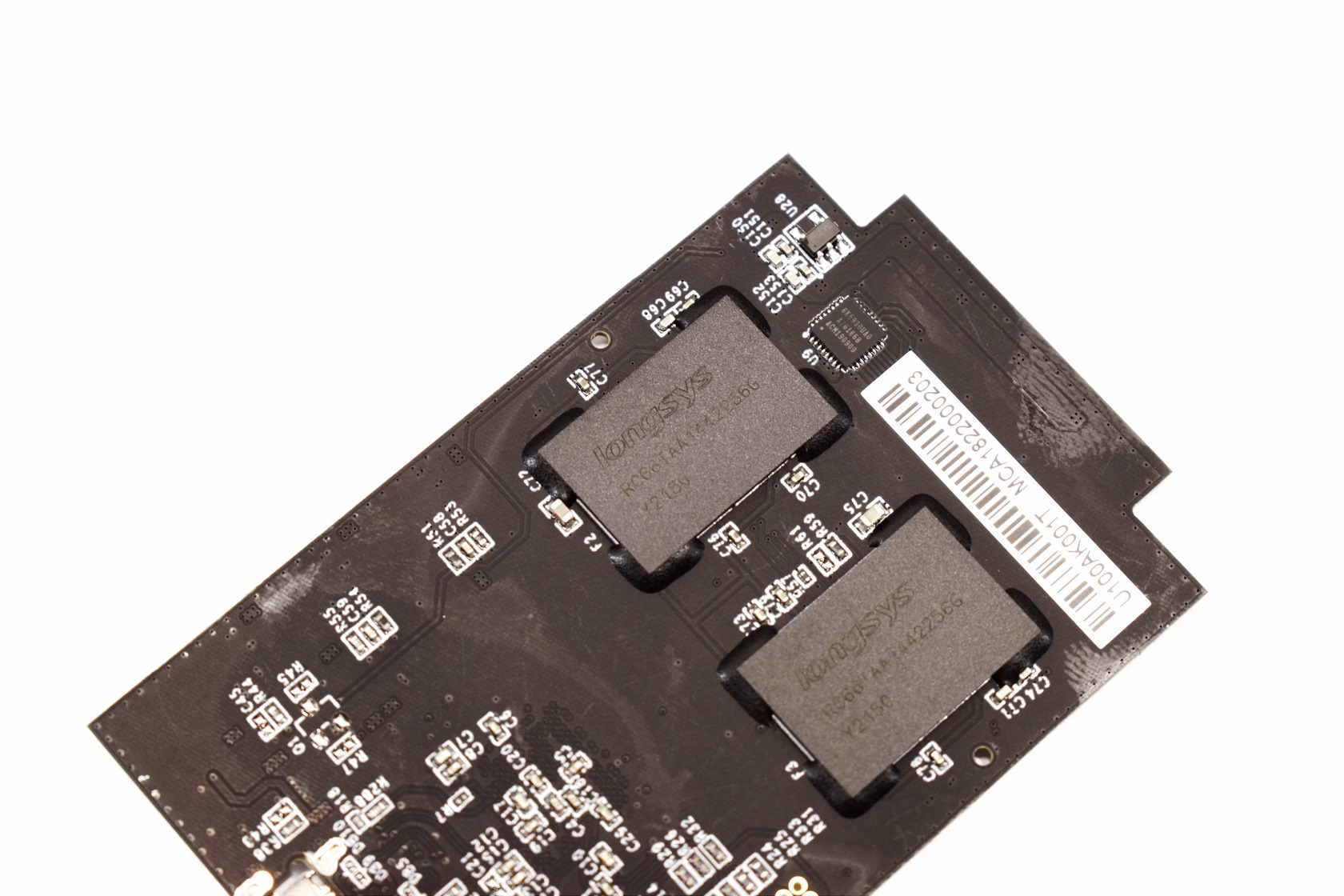

On this side of the PCB, we find two Longsys NAND flash modules and what seems to be the RGB LED controller.

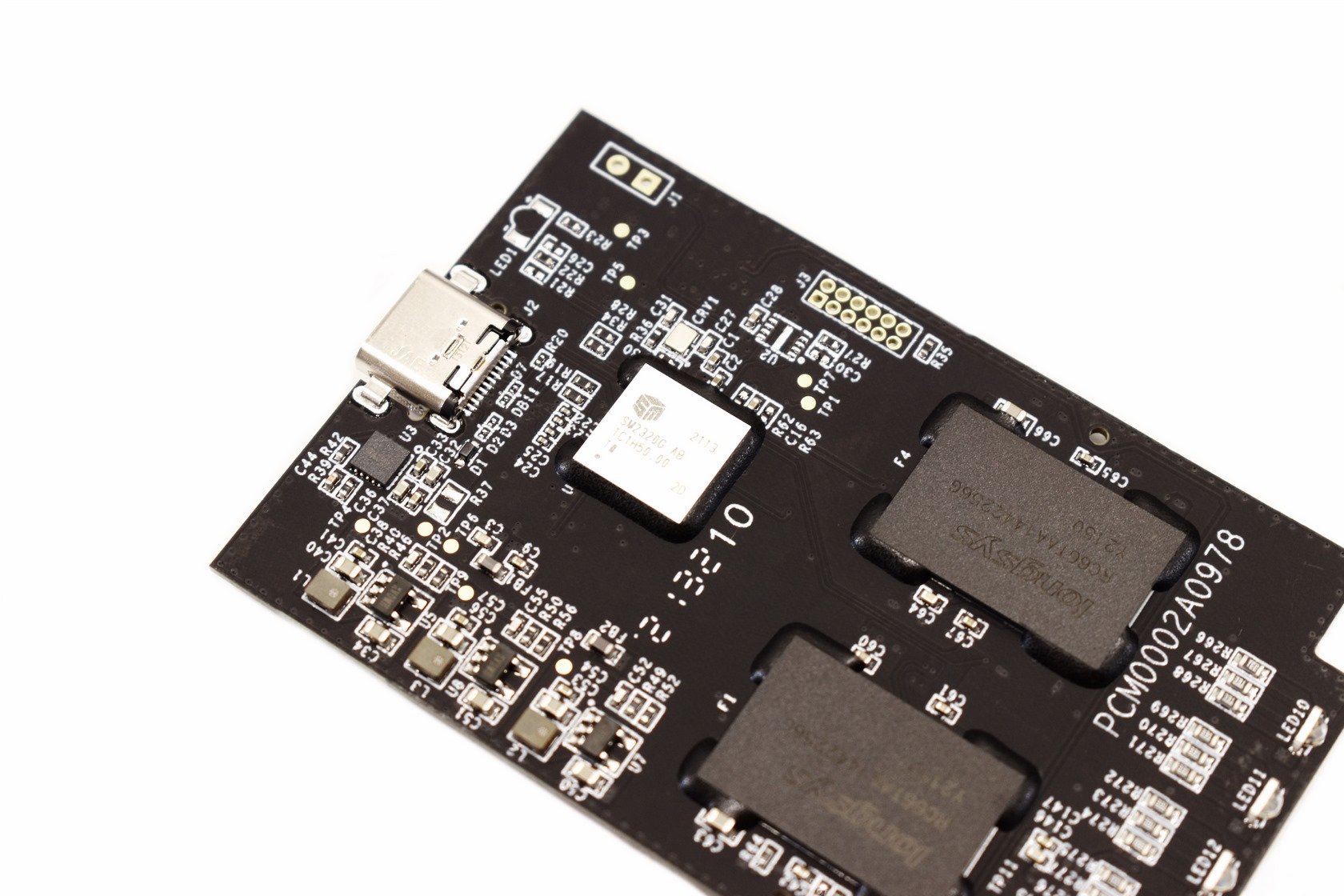

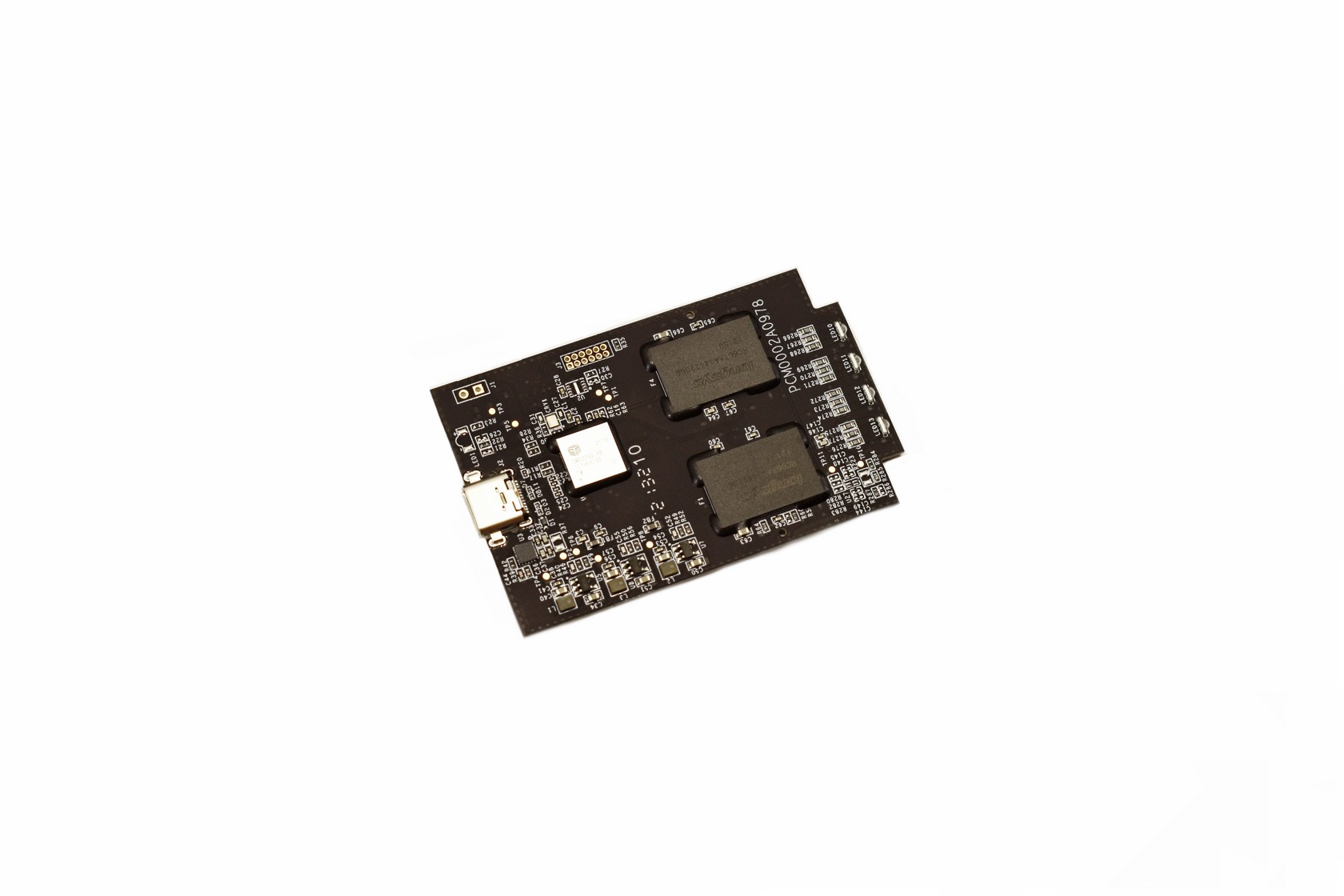

Turning the PCB over we find the Silicon Motion SM2320G NAND controller and two more Longsys NAND flash modules.

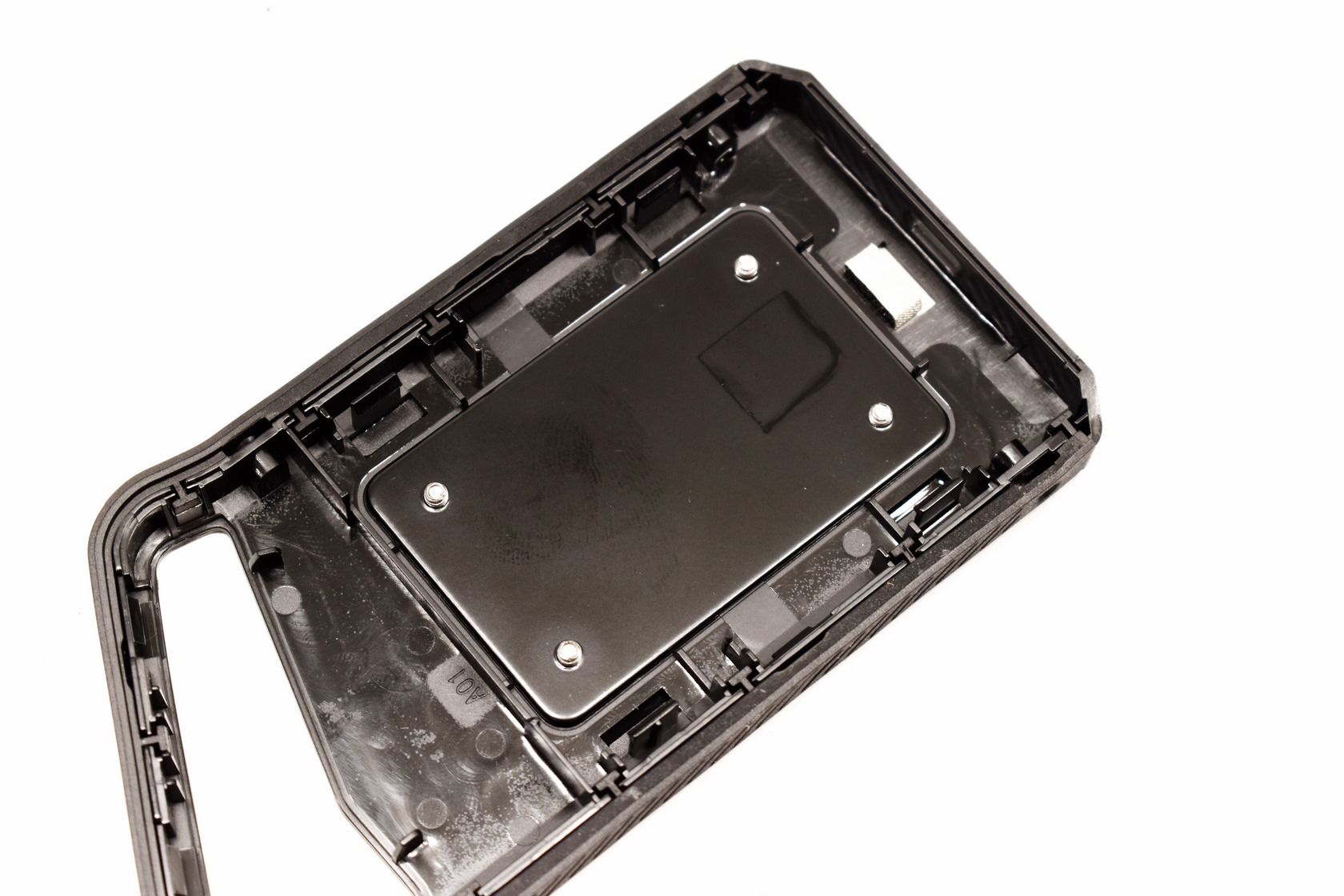

One side of the aluminum enclosure features a thick aluminum plate on the interior which is also used to dissipate heat from the NAND flash controller.
