ΤΗΕ Χ550-Τ1

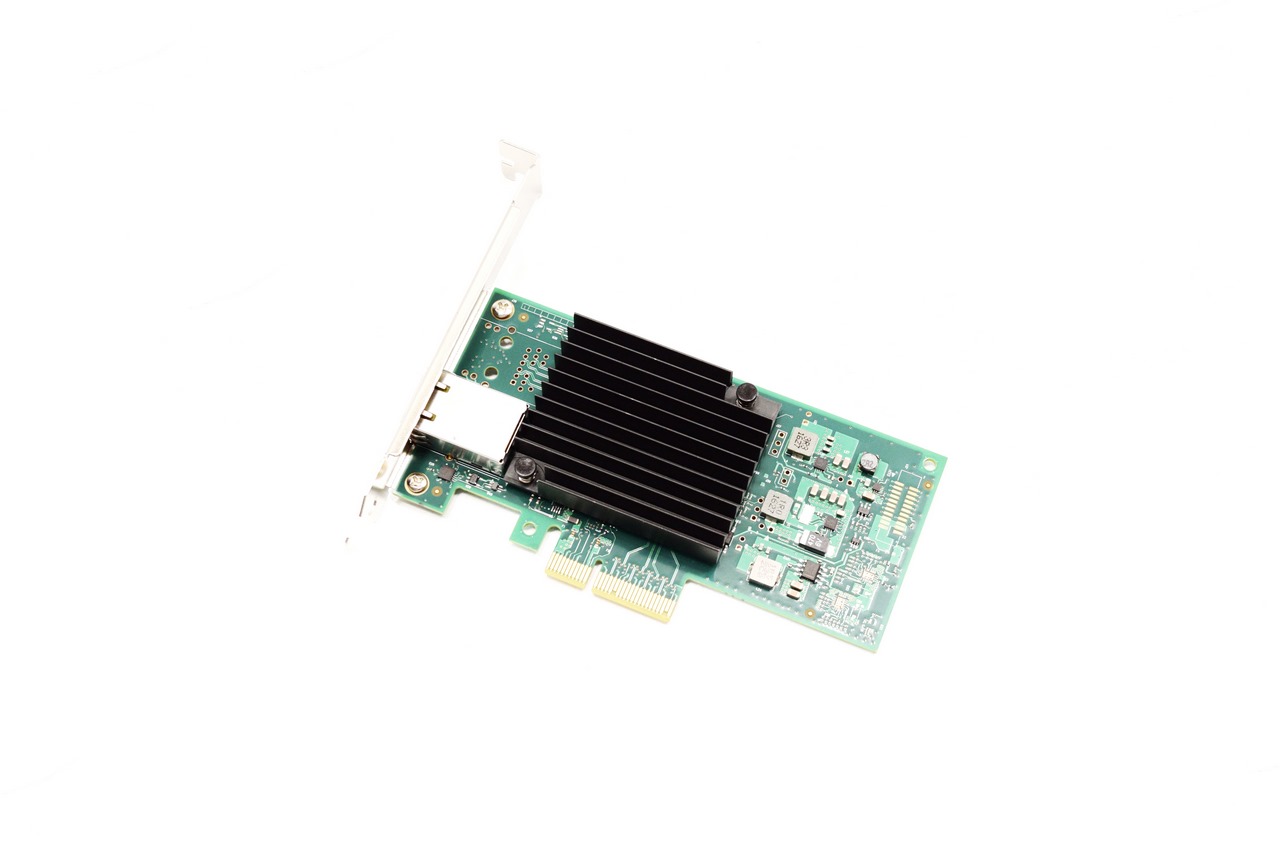

The 10Gtek X550-T1 card has a black medium sized heatsink right over the Intel chip and measures 131mm in length and 68mm in height.

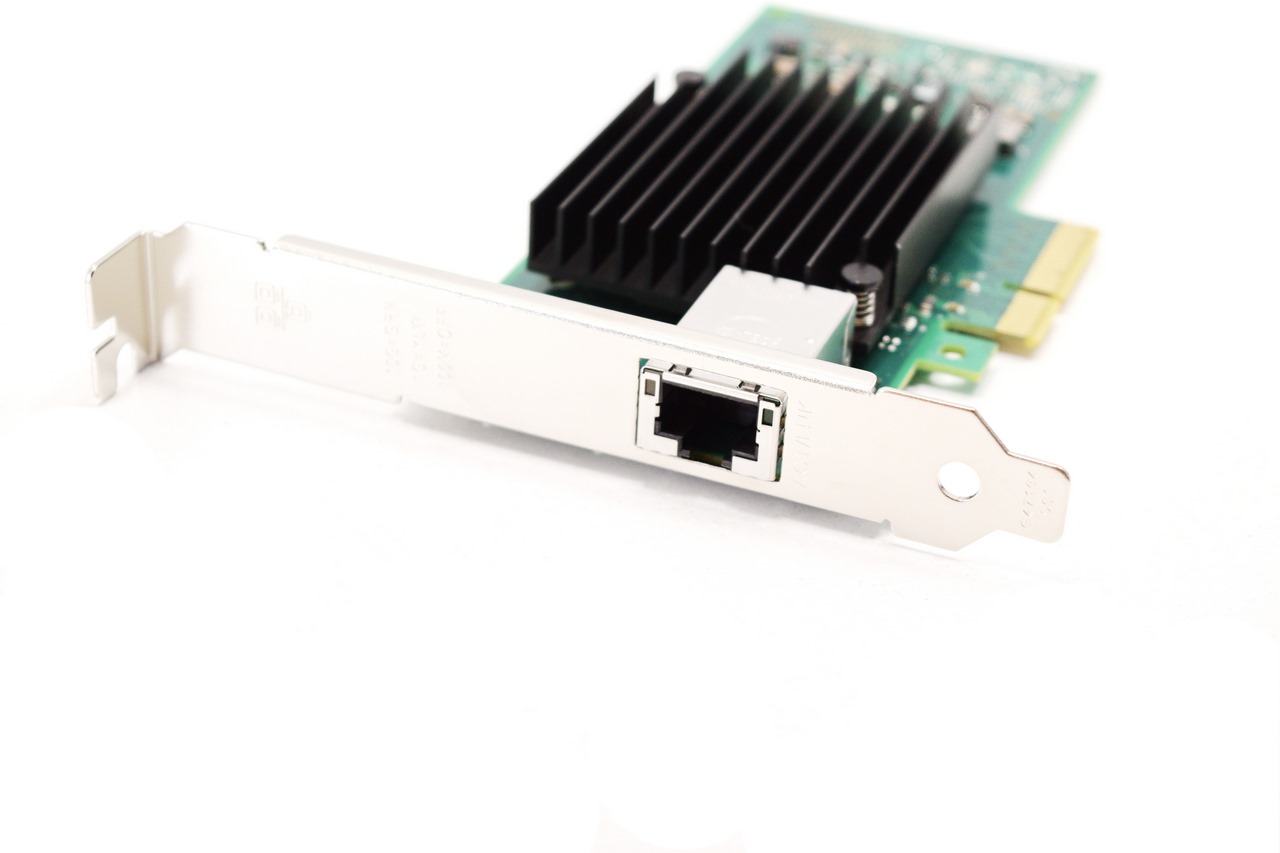

As already mentioned, the X550-T1 is a single RJ45 port card.

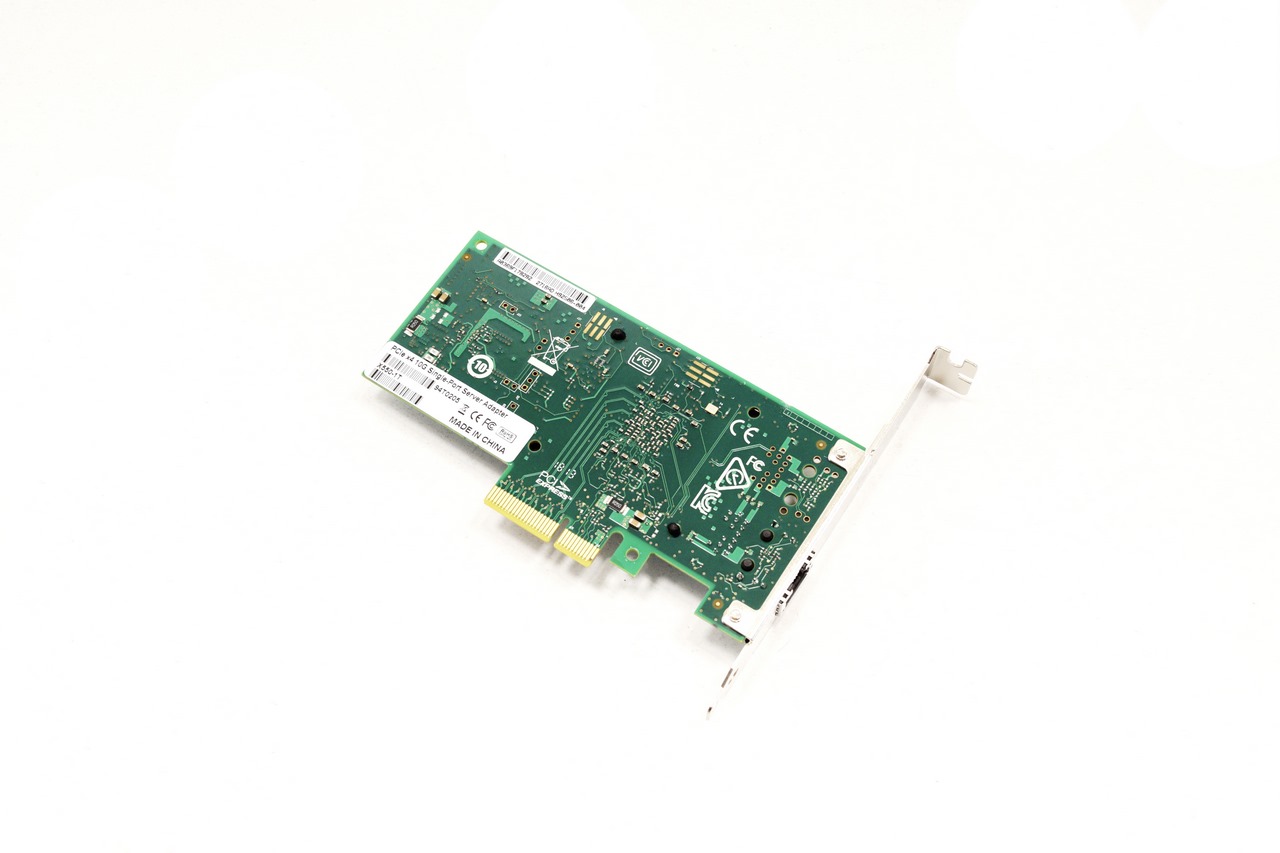

The product serial number and barcode are placed on two stickers located at the rear of the PCB.

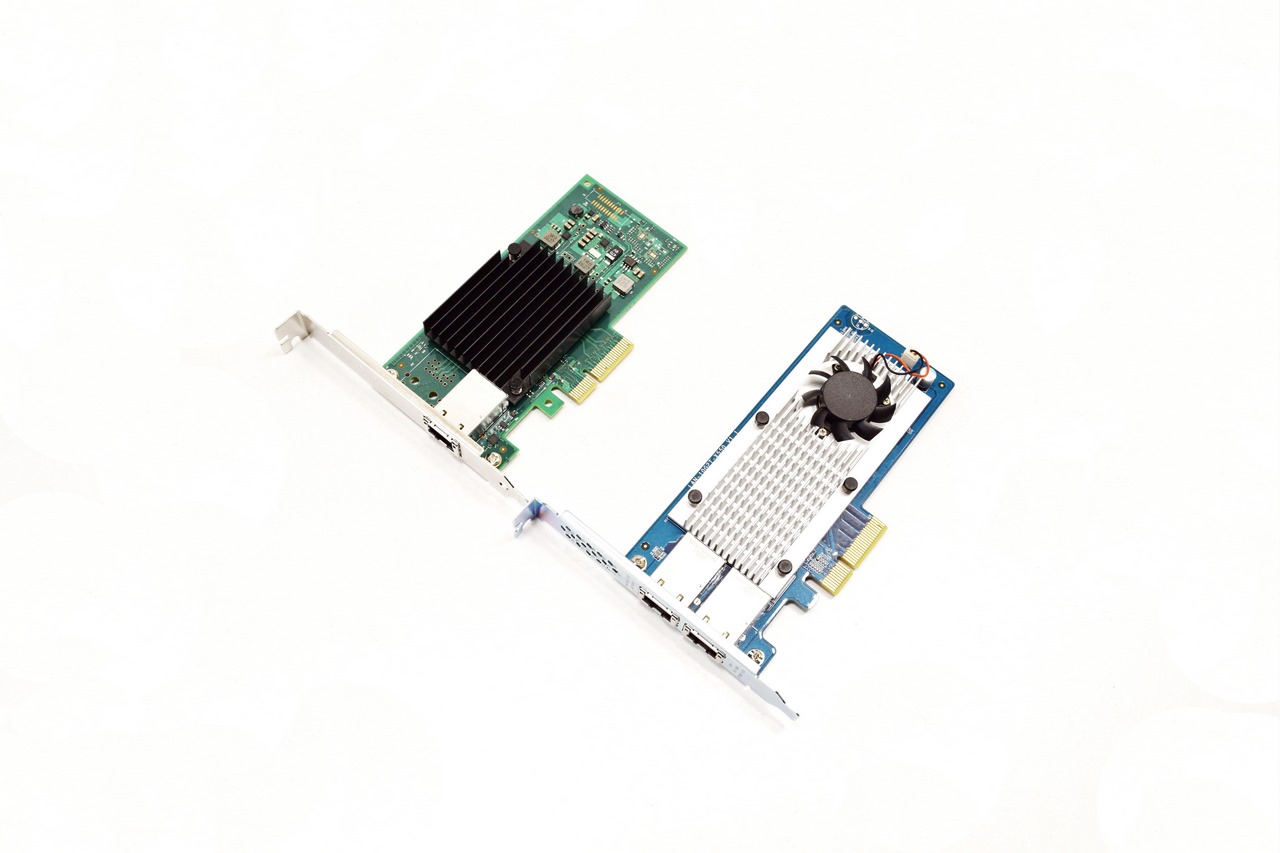

Unfortunately, 10Gtek was unable to provide us with two X550-T1 cards so we had to pair it with one of the X550-T2 cards we have here.
