THE WRT3200ACM

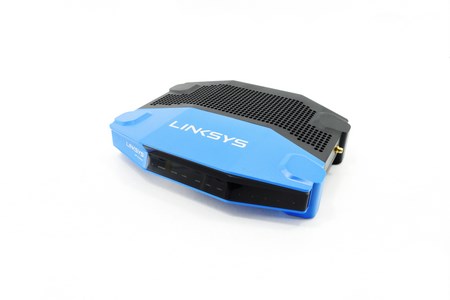

Measuring 245.87mm in width, 193.80mm in length and 51.82mm in height (without antennas) the 798g heavy WRT3200ACM is virtually identical with its predecessors.

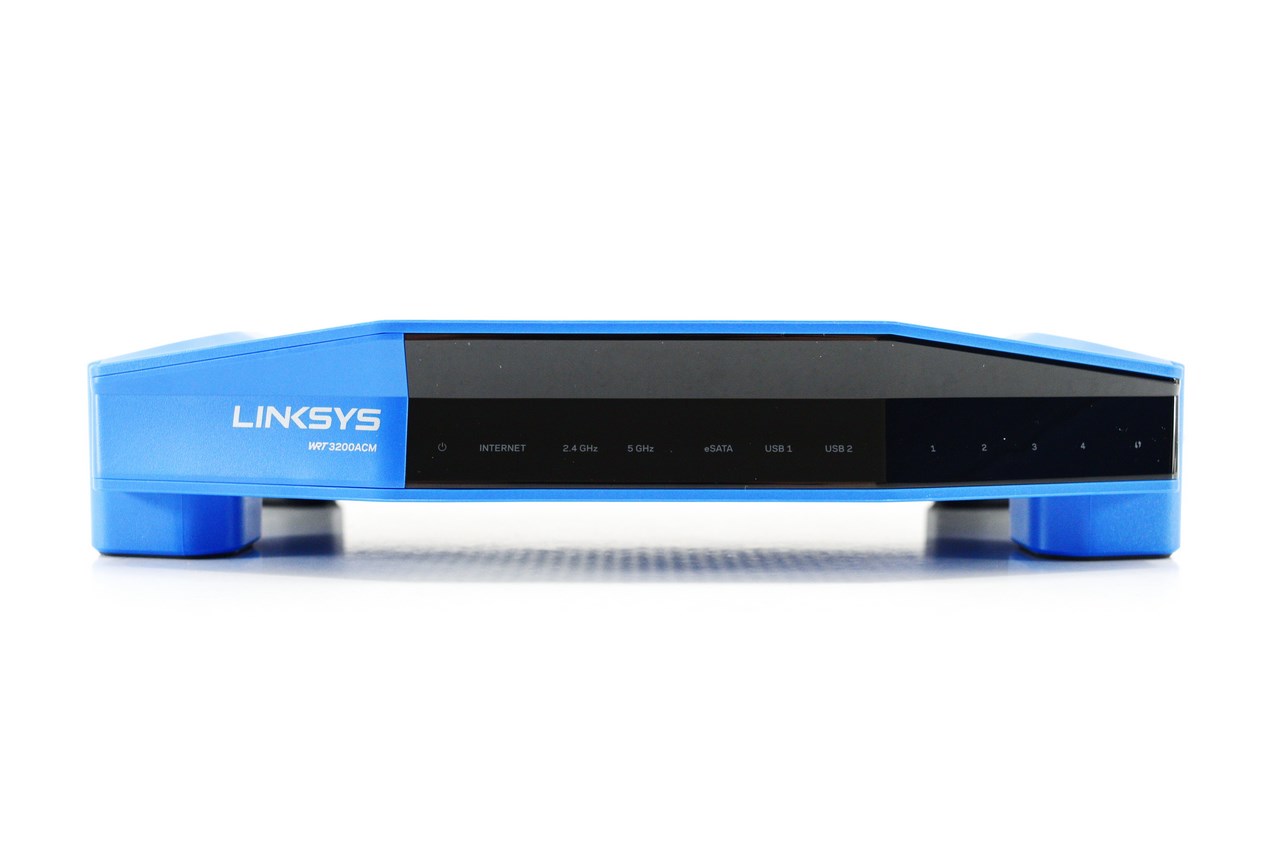

Once again at the front we find the product name right next to the white activity LEDs for power on/off, internet, Wi-Fi bands, eSATA, USB and Gigabit Ethernet ports.

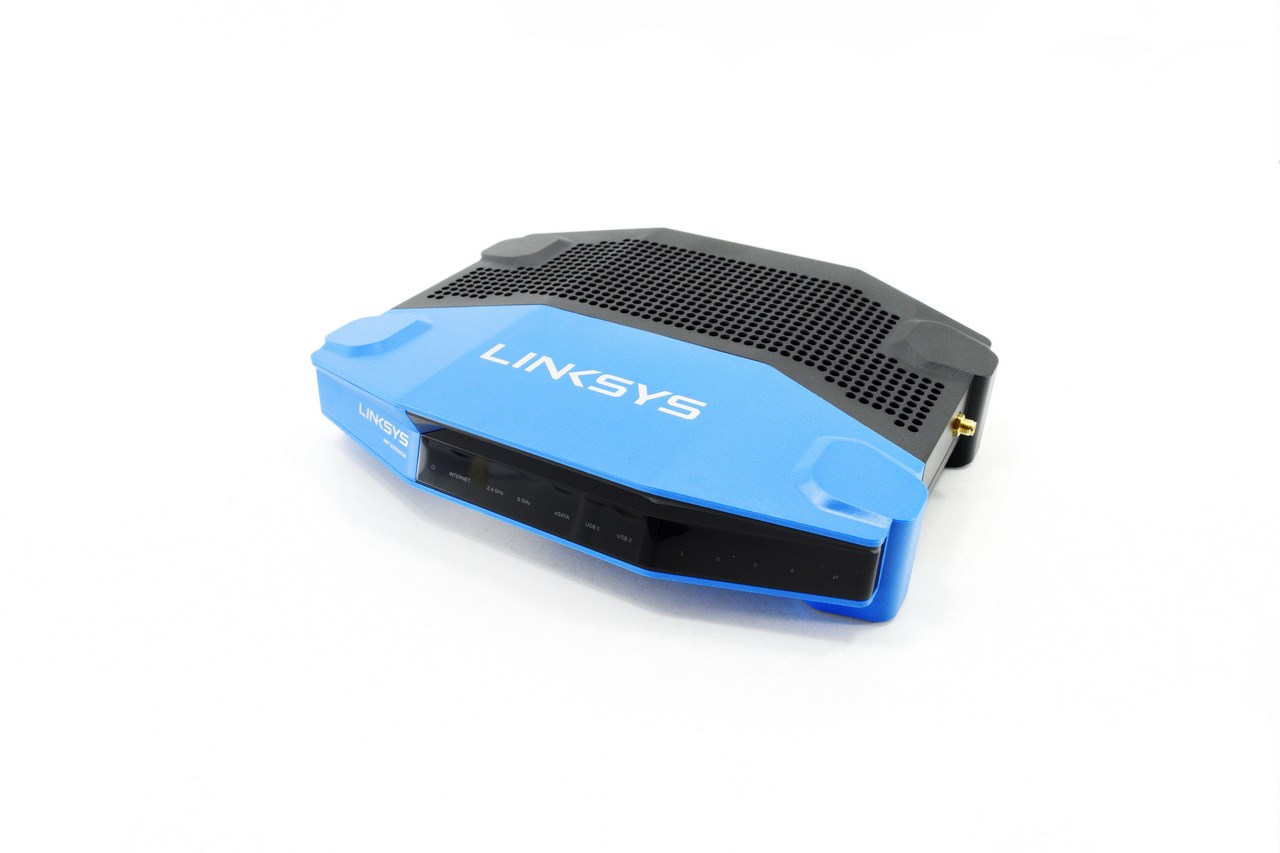

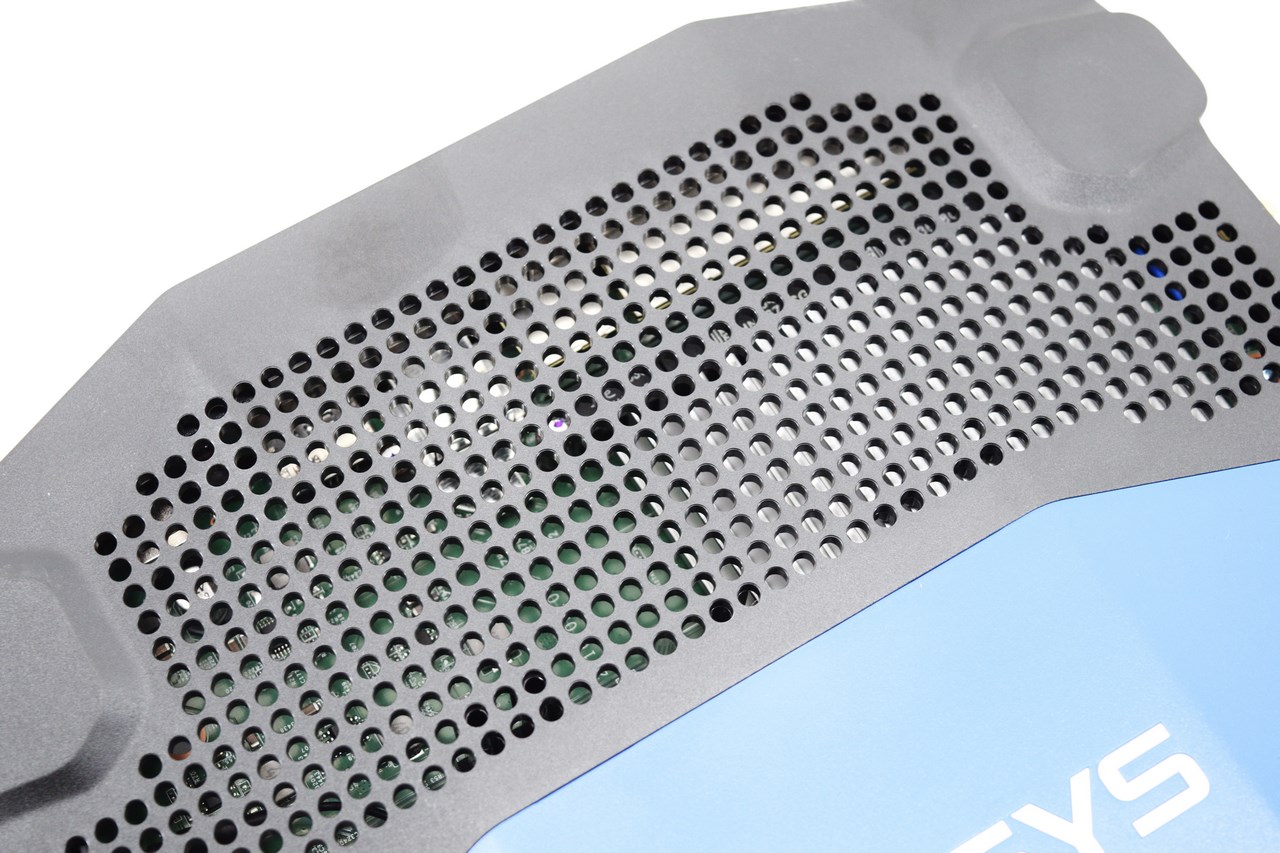

The largest area of the top is perforated to allow hot air to exit the enclosure.

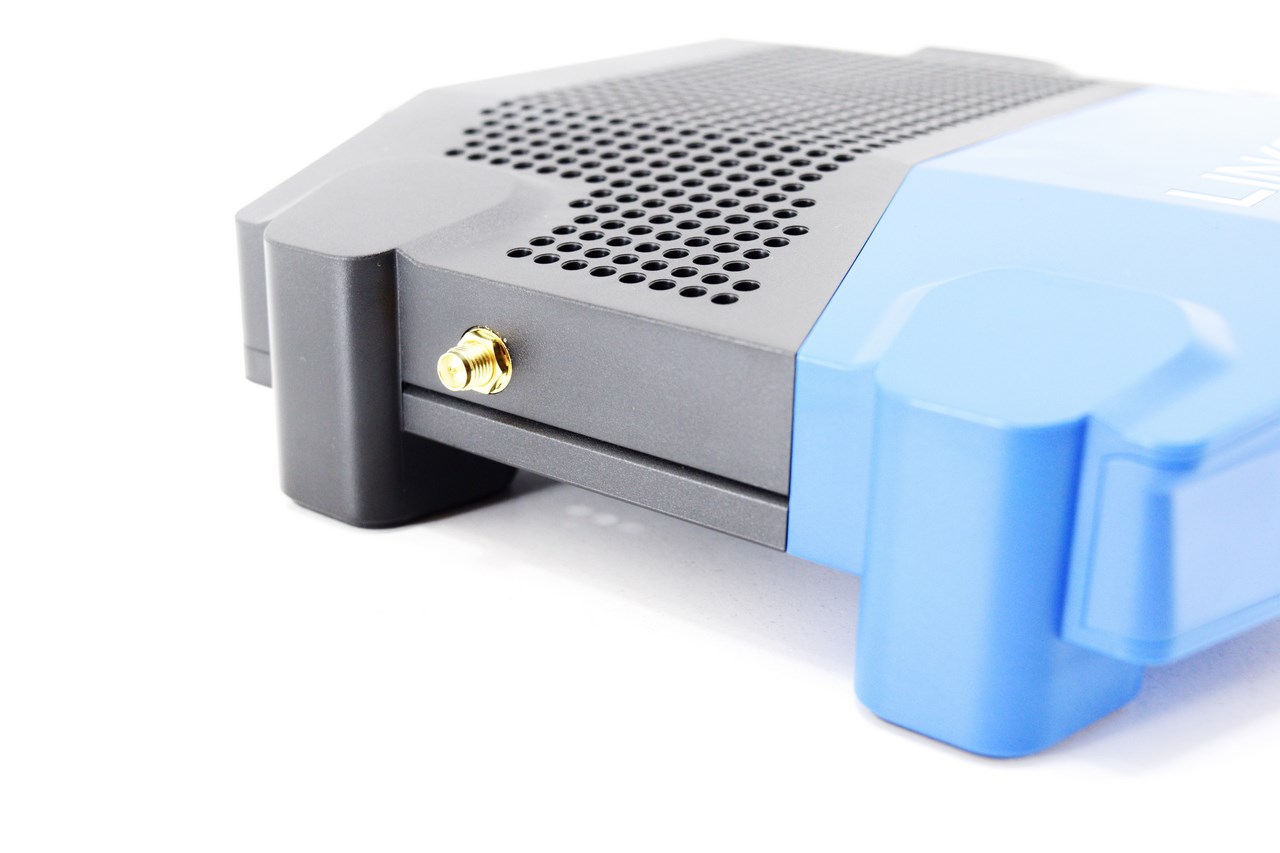

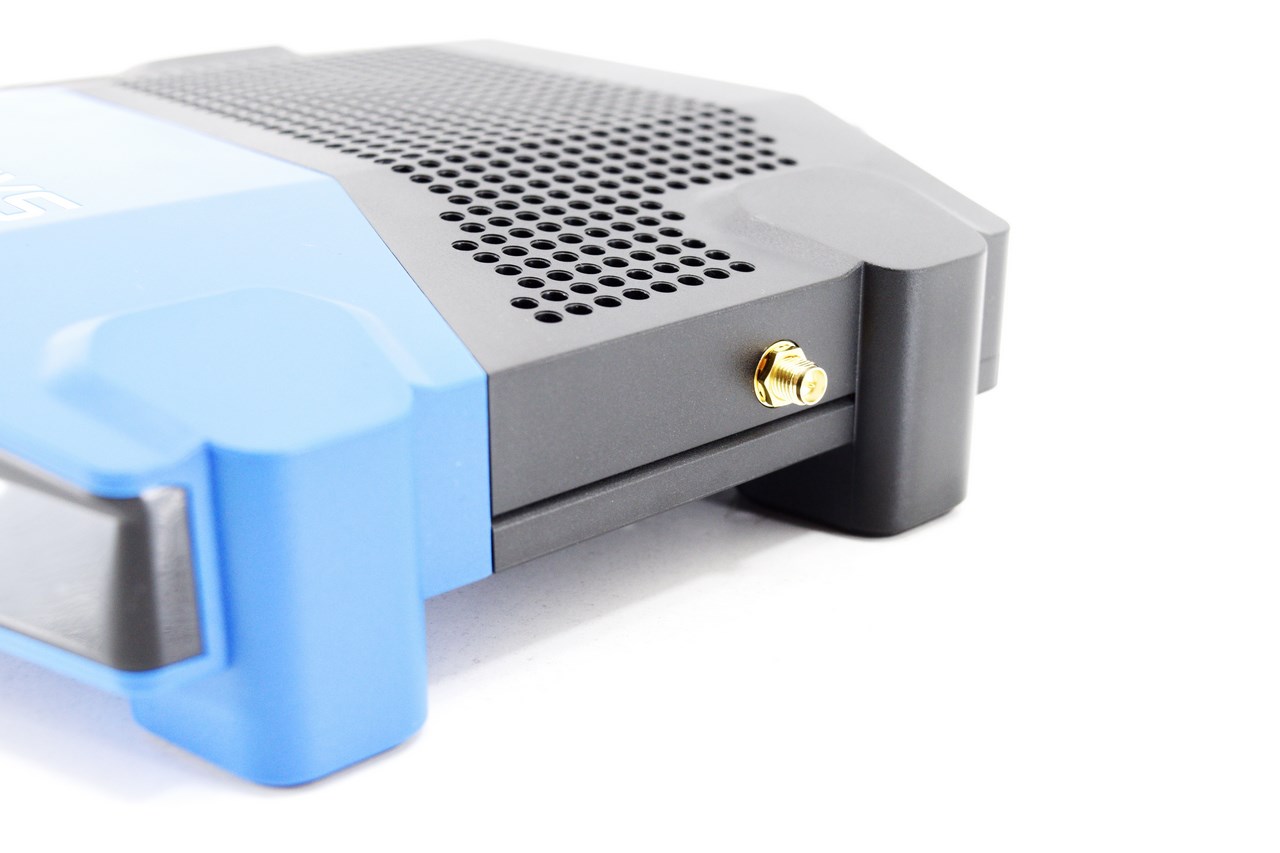

Gold plated antenna mounts are placed on both sides of the router.

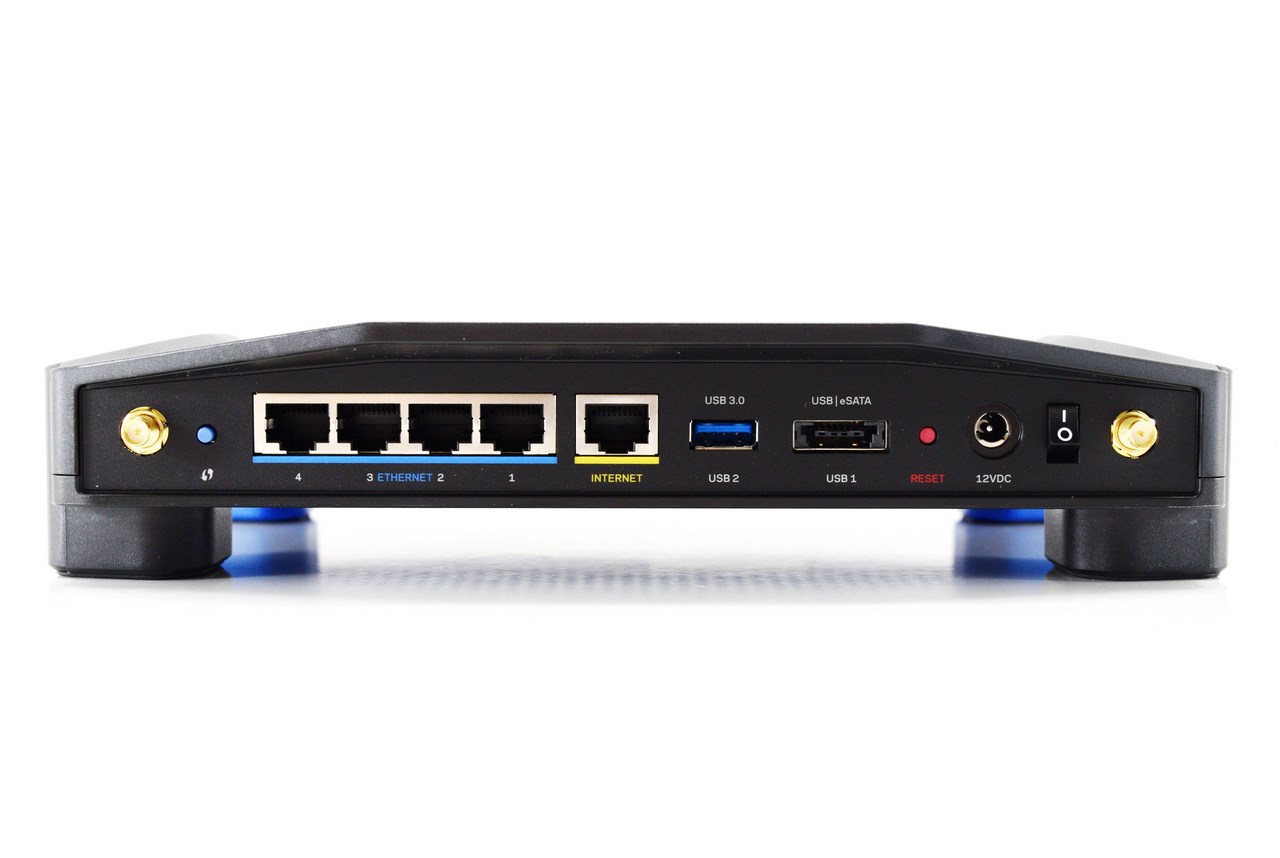

Two extra antenna mounts are placed at the rear along with a WPS button, 4 RJ45 Gigabit Ethernet ports, Gigabit WAN port, USB 3.0 port, eSATA/USB 2.0 port, reset button, DC in and the on/off switch.

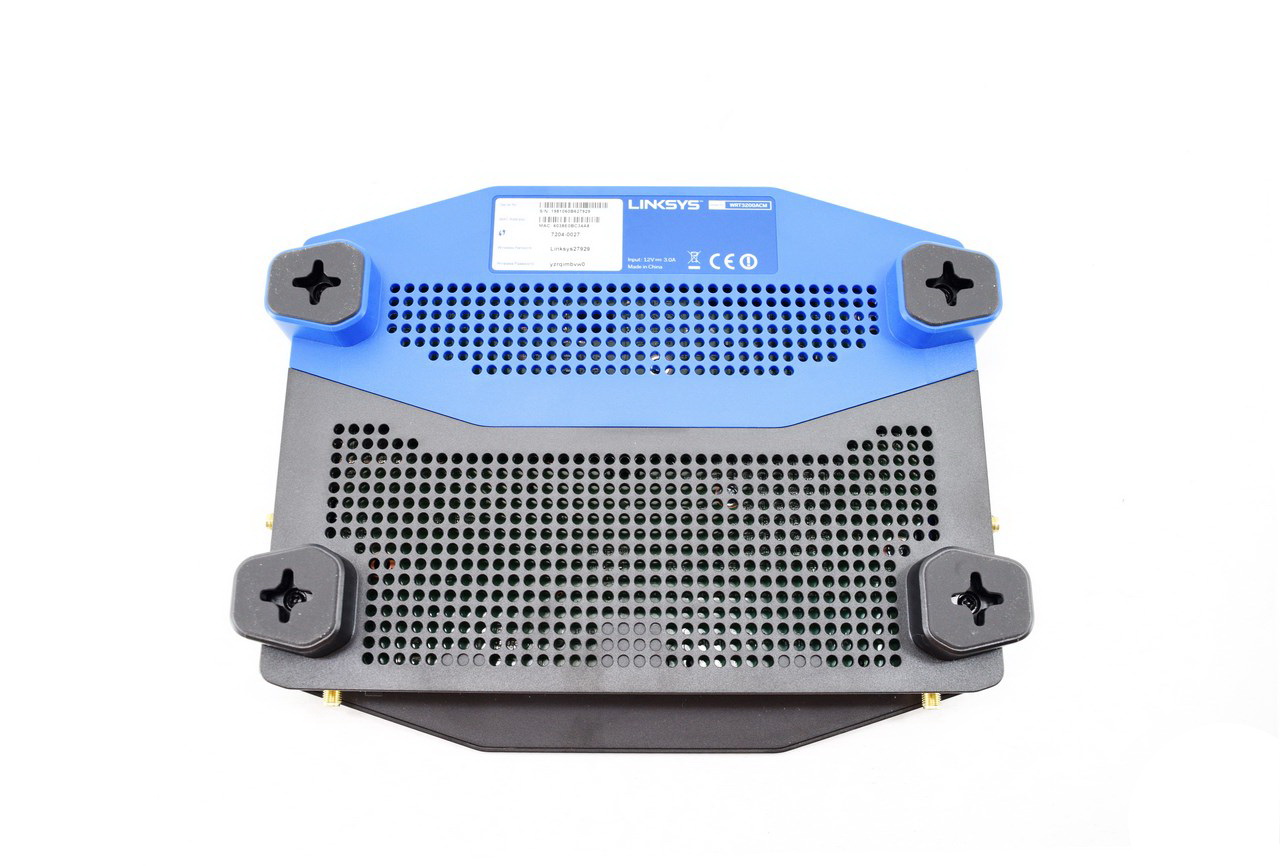

The bottom is also perforated and its 4 rubber feet also feature holes for wall mounting.

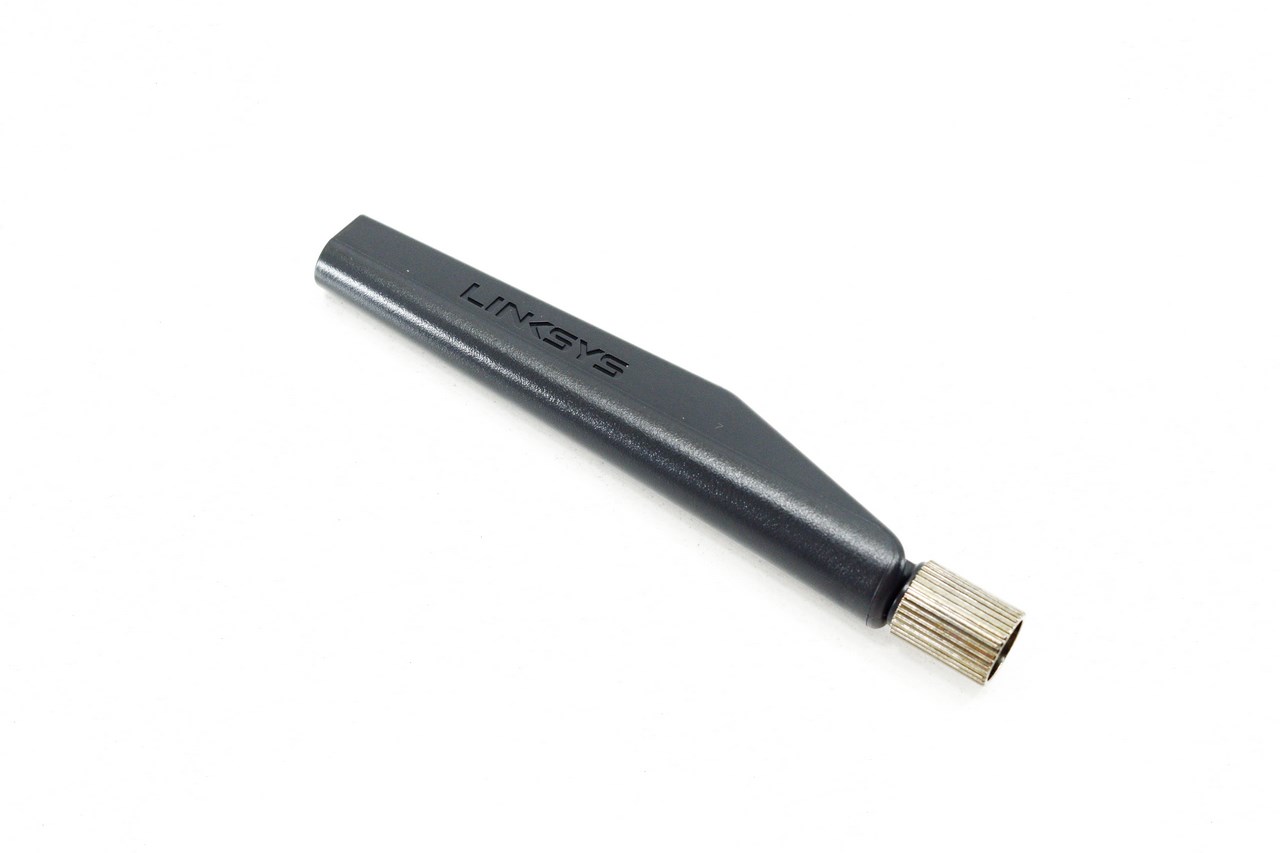

Linksys has used identical high-gain antennas with the WRT1900ACS so we pretty much know what to expect in terms of range and performance.

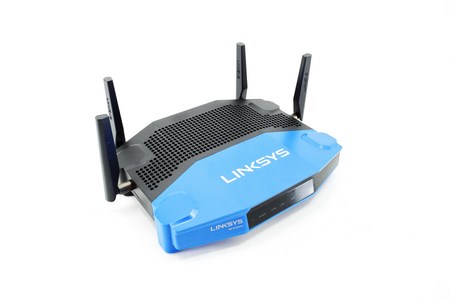

With all 4 antennas mounted the WRT3200ACM is now ready to take on its competition.
