THE RTII UPS13 1000VA

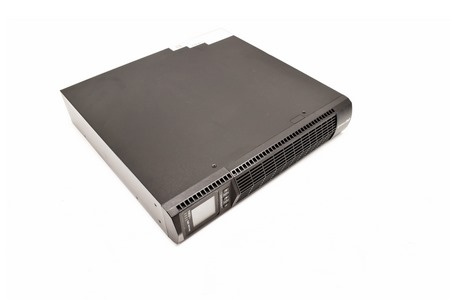

Since the RTII UPS13 is a rackmount UPS it’s quality large (440x430x86.5mm) and quite heavy (13.9Kg).

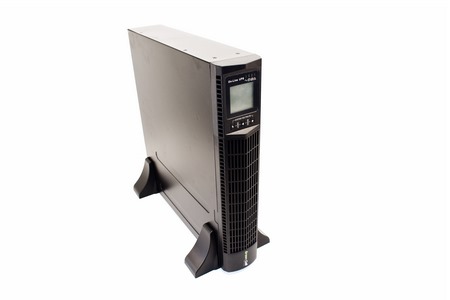

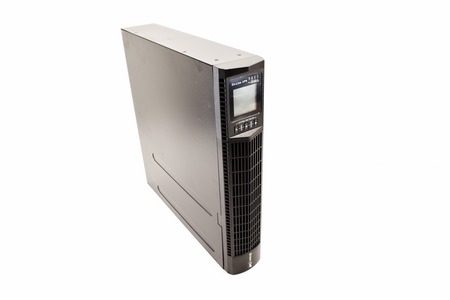

Much like all other rackmount UPS models I’ve used and/or reviewed to date the RTII UPS13 can be positioned either horizontally or vertically.

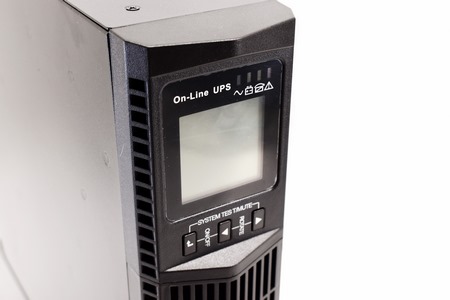

Even though the LCD screen can be rotated depending on the position of the UPS it only shows the current status of the unit (no settings to change from here).

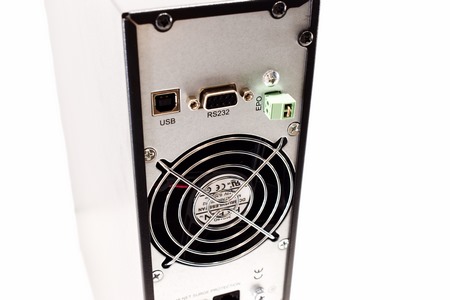

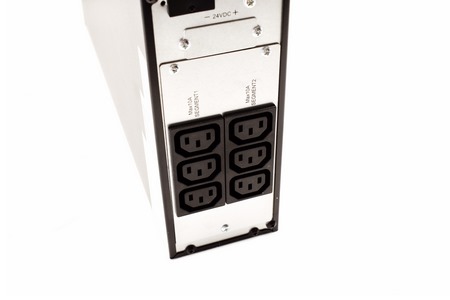

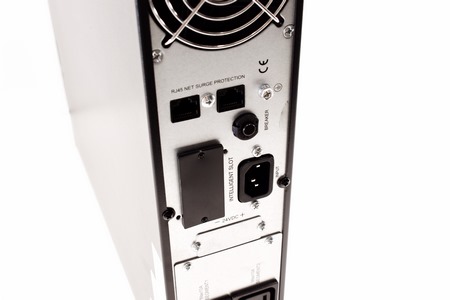

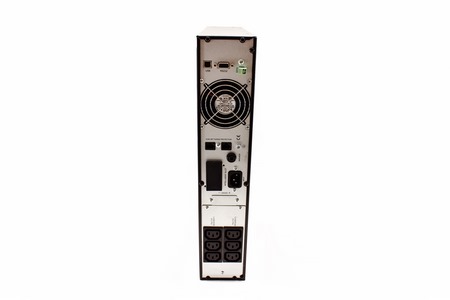

Turning the RTII UPS13 1000VA around we find the USB host port, RS232 serial port, EPO port, two RJ45 ports, intelligent slot, breaker button, power port and the 6 IEC320 ports.

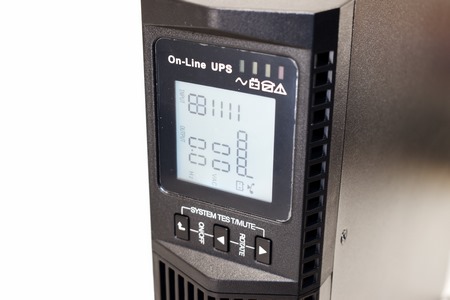

As mentioned earlier the LCD screen only indicates input/output voltage and HZ, power draw and battery life (the three buttons beneath are used for on/off, LCD screen rotation, alarm sound mute and self test).

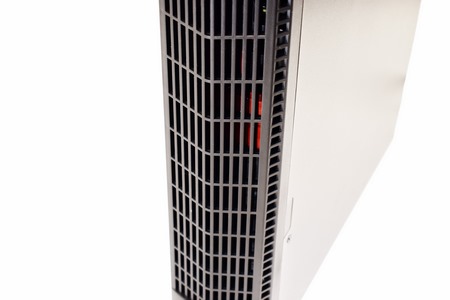

The batteries are behind the front plastic grill seen in the above picture.

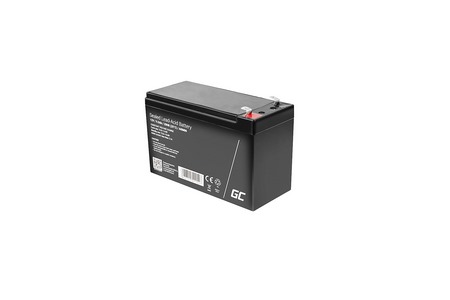

For this specific model Green Cell has used two 12V 9.0Ah AGM06 batteries.

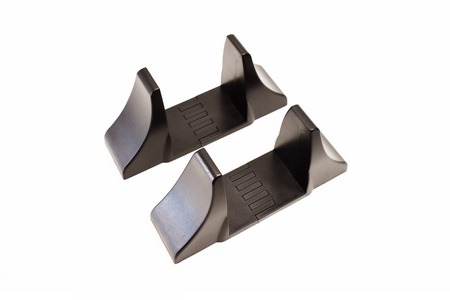

Here you can see the two feet which you’ll need to use with the RTII UPS13 if you decide to place it vertically as also seen above.
