THE TV-101AW INTERIOR

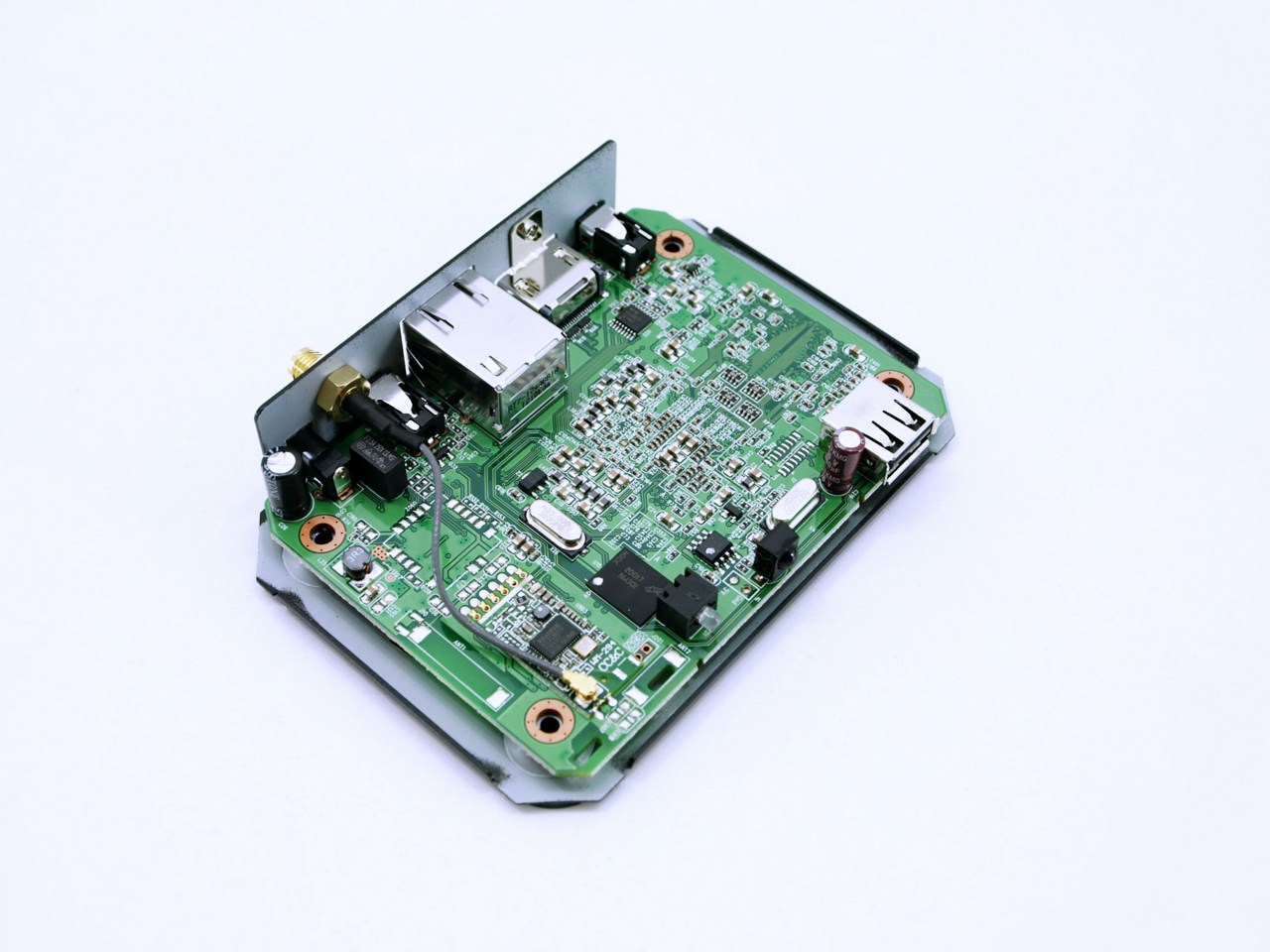

Again just like the TV-301A the components of the TV-101AW are placed at the bottom/opposite side of the PCB.

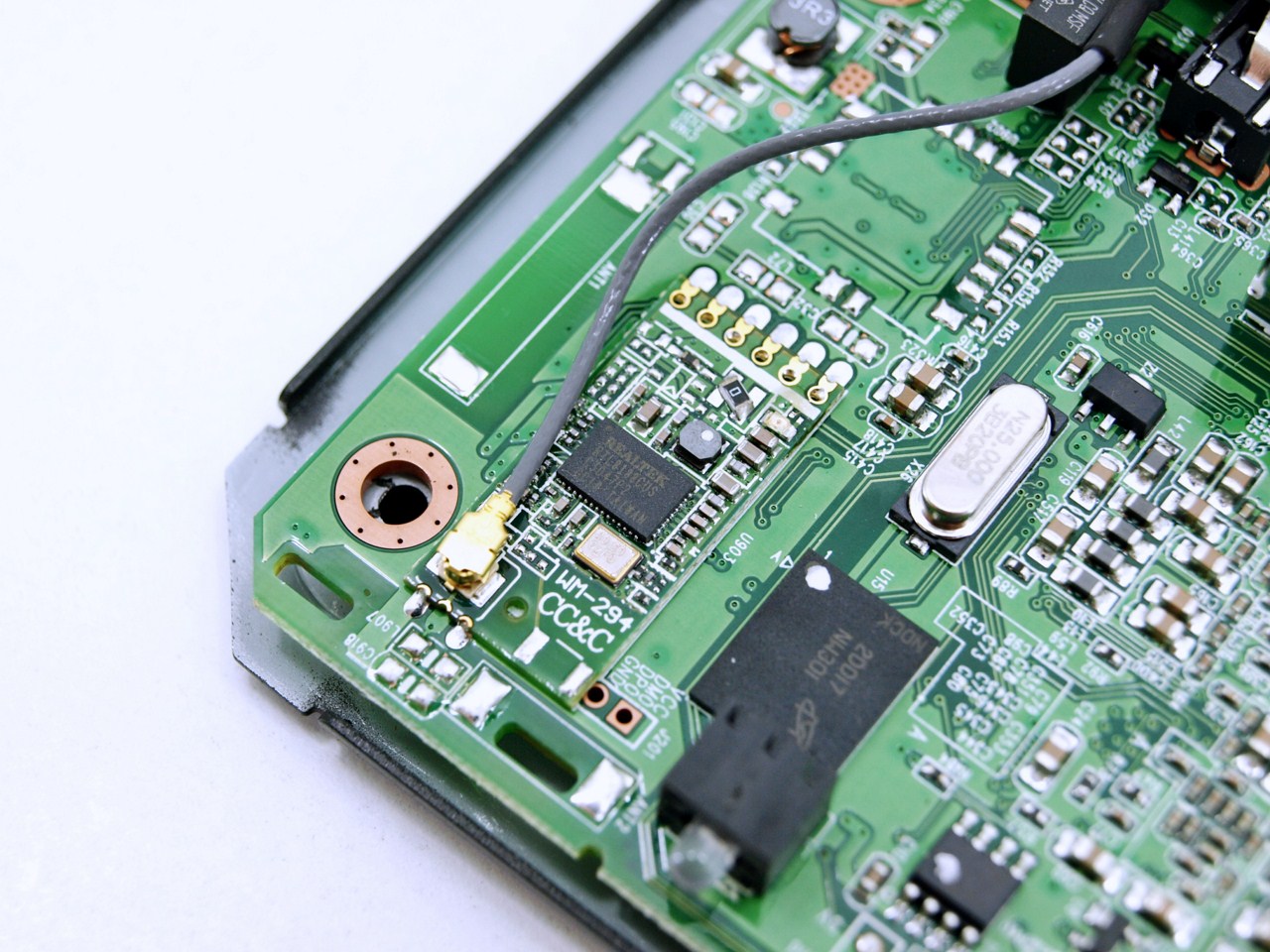

The RTL8188CUS USB 2.0 network interface controller by Realtek is the chip responsible for units IEEE 802.11b/g/n WLAN support.

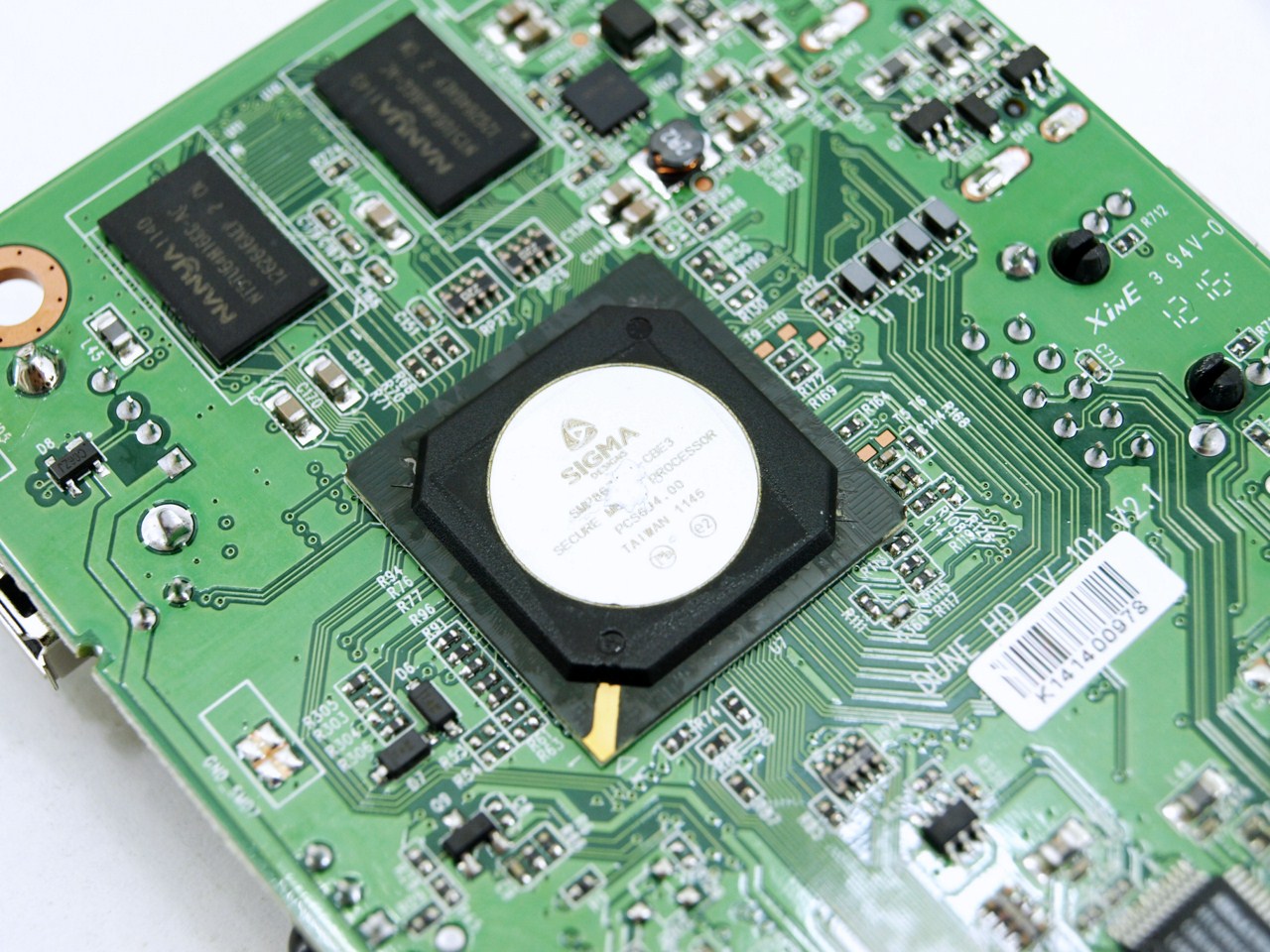

At the center of the PCB we see the Sigma Designs SMP8670/1 processor/HD decoding chip.

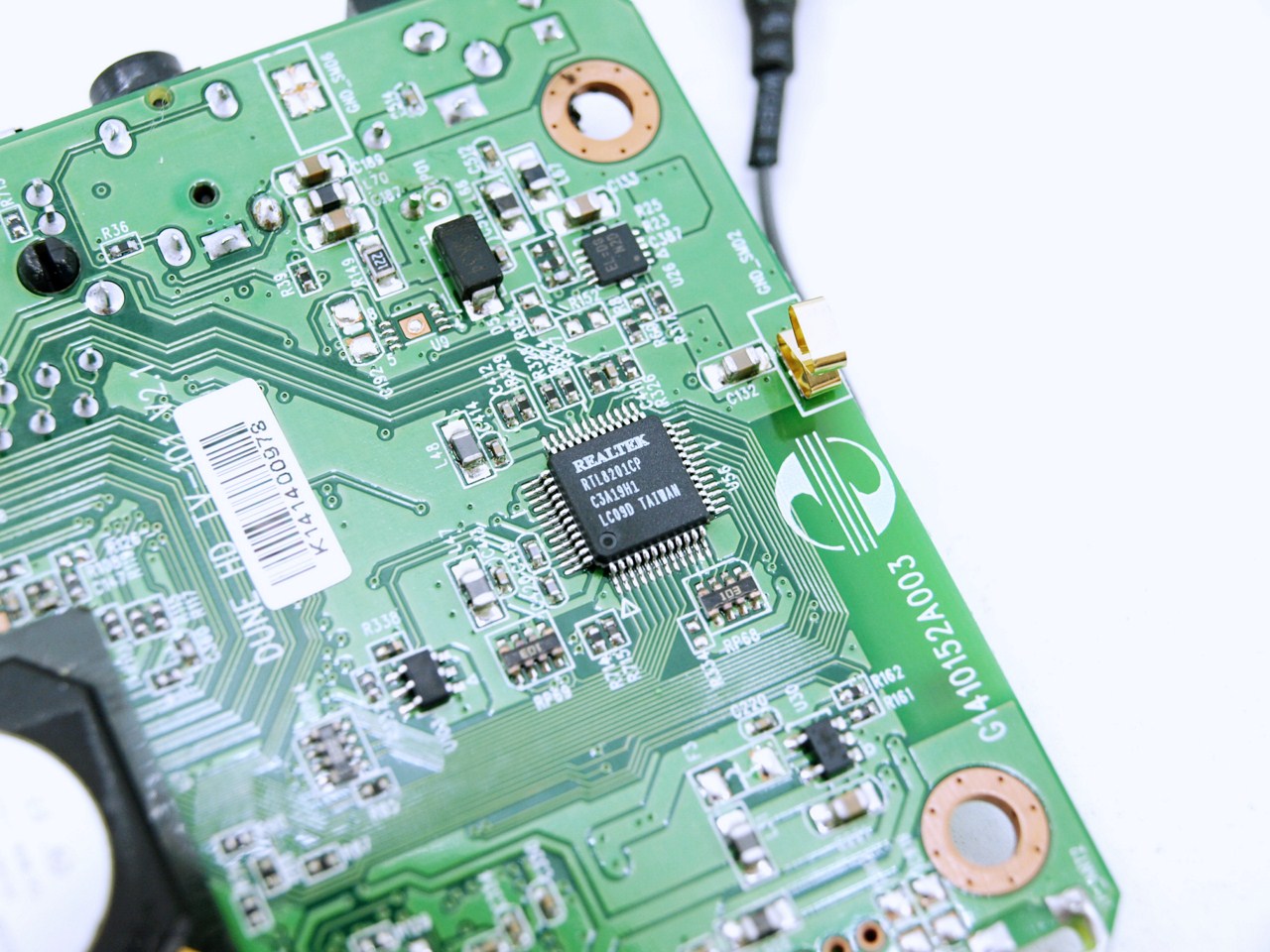

Realtek is also the supplier of the RTL8201CP PHYceiver (Ethernet component).

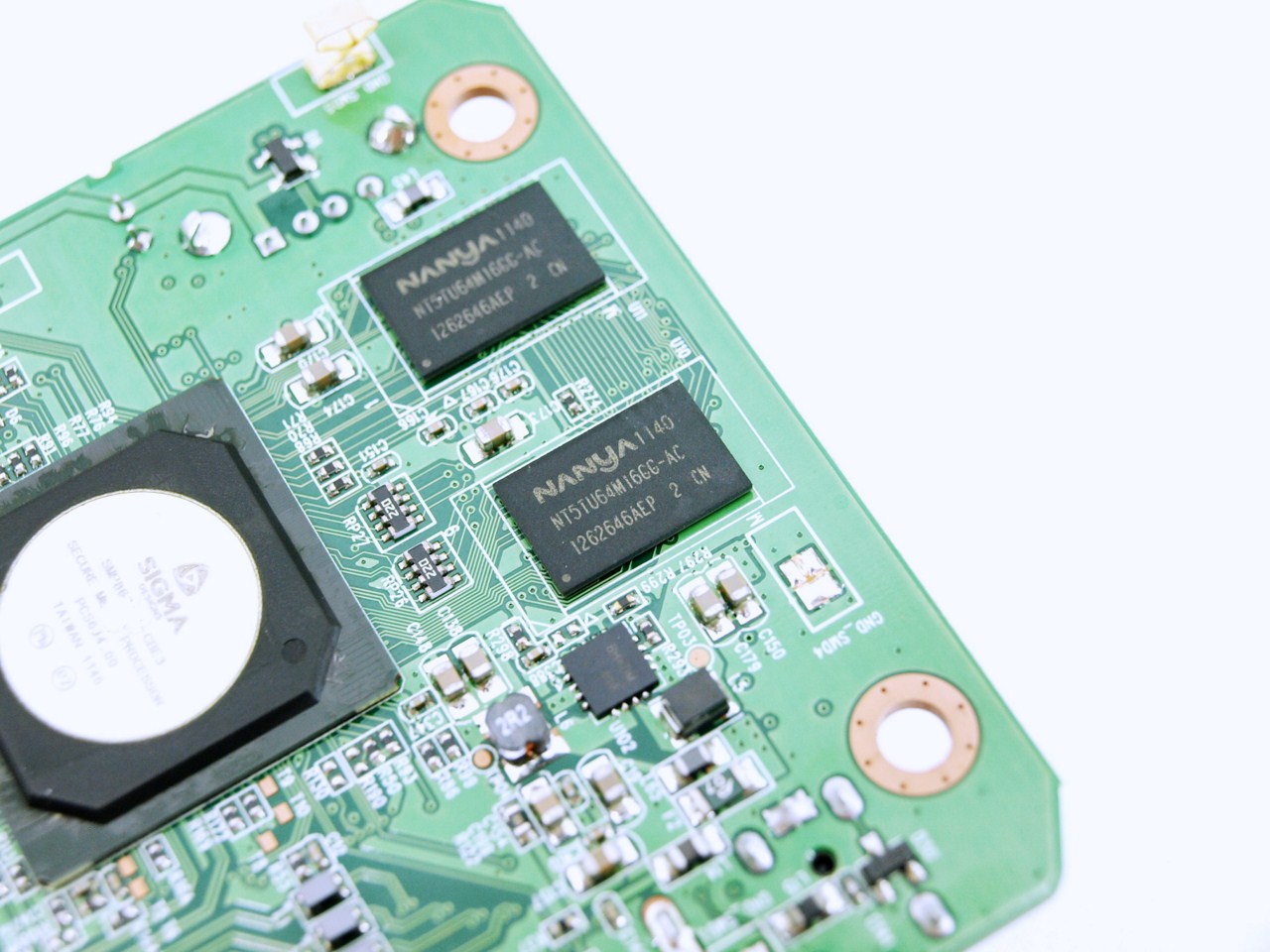

Two 64MB DDR2 800MHz ICs manufactured by Nanya Technology (NT5TU64M16GG-AC) are also present at the bottom of the PCB.

So the time has come to see how well this little guy performs.
