THE ENDER-5 S1

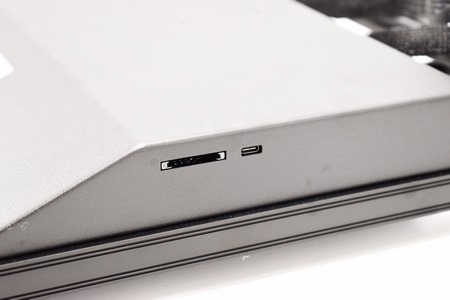

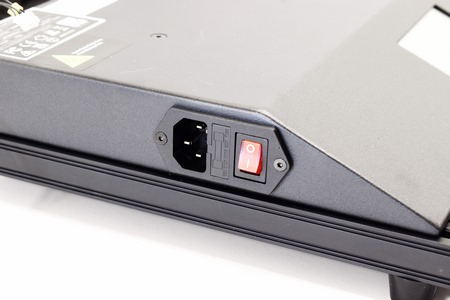

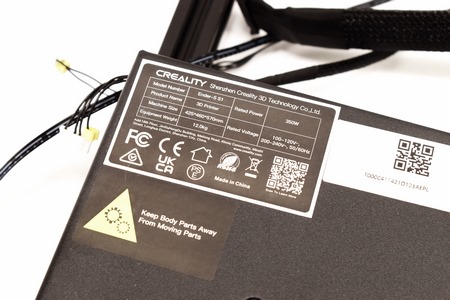

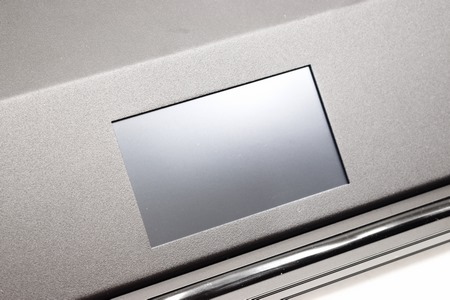

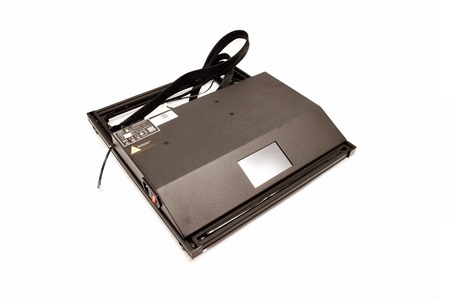

As expected, the base of the Ender-5 S1 consists by the 350W switching power supply (power port, fuse and on/off switch), the SD card reader and USB port and the 4.3" color touchscreen.

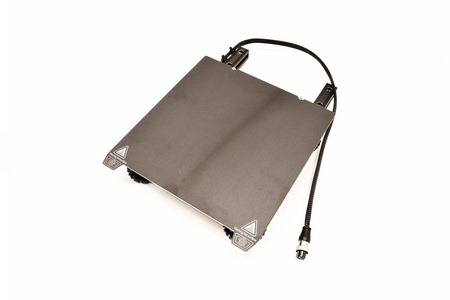

The sticky and bendable bed sports a printing area of 220mm in diameter and up to 280mm in height.

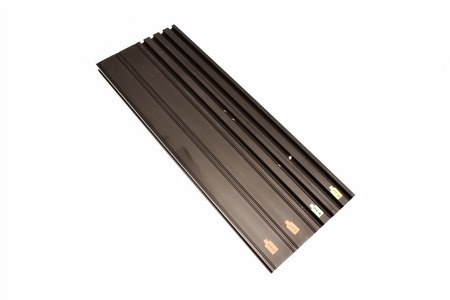

Since the Ender-5 S1 is a cube design model you will need to mount these four supports on the corners of the base.

Once the supports are mounted you will need to mount the dual-gear direct drive metal extruder piece as seen above.

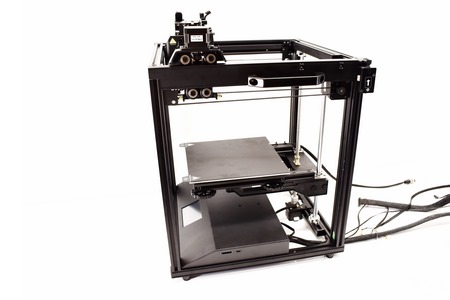

The Z-axis piece is next but in order to mount the bed on it you will also need to attach the plastic supports seen above.

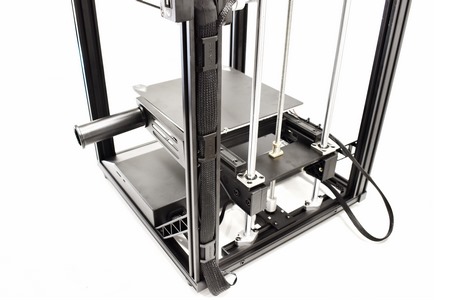

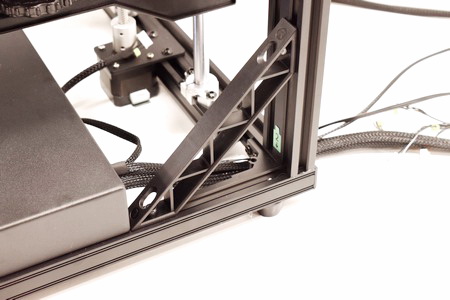

Needless to say, the two support bracings are also very important (the Z-axis piece with the bed attached is quite heavy after all).

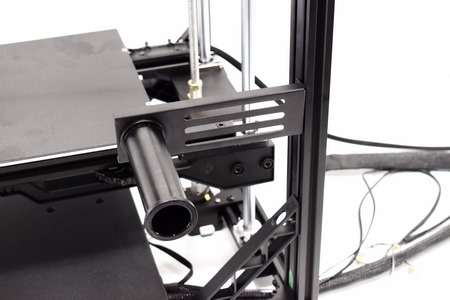

By default the printing filament rack gets mounted on the right side of the Ender-5 S1 as seen above.

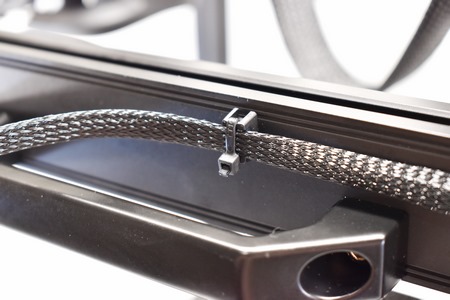

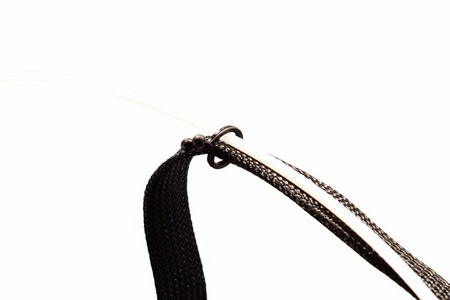

Next you will have to route the various cables so that they don't interfere with the printer's moving parts.

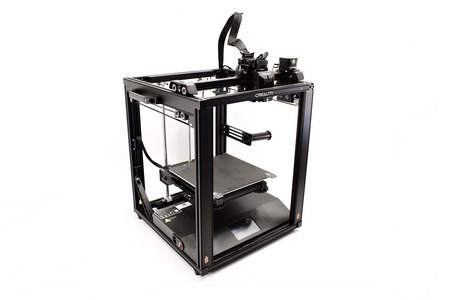

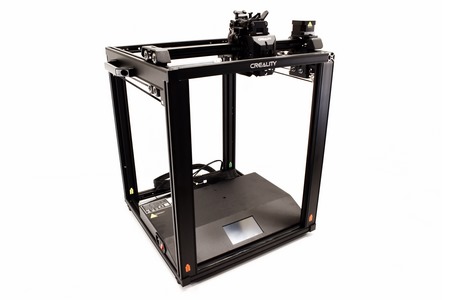

When complete the 12Kg heavy Ender-5 S1 measures 570mm in height, 425mm in width and 460mm in depth.
