THE H115I ELITE CAPELLIX

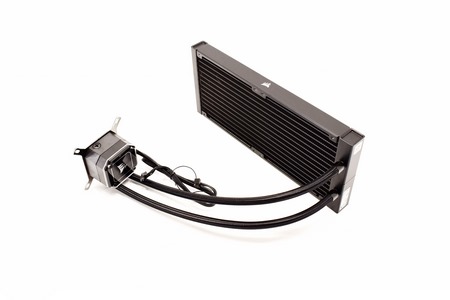

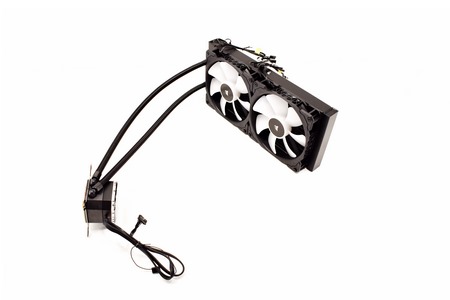

Even though the main body of the H115i Elite CAPELLIX is nothing we haven't see many times in the past the rather thick pump/waterblock does stand out.

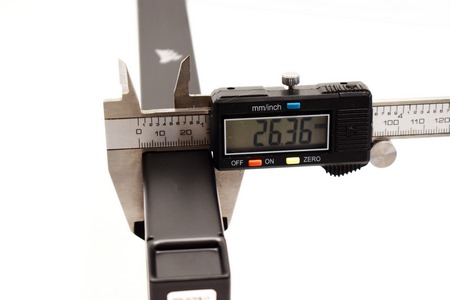

CORSAIR has used the same 27mm thick aluminum radiator.

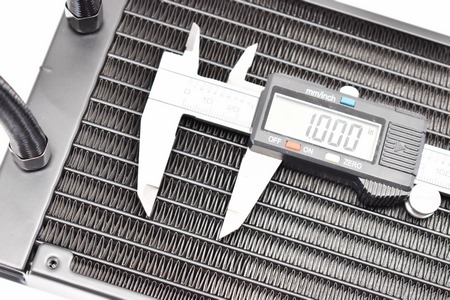

FPI count (find per inch) is also identical at 20.

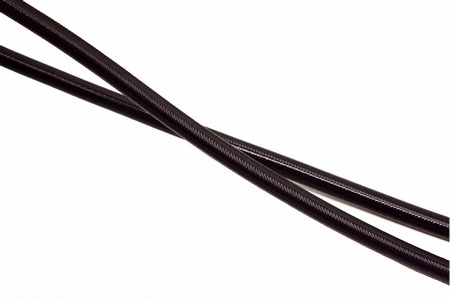

Once again, the aluminum radiator is connected to the pump/waterblock combo via two 380mm long black sleeved low permeability tubes.

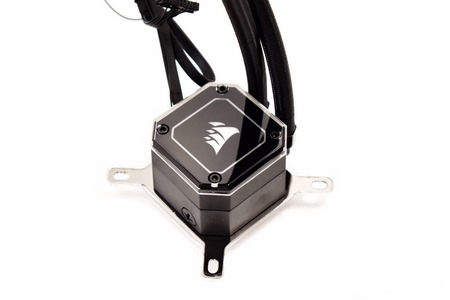

This time over CORSAIR has used both a swappable top cap and 33 individually addressable CAPELLIX RGB LEDs right beneath it.

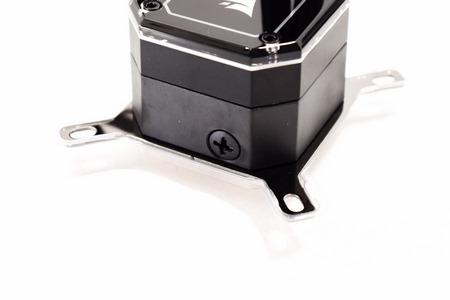

A fill/drain port is located at the front of the pump.

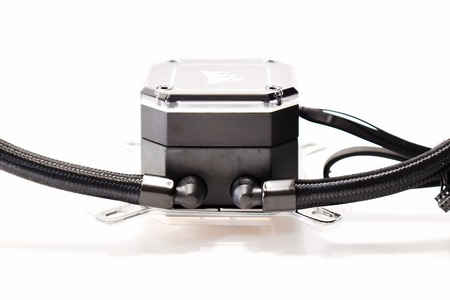

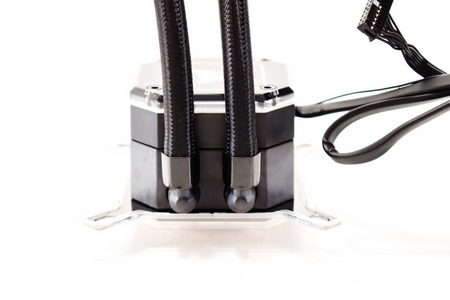

As with most AIO models by CORSAIR both tubes can rotate up to 90+ degrees from the base.

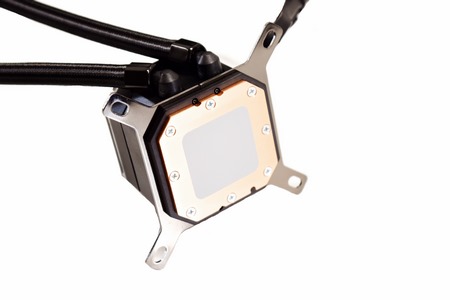

The all copper base comes ready with a thin pre-applied layer of thermal conductive material on it.

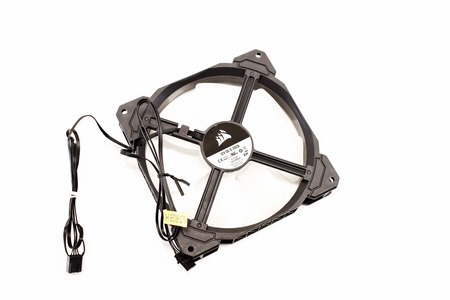

Unlike the H115i RGB Pro XT the brand new H115i Elite CAPELLIX is shipped with two ML140 RGB fans which can spin up to 2000RPM to produce up to 97CFM of airflow and 3.0 mmH2O of air-pressure with just 36dBA of noise.

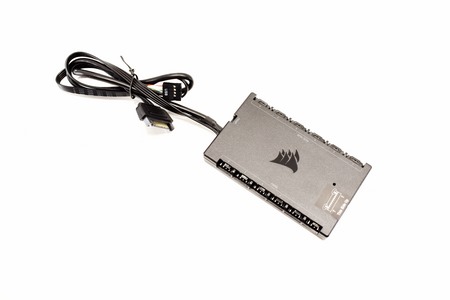

The bundled iCUE Commander Core fan/RGB hub can be used with up to 6 fans.

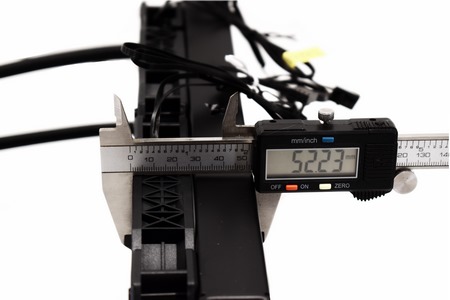

With both fans mounted the thickness of the radiator jumps from 27mm to just over 52mm.
