THE EK-KIT CLASSIC RGB P360

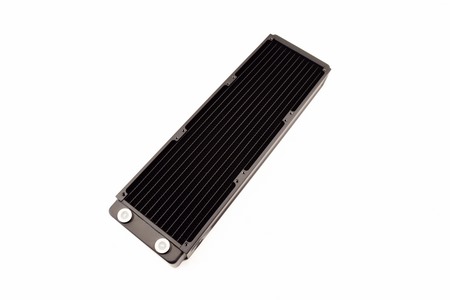

The EK-CoolStream Classic PE 360 steel/copper/brass radiator used with this kit is a tri 120mm fan solution that measures 393mm in length.

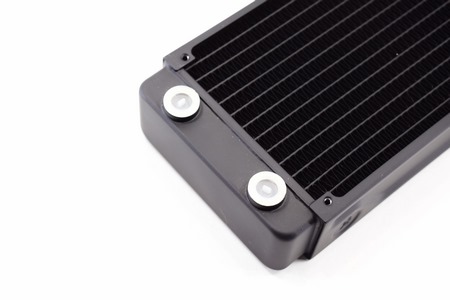

Unlike some other radiators this has just two G1/4 threaded ports on one side.

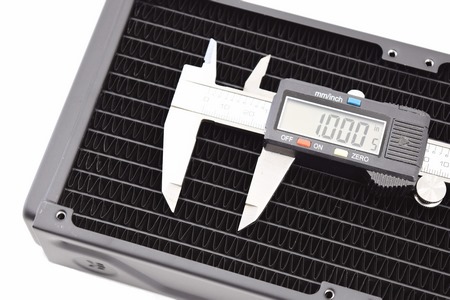

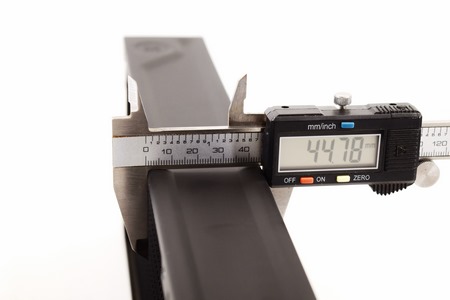

With a thickness of 45mm the Classic PE 360 radiator is a high-performance model.

This time over we measured an FPI (fins per inch) count of 13.

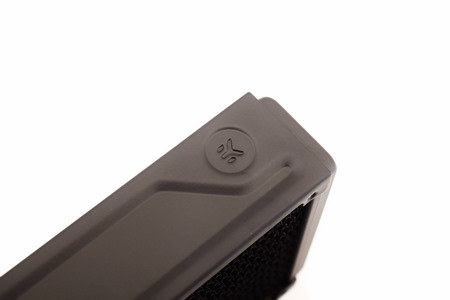

Typically, EK Water Blocks has engraved their logo on both sides.

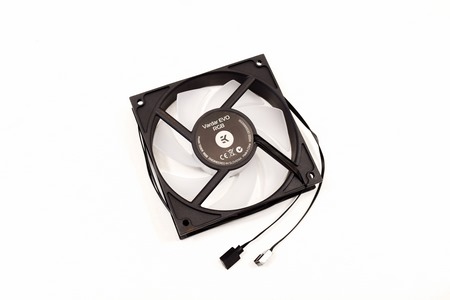

EK Water Blocks has bundled three of their EK-Vardar EVO 120ER RGB 120mm fans (9 LEDs each) which can reach speeds of up to 2200RPM (500RPM minimum) to produce 77CFM of airflow with 3.16mmH2O of air pressure and 33.5dBA of noise.

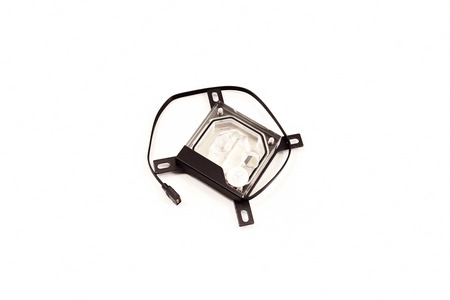

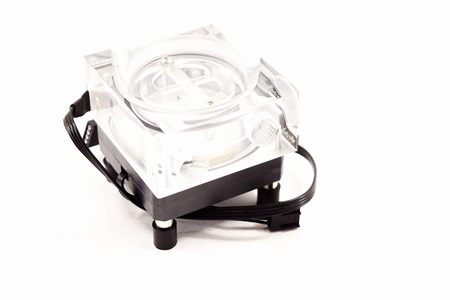

The top of the EK Supremacy Classic RGB waterblock is made from CNC machined high-grade acrylic glass and has two G1/4 ports.

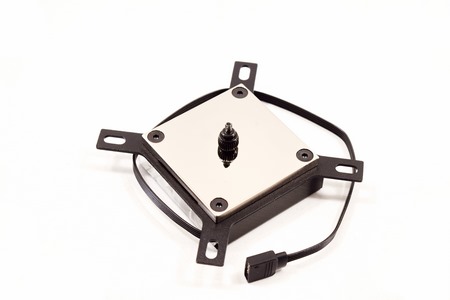

The copper base of the waterblock is treated with nickel electroplating (mirror like finish).

Even though compact (168.70mm in height, 64mm in width and 68mm in depth) the EK-XRES 140 SPC PWM Classic RGB reservoir/pump combo can be filled with up to 205mL of coolant and its pump can produce pressure of up to 2.2 meters with a maximum liquid flow of 250l/h.

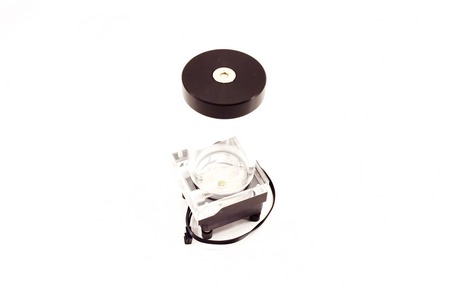

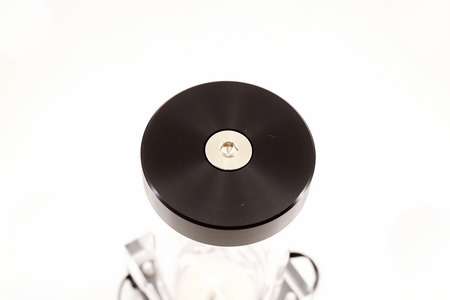

The top can be easily removed and as you can all see it has a fill-port at the top.

Two G1/4 ports are located on one side of the reservoir/pump combo.
