INSTALLATION - FINISHED LOOKS

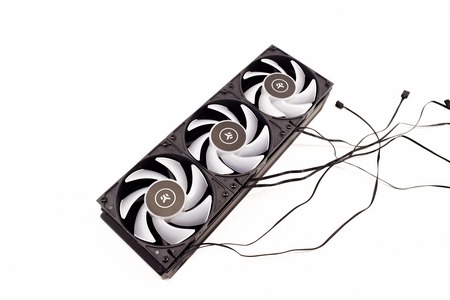

This time over i decided to start by mounting the EK-Vardar EVO 120ER RGB fans onto the Classic PE 360 radiator.

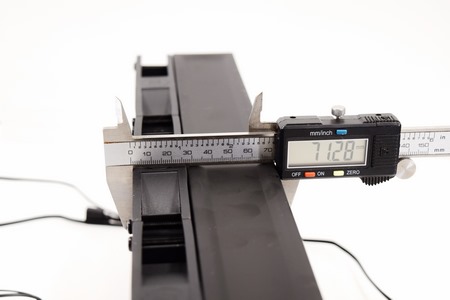

With the fans attached the radiator becomes almost 72mm thick.

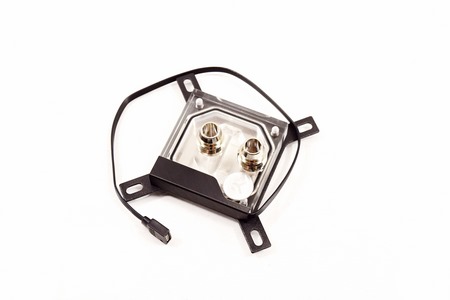

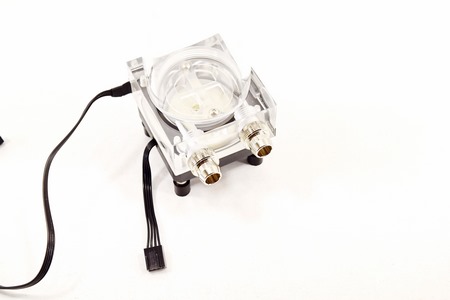

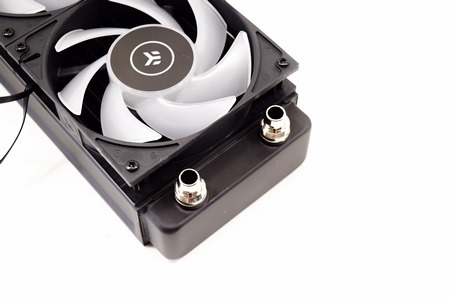

Next step is to mount the compression fittings on all parts of the kit (do this with your hands only if possible, any stress by machinery could result in one of more leaks).

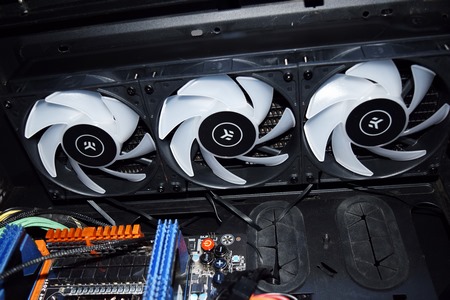

With enough room for up to 480mm long radiators the Classic RGB PE 360 is no match for the Obsidian 900D.

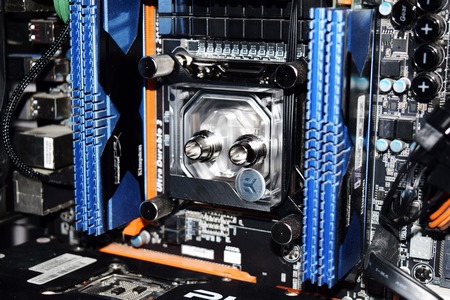

One of the things I’ve always liked about the LGA2011 socket is the quick mounting of any waterblock.

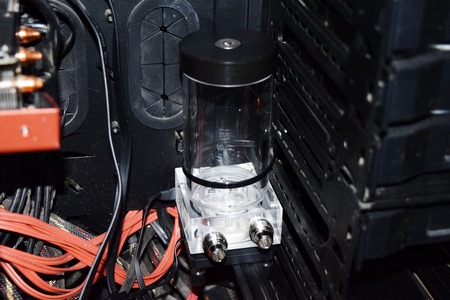

Today most towers have horizontal fan mounting areas but if you have one that doesn't (or is not easy to access like in our case) you can always use cable ties to secure the reservoir/pump (doesn't look great but as long as you do it properly it gets the job done).

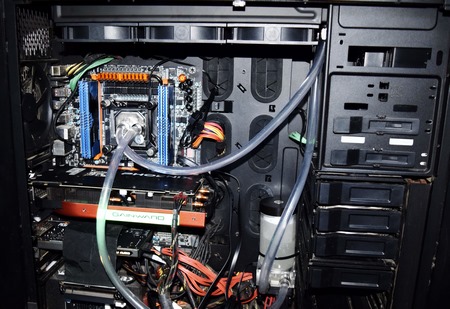

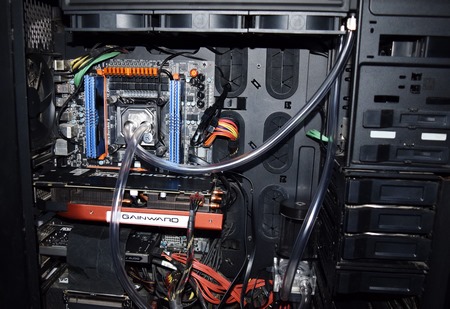

With the components connected via the bundled EK-DuraClear PVC Tubing all that's left is to use the K-CryoFuel Clear Rev.2 coolant.
