THE GEM 10

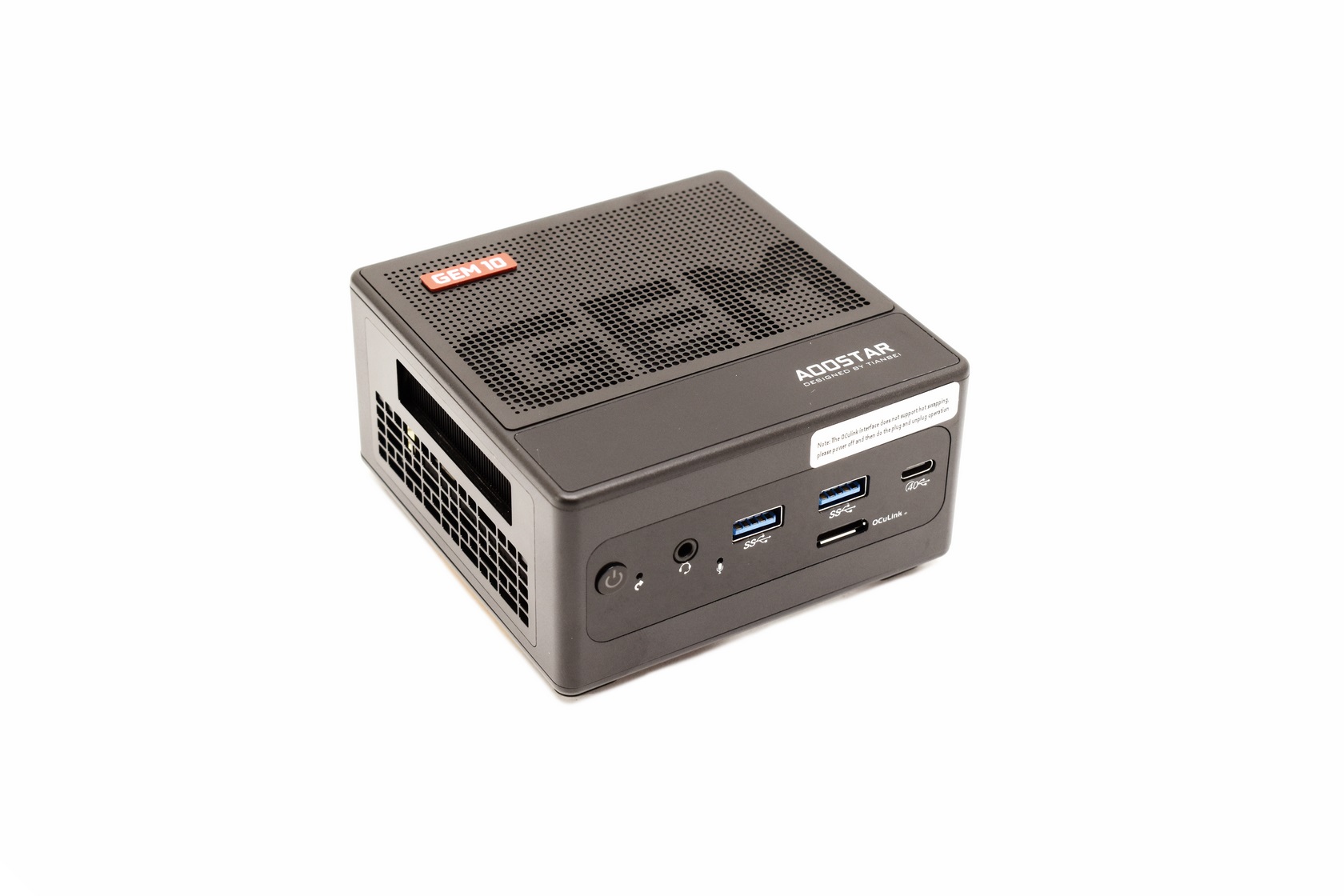

Measuring 107mm in length, 107mm in width and 58mm in height the GEM 10 enclosure is very compact.

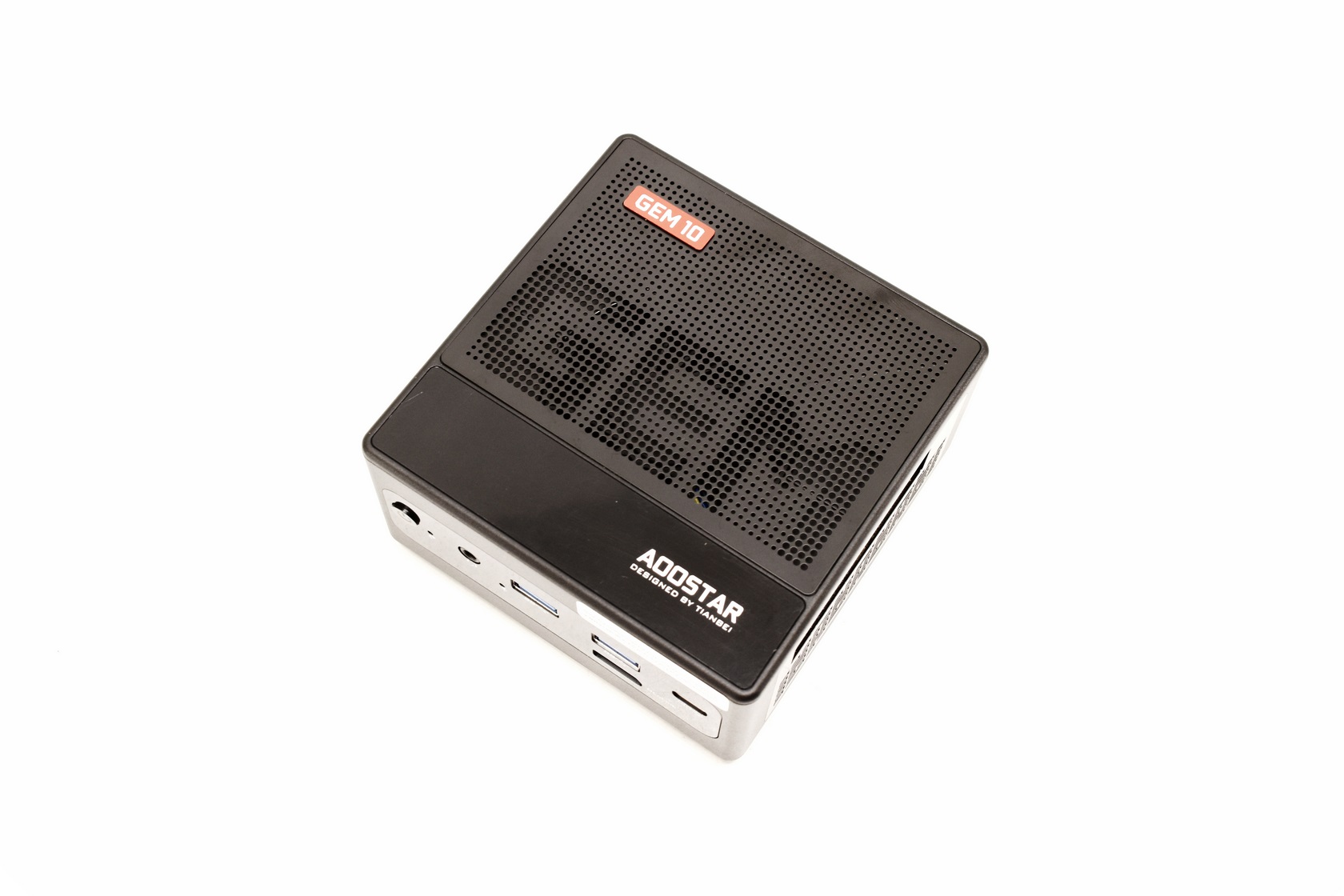

Most of the top is perforated for air to enter the interior (one of the 50mm fans is right beneath here).

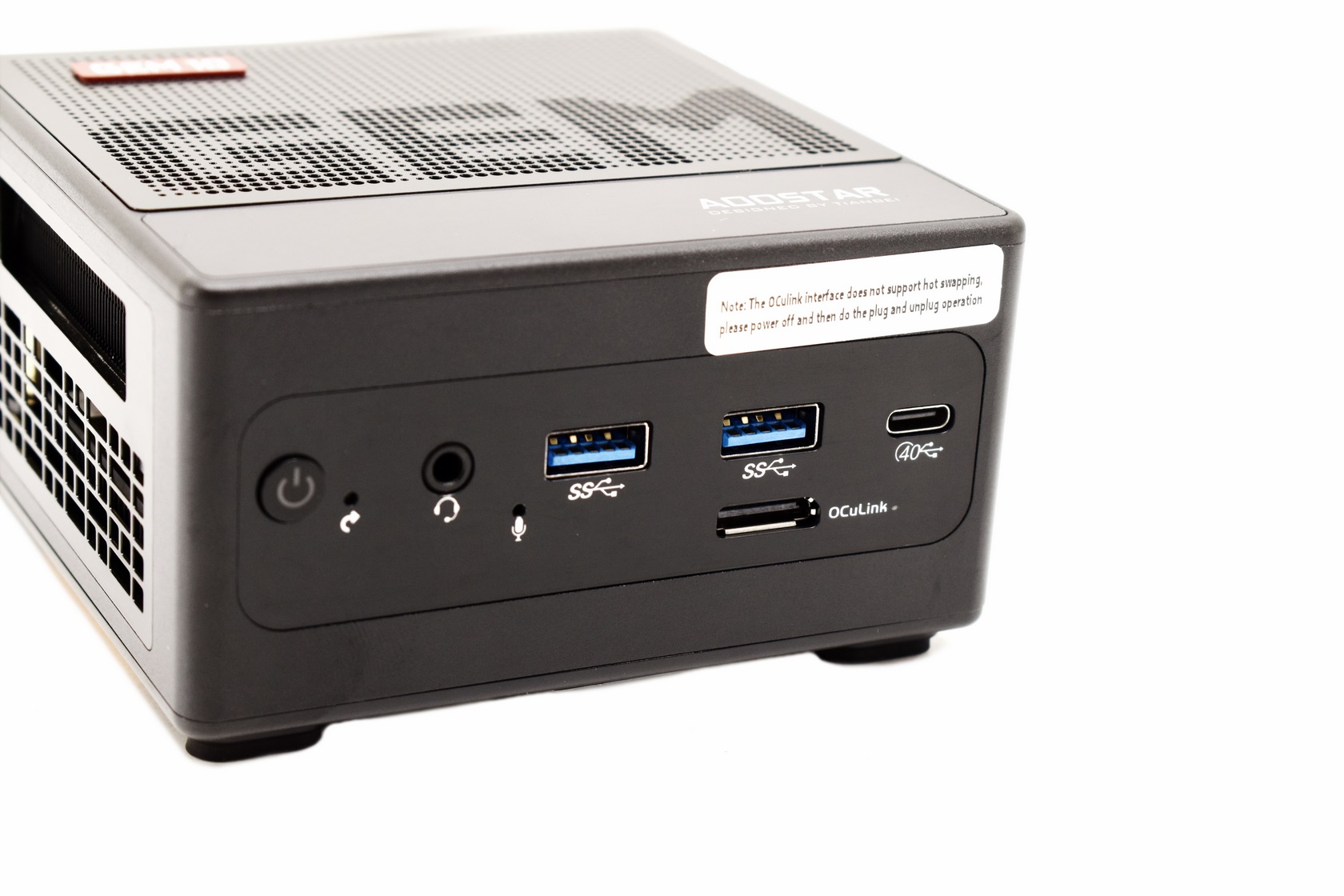

At the front of the enclosure, we find the on/off and reset buttons, 3.5mm headphones port, microphone, two USB 3.2 Gen2 ports, OCuLink port and the USB 4.0 Type-C port.

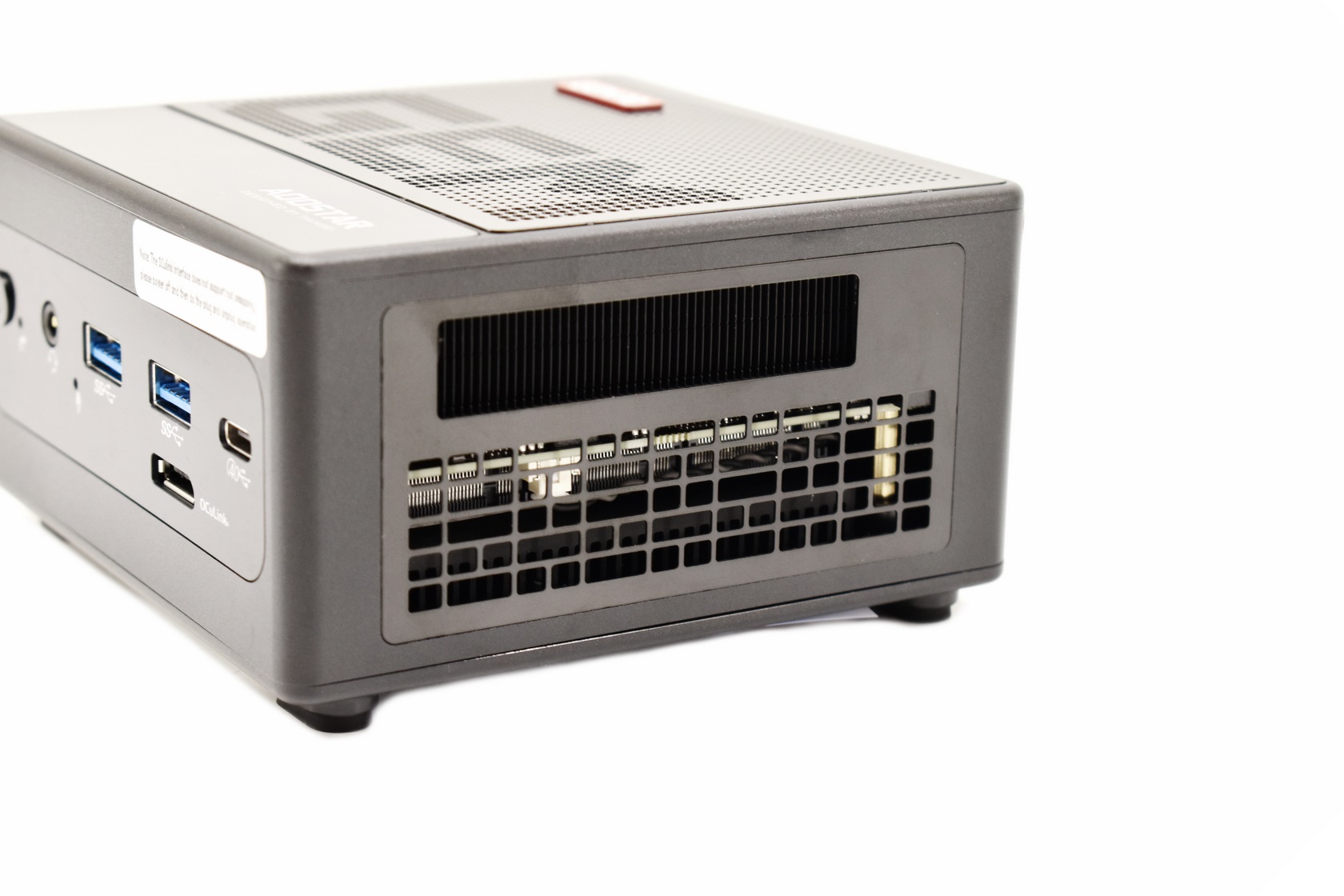

Both sides are perforated and allow the end user to see the aluminum heatsink used to keep the CPU inside in check.

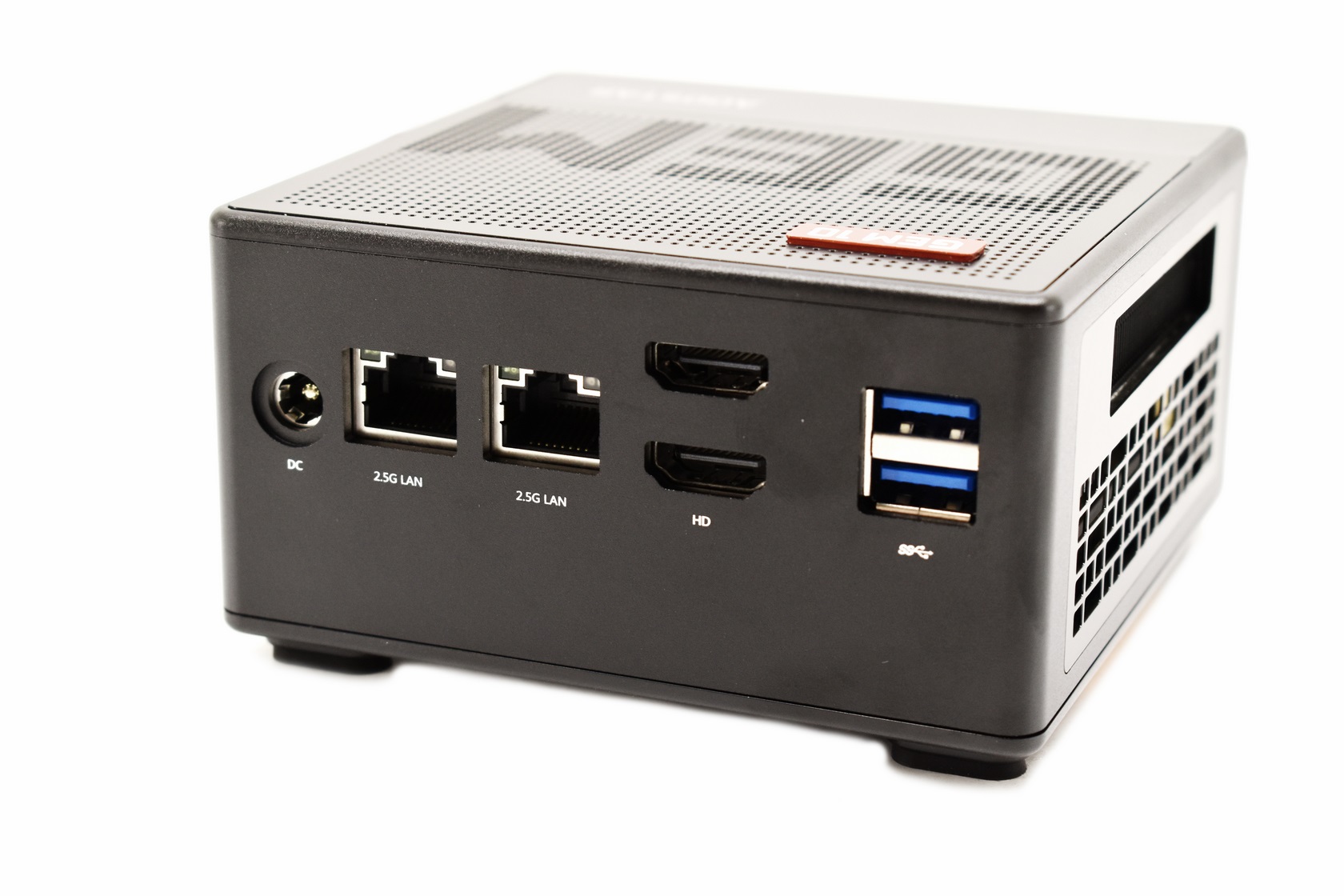

Moving at the rear we find the power port, two 2.5G LAN ports (RJ45), two HDMI v2.1 ports and two USB 3.2 Gen2 ports.

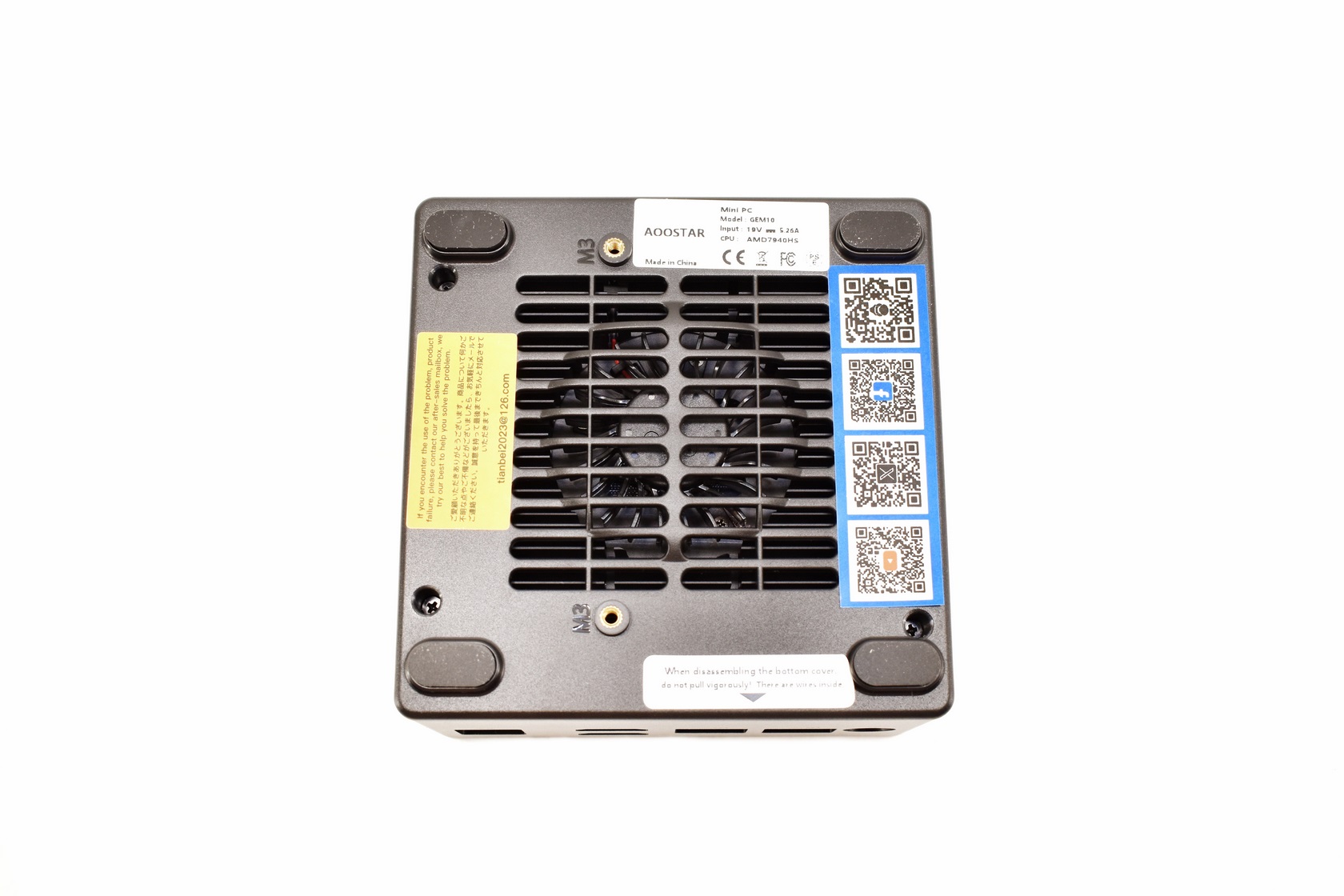

At the base of the GEM 10 we find another 50mm fan, 4 rubber feet and two mounting ports for the wall mount.

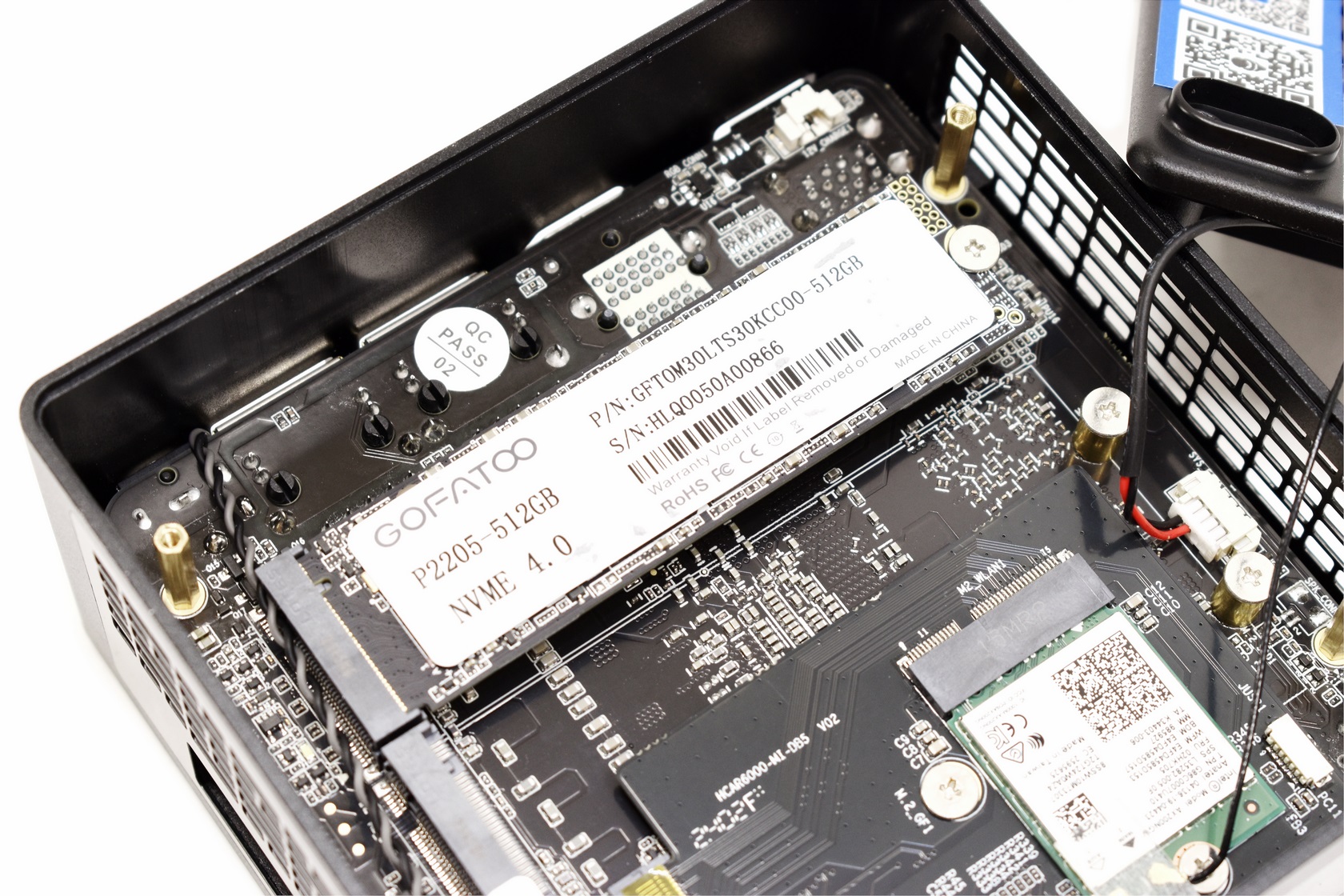

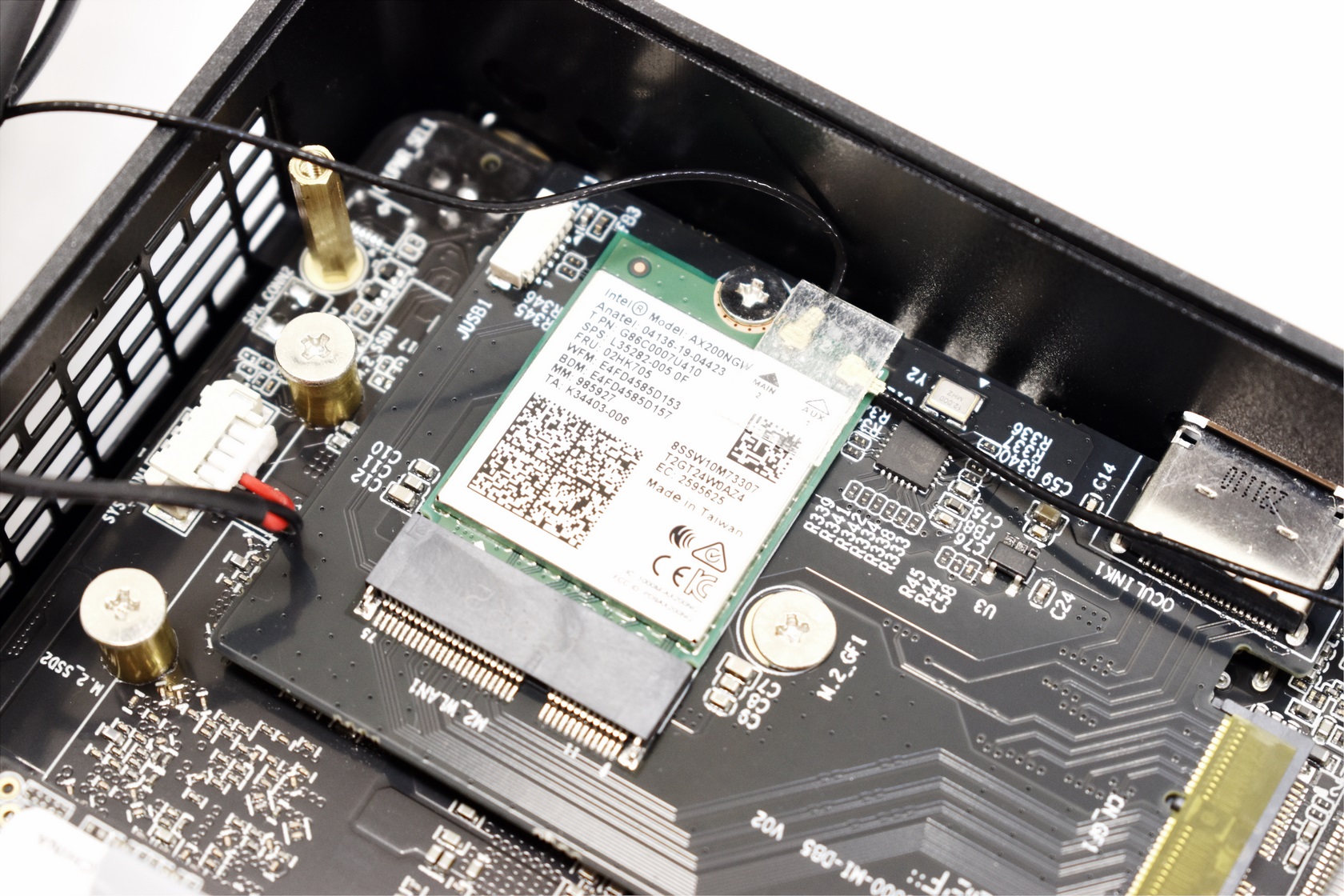

Opening up the enclosure is not hard and so the first thing you'll see is the Intel AX200 Wi-Fi6/BT 5.2 network card and the 512GB M.2 PCIe 4.0 Gen4 SSD.

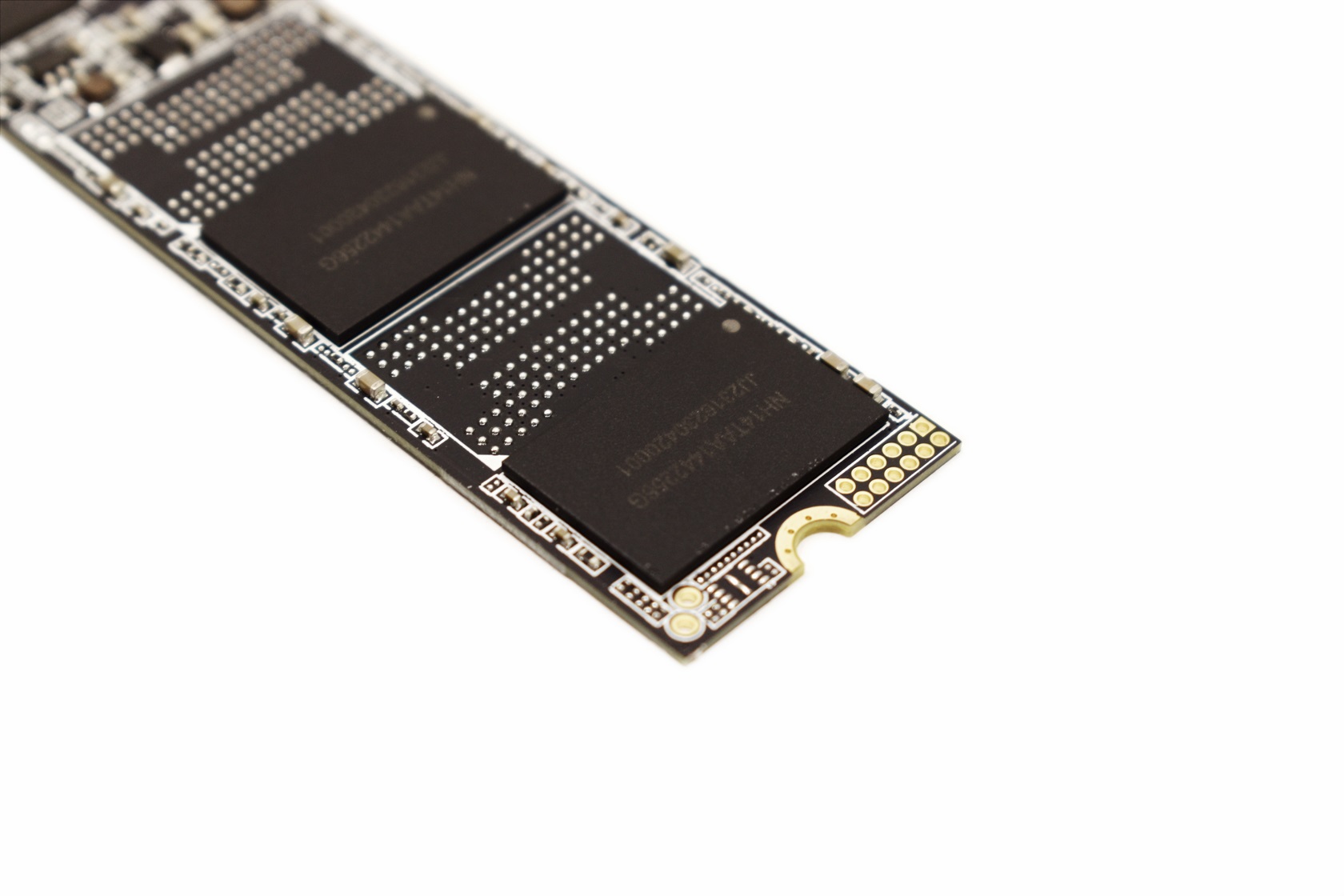

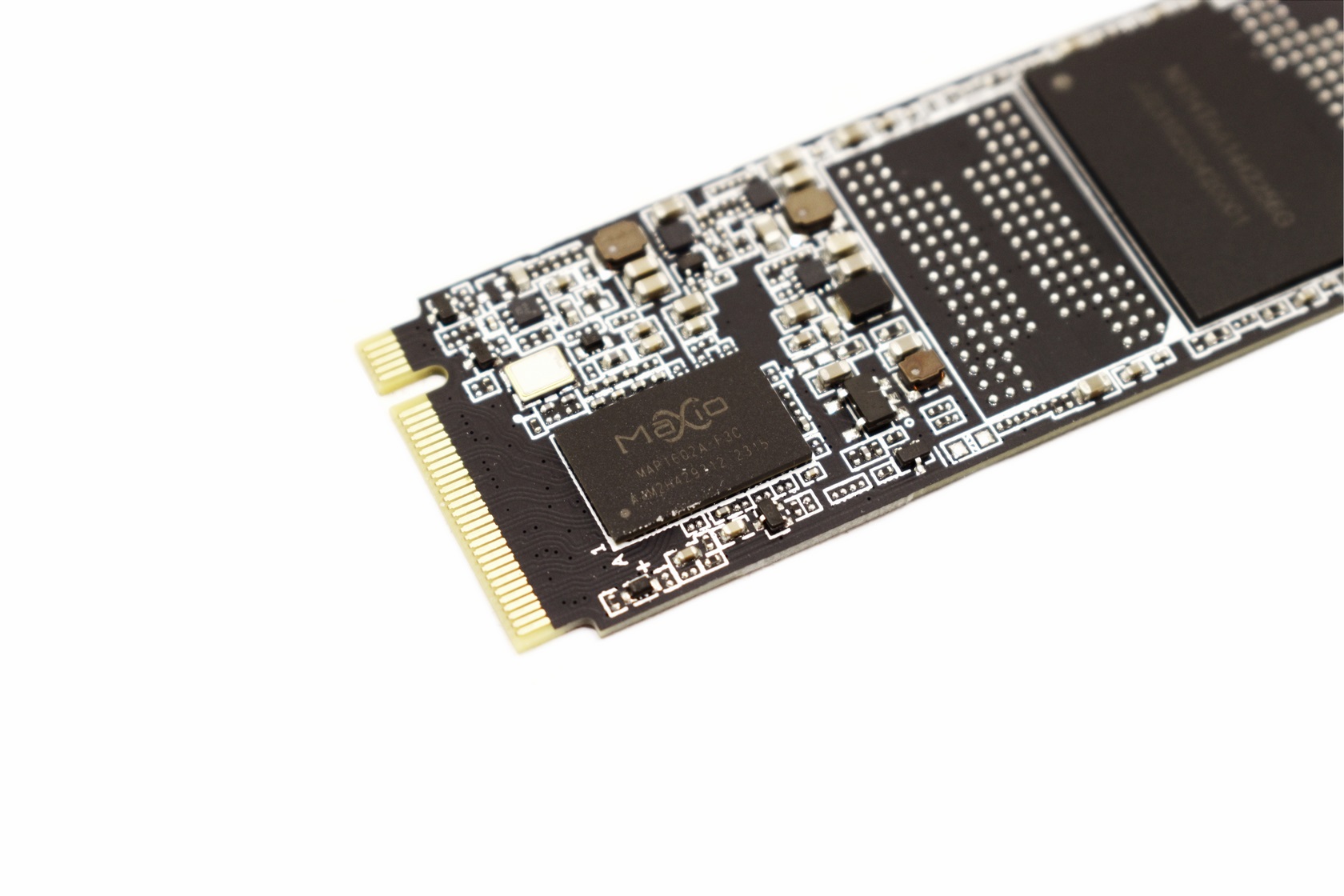

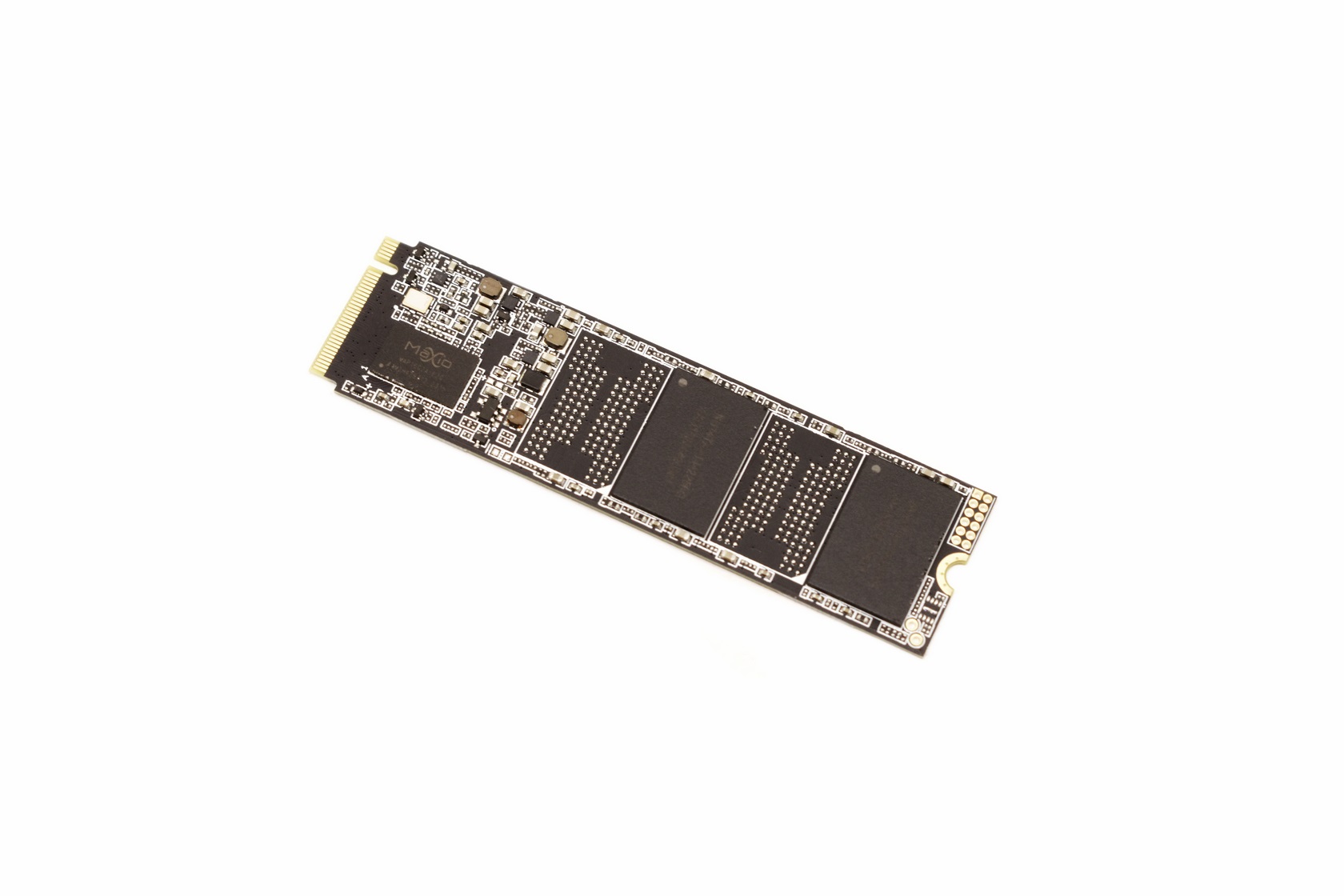

As already mentioned in the intro page the SSD is based on the MaXio DRAM-less MAP1602A NAND flash controller and is paired with 3D TLC NAND by YMTC.

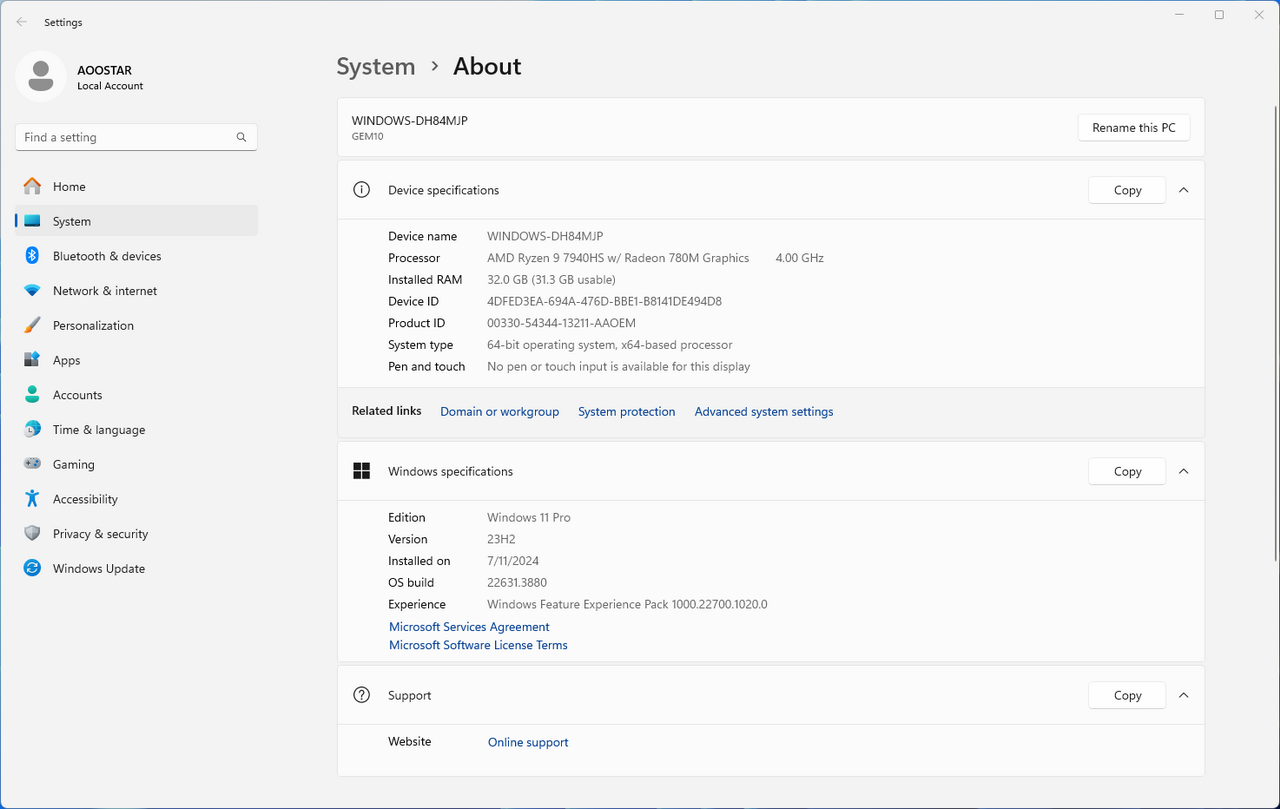

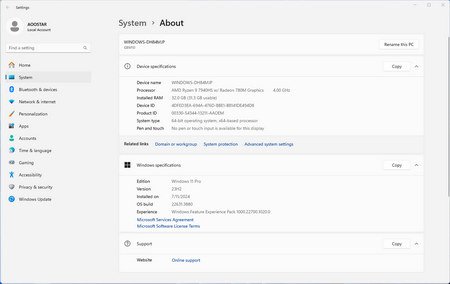

The GEM 10 comes ready with Windows 11 Pro as seen above.
