NZ B550 P1.70 BIOS

For this review i used the latest available BIOS (P1.70). This BIOS is divided into 8 tabs with the main tab just giving you a few details about the CPU and RAM (that screenshot ended up being corrupt so I was unable to include it).

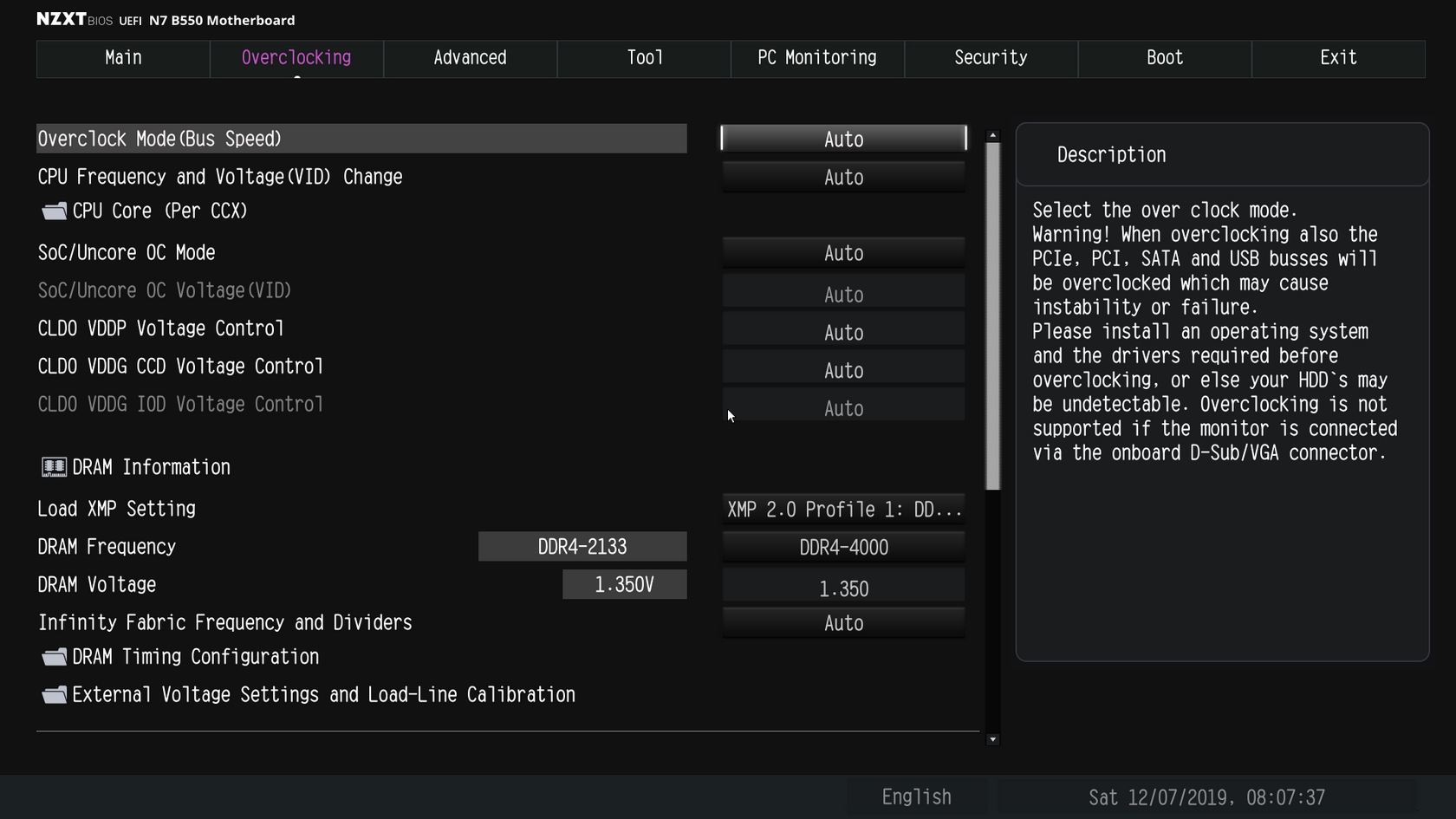

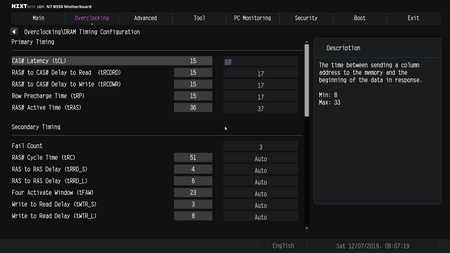

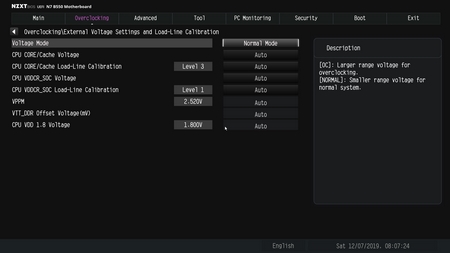

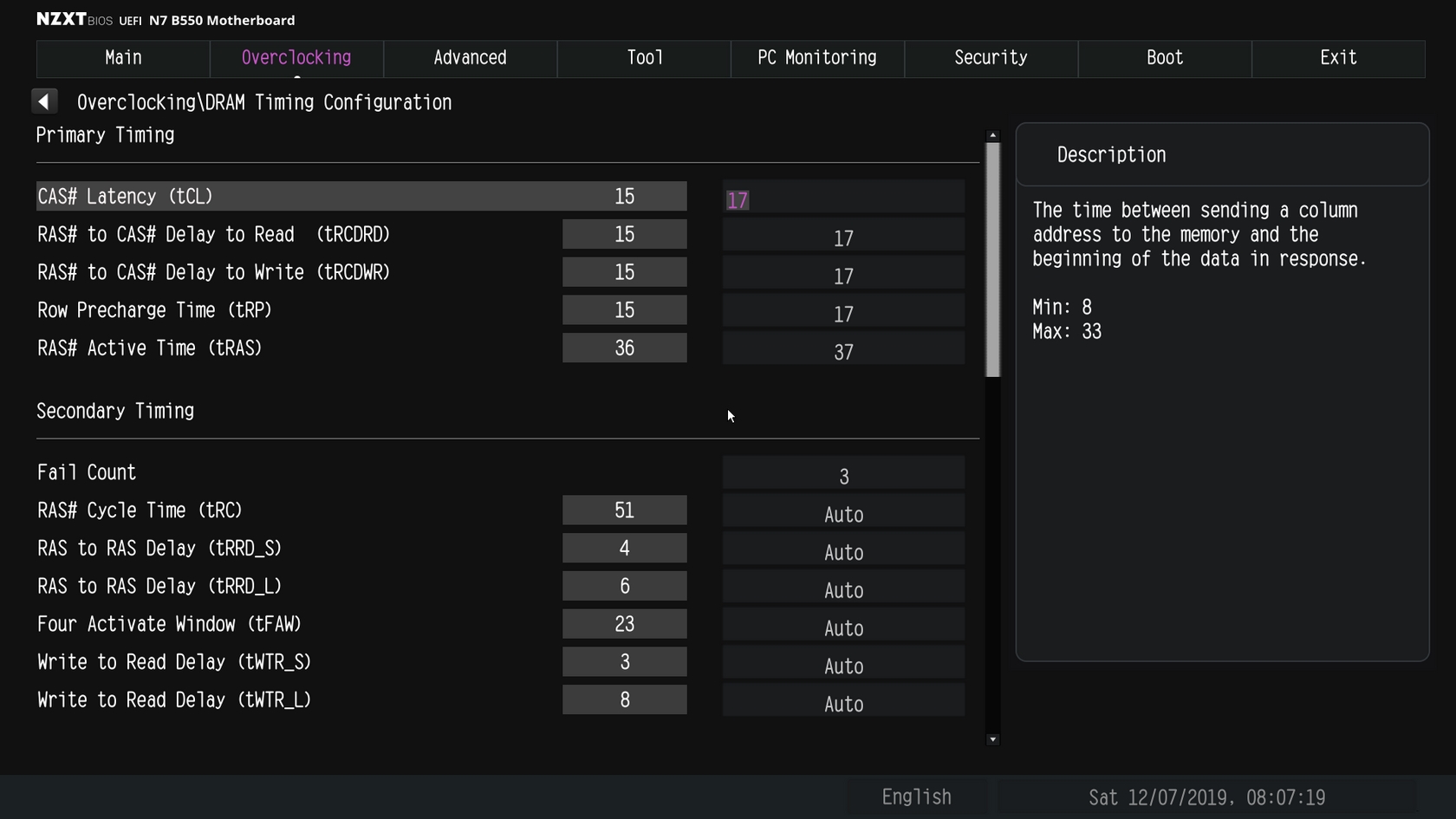

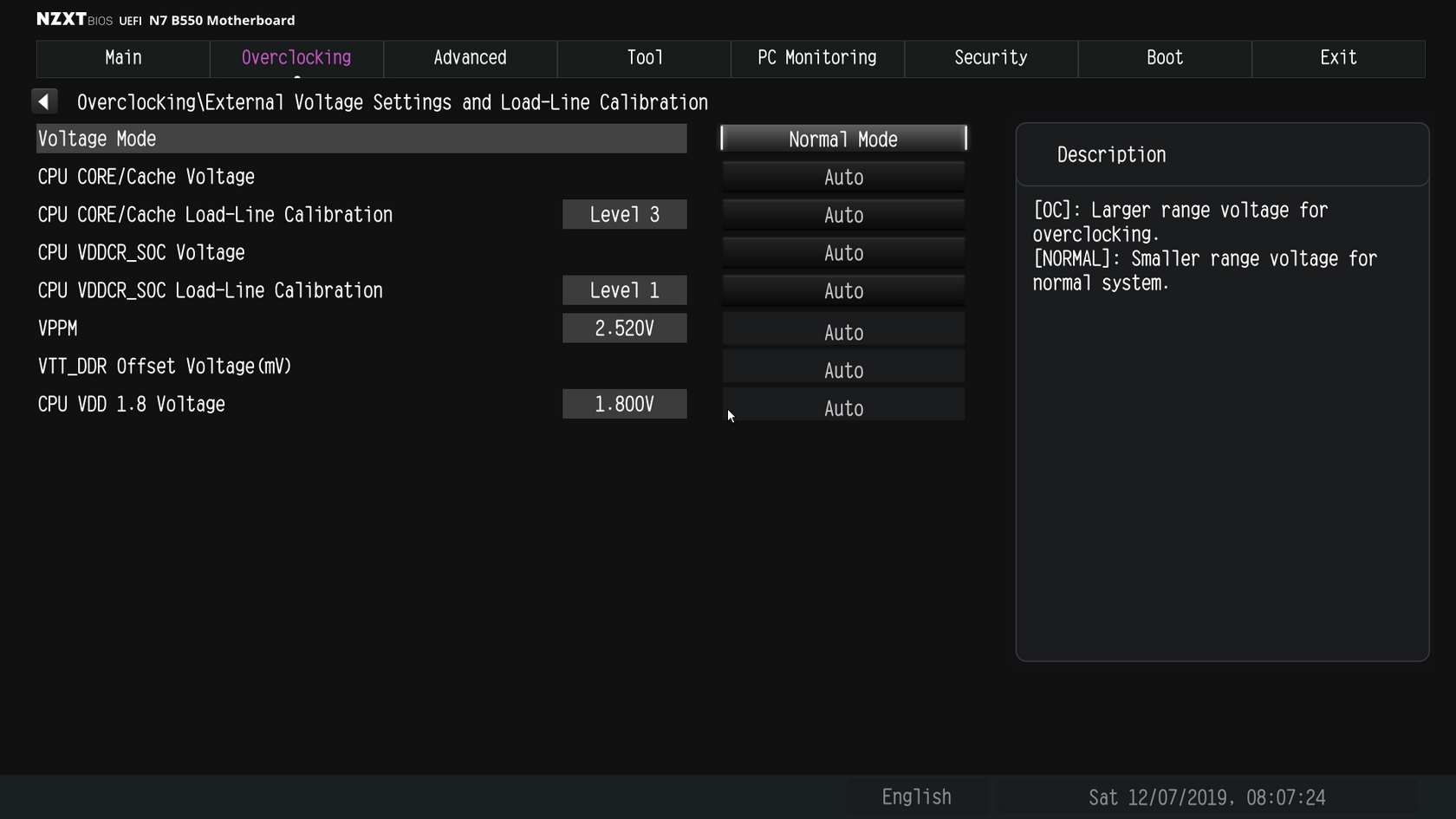

Once again almost everything related to overclocking is placed under the overclocking Tab. Here you can set the desired MHz, set the BCLK frequency and of course adjust every related to overclocking. Typically, NZXT also places the RAM settings under the same tab (you can use available XMP profiles, set the frequency, adjust voltages and of course you can also manually adjust the timings).

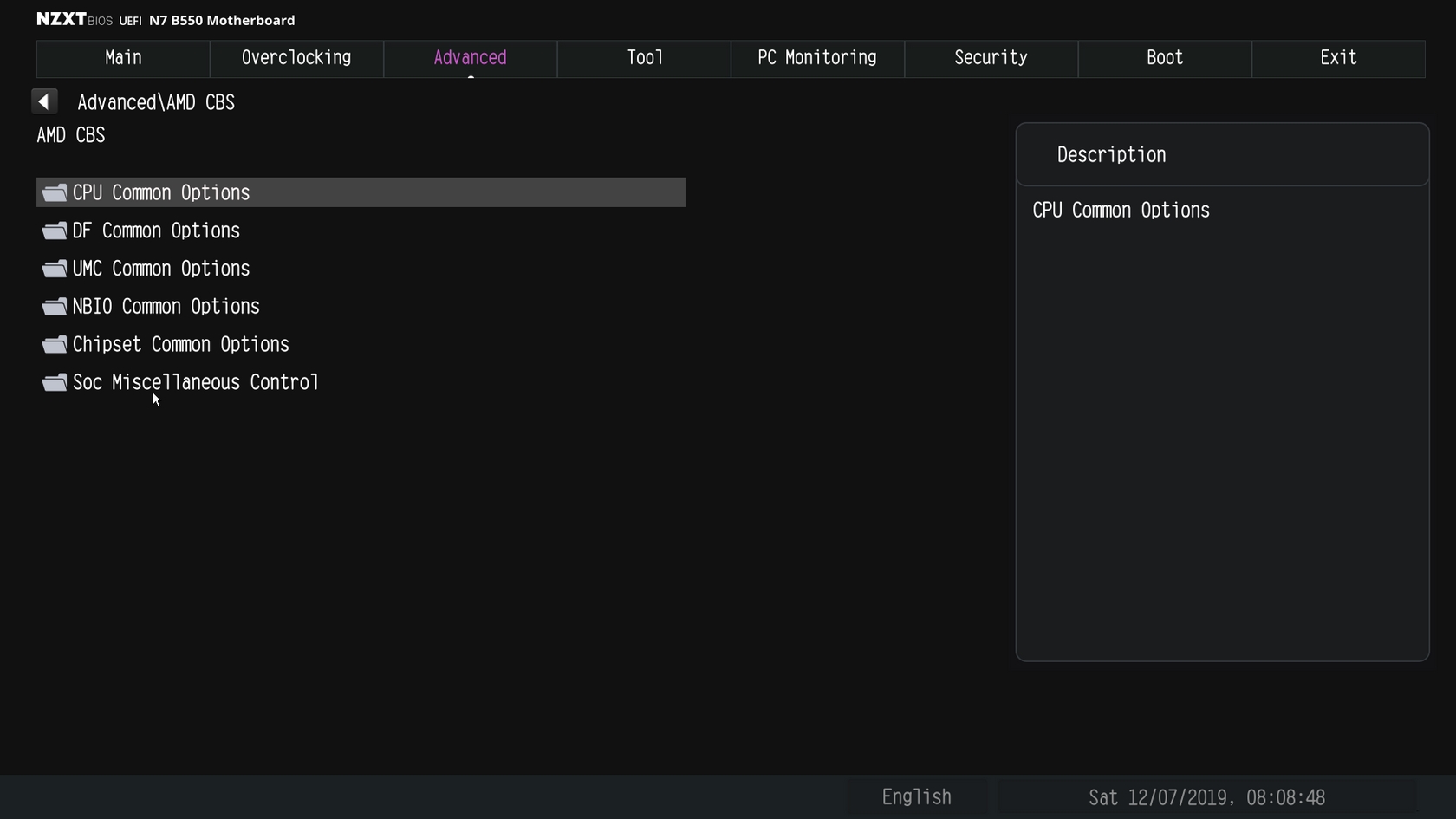

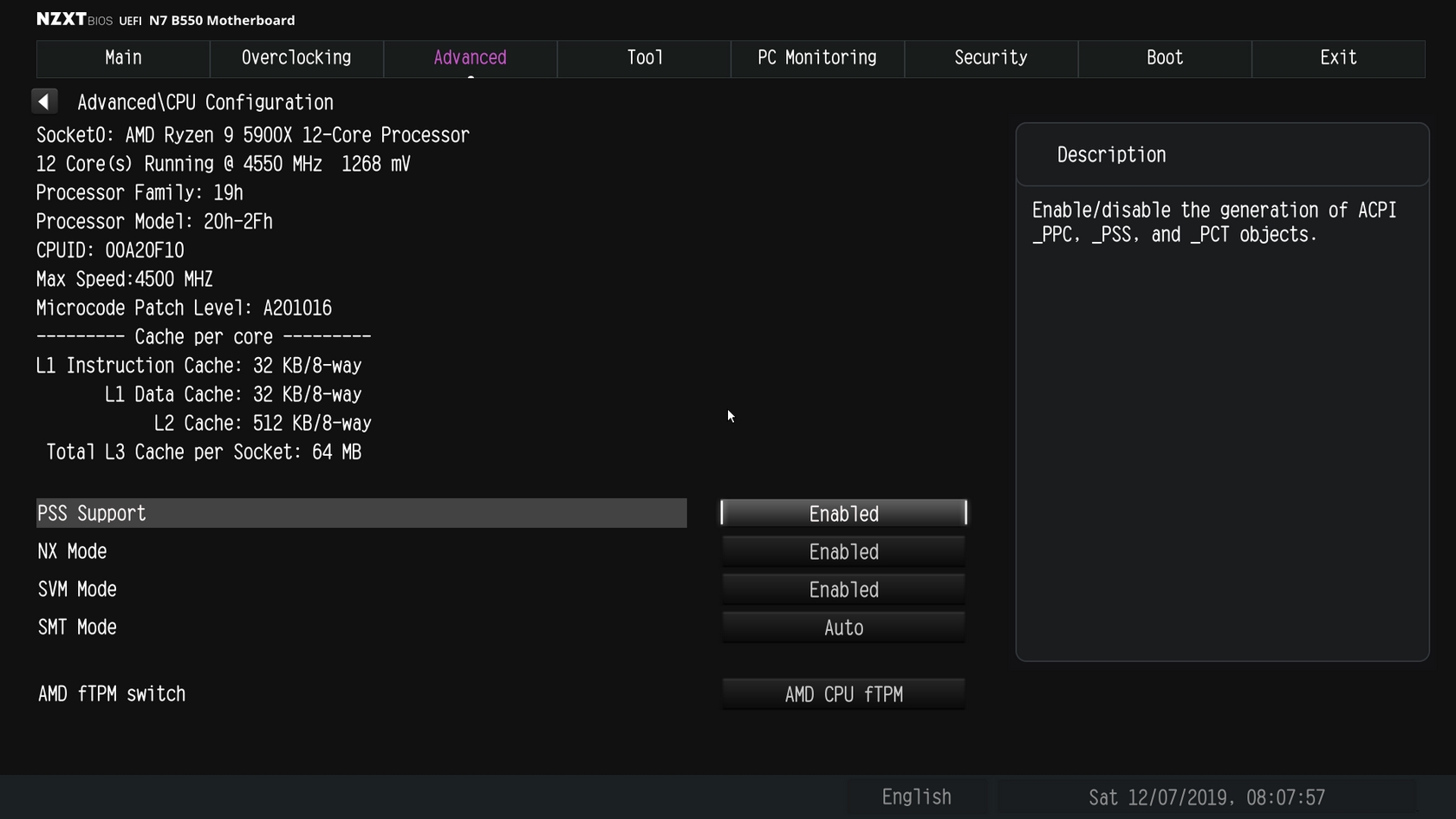

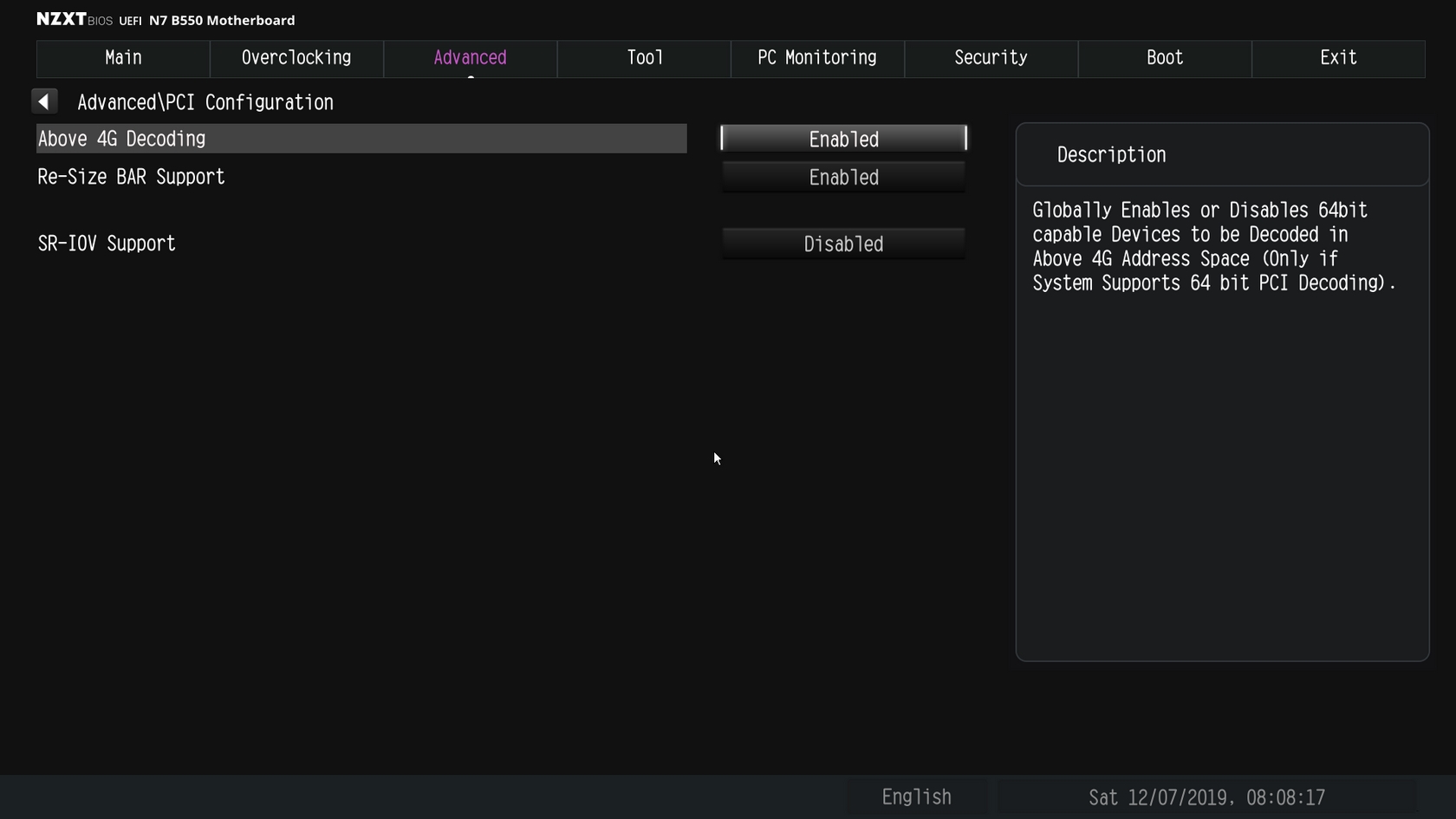

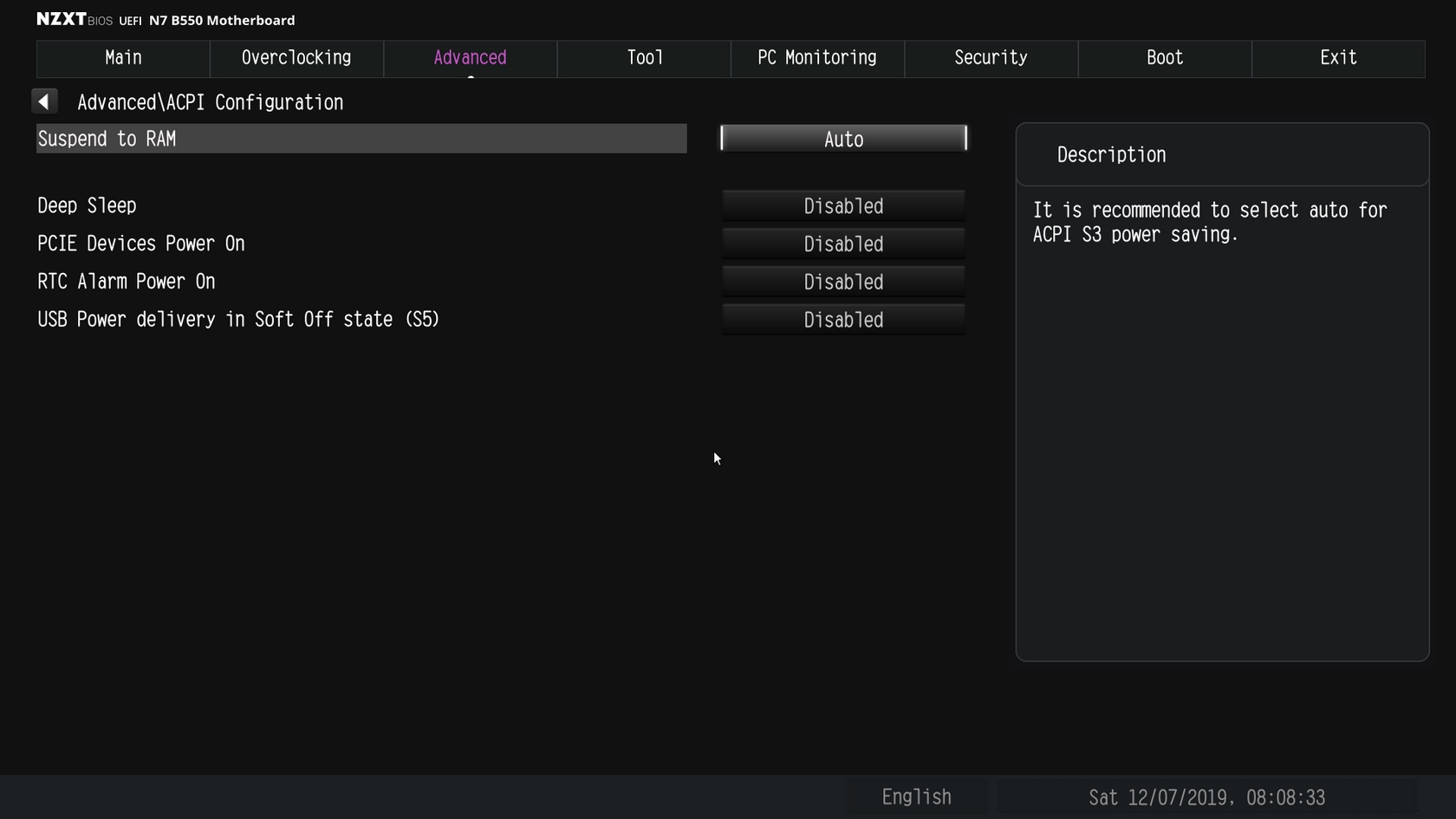

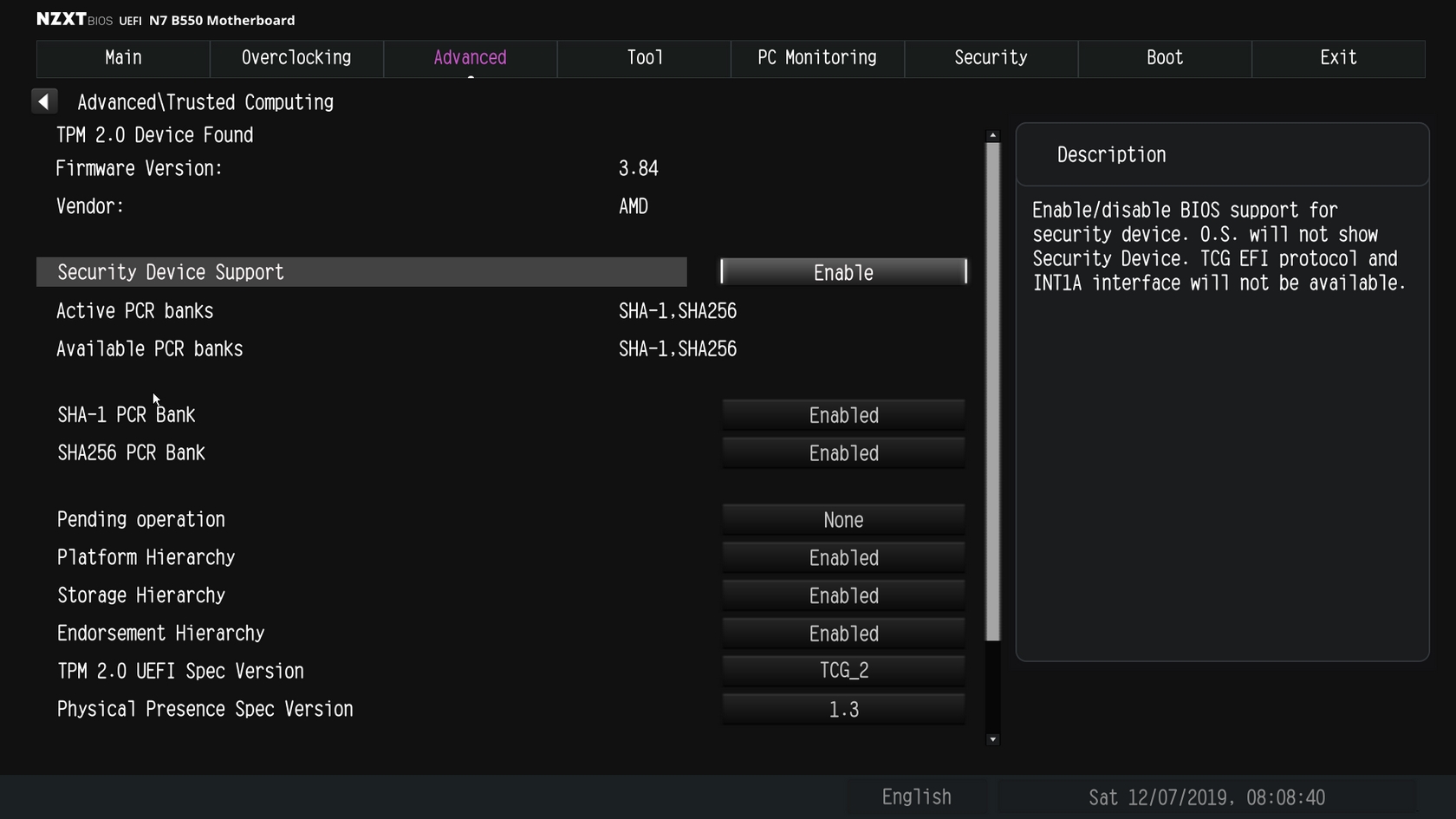

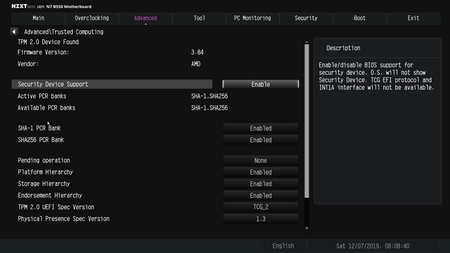

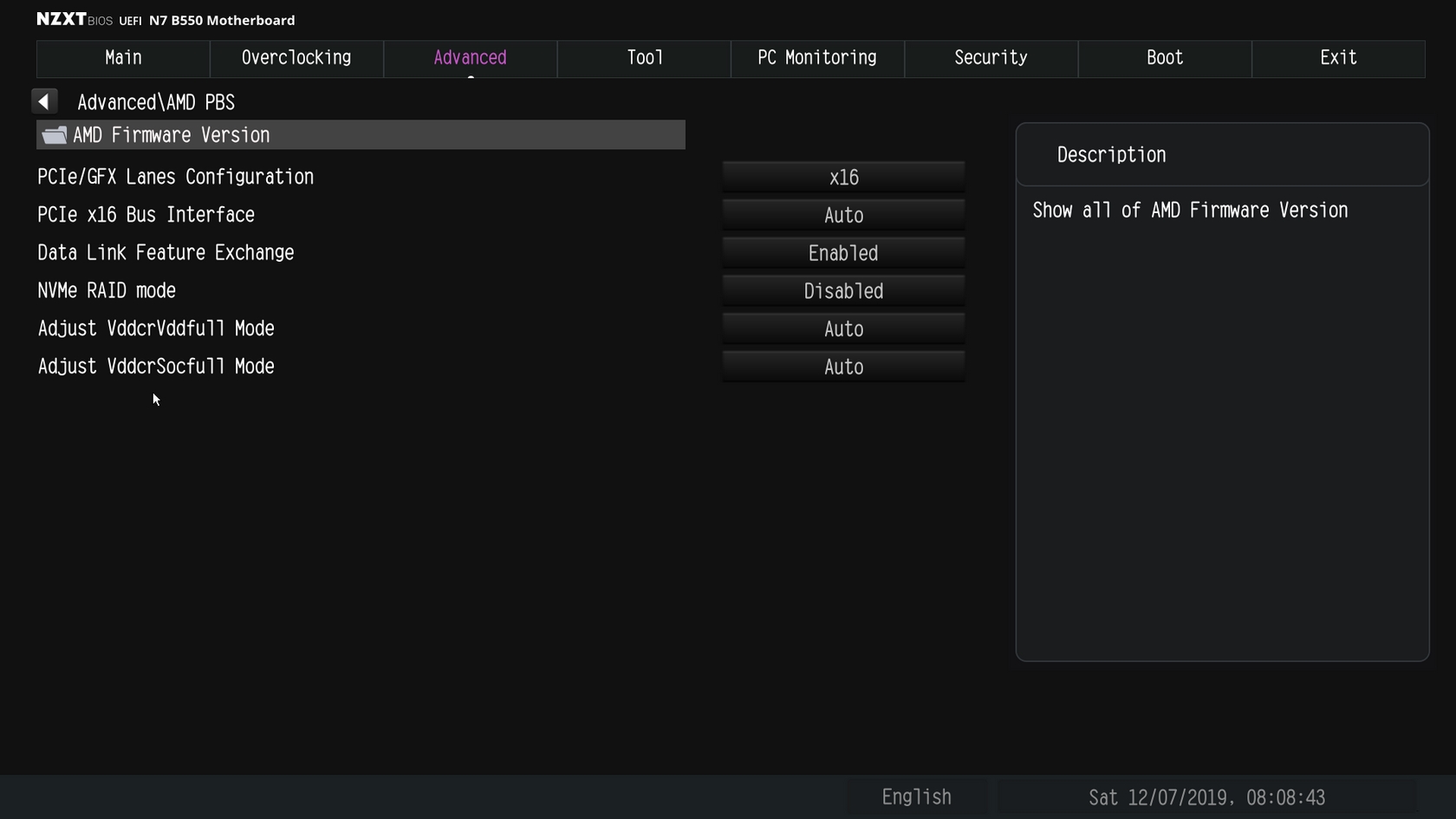

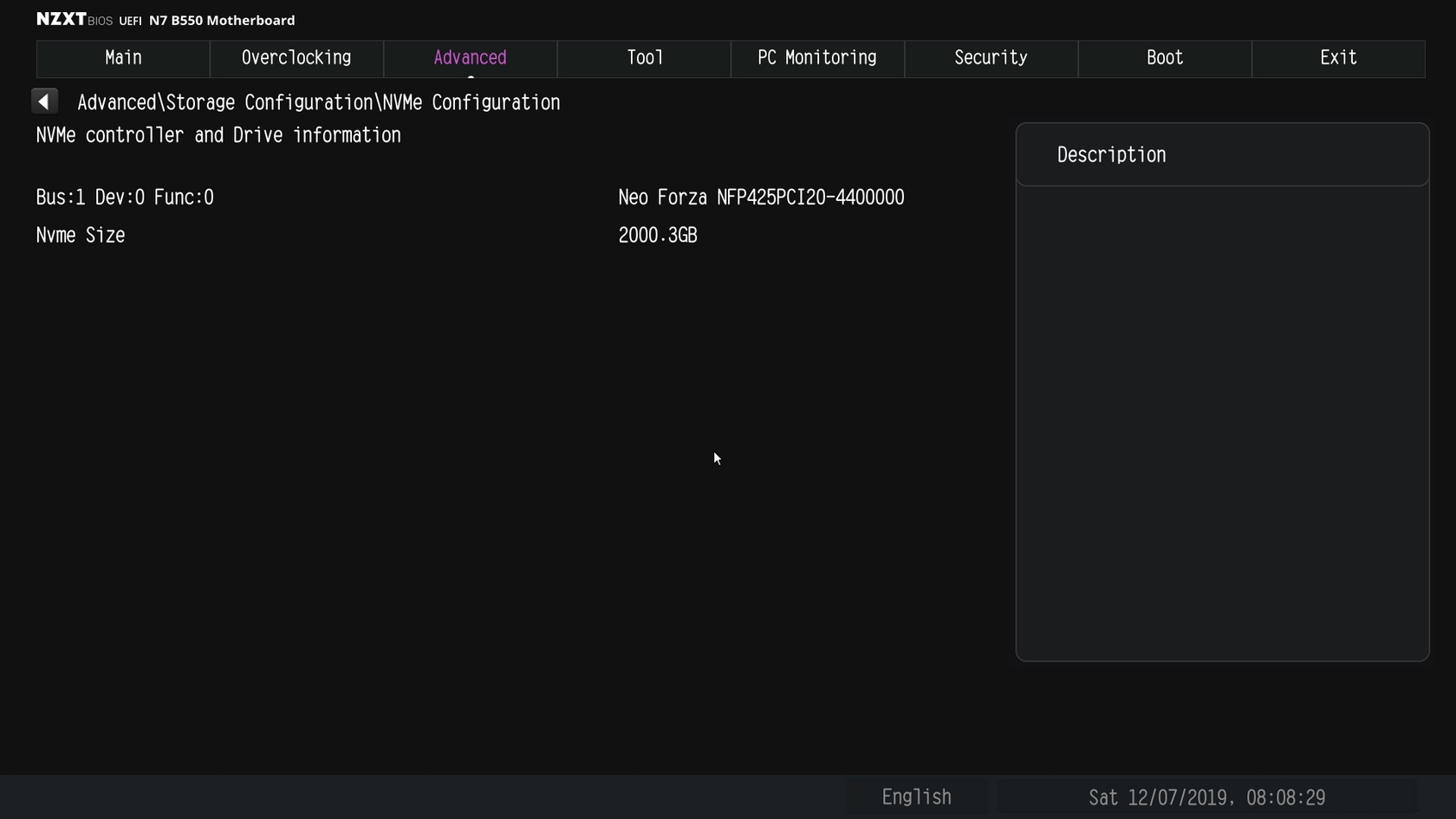

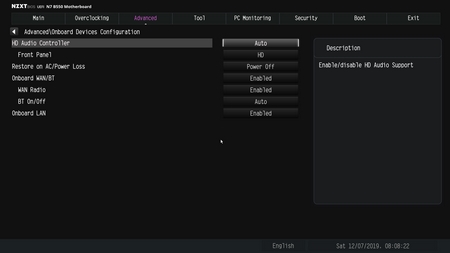

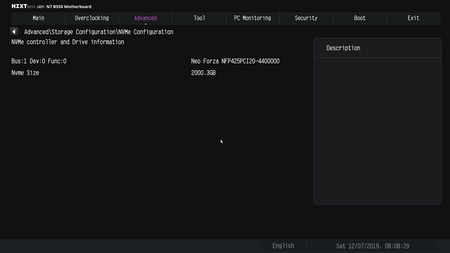

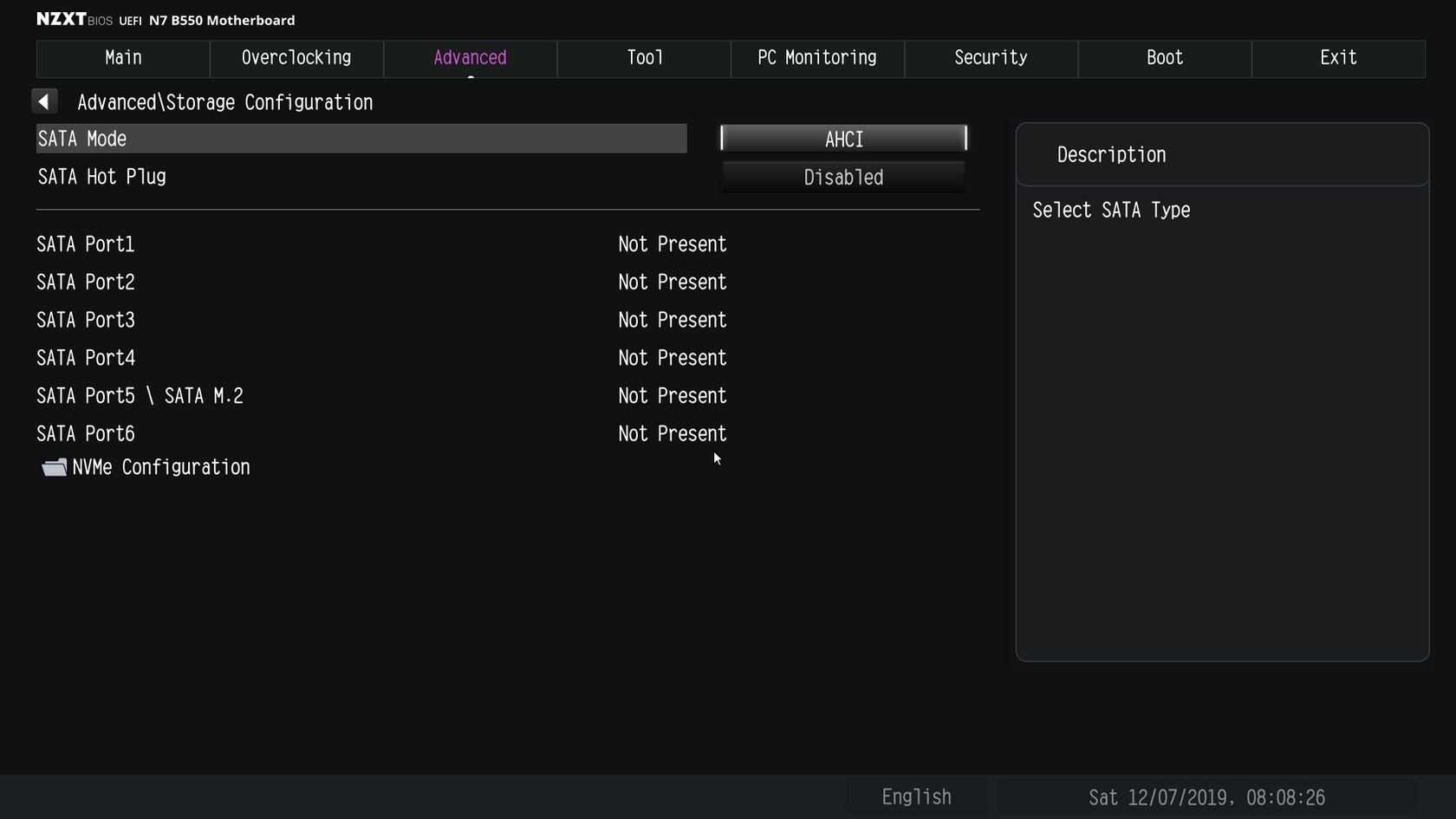

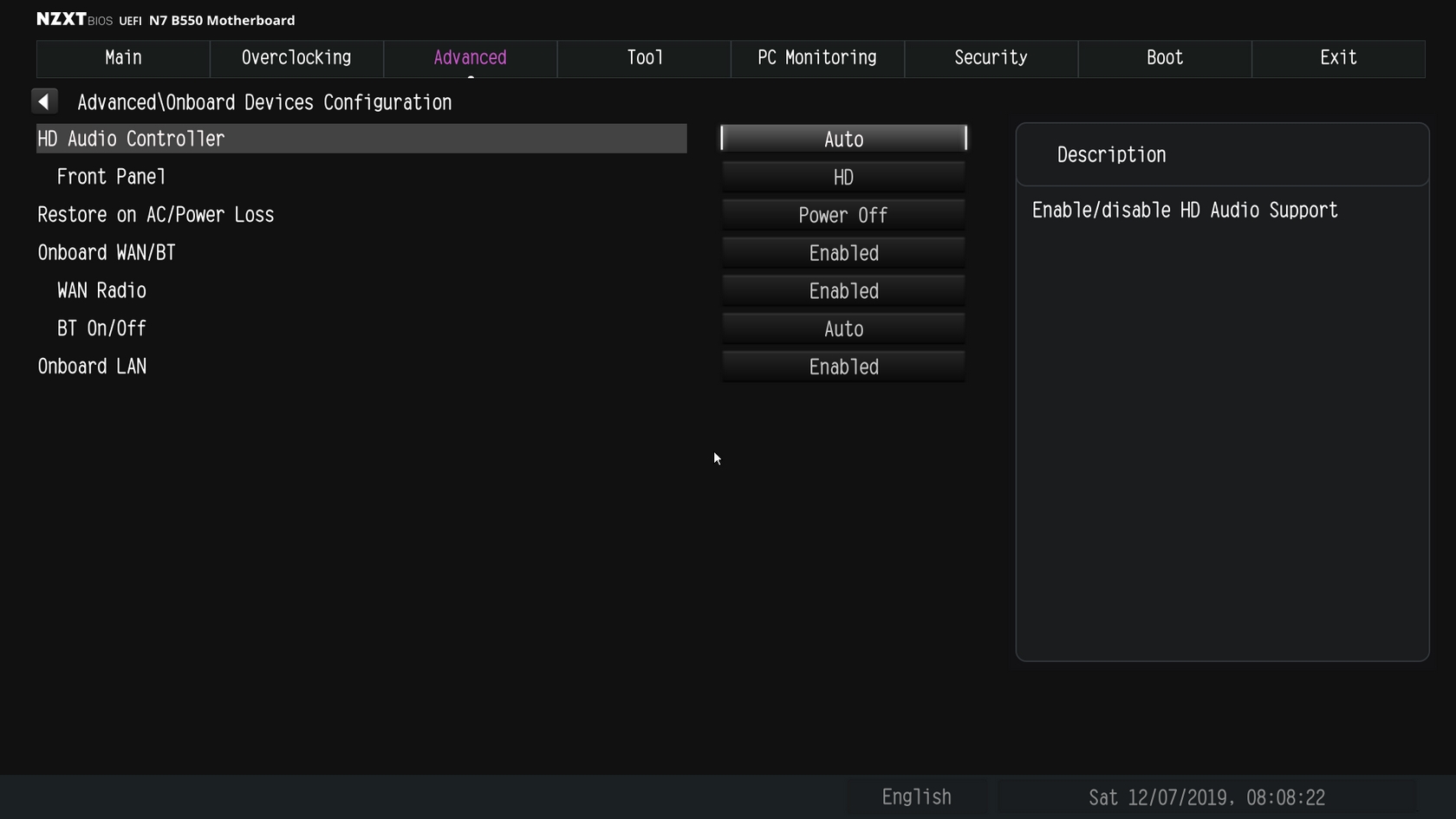

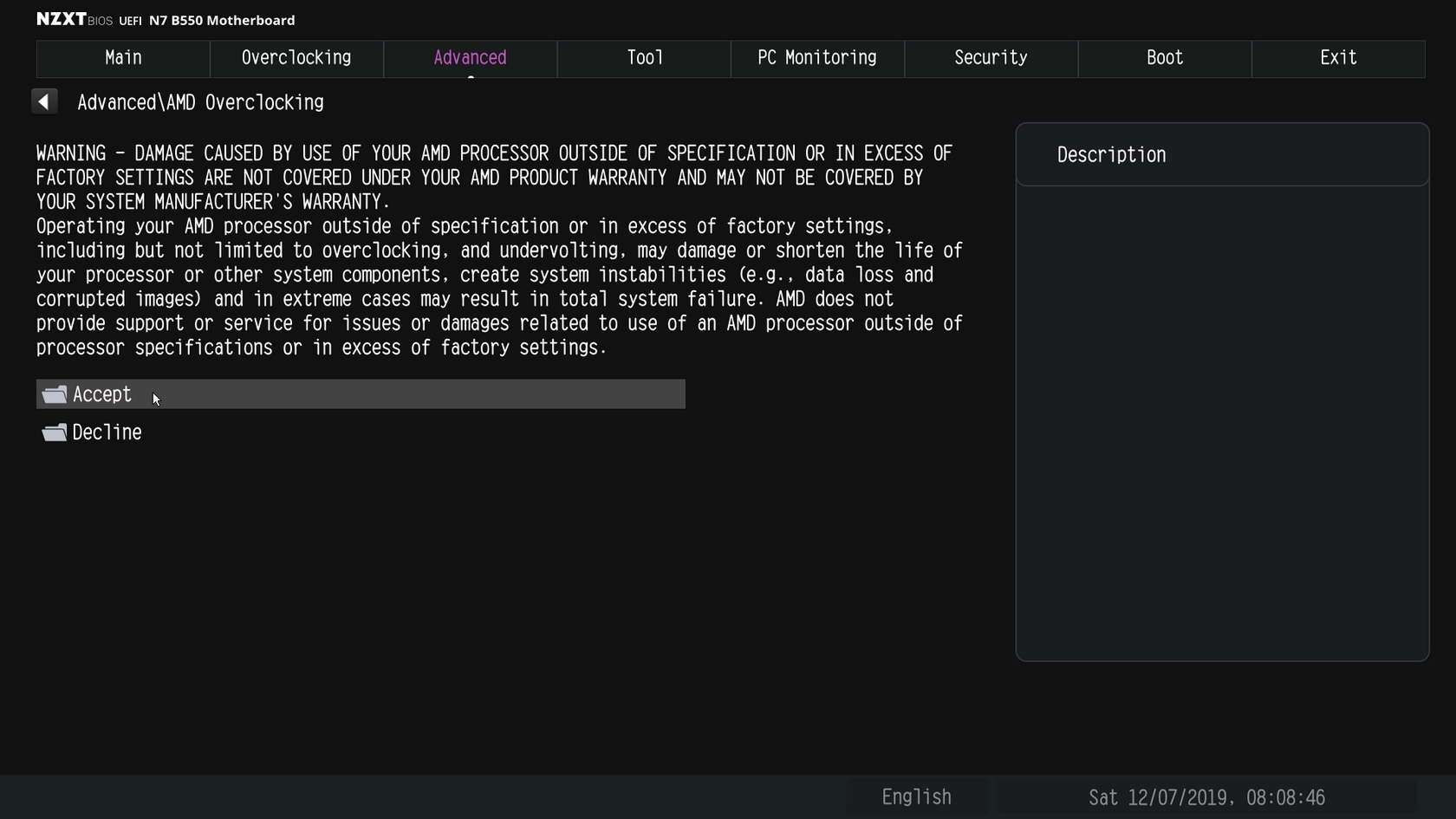

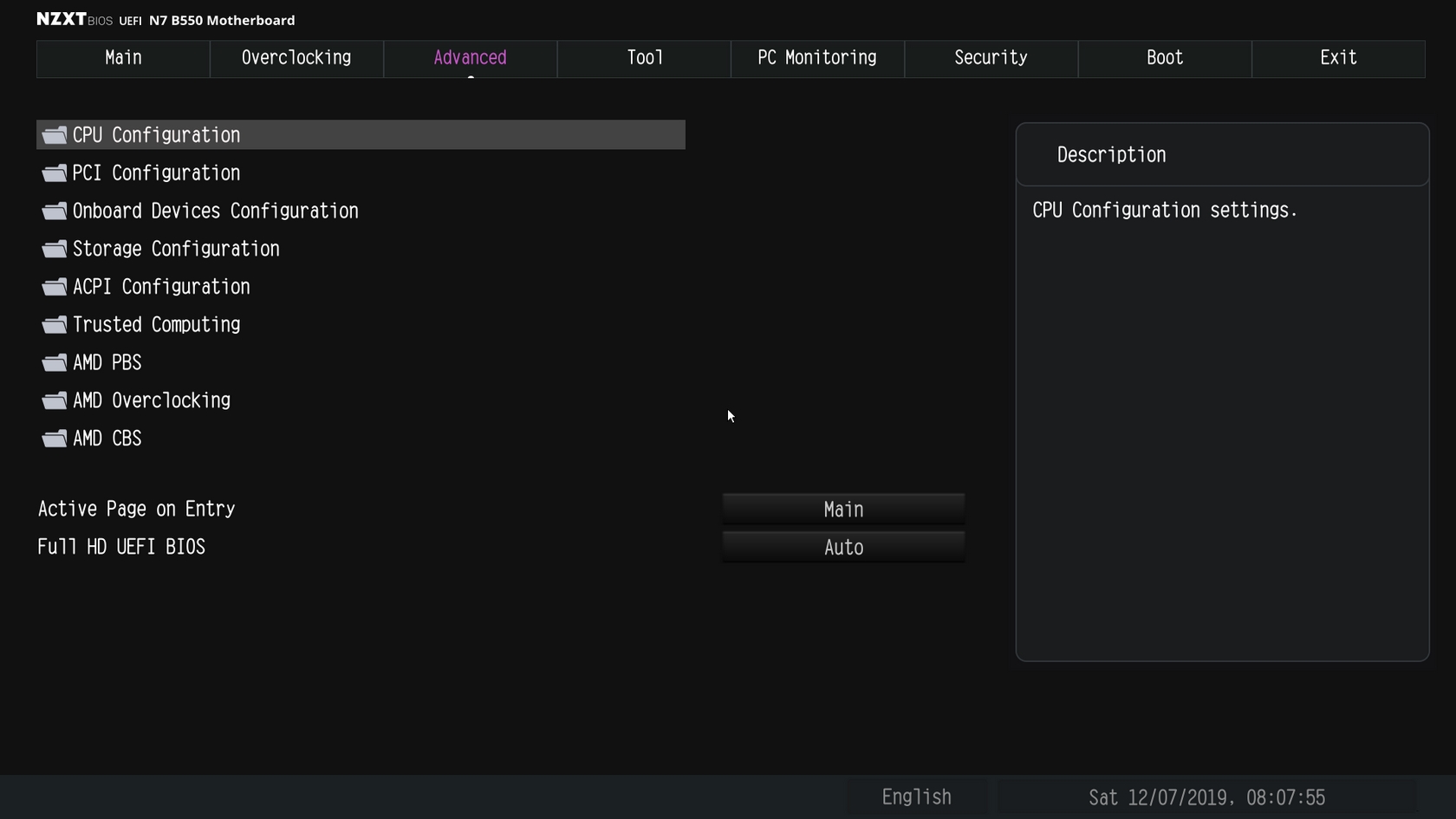

Under the Advanced tab you can access the various CPU technologies, check information on the CPU, use the AMD overclocking, Trusted Computing and resizable bar features and of course adjust everything else related to the motherboard such as the SATA ports and all the included peripherals such as the audio card, LAN and WiFi card.

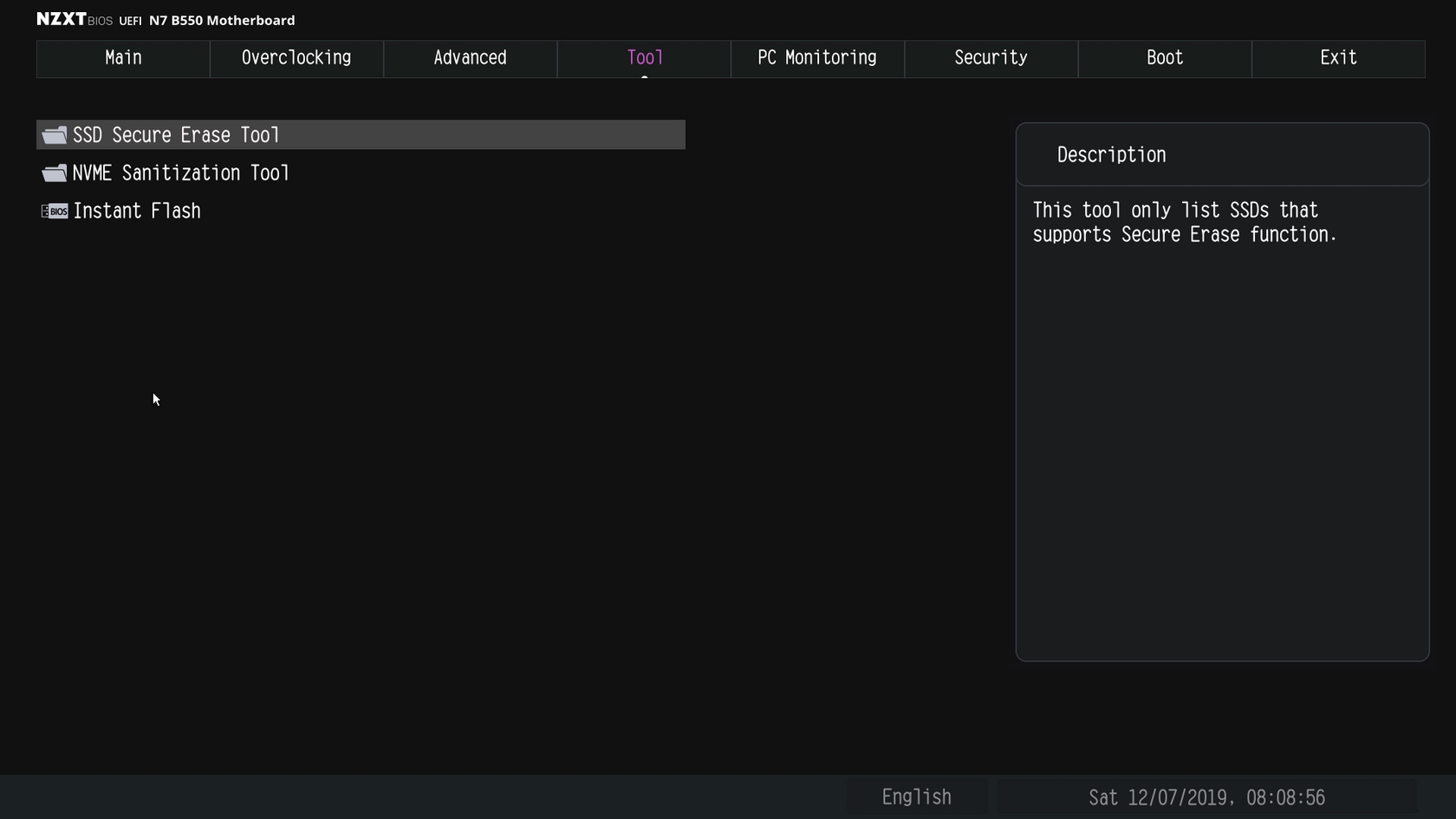

You can secure erase and sanitize your SSD from the tools tab (the BIOS update feature – instant flash - is listed here too).

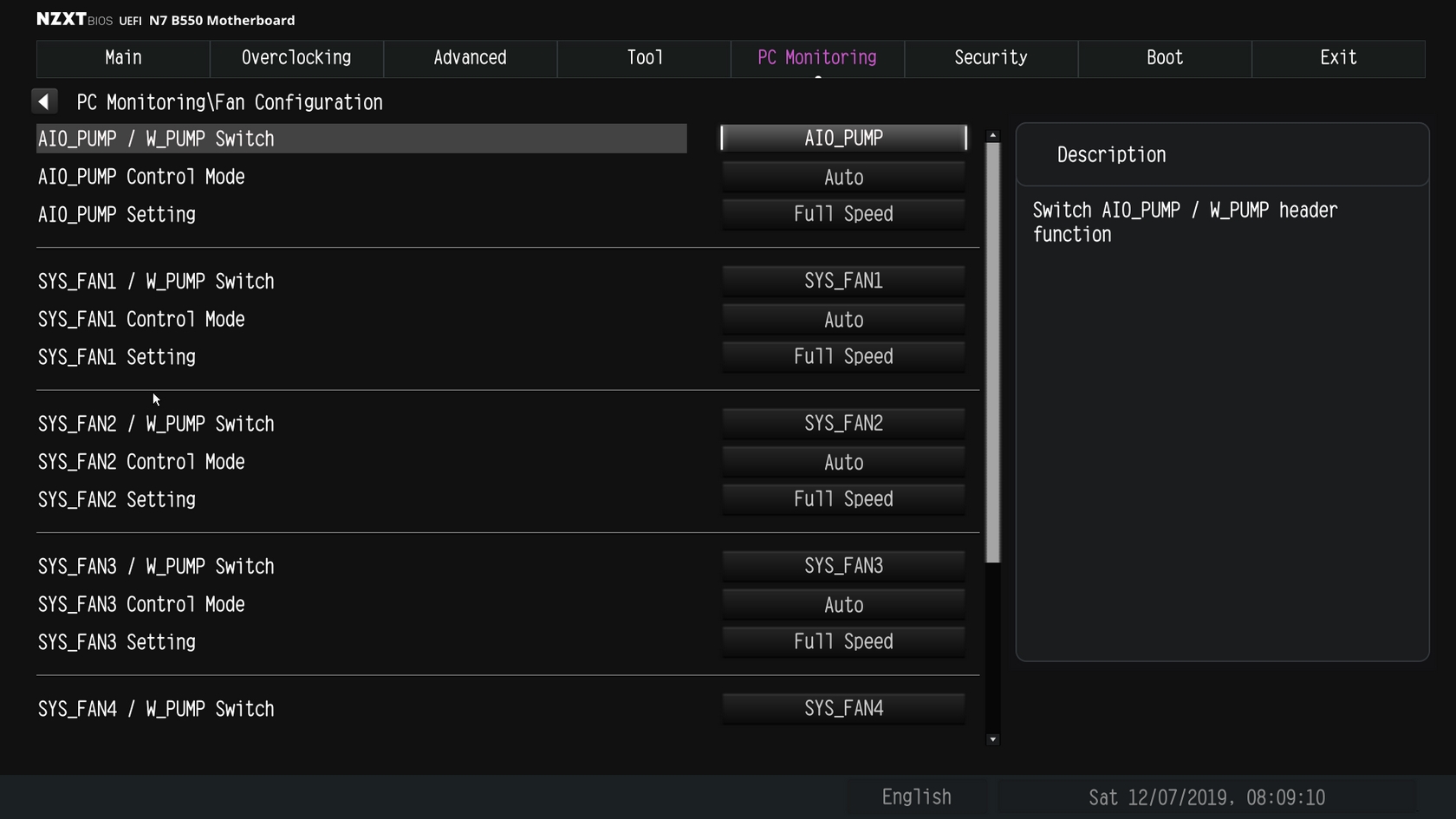

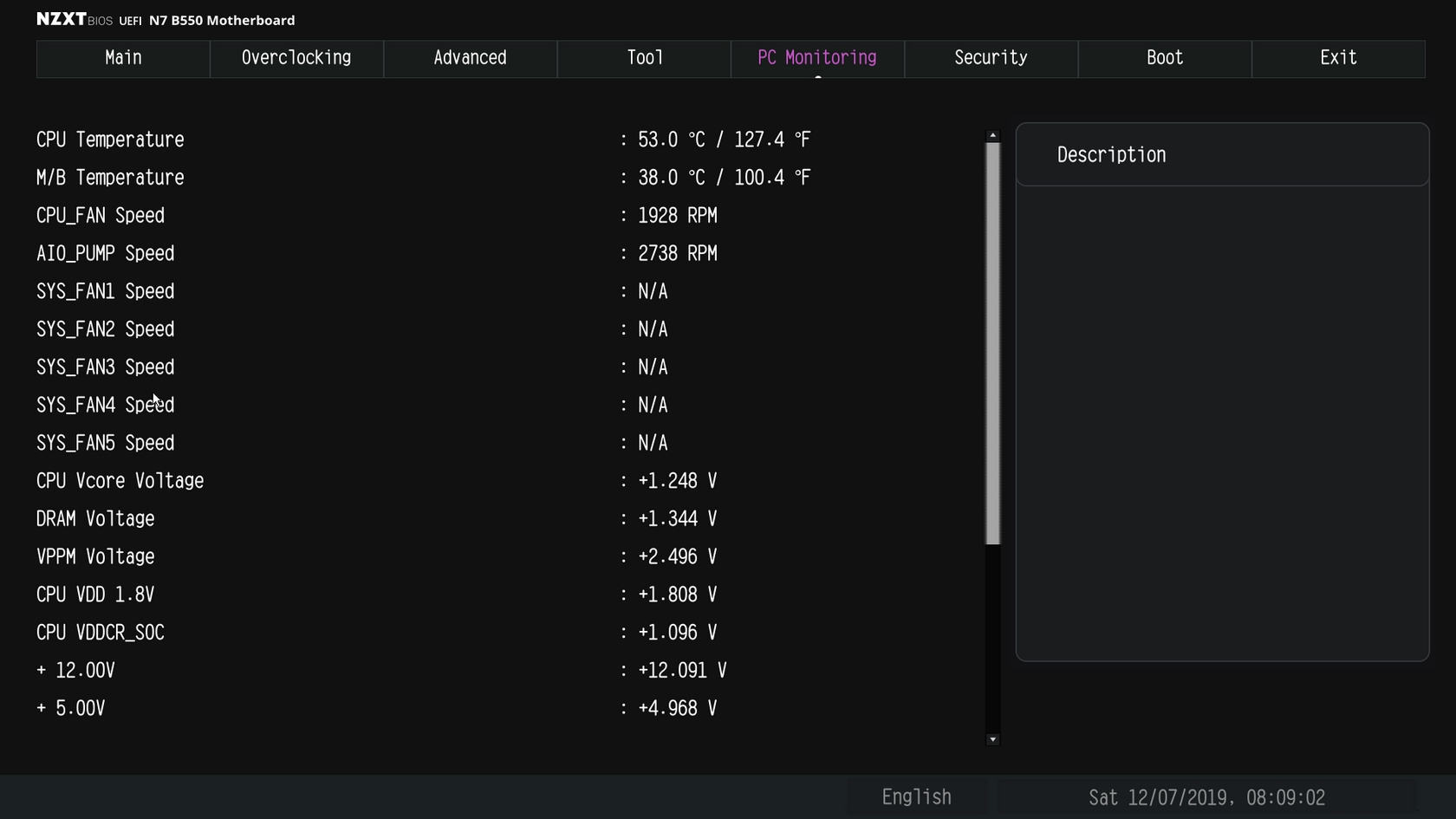

As revealed by its name the PC monitoring tab monitors system health (such as current temperatures, fan speeds and voltages) and also allows you to set the speed of the fans/pumps connected to the motherboard.

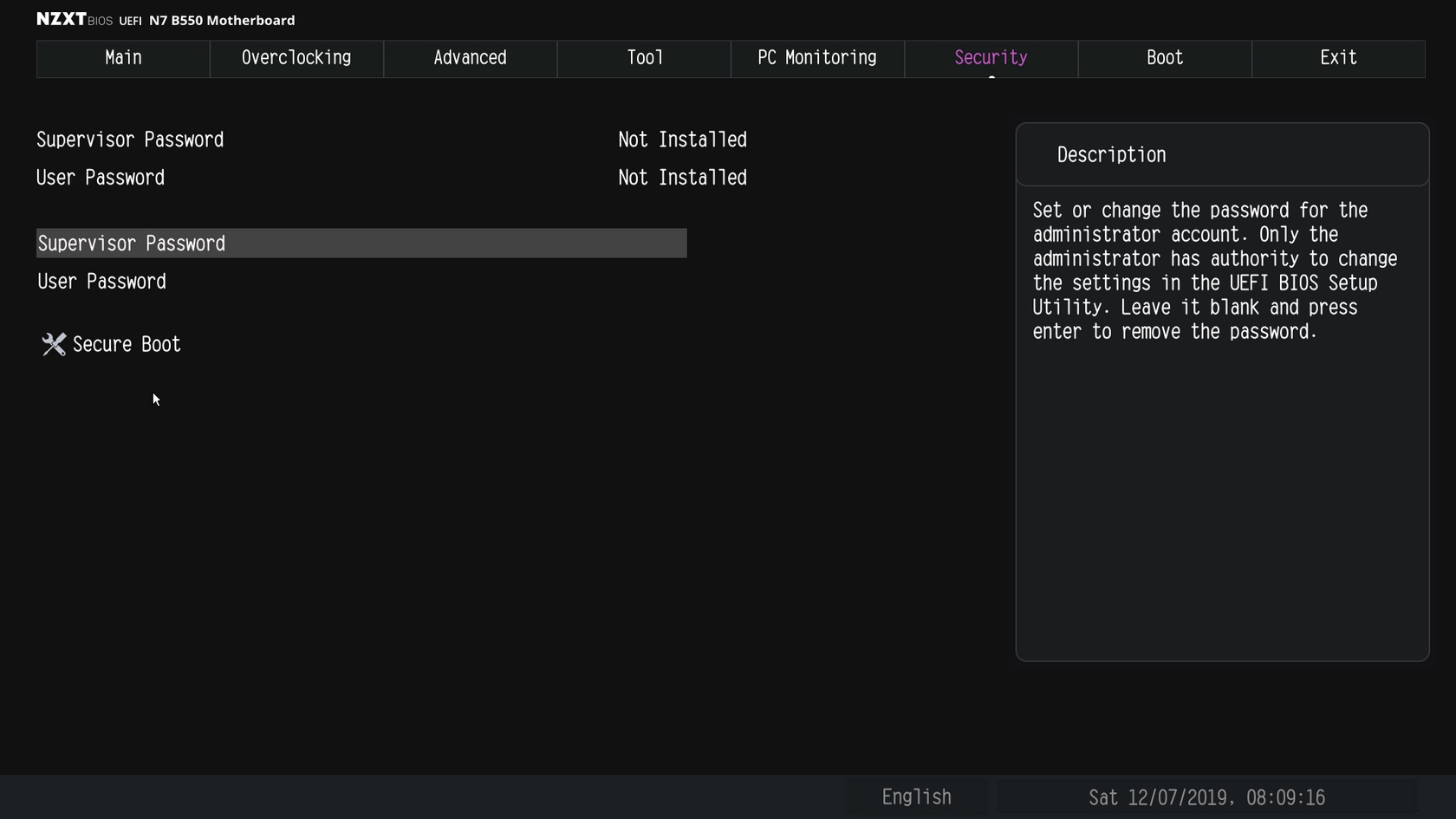

Under the security tab you can set a BIOS/System password and enable secure boot.

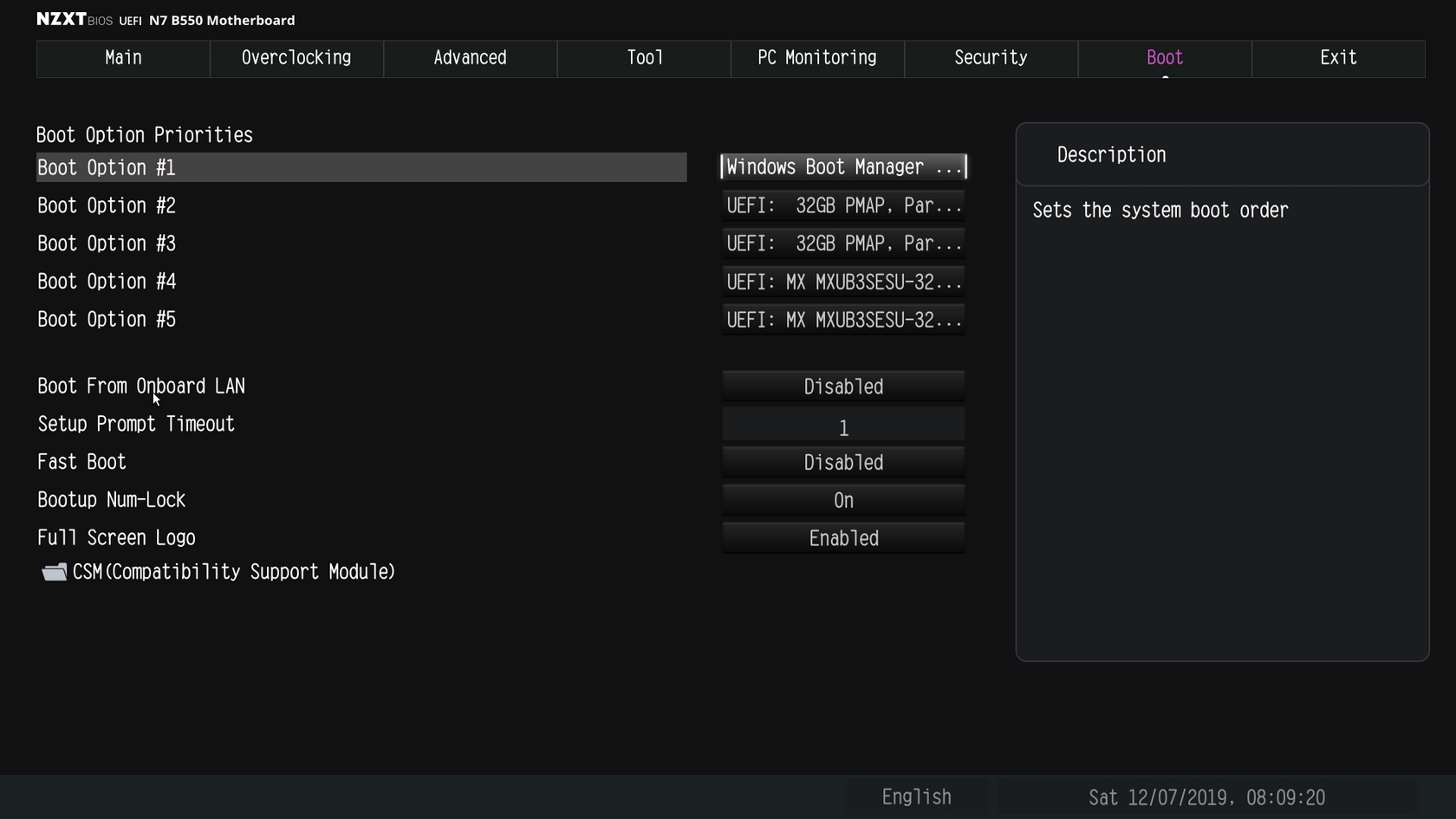

Of course, as always you can adjust various boot options from the Boot tab.
