BUILDING THE SYSTEM

As always, the purpose of this section is not to build a functional system but rather to showcase what you can expect from the case at hand in terms of interior space.

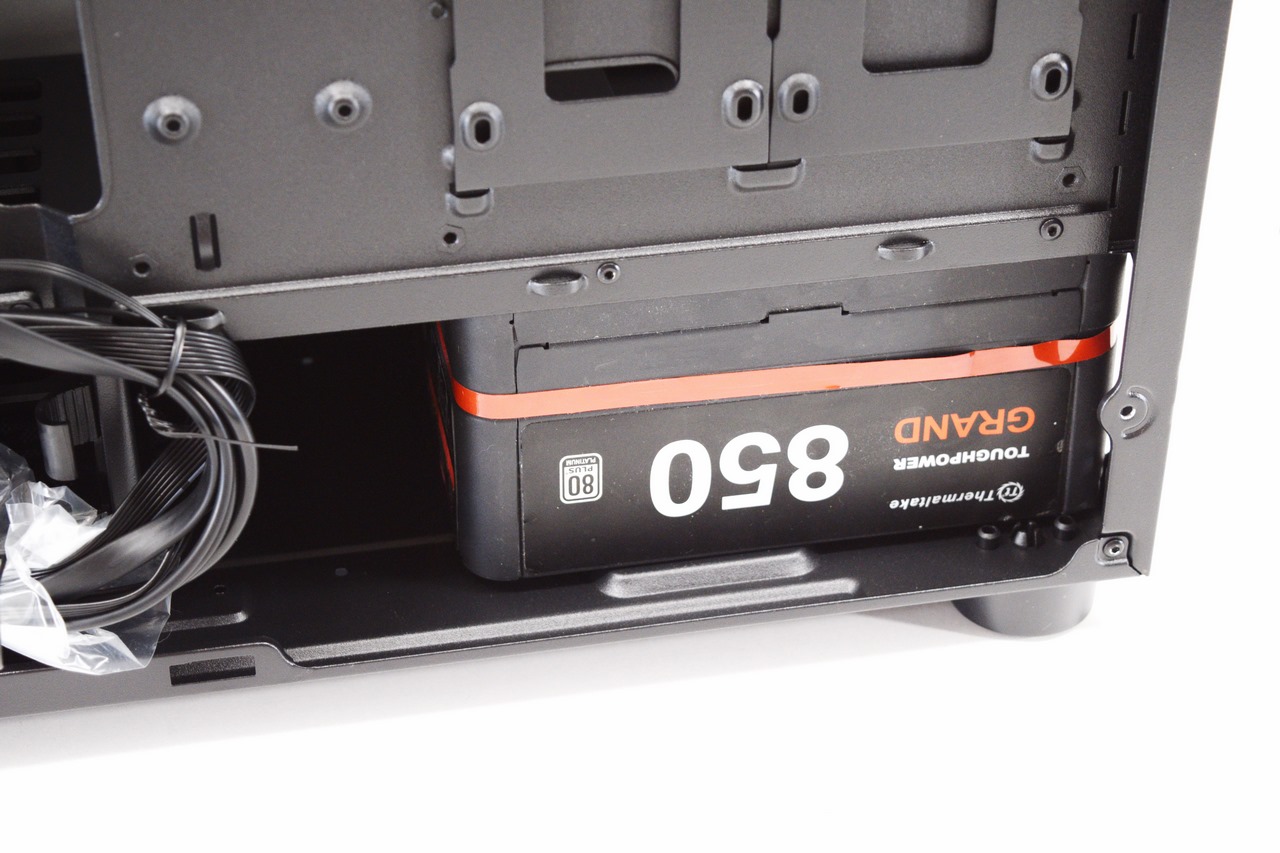

Once again, the PSU is the very first component we placed in this case (plenty of room for even longer models).

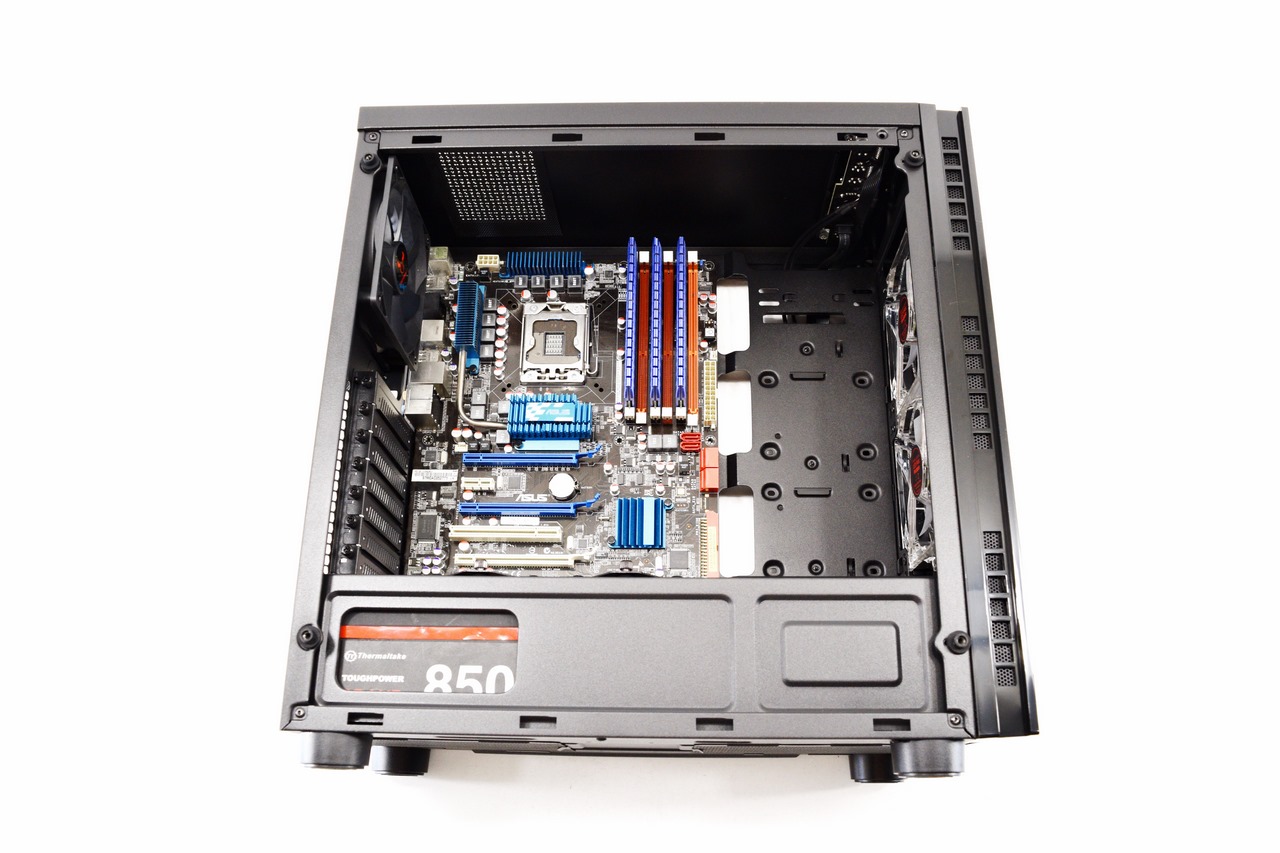

There's really ample room inside the CR500 even after we use our ATX sized mainboard.

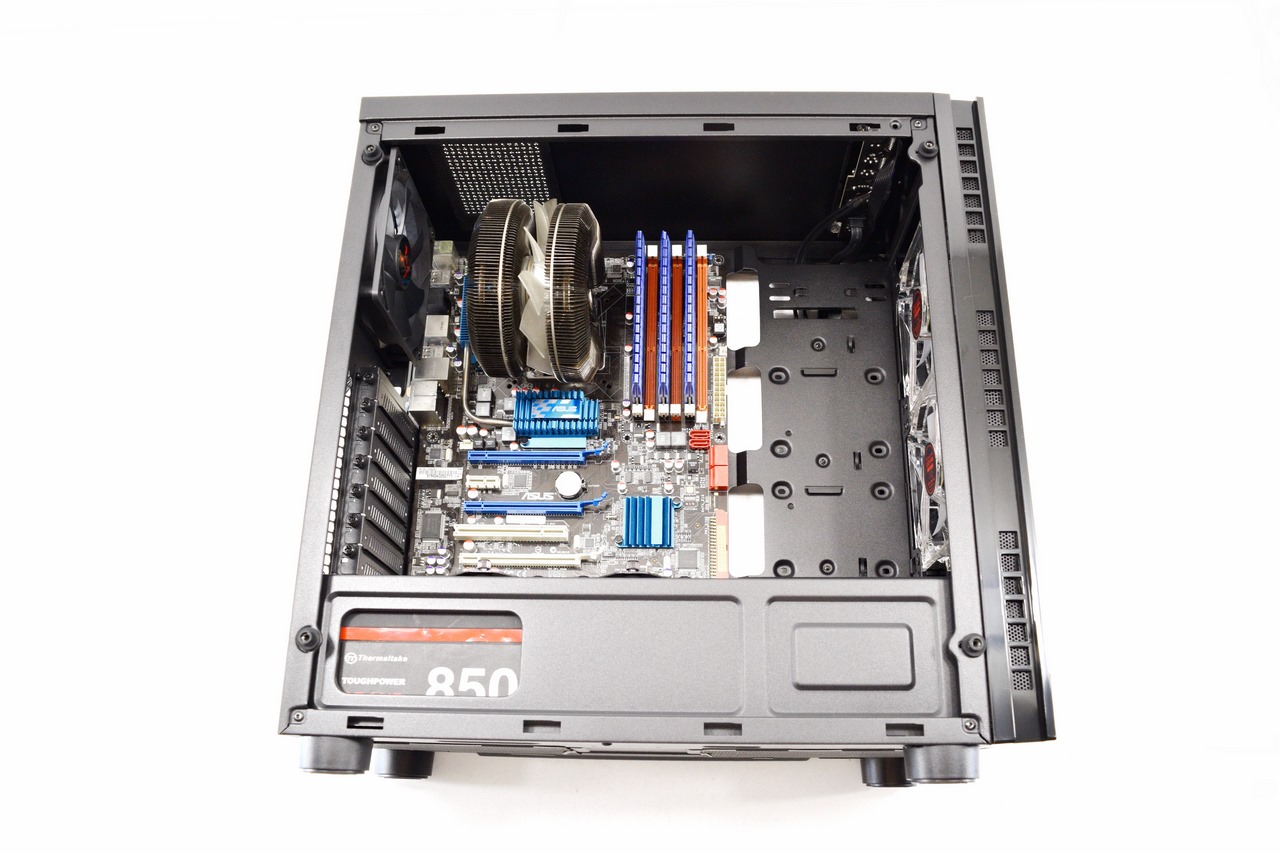

With enough room for up to 180mm tall CPU coolers you can pretty much use any model in the market.

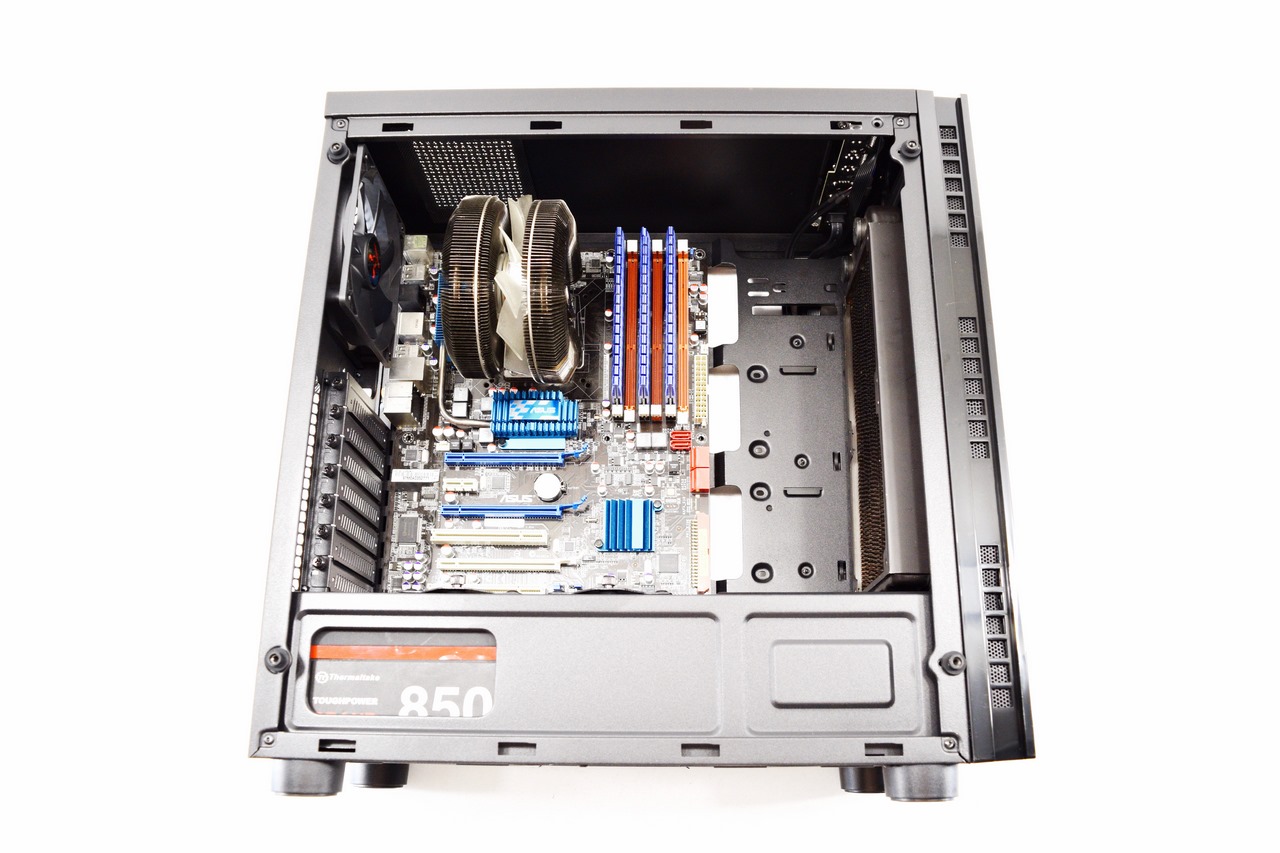

We mounted an 240mm radiator at the front without any issues but unfortunately even though you can mount two 140mm fans here you can't mount an 280mm radiator.

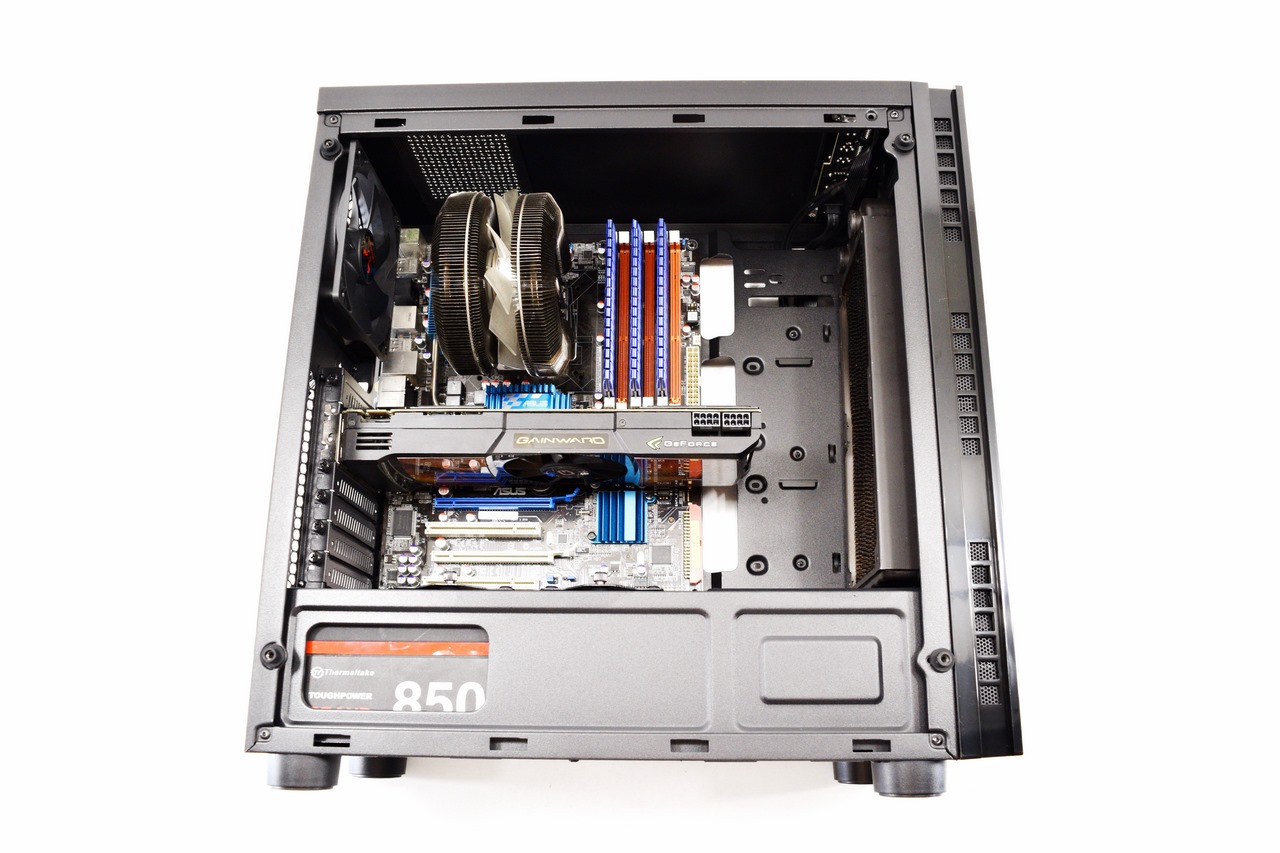

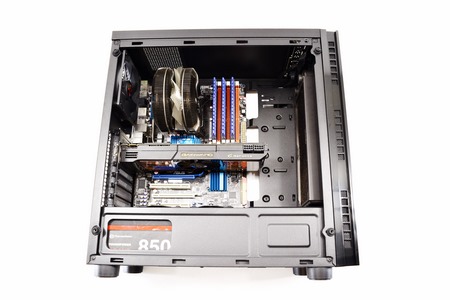

Even if you decide to mount an 240mm radiator at the front there's still room for around 340mm long graphics cards (that depends on the thickness of the radiator however).
