THE AIRHAWK EXTERIOR

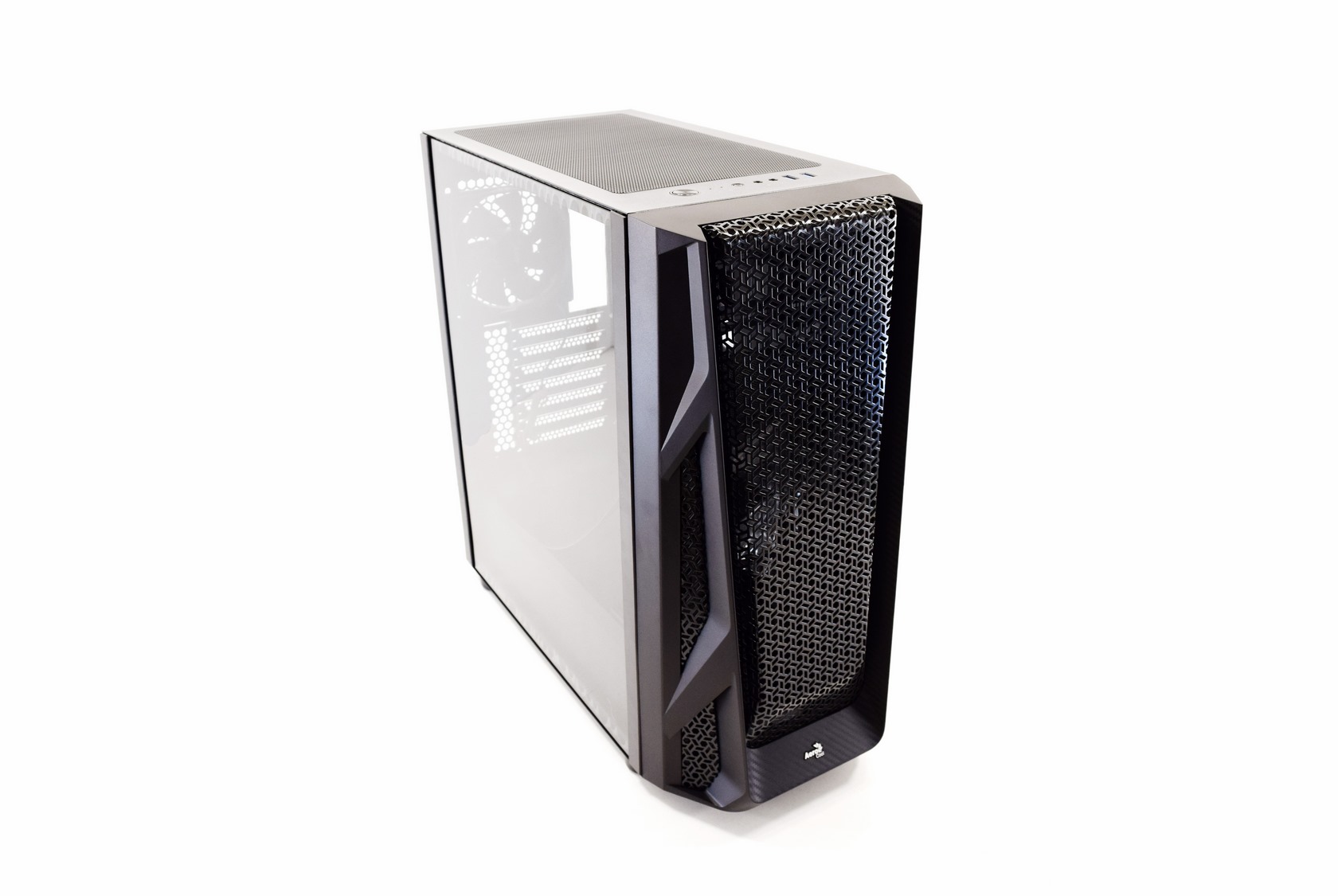

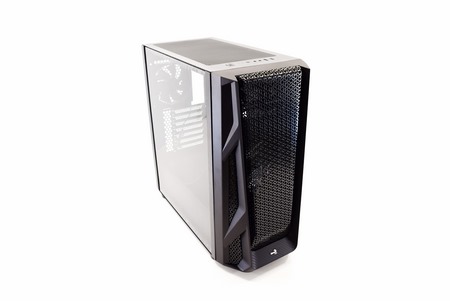

The AirHawk is a rather large mid-tower that measures 480mm in height, 485mm in depth and 219mm in width.

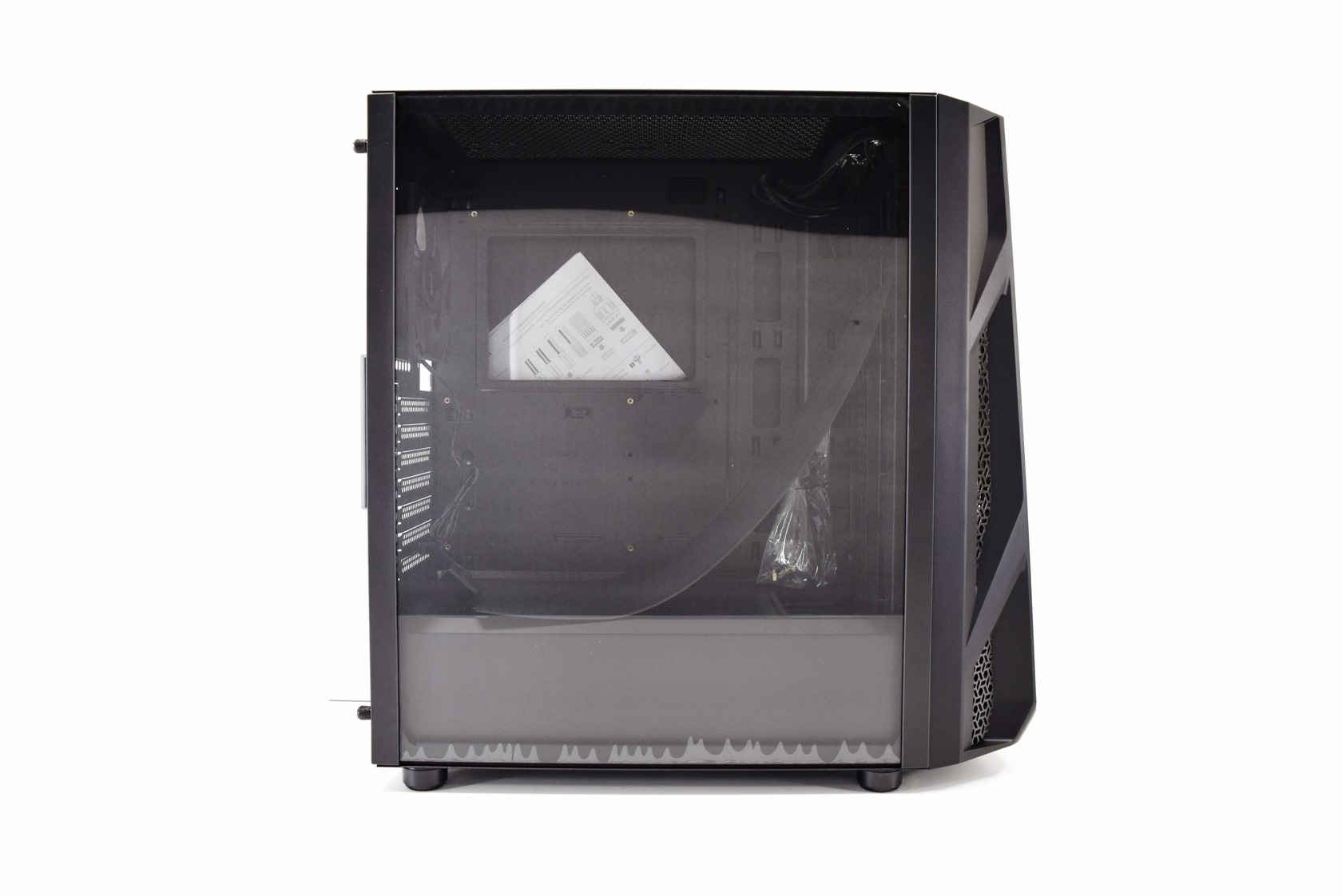

Just like with every other case these past 2 years the entire right side panel is made out of tempered glass held in place via 4 thumbscrews.

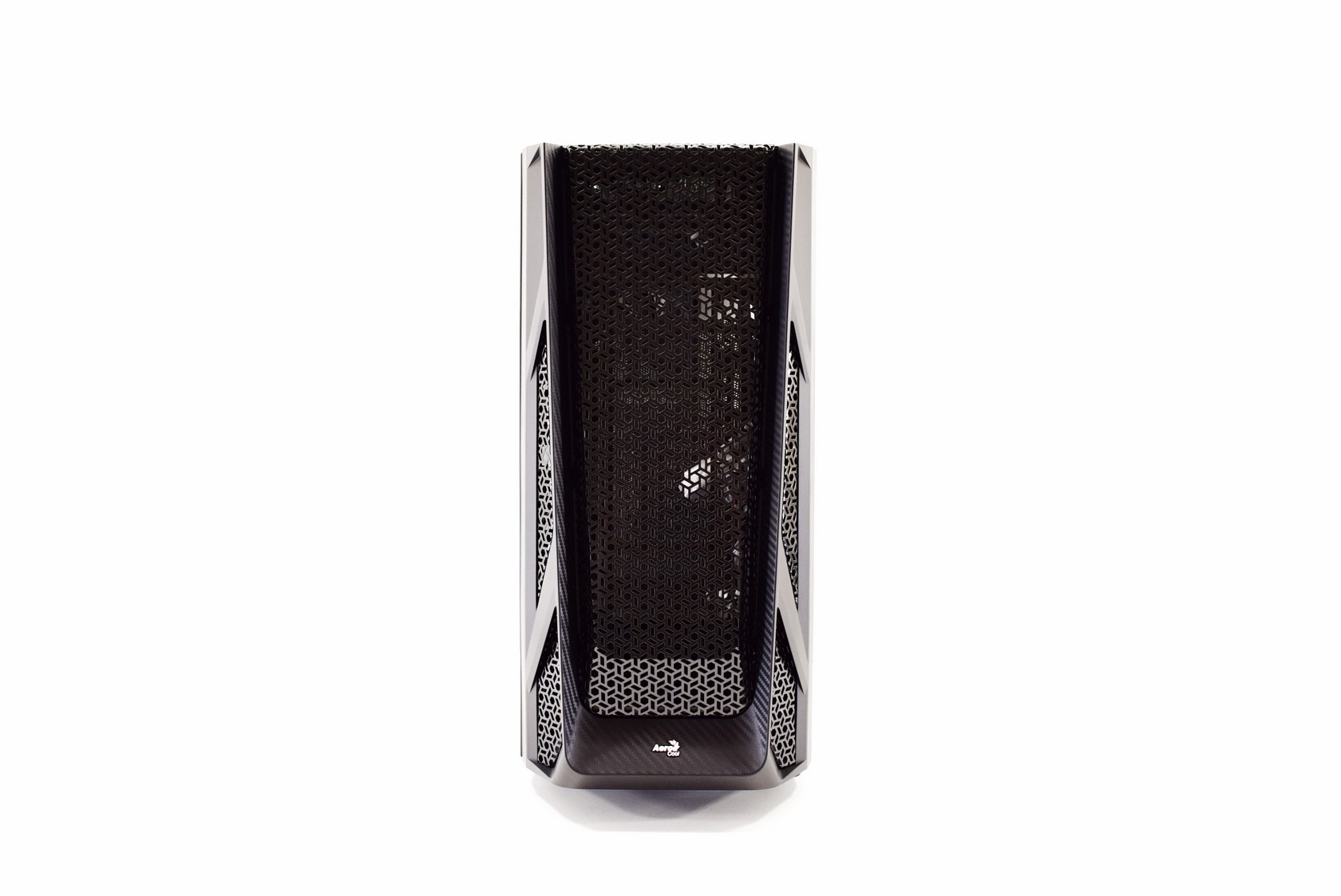

Aerocool has used a plastic mesh fascia which should offer impressive airflow levels.

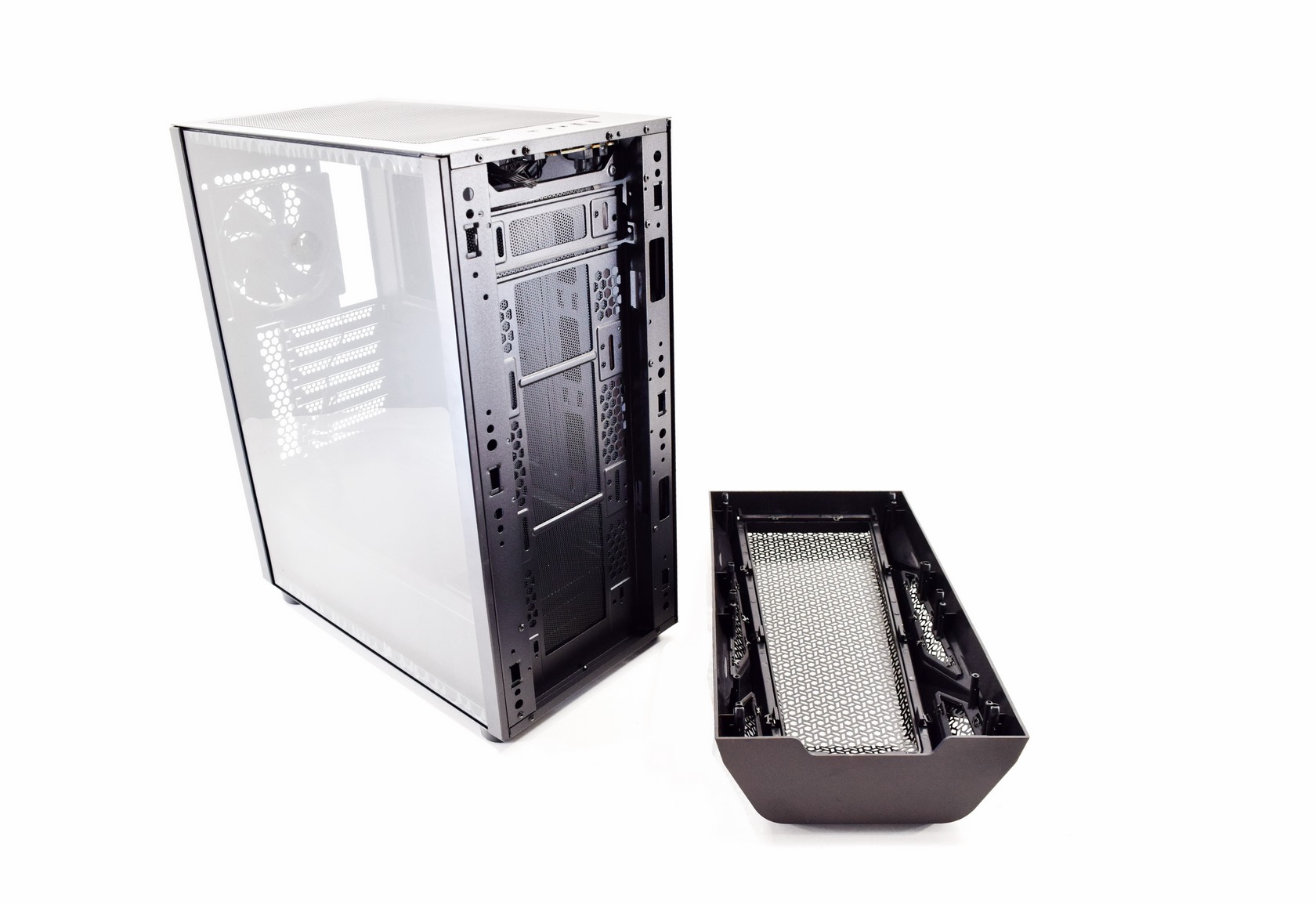

You can remove the fascia to access the fan area (here you can mount either 3x120/140mm or 2x200mm fans).

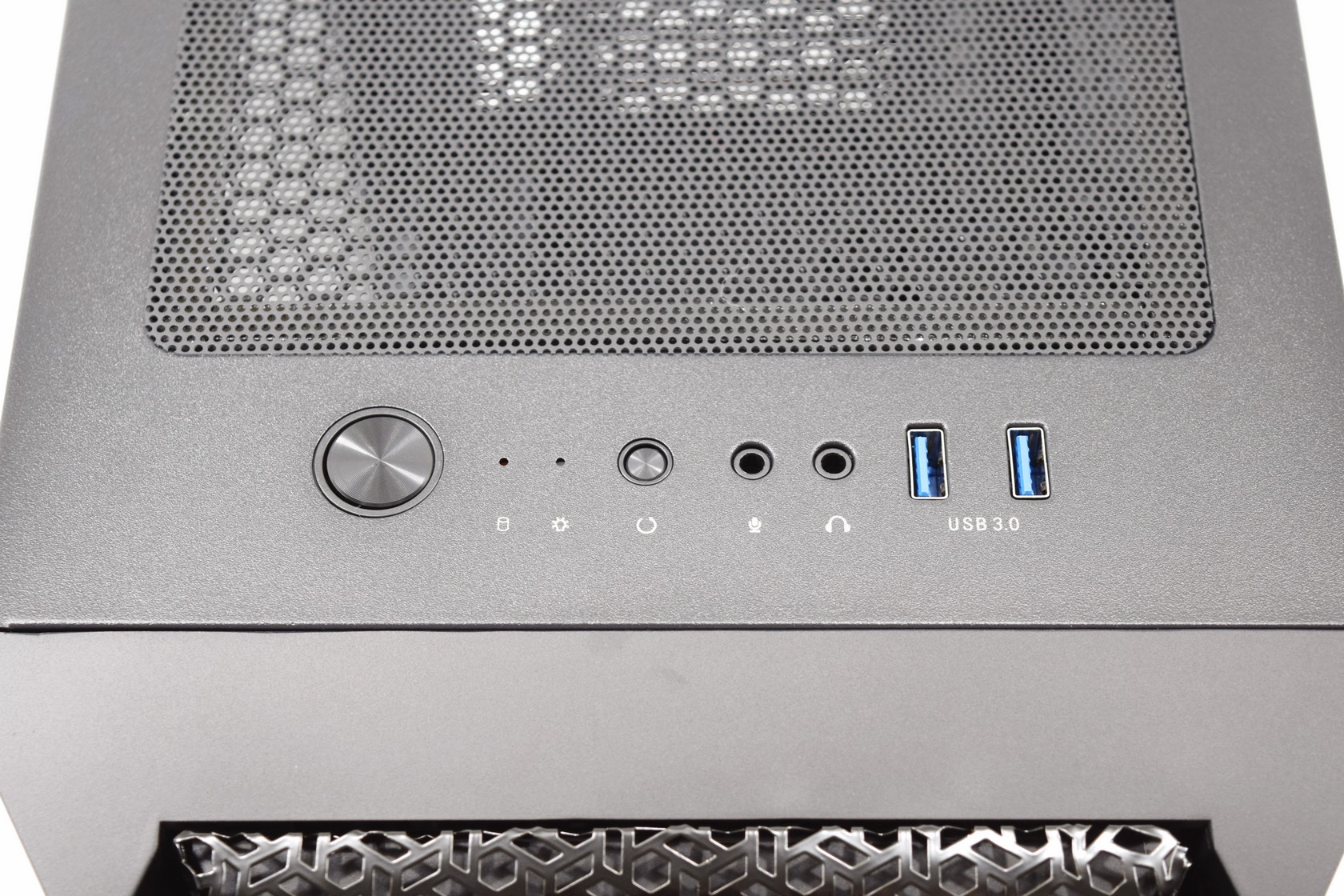

The I/O is located over the fascia and includes the on/off power and reset buttons, power and HDD activity LEDs, headset and microphone 3.5mm ports and two USB 3.0 ports.

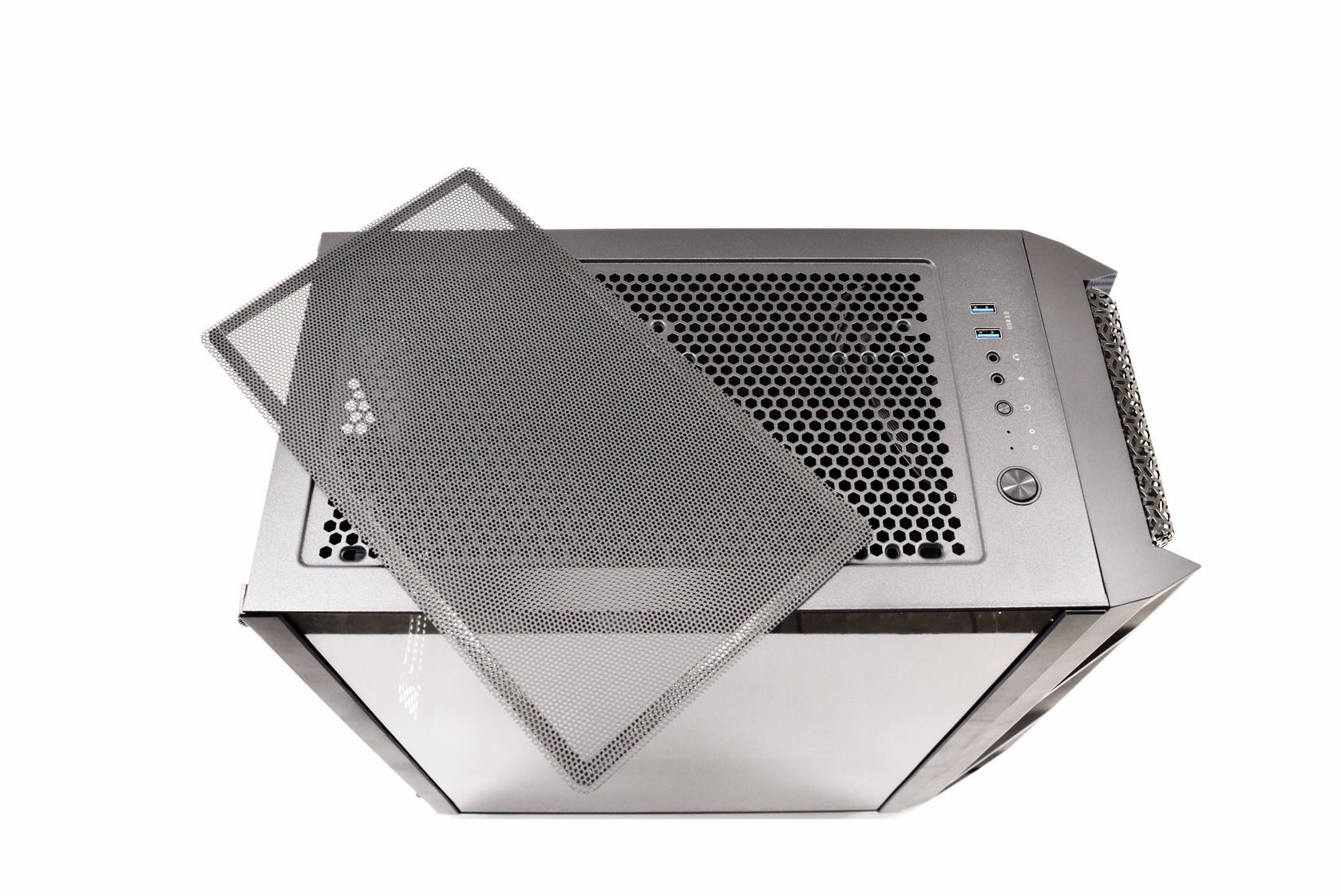

Most of the top is covered by a magnetic air-filter placed over the top mounting area where you can place up to three 120/140mm fans or a single 240/280mm radiator.

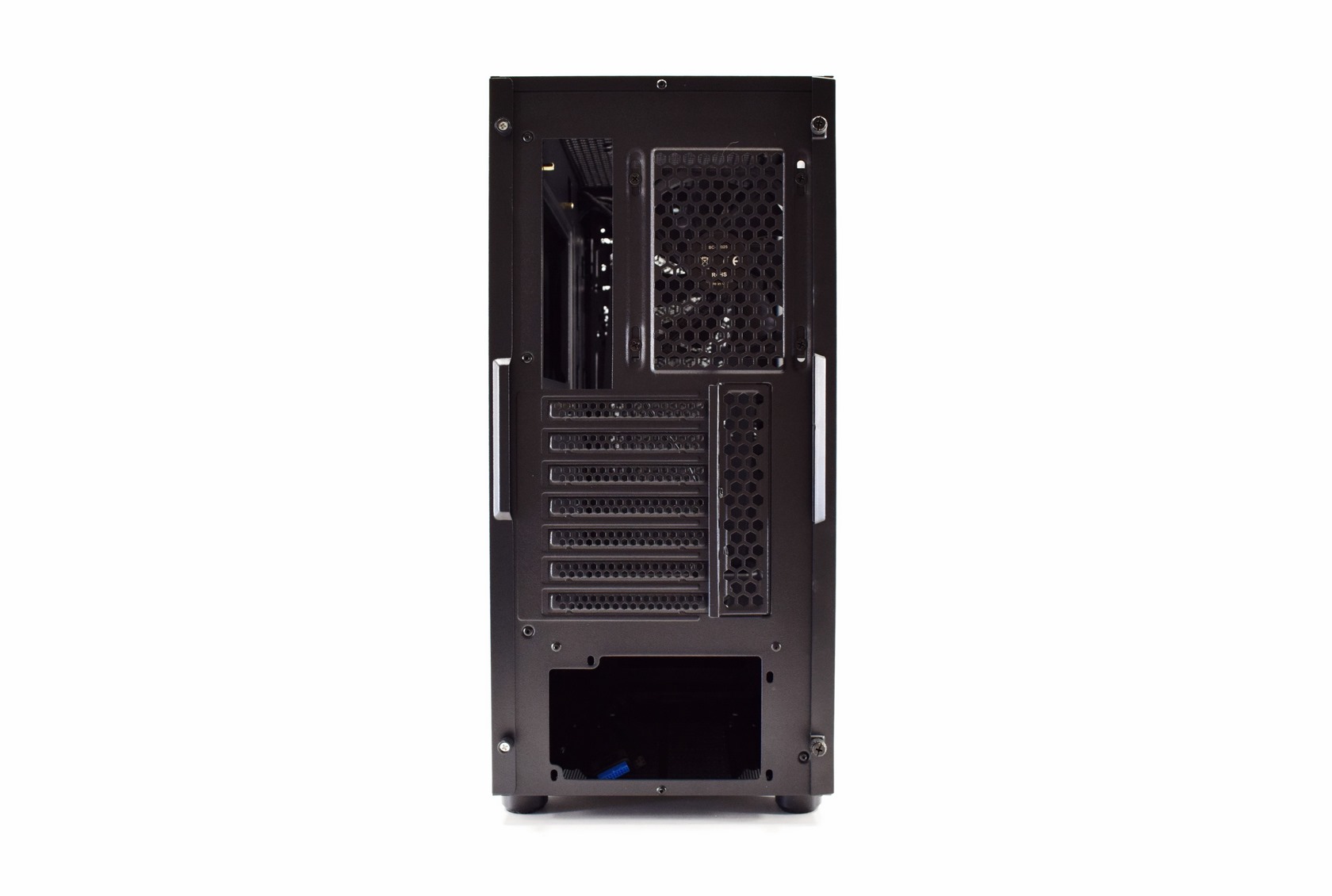

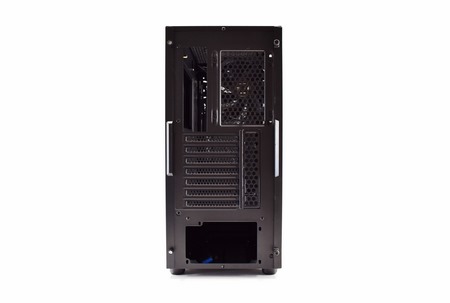

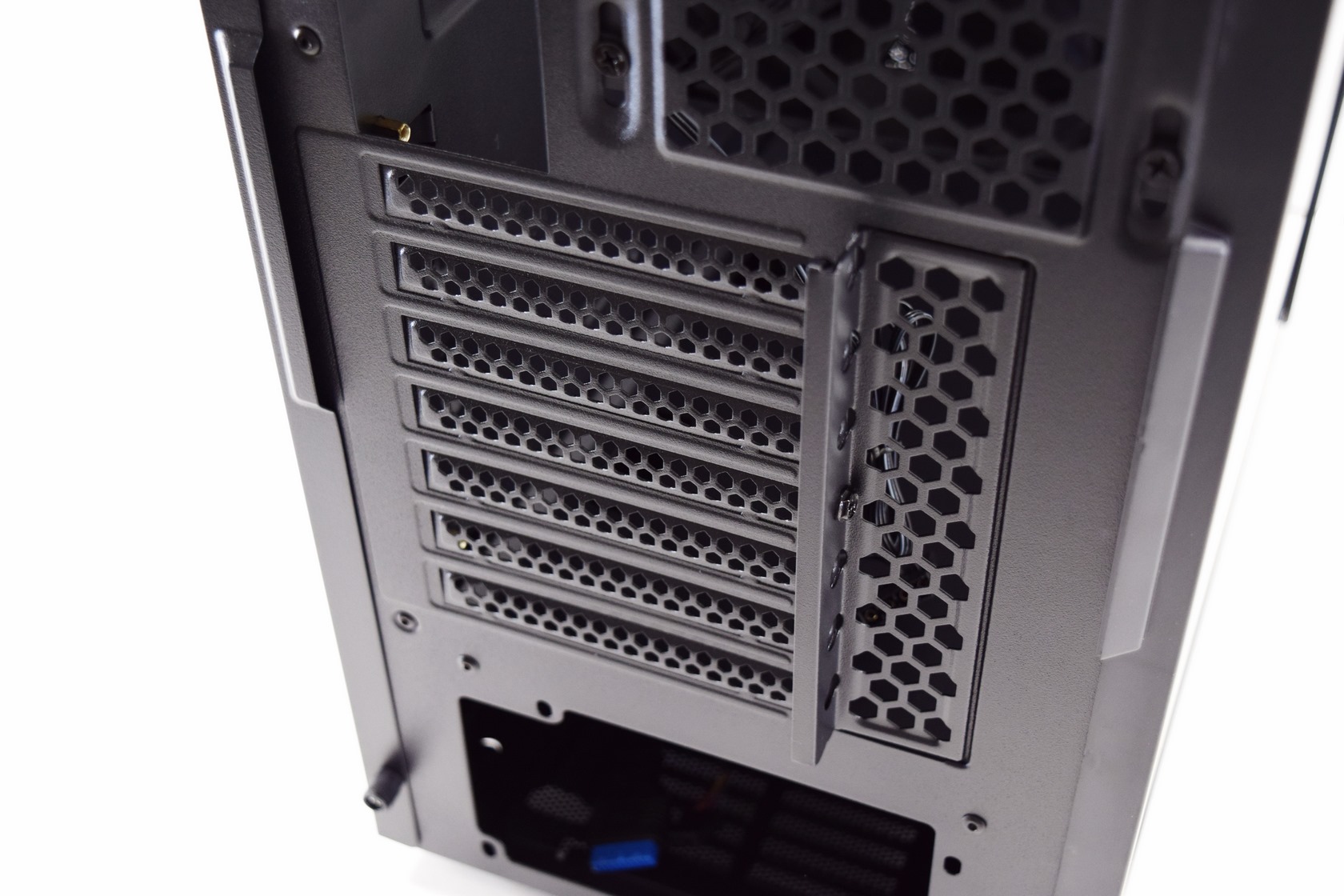

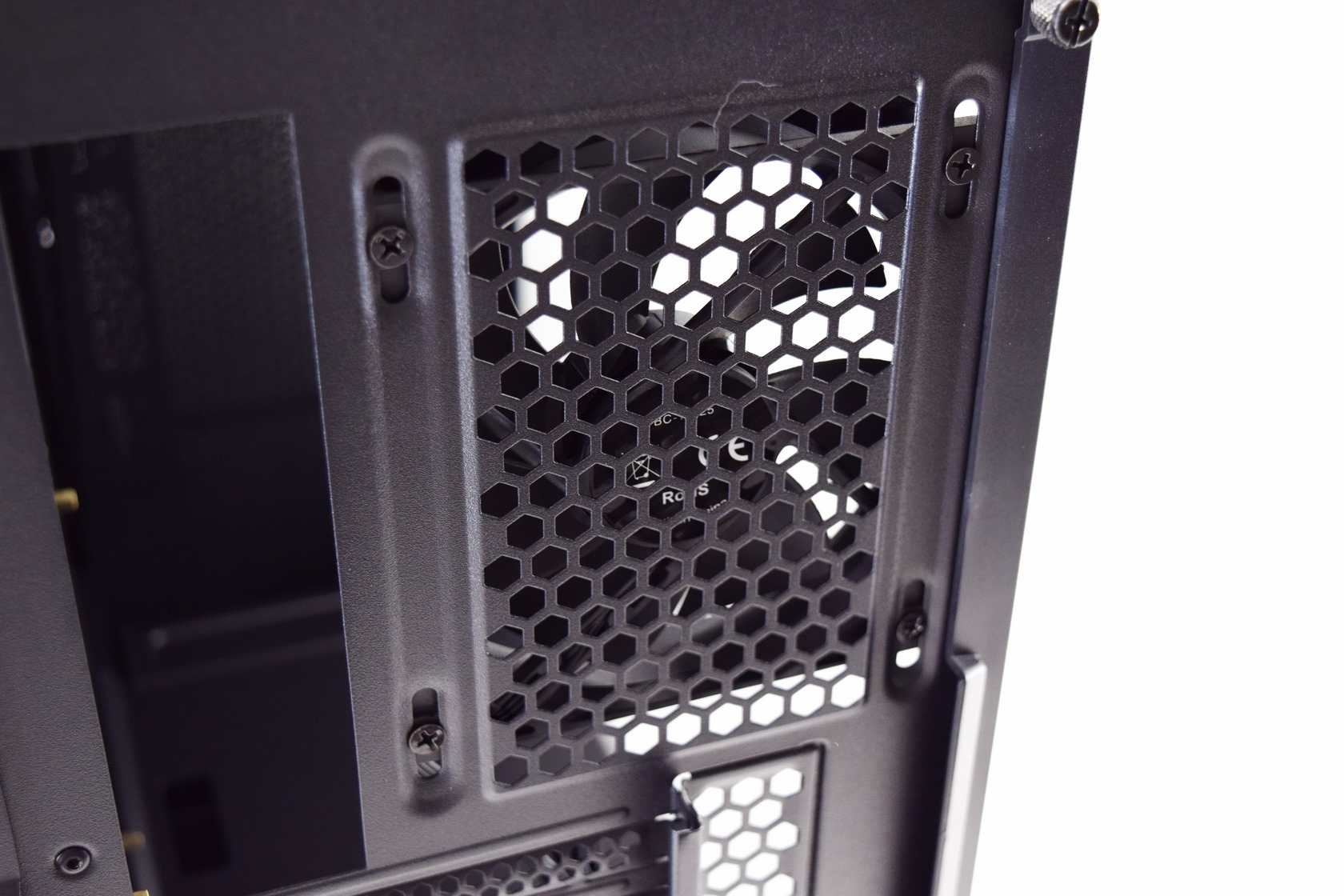

Moving at the rear of the case we find an 120mm exhaust fan, 7 PCI expansion slots and the PSU area.

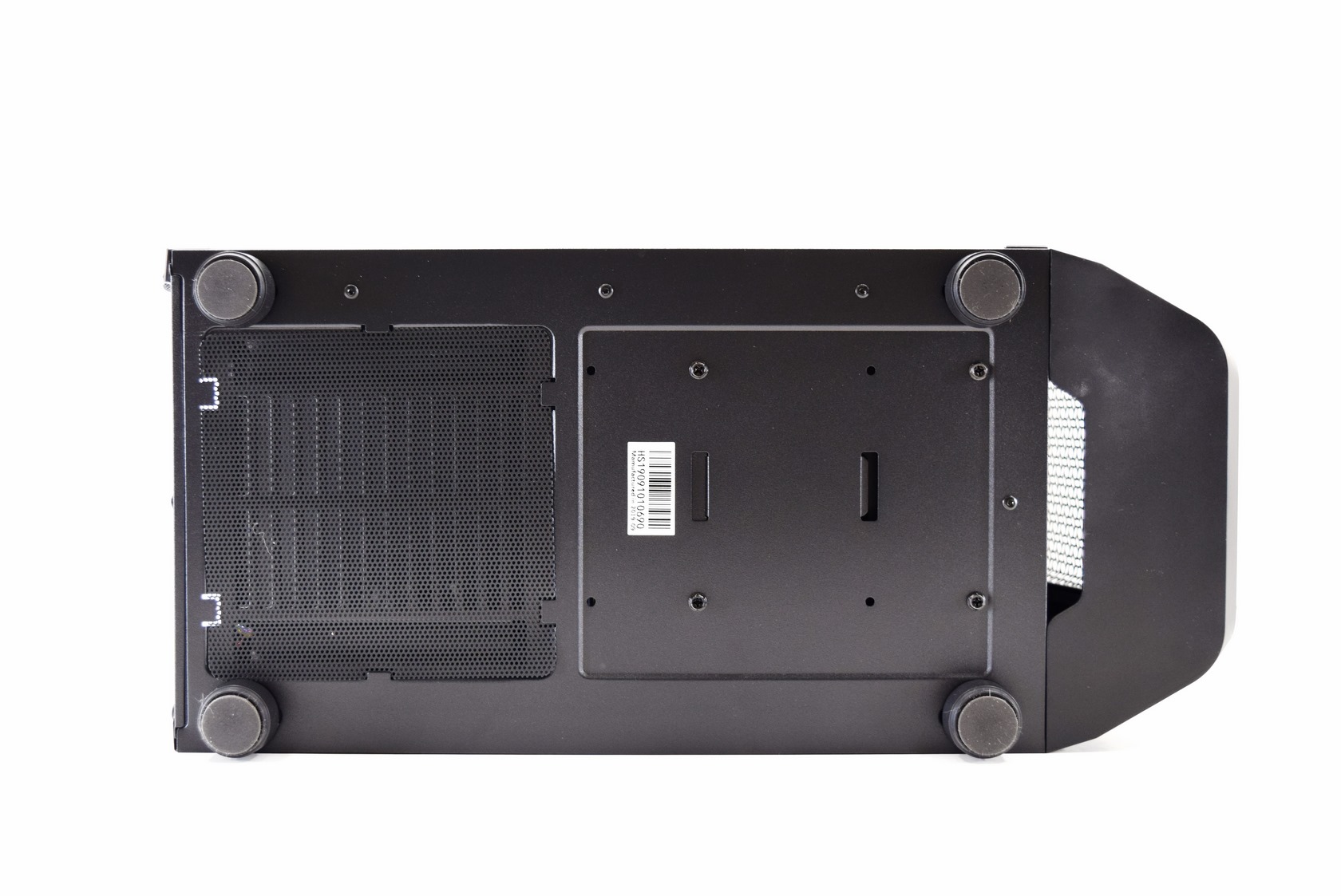

Turning the case over we find a removable air-filter right under the PSU area (unfortunately it's not a magnetic one).
