BUILDING THE SYSTEM

As always, the purpose of this section is not to build a functional system but rather to showcase what you can expect from the case at hand in terms of interior space.

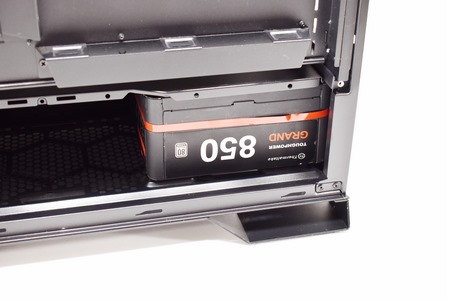

Once again, we see a PC case by be quiet! with the PSU getting mounted from the rear (and yes, you should be able to fit any model here).

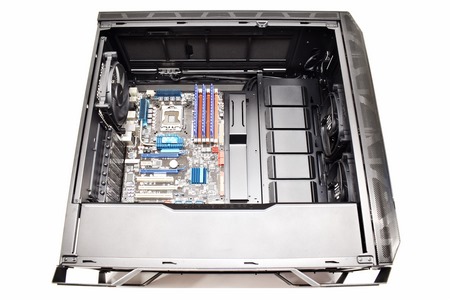

Mounting an ATX motherboard makes it easy to see that for an XL-ATX model you will need to remove the cable cover.

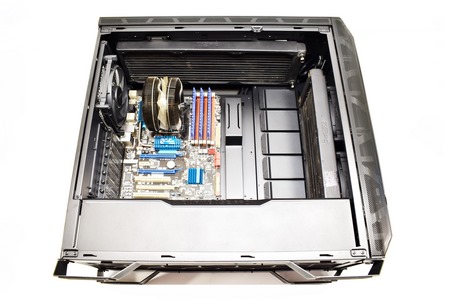

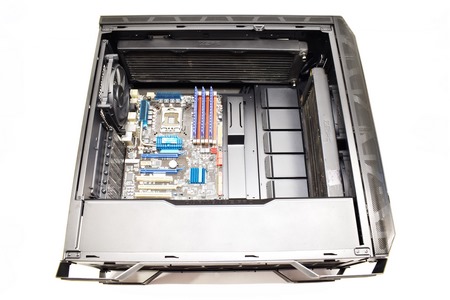

Here I’ve mounted an 420mm radiator at the top (it reaches the limits of the case so it's understandable that be quiet! mentions up to 360mm for the top radiator) and an 240mm radiator at the front (the 360mm radiator i have here was too thick).

With enough space for 190mm CPU air cooler you can use any model currently in the market.

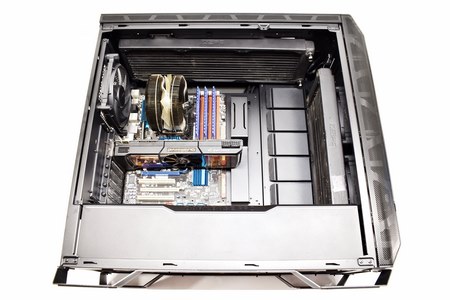

Even if you decide to use 3.5" drive trays at the front there's still room for roughly 350mm long graphics cards (495mm without anything at the front end).
