THE P100 EXTERIOR

















antec p100 07t

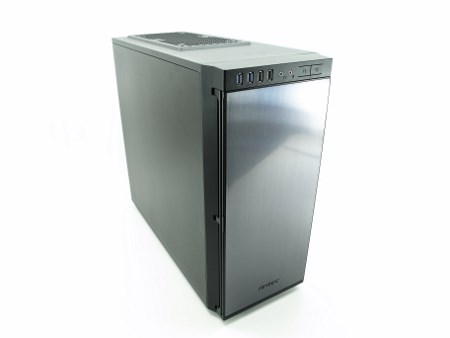

Much like the entire Performance One line of PC Cases the 484mm tall, 220mm wide and 523mm long P100 features a stylish design with simple lines.





antec p100 08t

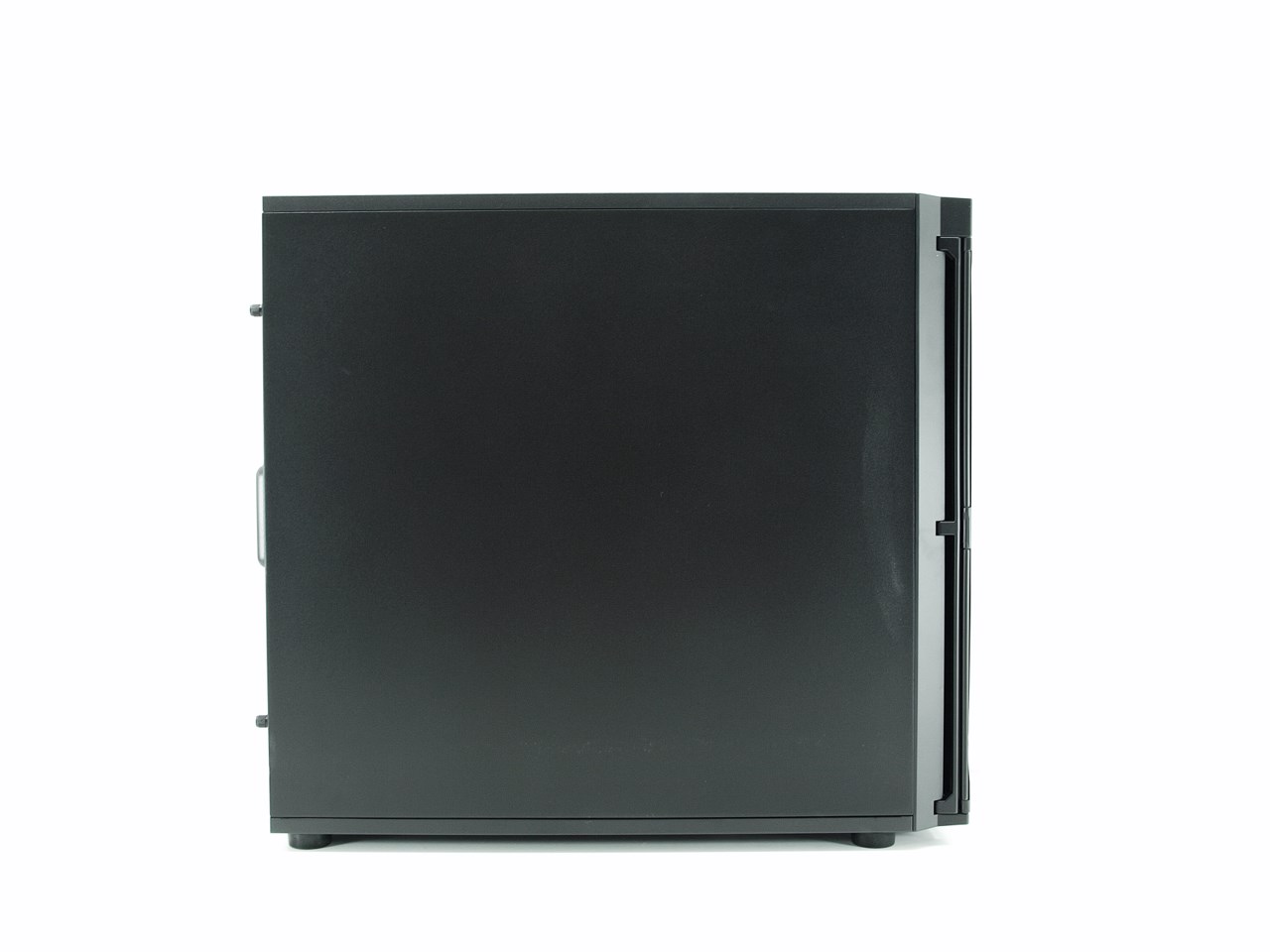

To reduce noise levels both side panels are made by thick solid SECC steel.





antec p100 09t

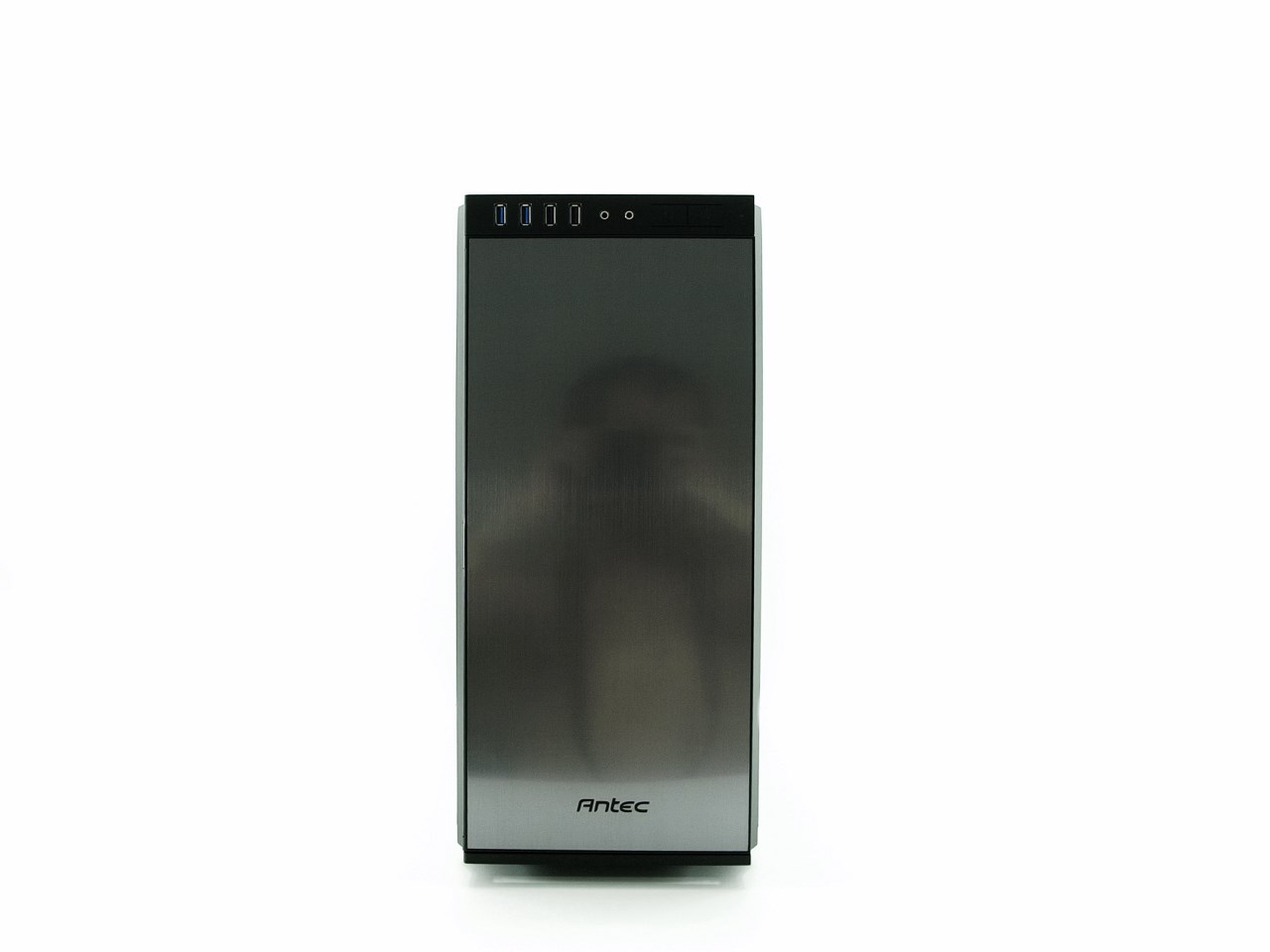

The front fascia is actually a door covered by a thin sheet of brushed aluminum.





antec p100 10t

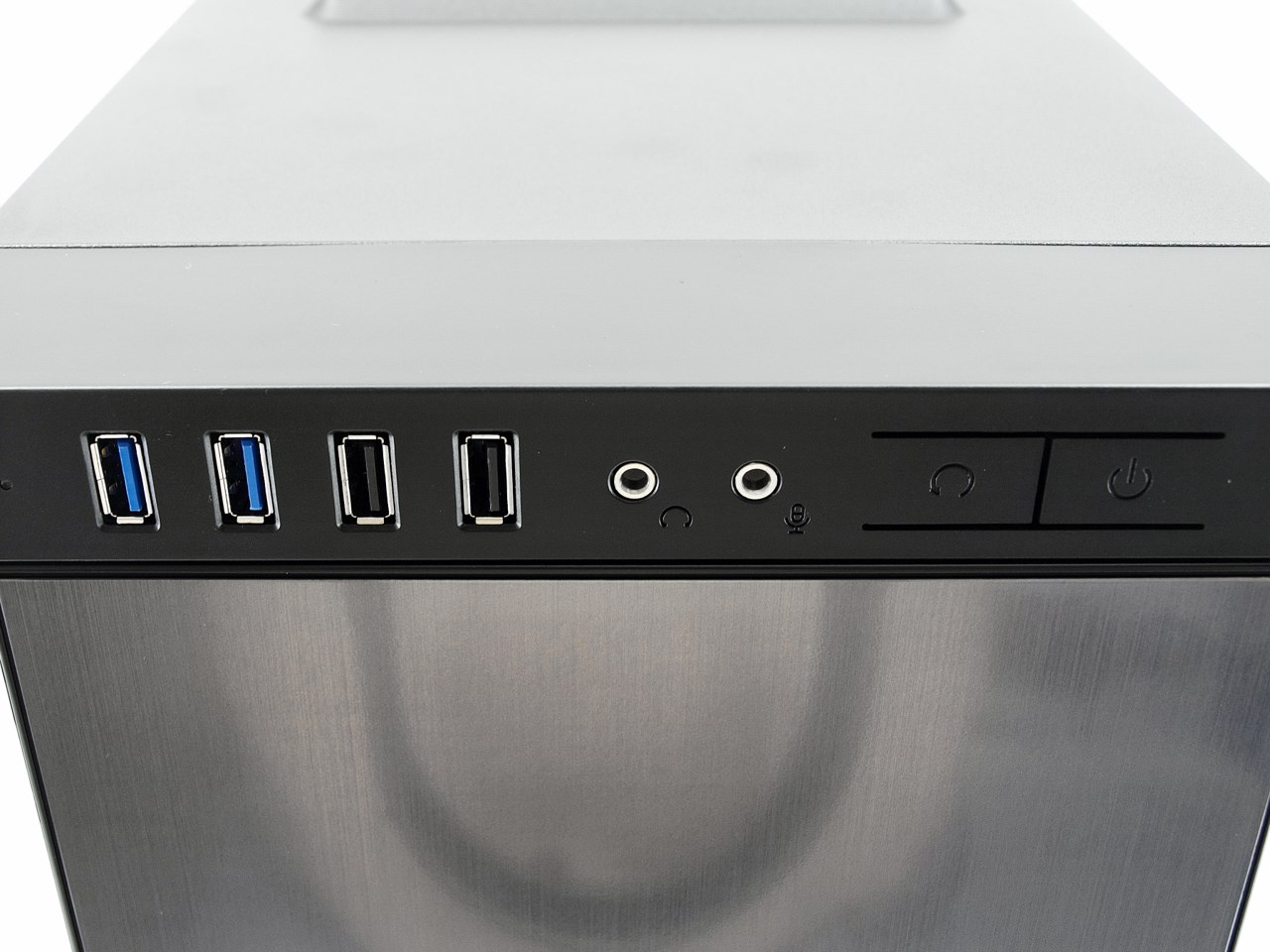

Right above that door we see the I/O which includes the On/Off and reset buttons, 2 USB 3.0 ports, 2 USB 2.0 ports and the typical headphones and microphone plugs.





antec p100 11tantec p100 12t

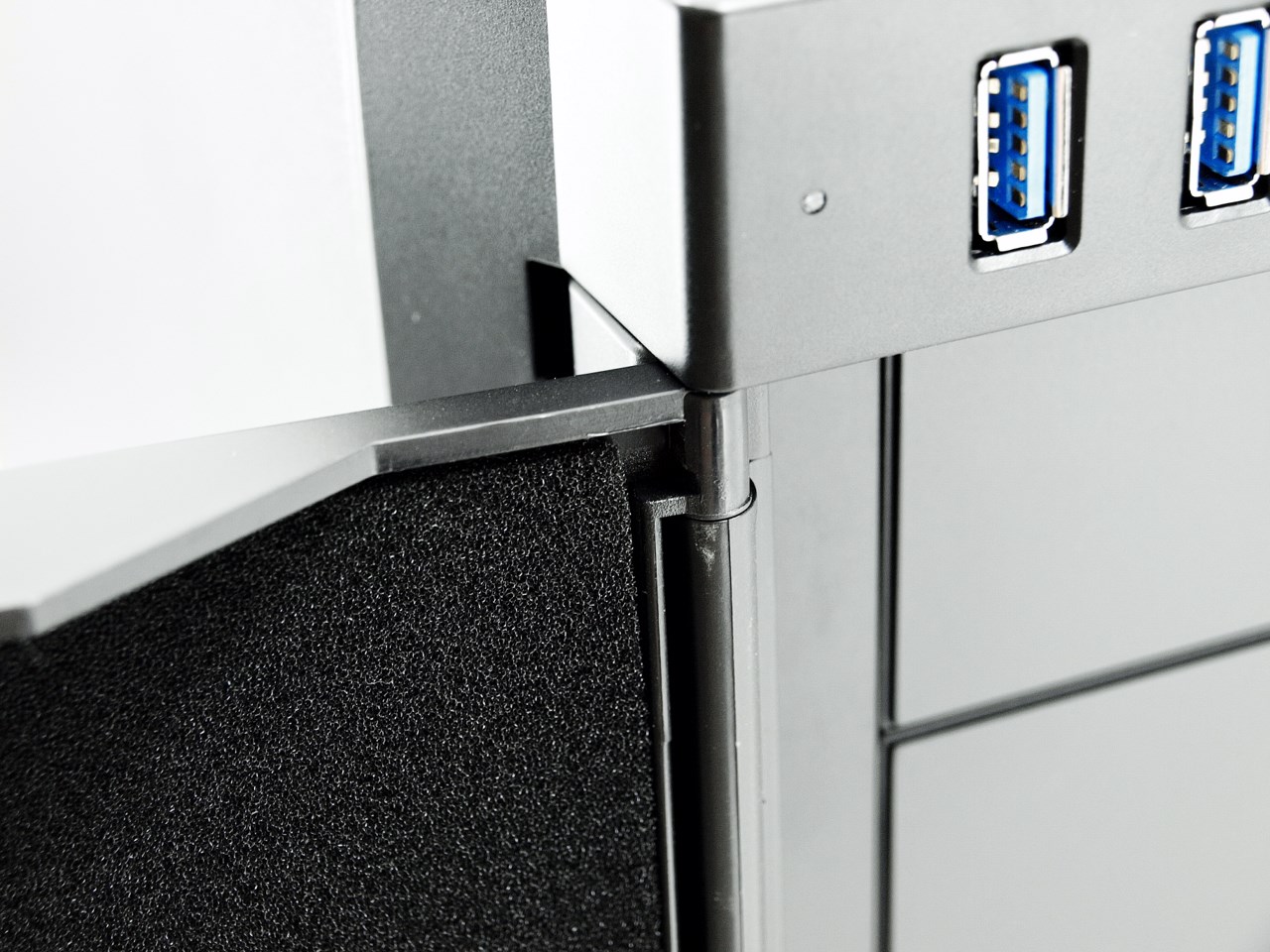

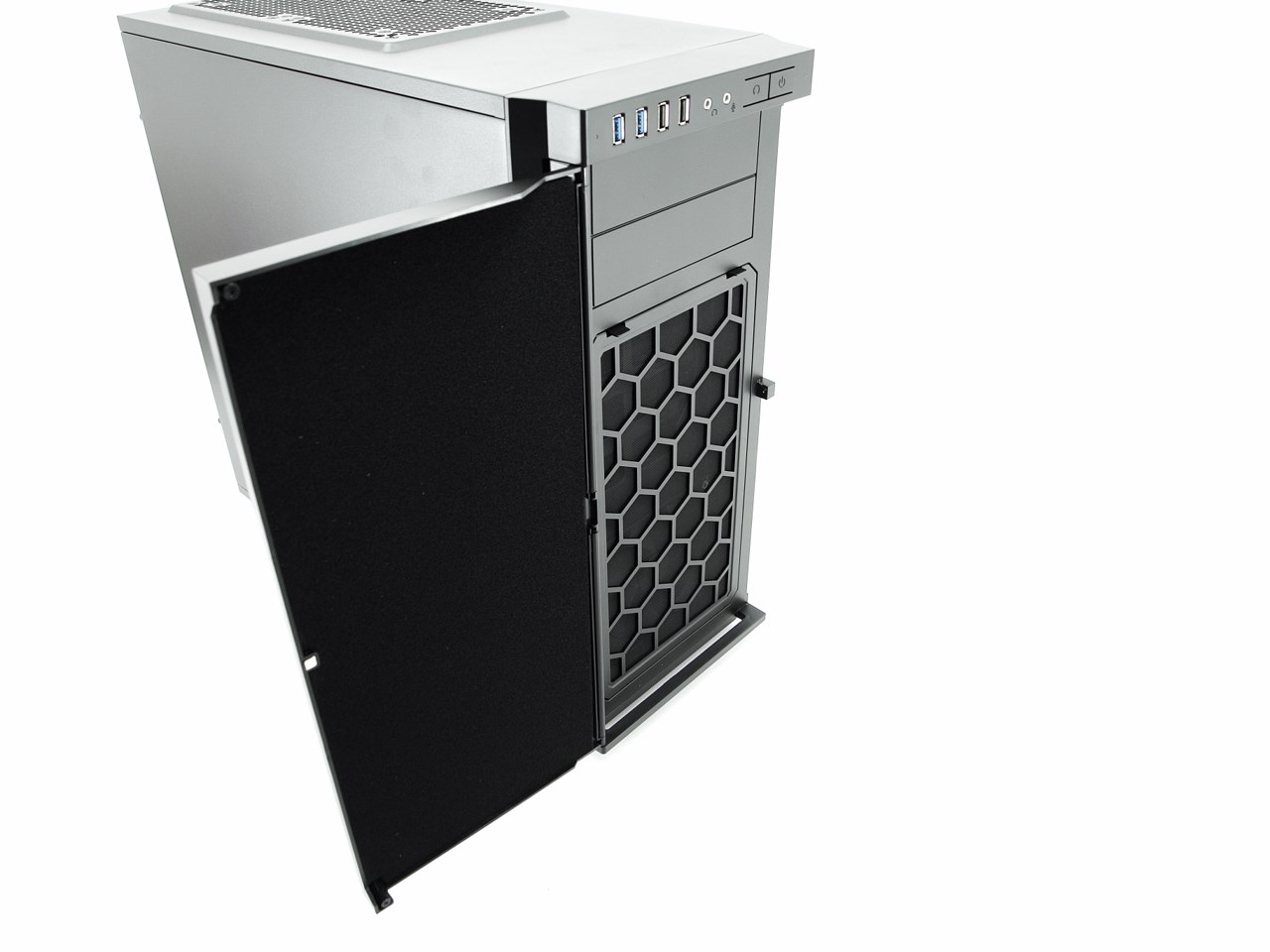

Just like the side panels the front door also features a thick layer of noise-absorbing foam material.





antec p100 13t

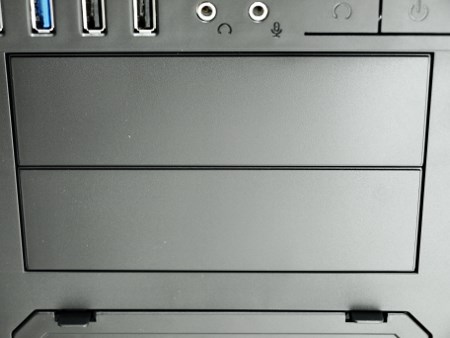

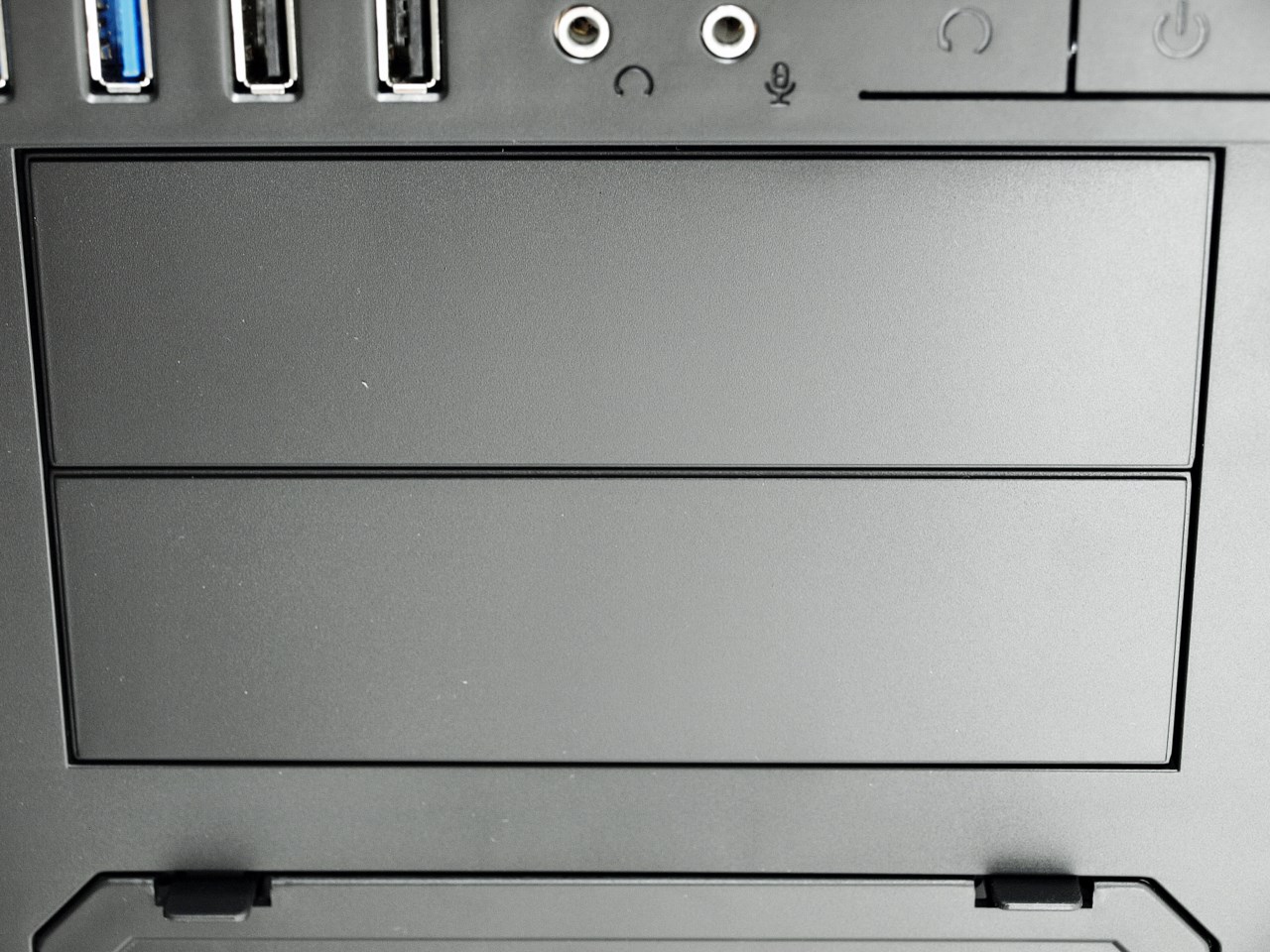

Unfortunately much like most midi towers currently the P100 only comes with two 5.25" optical drive bays.





antec p100 14tantec p100 15t

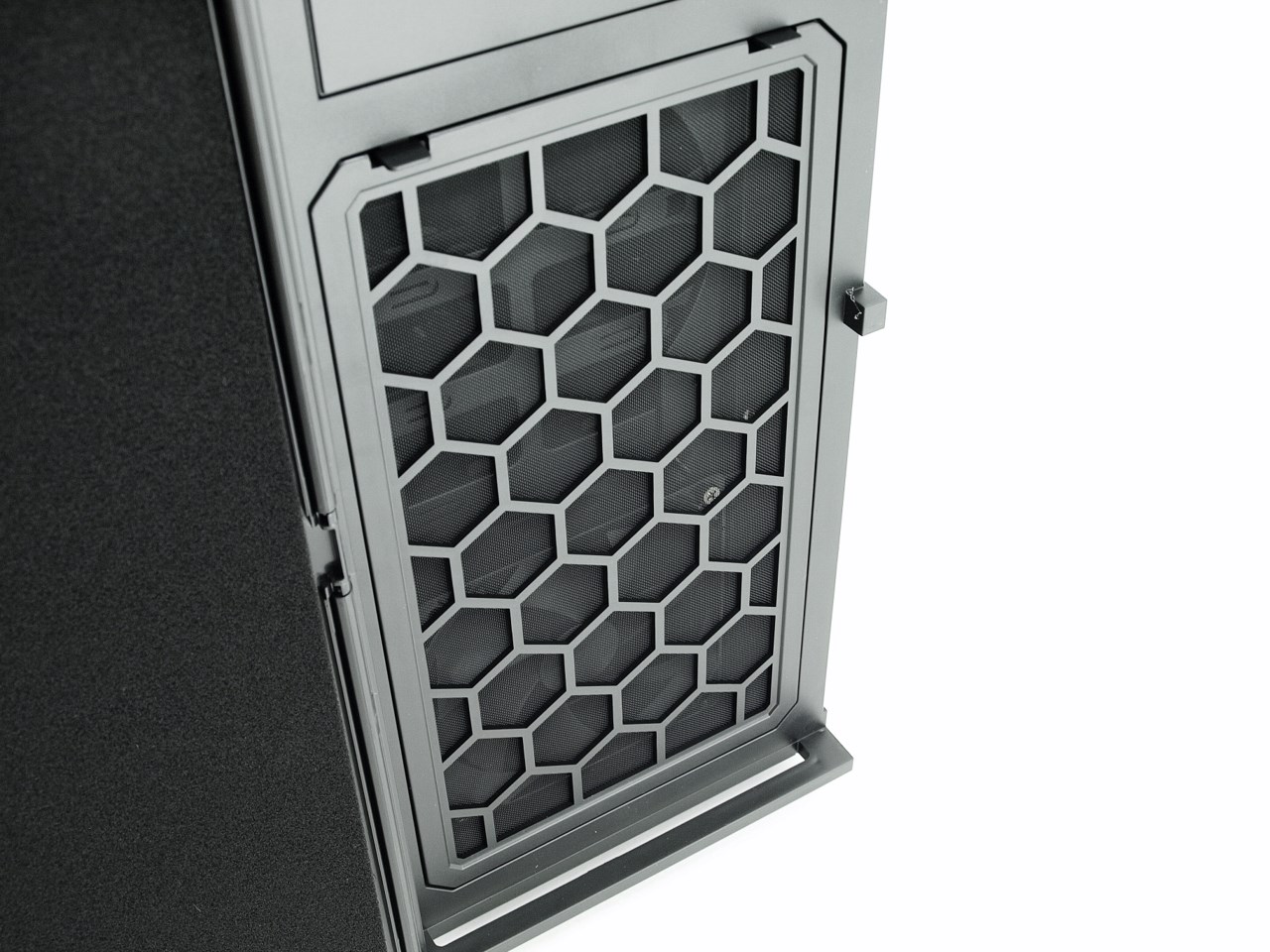

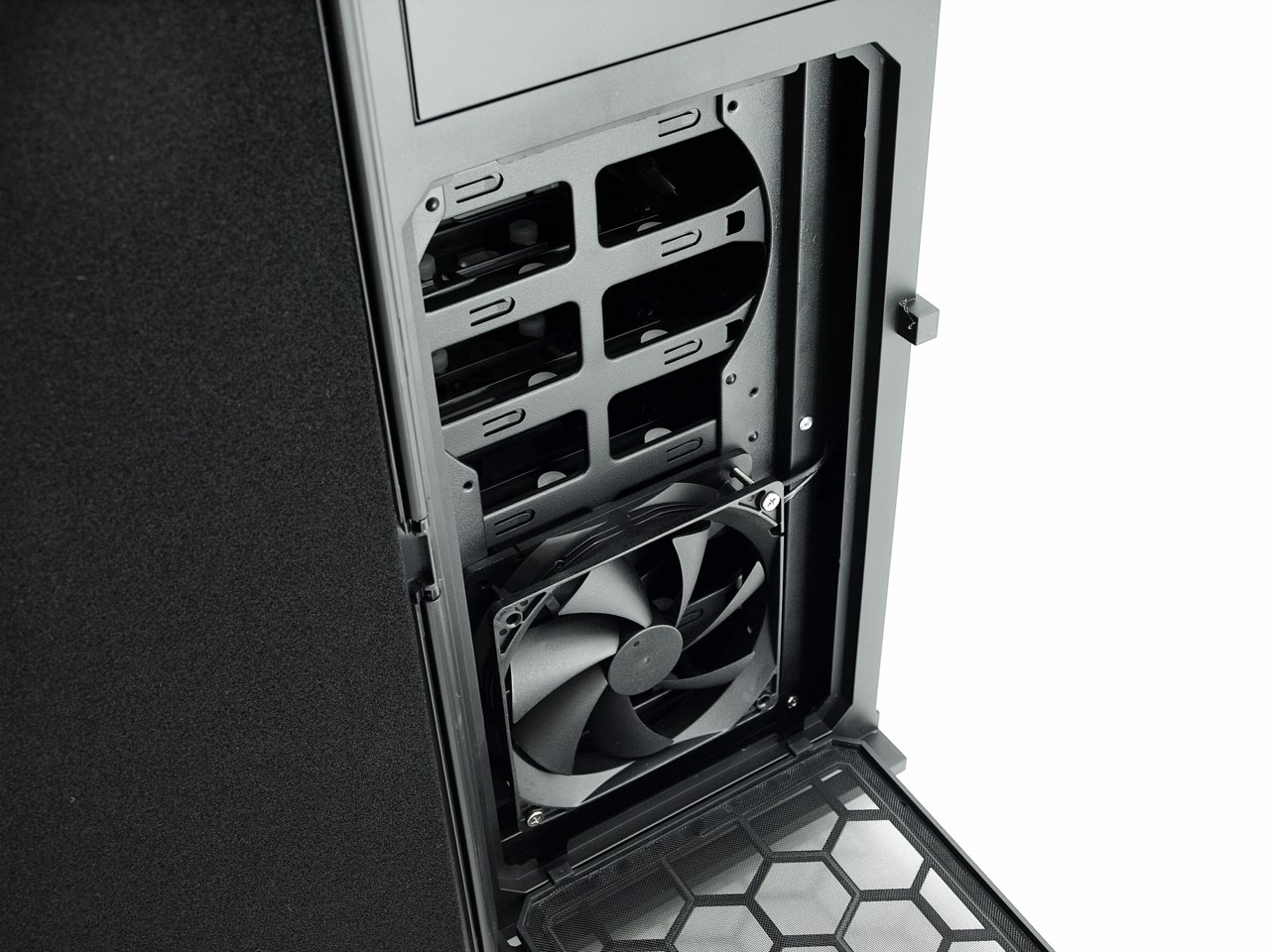

Right beneath the 5.25" bays there's perforated cover that acts as a air-filter for the one 120mm preinstalled fan right behind it.
Here you can place another 120mm fan or a 140mm one.





antec p100 16t

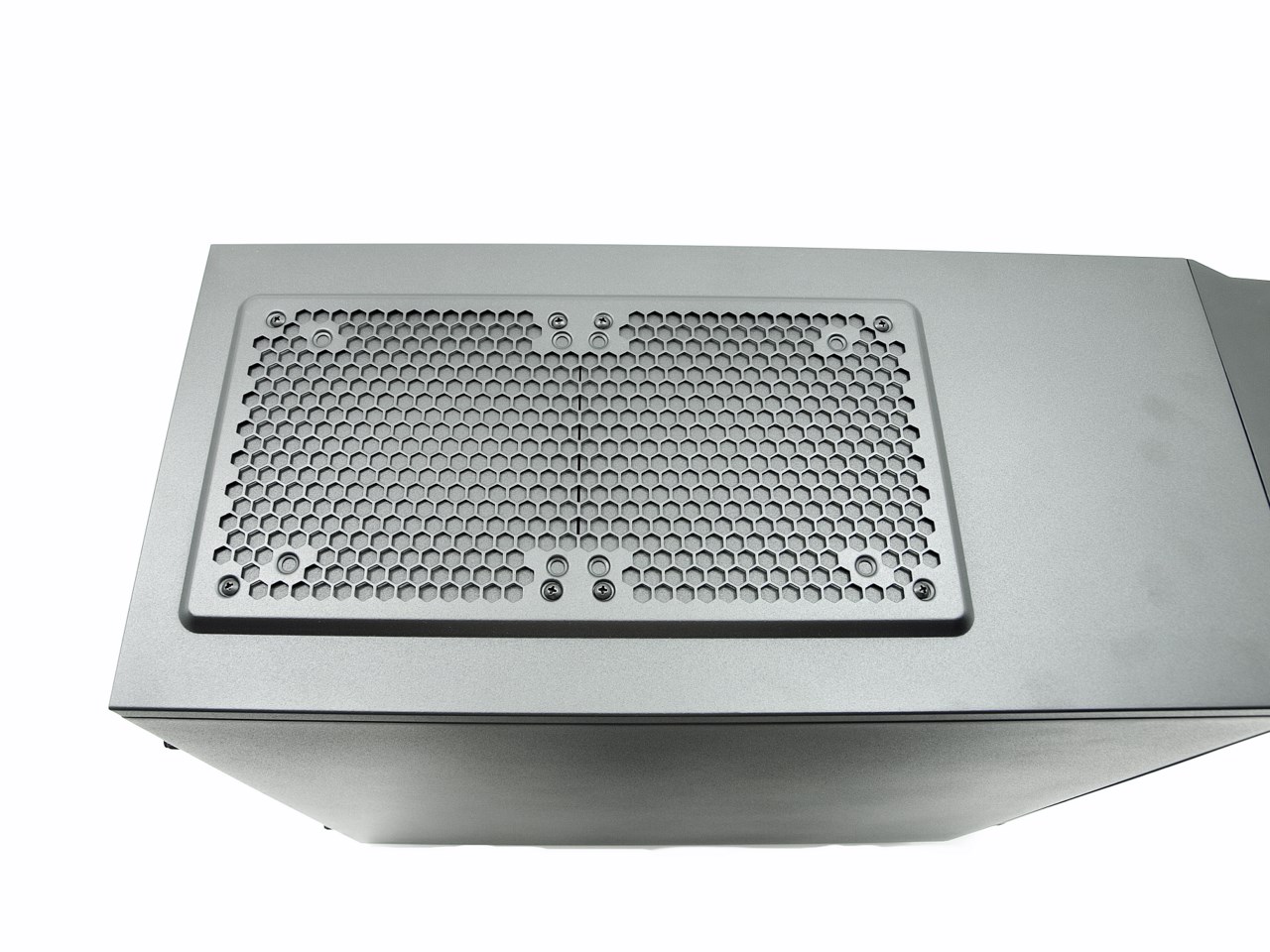

At the top the P100 has two mounting spots for 120/140mm fans which by default are occupied by two thick pieces of noise-absorbing foam.





antec p100 17tantec p100 18t

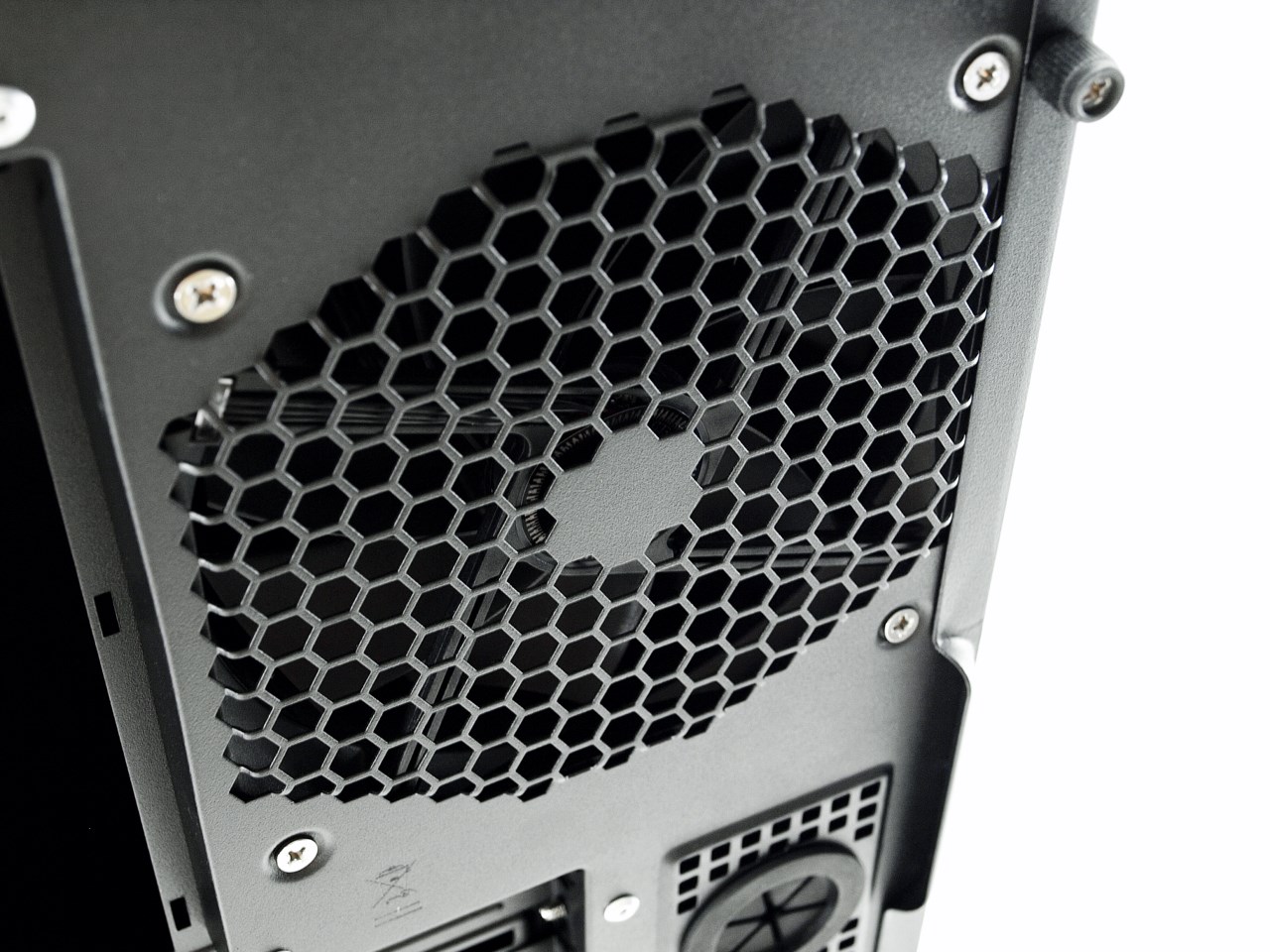

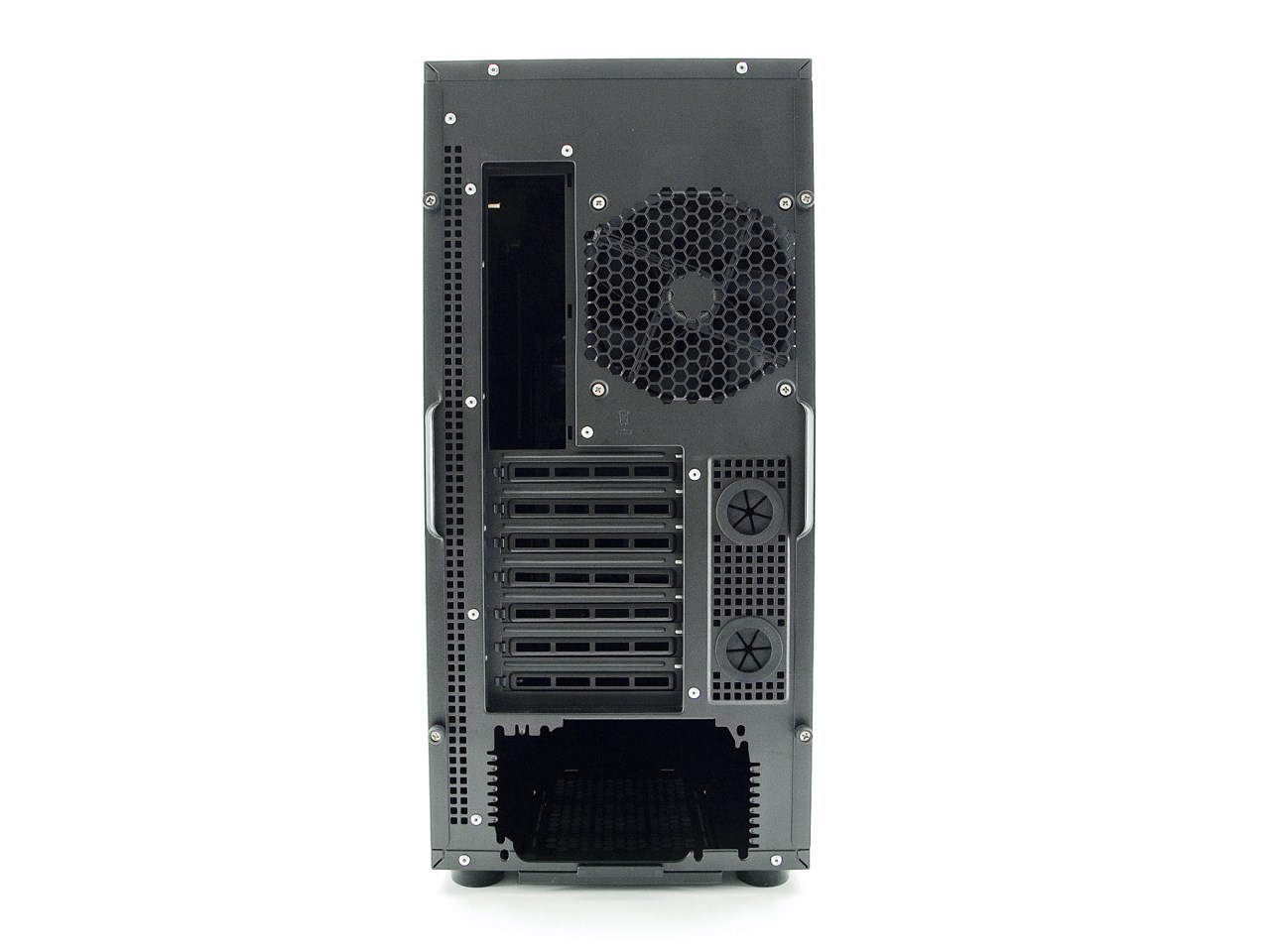

Moving at the rear we see a 120mm exhaust fan, 7 expansion slots, 2 water cooling grommets and the usual PSU area.





antec p100 19t

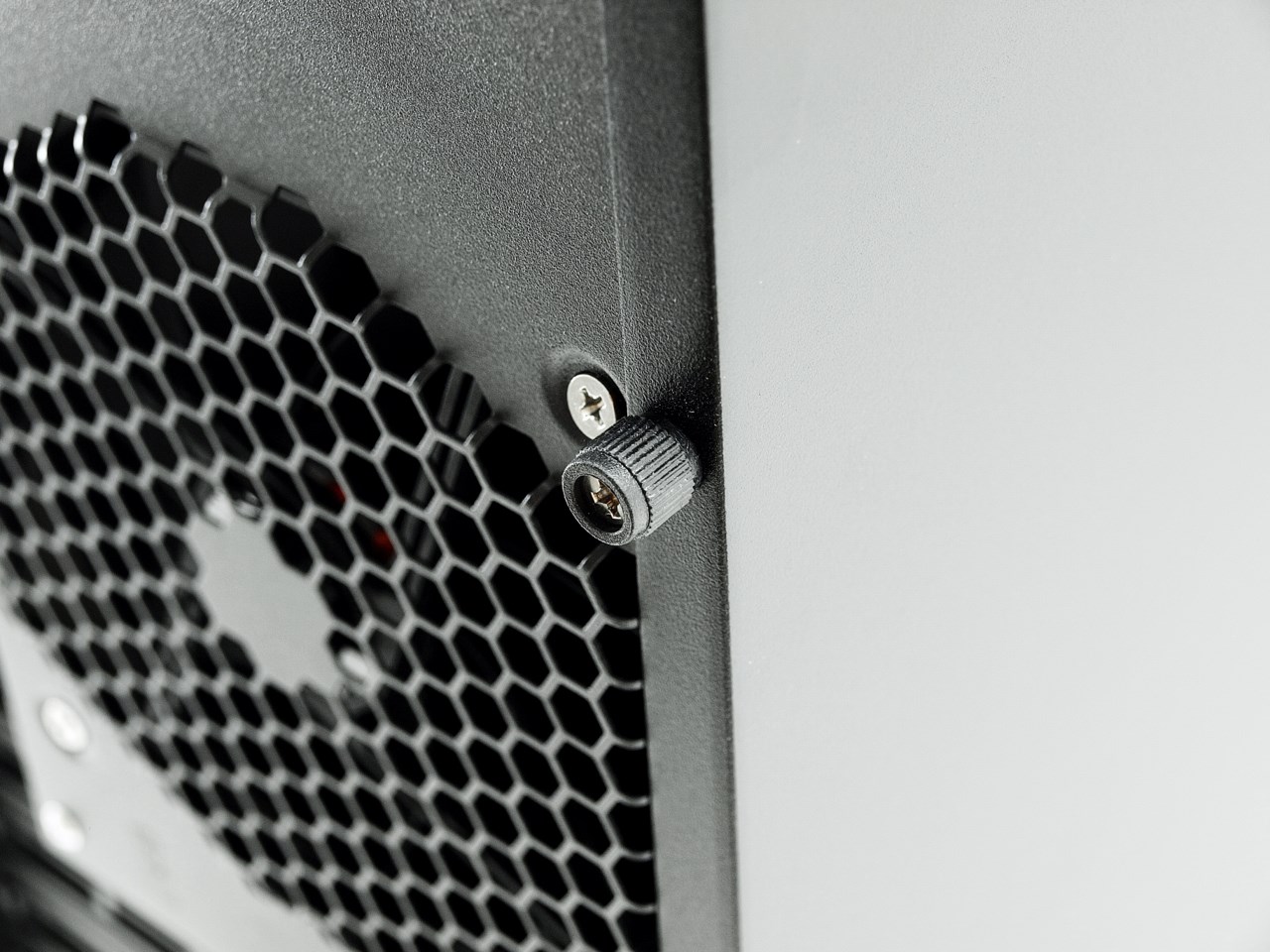

Rubber coated thumbscrews keep both side panels in place.





antec p100 20t

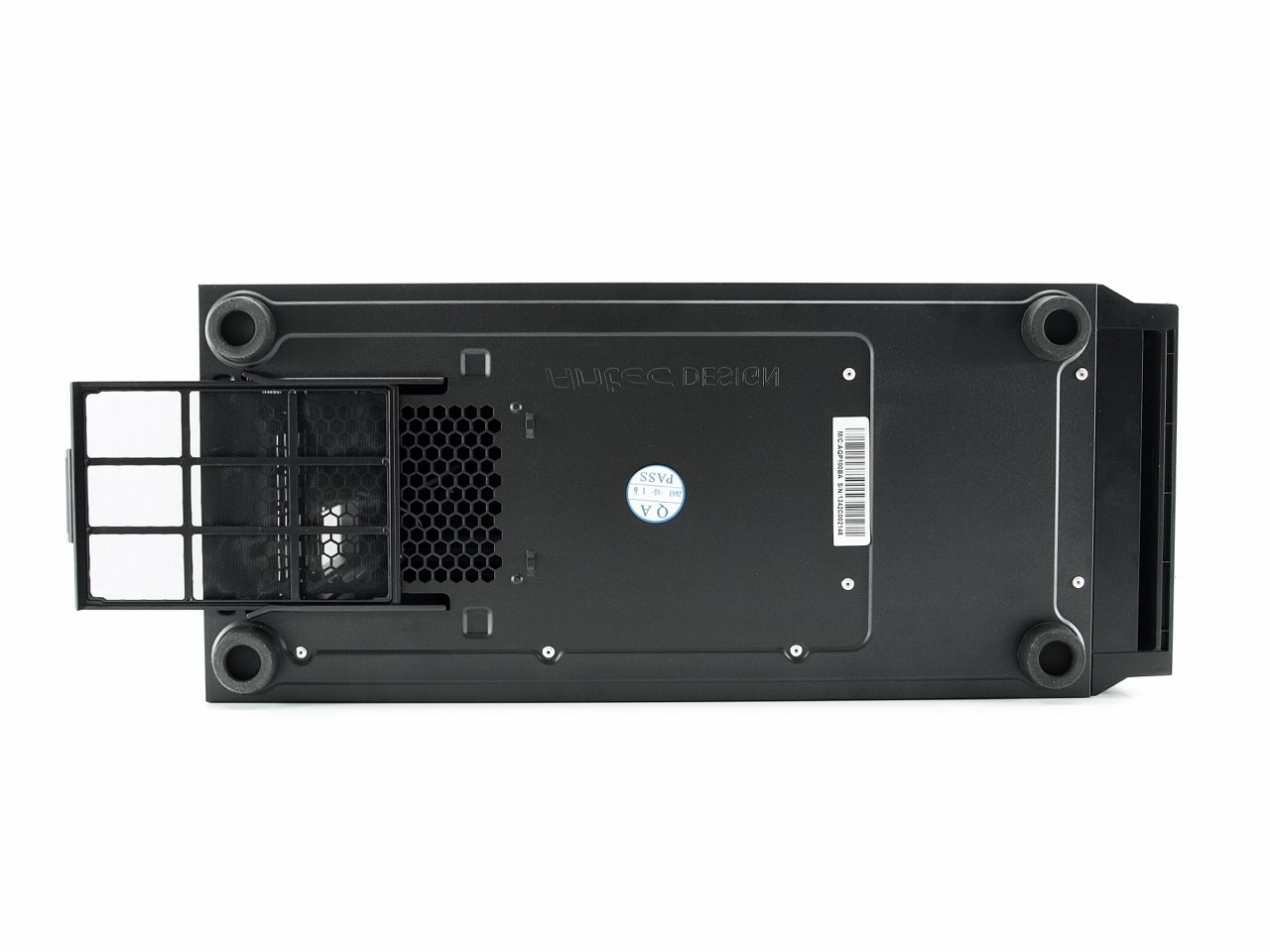

At the bottom we see four round rubber feet and a removable air-filter.
