THE P100 INTERIOR















antec p100 21tantec p100 22t

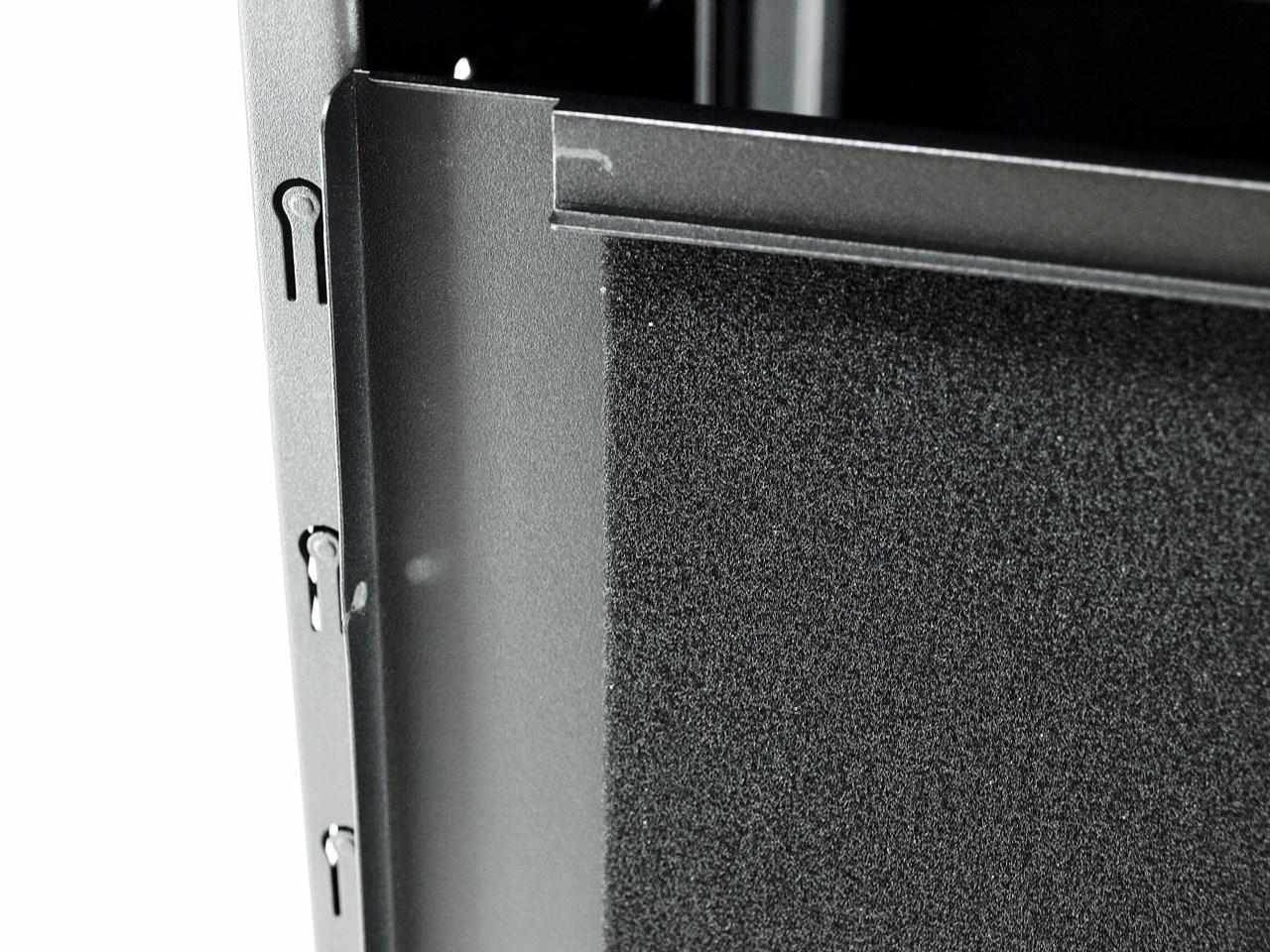

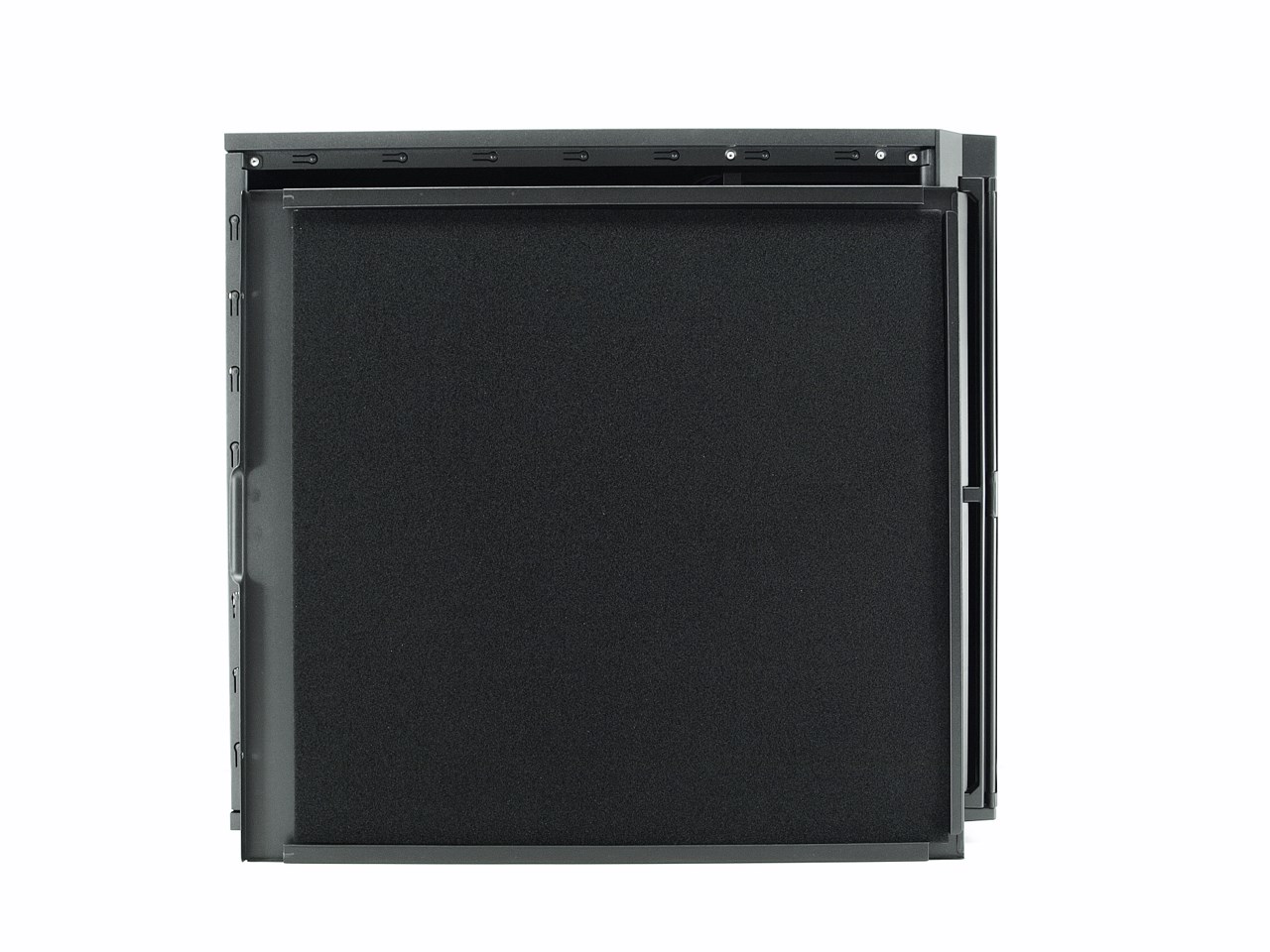

As already mentioned both side panels are made by thick SECC steel and also feature a thick layer of noise-absorbing coating on the interior.





antec p100 23t

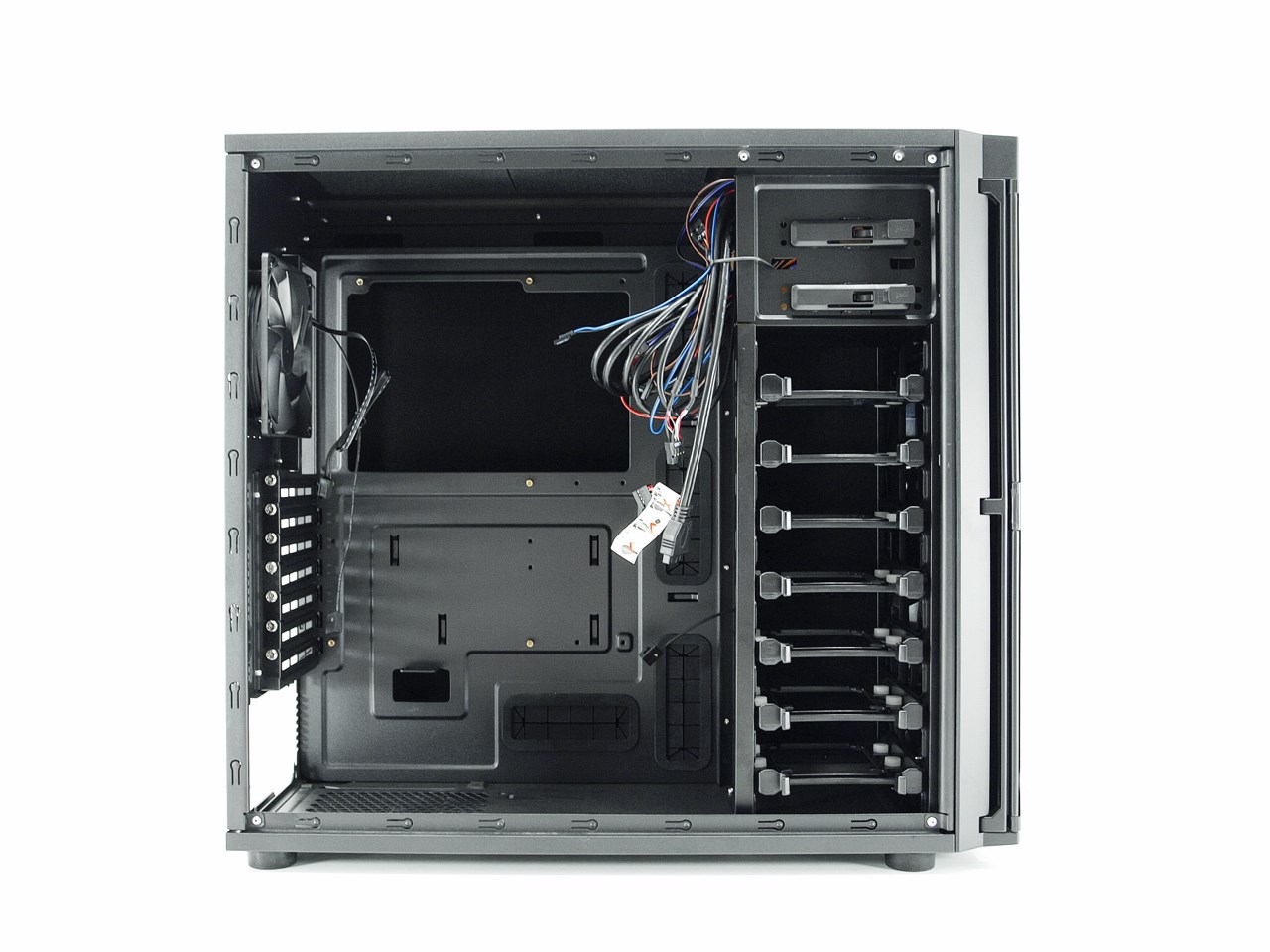

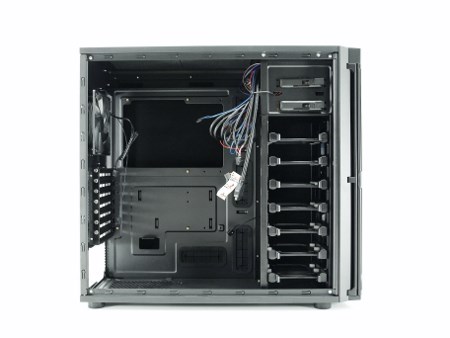

The interior features a nice black matte color and looks quite spacious for a midi tower.









antec p100 24t

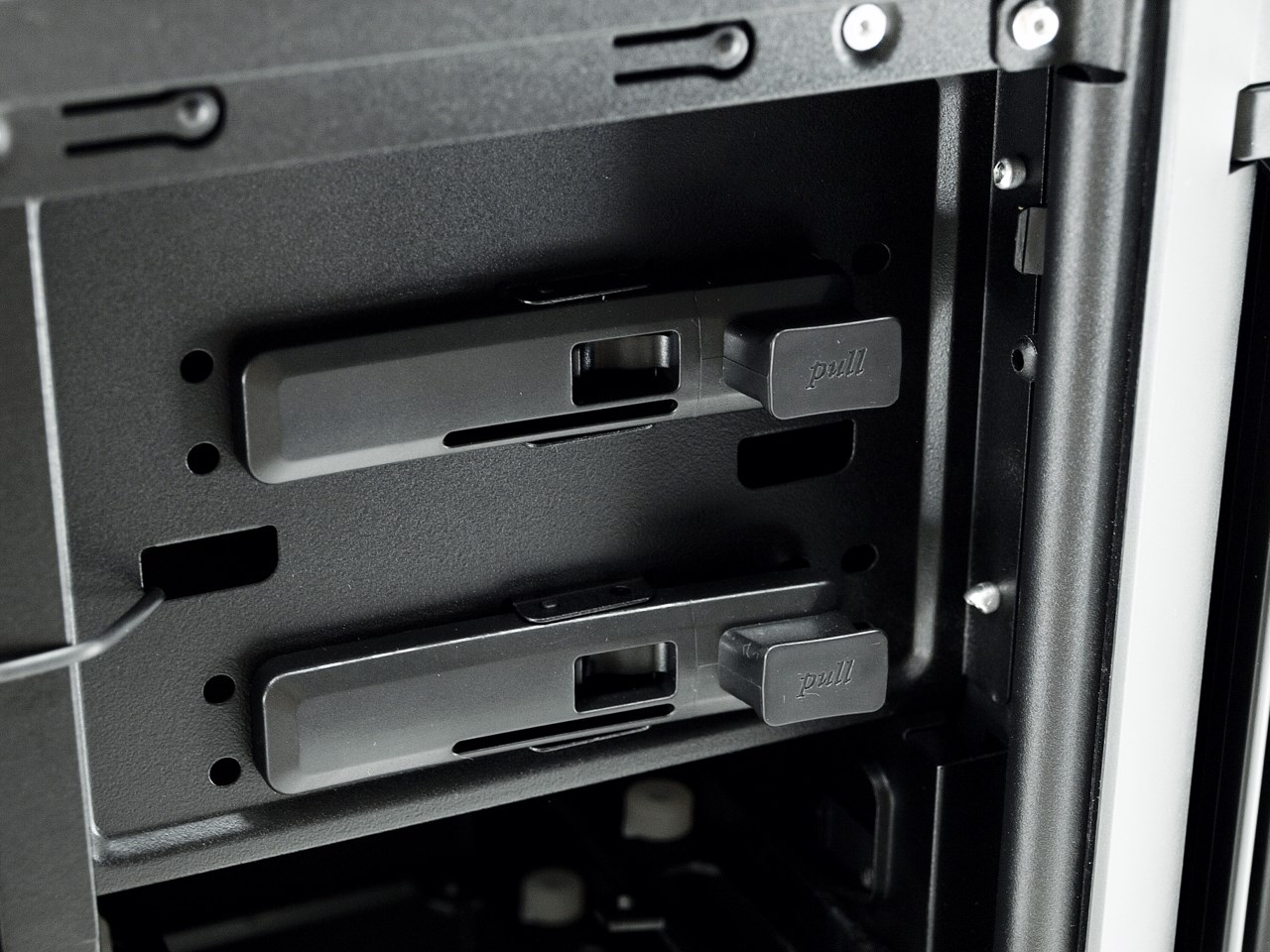

Both 5.25" drive bays feature tool-less lock mechanisms.





antec p100 25t

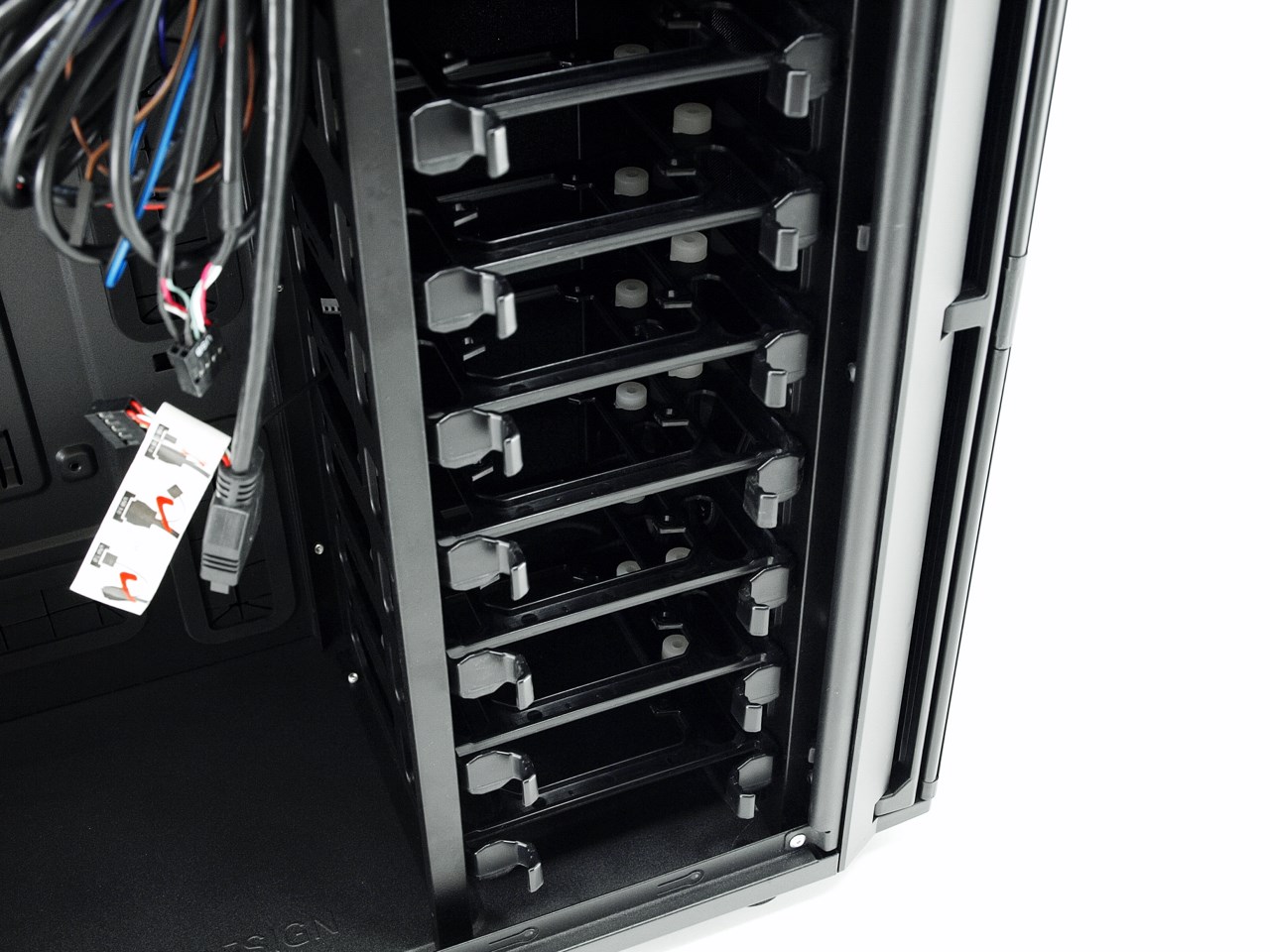

The 7 drive trays feature vibration absorbing round rubber feet and can hold both 3.5" and 2.5" drives.





antec p100 26t

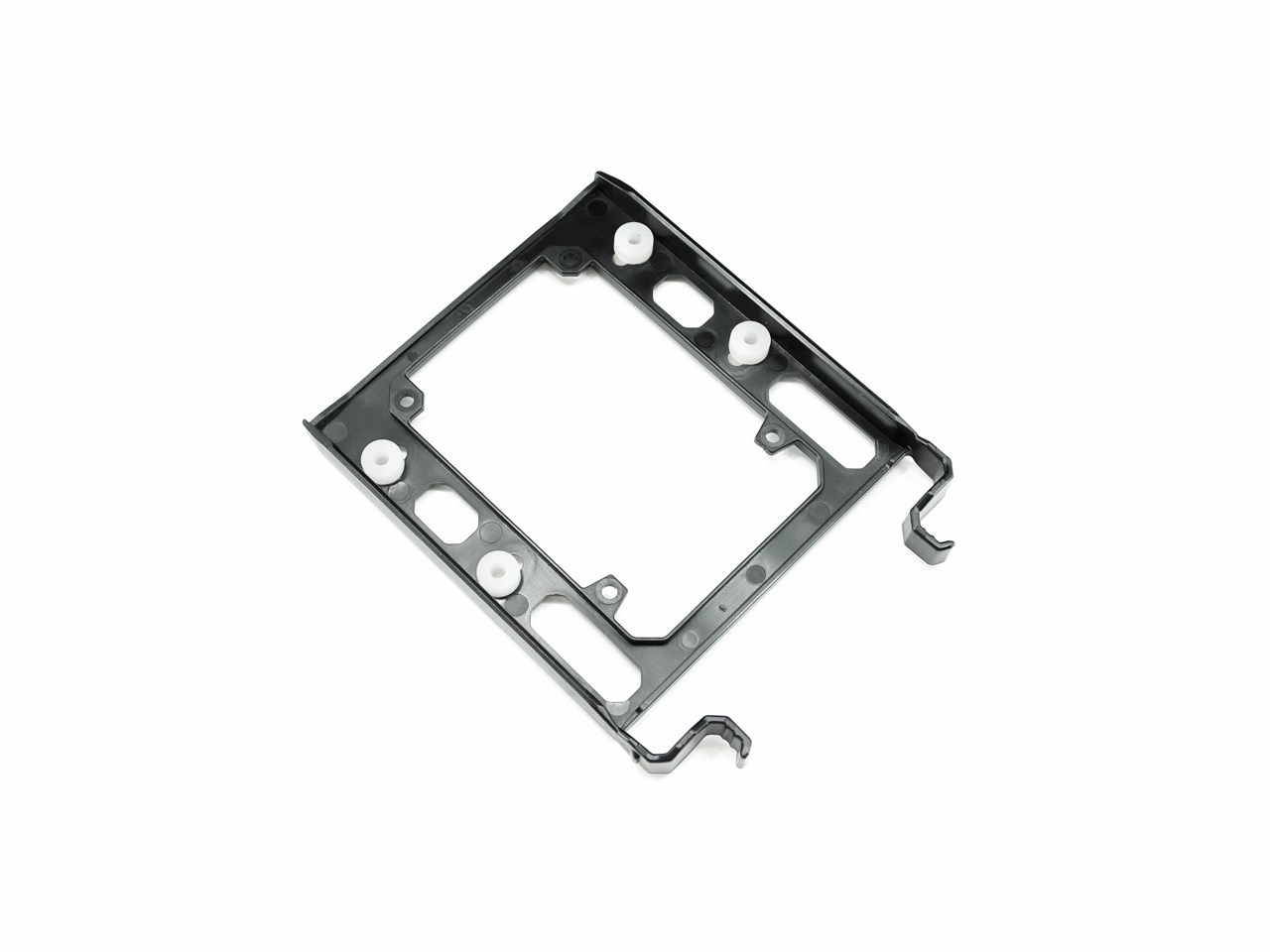

We've seen more durable drive trays in the past but these are not half as bad.





antec p100 27t

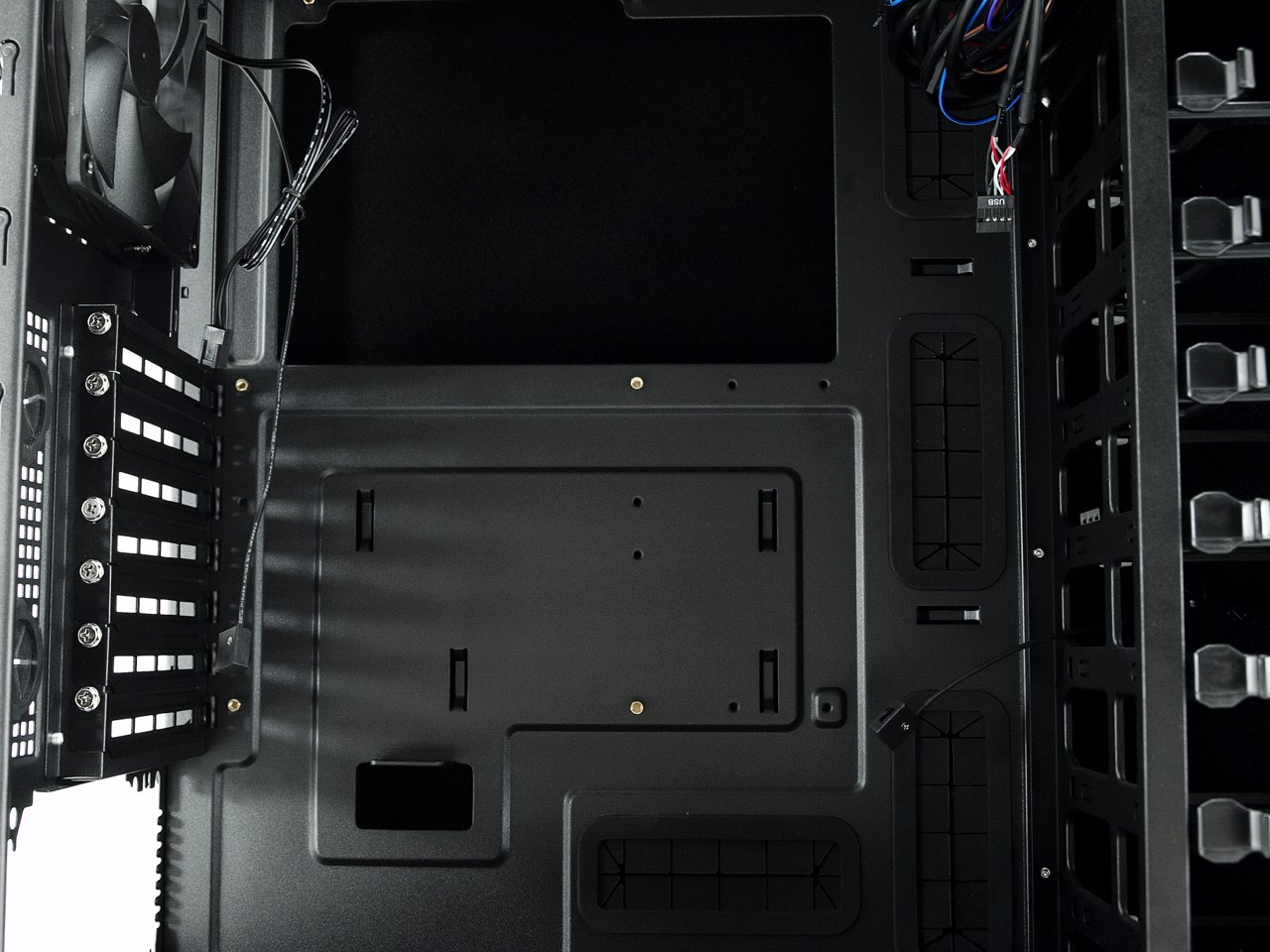

The mainboard plate has 4 rubber grommets for cable routing and an extra-large hole beneath the CPU area.





antec p100 28t

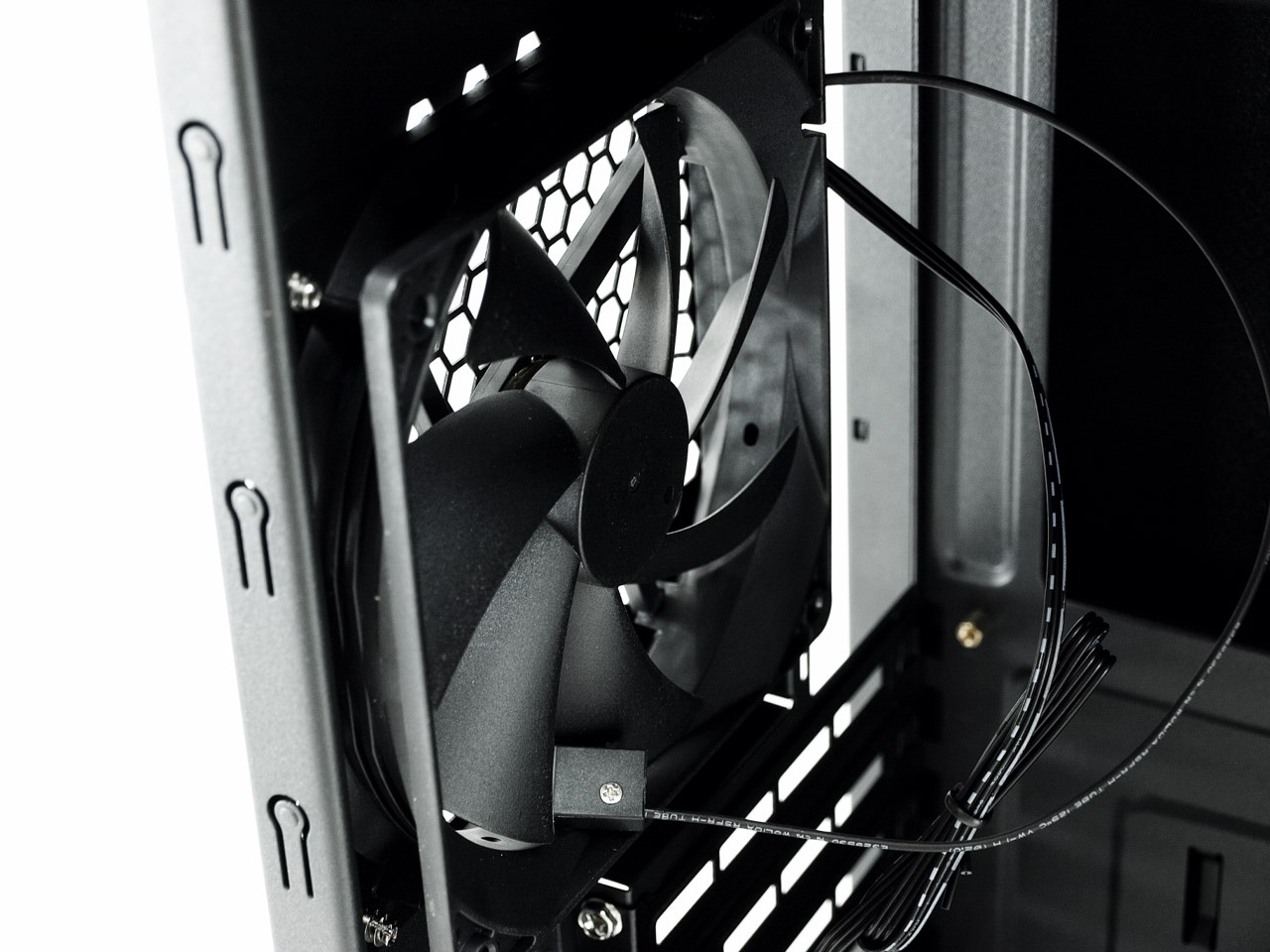

Both the front and rear 120mm fans come with their own Low/High speed controllers.





antec p100 29t

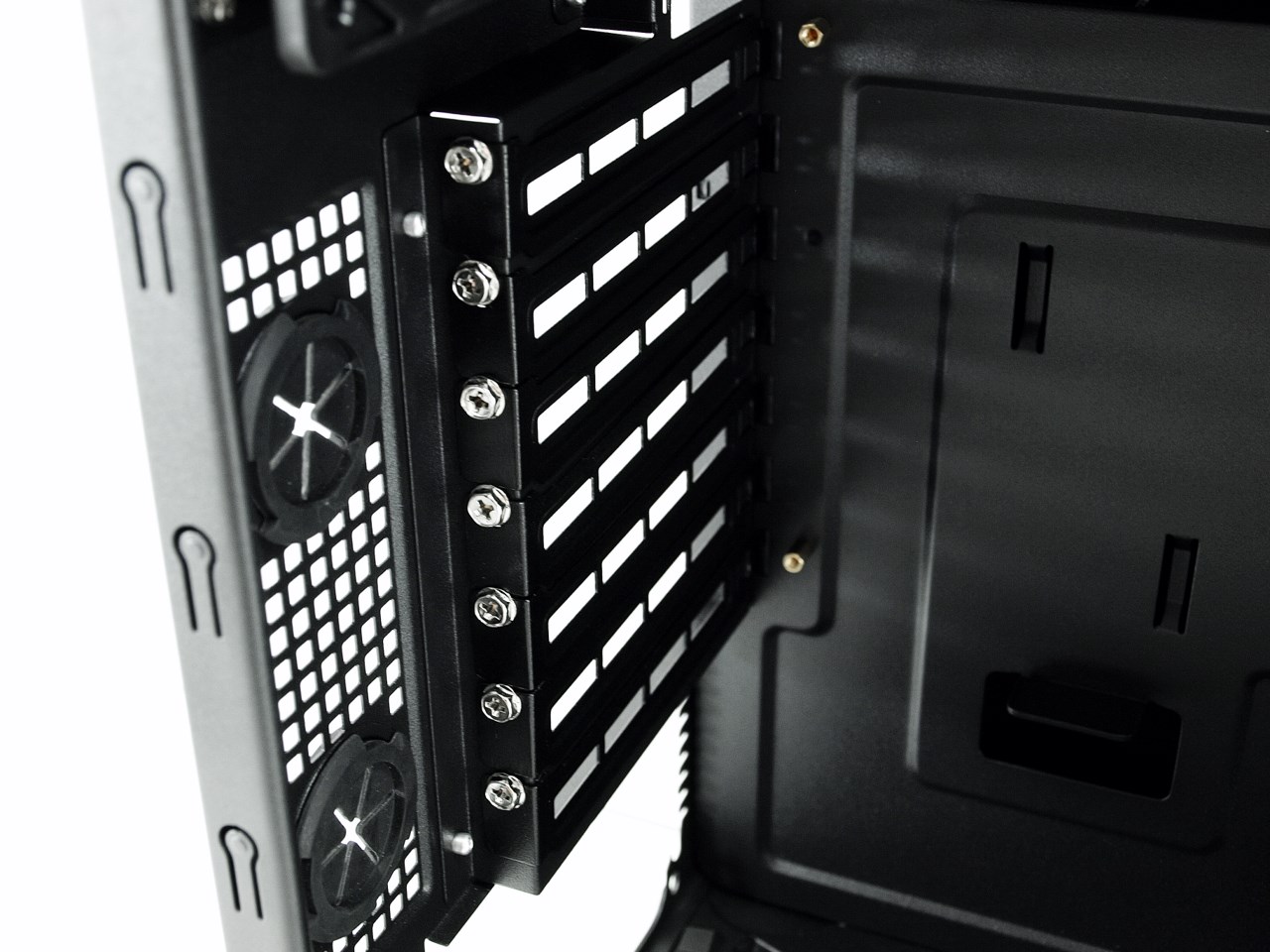

All of the expansion slots are secured via regular screws and although a tool-less mechanism would save time regular and thumbscrews are best.





antec p100 30t

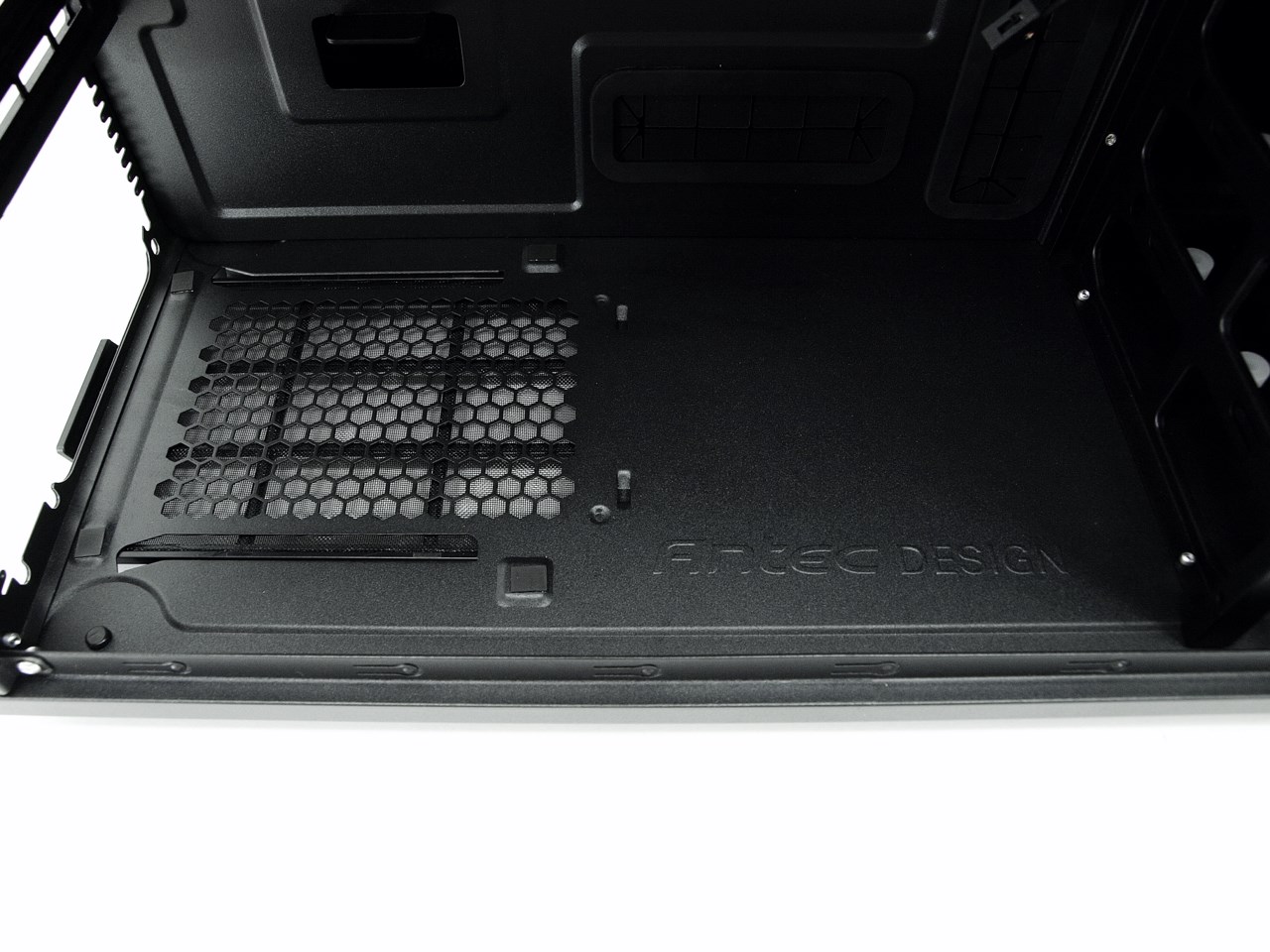

At the bottom area we just see two feet used to hold the PSU.





antec p100 31t

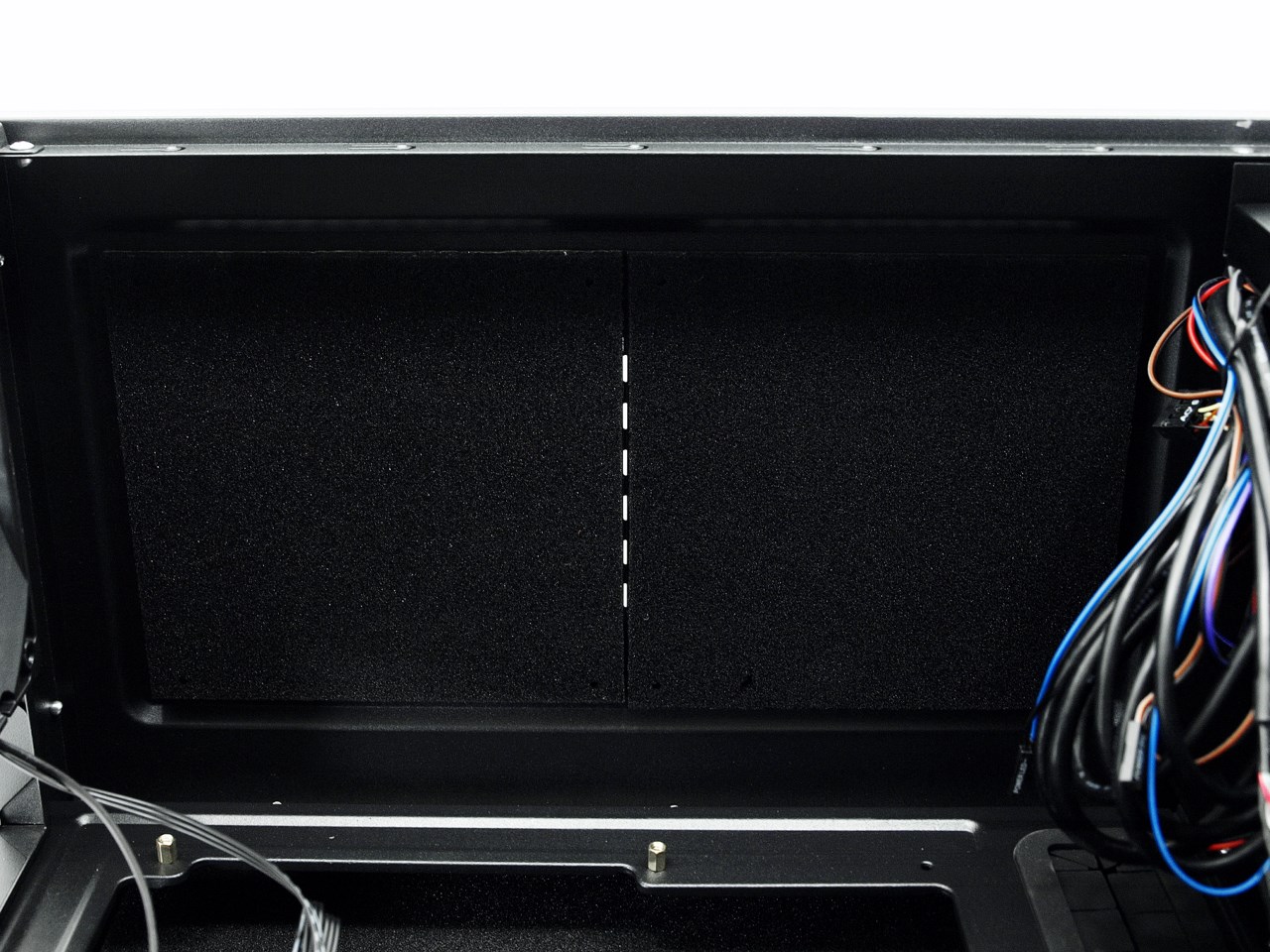

Here we see the two thick foam pieces which can be replaced with 120/140mm fans.





antec p100 32t

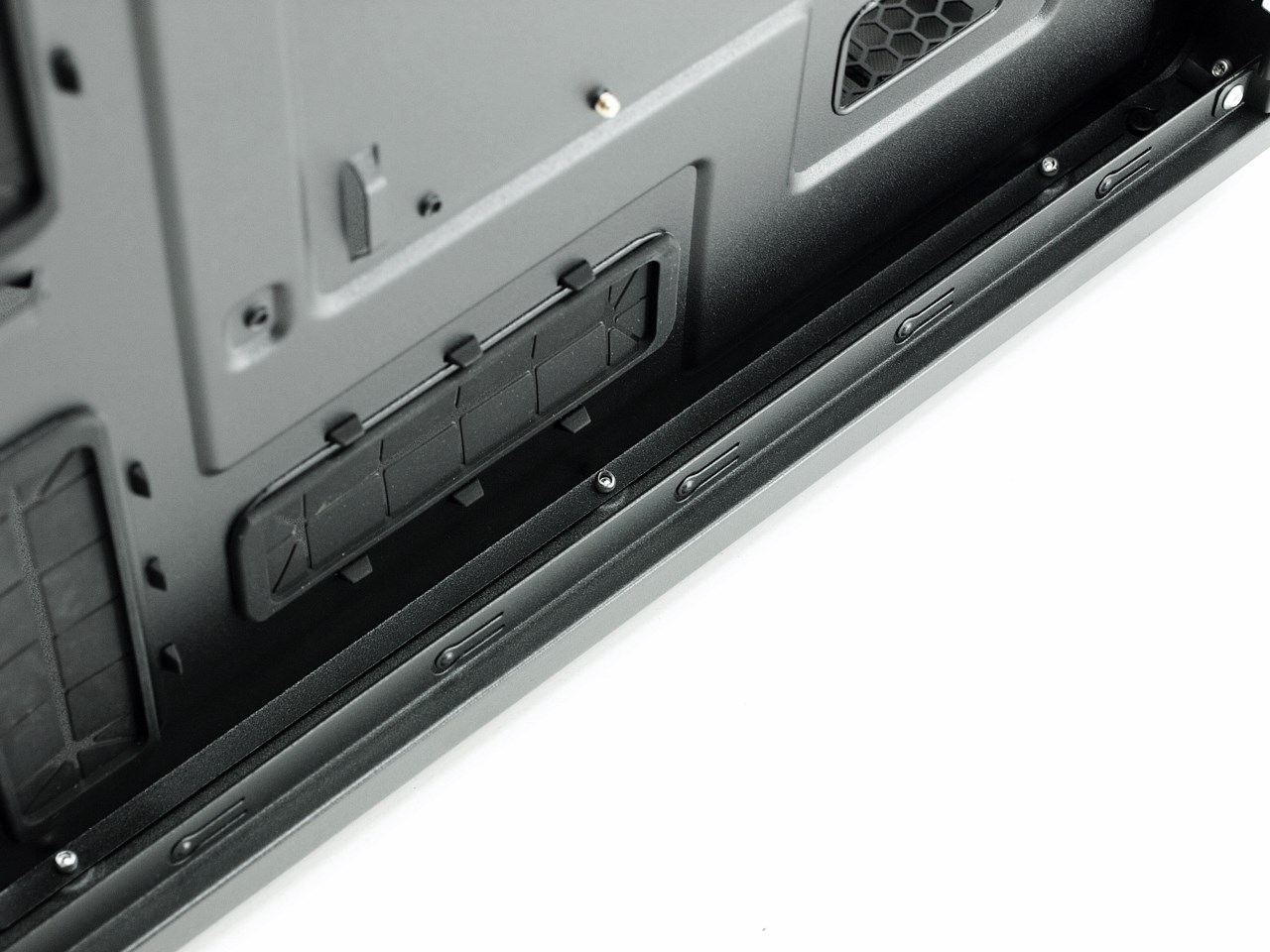

The P100 also has plenty of space between the mainboard plate and the right side panel for cable routing.
