THE XPREDATOR X3 DEVIL RED EXTERIOR

















xpredator x3 devil red 07t

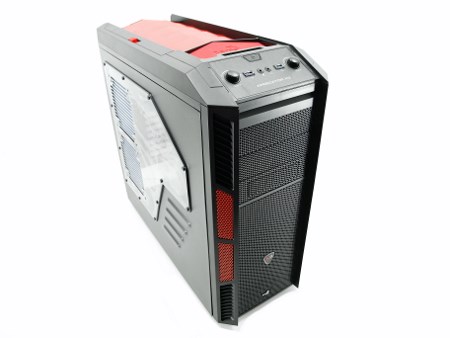

I've seen more "aggressive" towers in my life but the black/red color combination paired with the many corners give the Xpredator X3 Devil Red Edition a unique look.





xpredator x3 devil red 08t

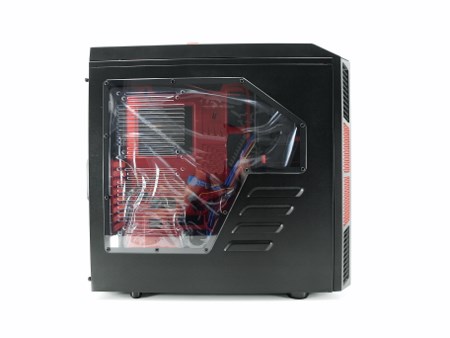

A rather large plastic window takes most of the left side panel and as you can clearly see it has two sports for 120/140mm intake fans.





xpredator x3 devil red 09t

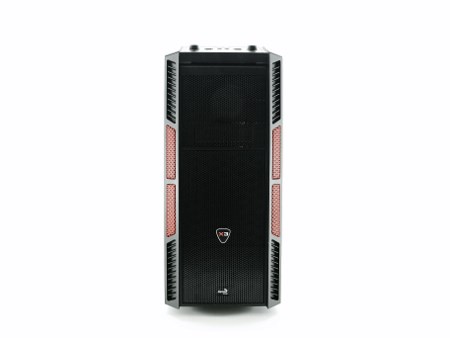

Most of the front fascia is perforated to allow air to enter. Here we also see 3 optical drive bays one of which can also be used with a 1.44 floppy drive (or an 3.5" HDD).





xpredator x3 devil red 10t

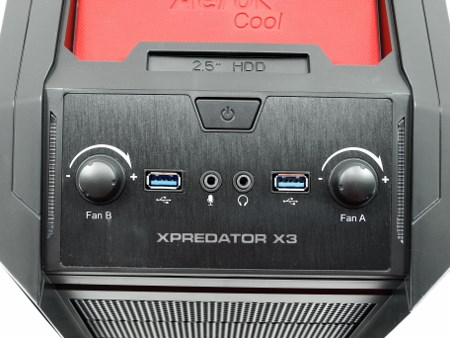

The I/O is located at the top and includes the power and HDD activity LEDs, two fan controller knobs, two USB 3.0 ports, on/off power switch, 2.5" hot-swap slot and the typical microphone and headset mini jacks.





xpredator x3 devil red 11t

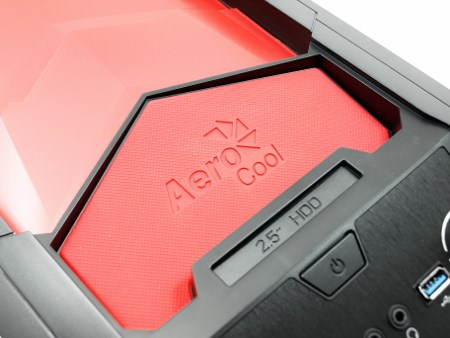

Aerocool has placed their logo on a rubber anti-glide area above the 2.5" hot-swap slot which can be used either to place external HDDs while using them or pretty much anything that fits there.





xpredator x3 devil red 12t

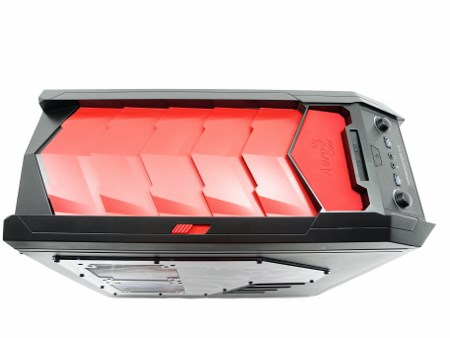

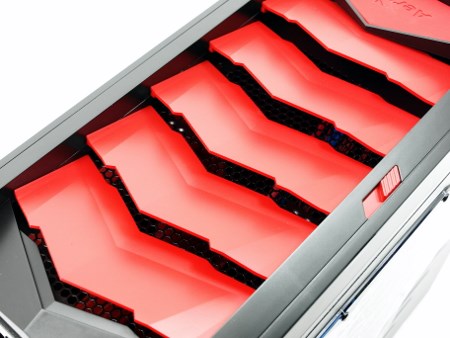

There are 5 red plastic flaps at the top of the tower that make it look like the back of a dragon.





xpredator x3 devil red 13txpredator x3 devil red 14t

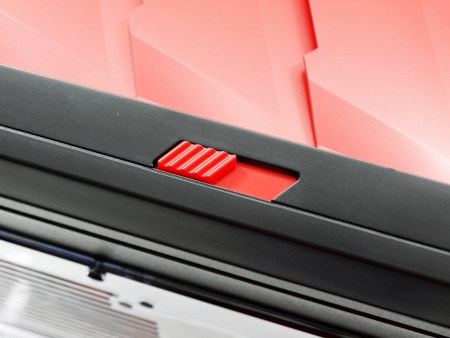

These flaps can be raised via this small switch as seen above to increase airflow.





xpredator x3 devil red 15t

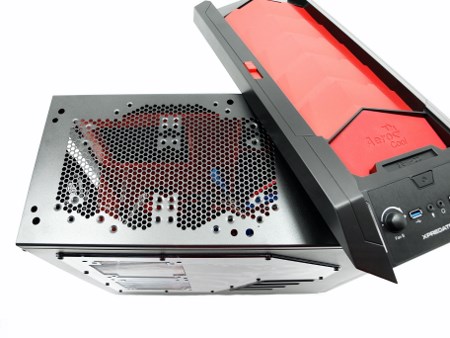

Right beneath there's enough room to place two 120/140mm fans, a single 180/200mm fan or a 240/280mm radiator.





xpredator x3 devil red 16t

At the rear we see 4 rubber grommets, a fan spot, 8 PCI expansion slots and the PSU area.





xpredator x3 devil red 17t

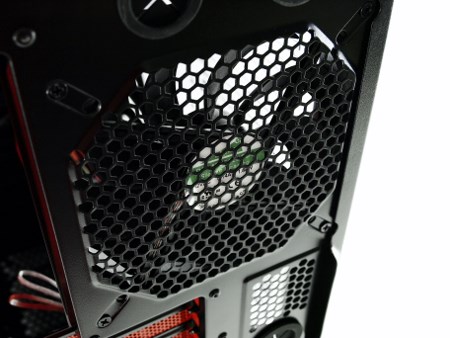

There's a 140mm fan preinstalled by Aerocool but you can also use a 120mm one.





xpredator x3 devil red 18t

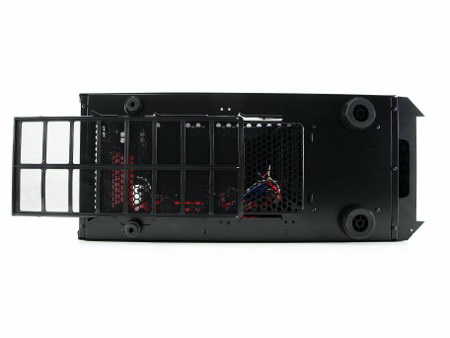

The XPredator X3 Red Devil Edition sits on 4 tall rubber feet and has a long removable air-filter beneath it.
