THE P6 EXTERIOR

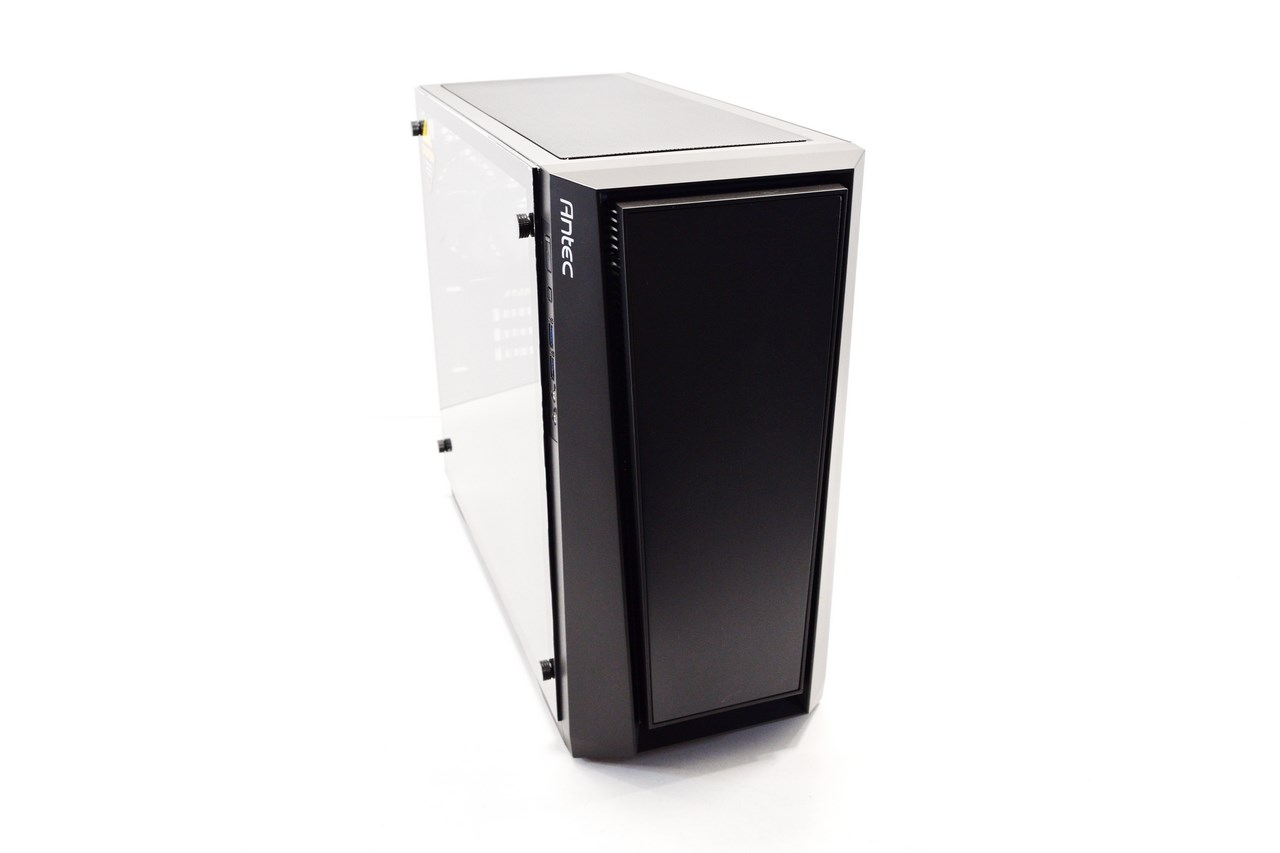

The P6 is 405mm tall, 470mm long/deep and 200mm wide so although quite compact it still comes very close to some regular midi towers.

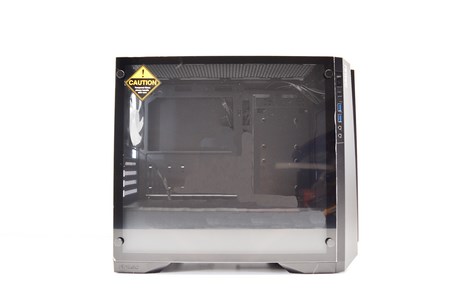

Antec has used a 4mm thick tempered glass side panel with the P6.

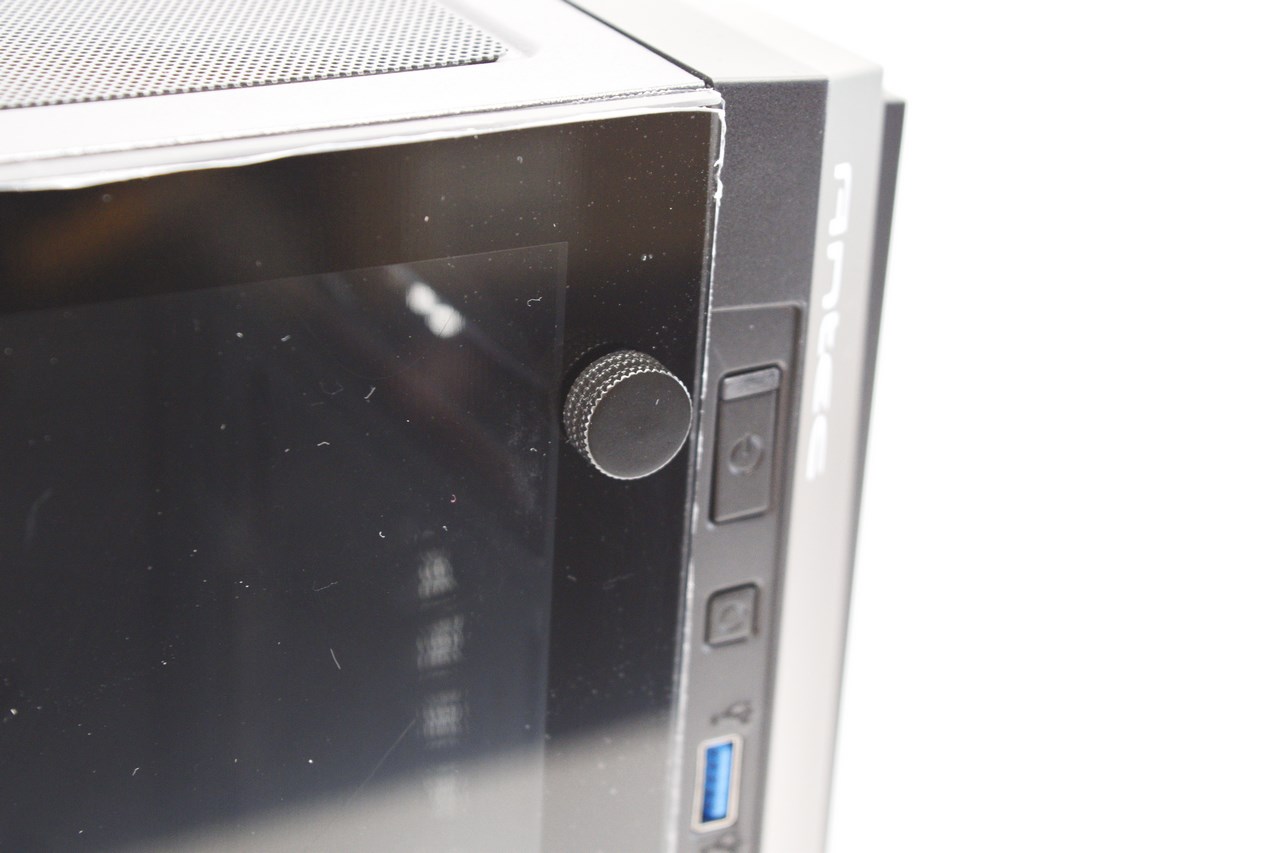

As always the side panel is held in place with large but flat thumbscrews.

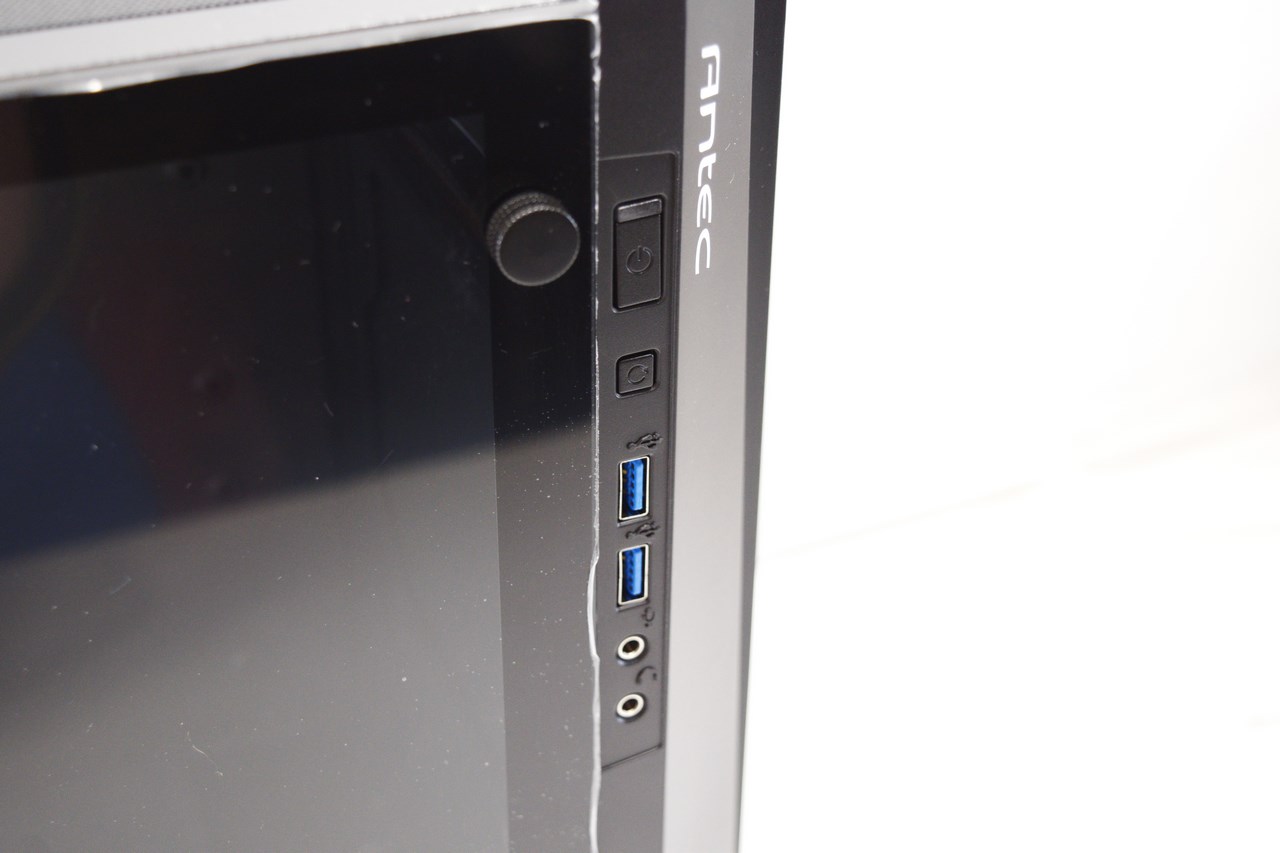

The I/O is placed on the left side of the fascia and it includes two USB 3.0 ports, headphones and microphone 3.5" ports and the power on/off and reset buttons.

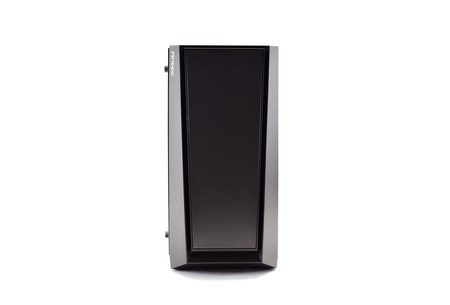

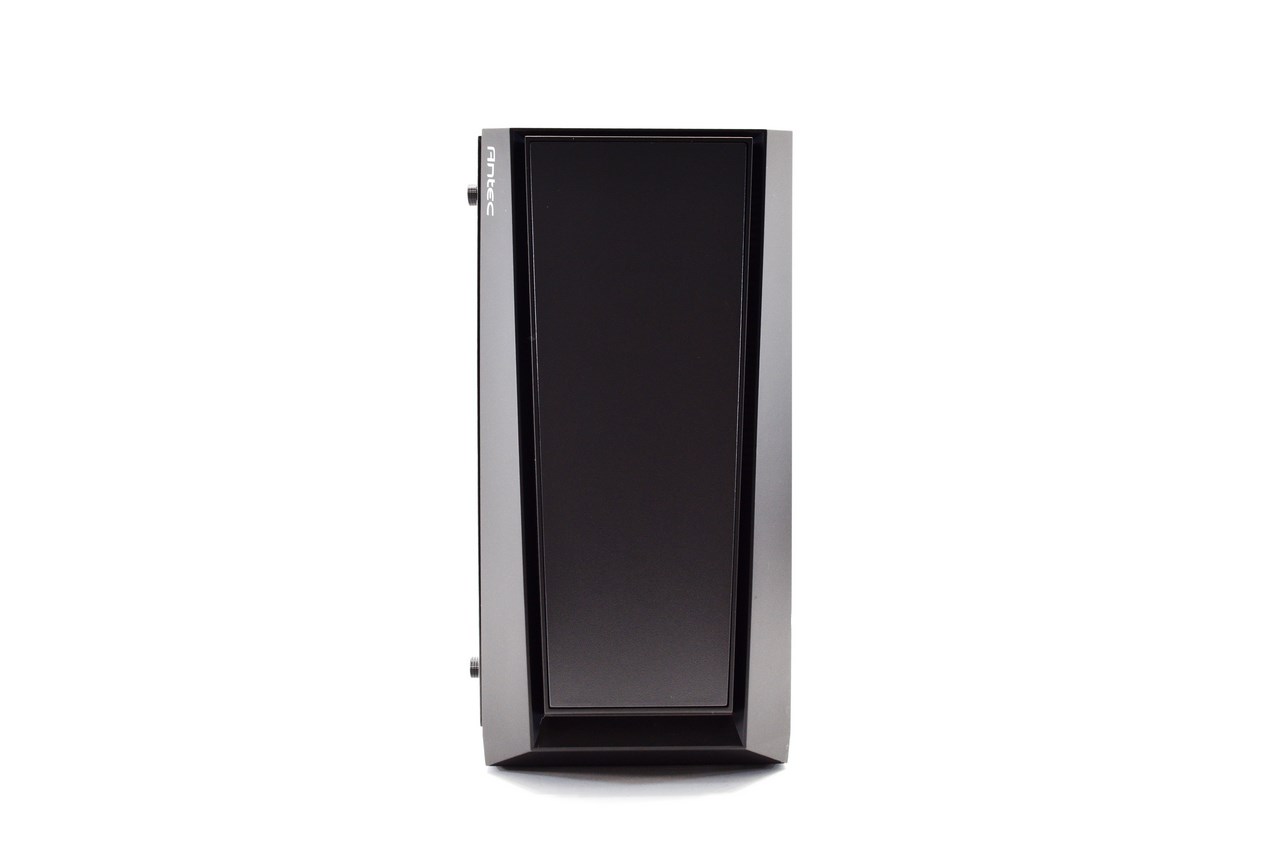

The fascia is made out of plastic and features a white LED logo projector on the base.

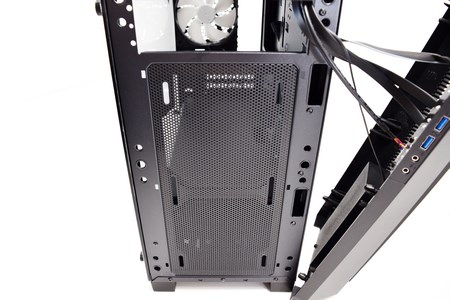

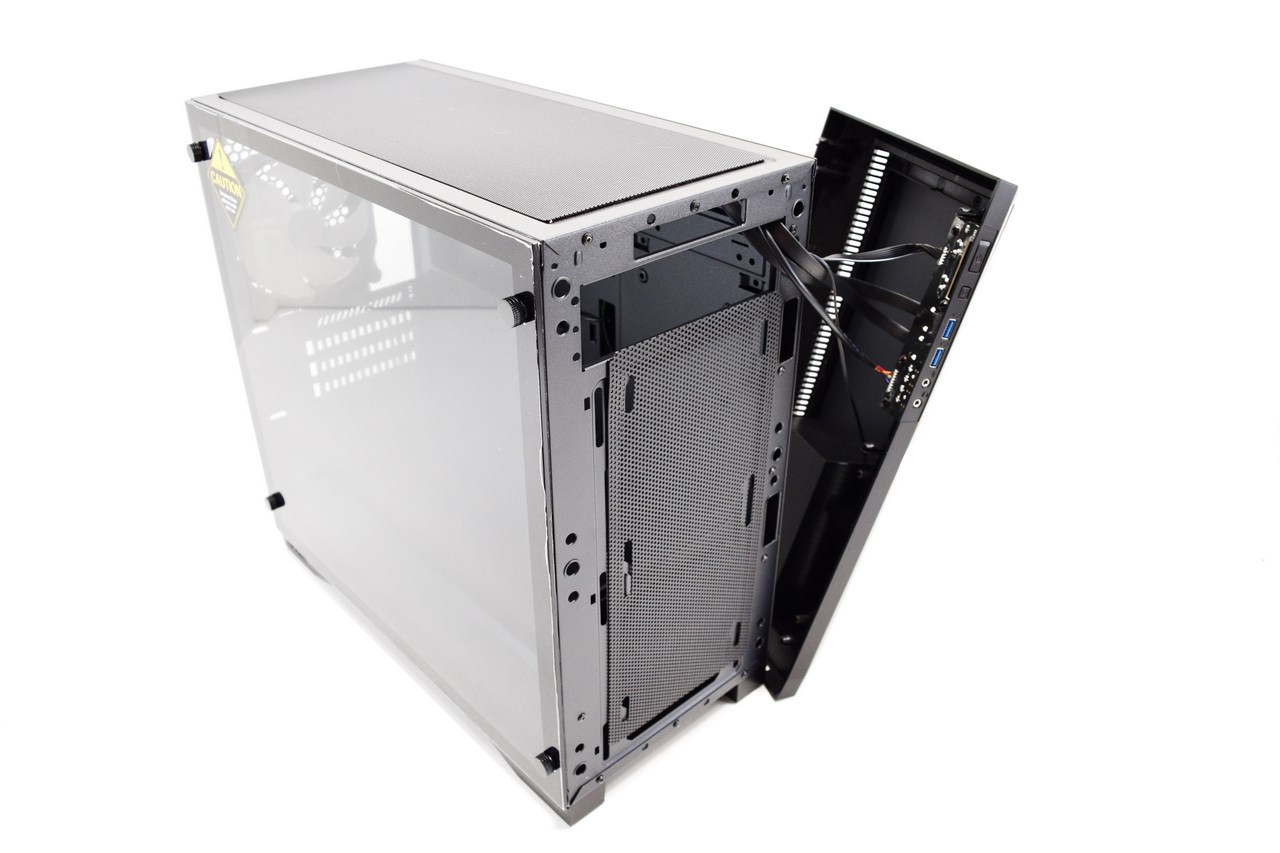

You can access the magnetic air filter by removing the fascia as seen above.

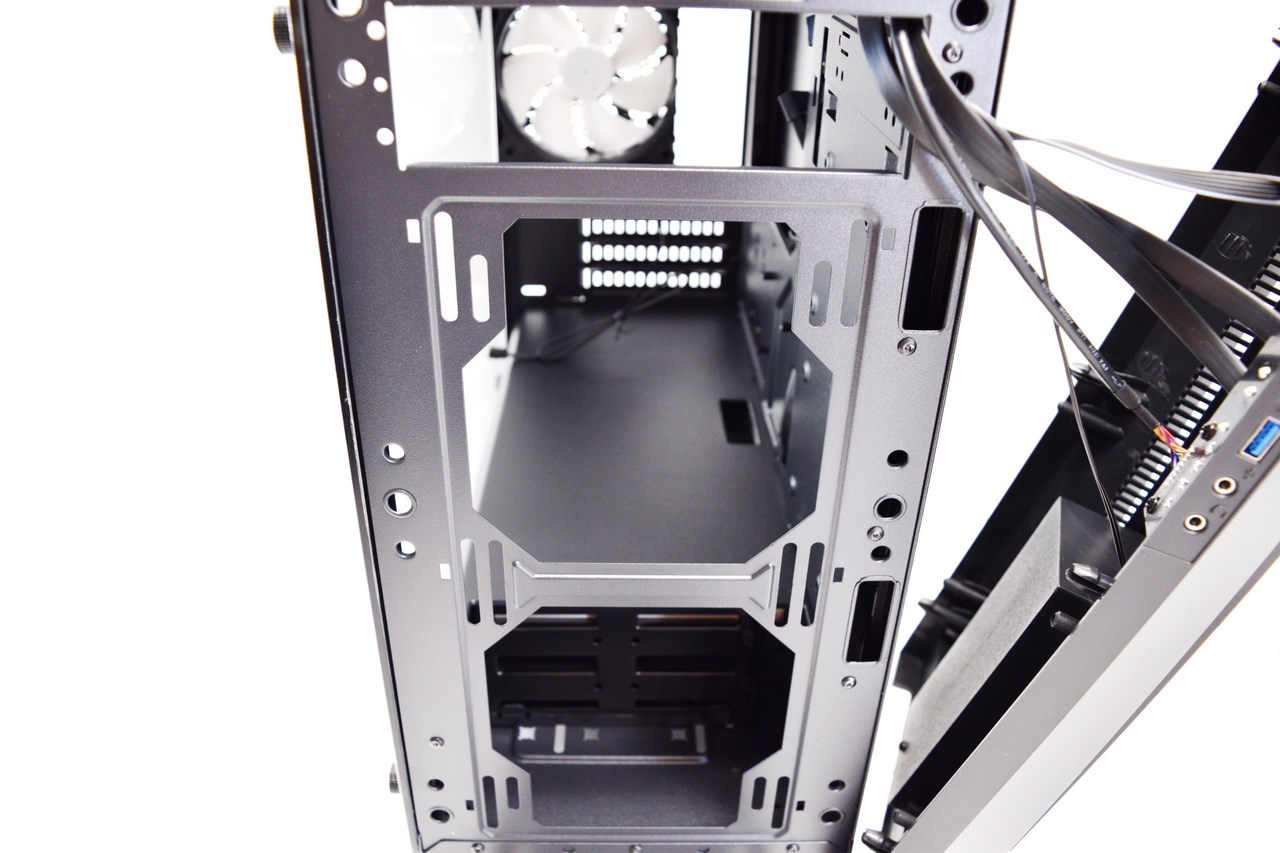

Although Antec says that you can place a 240mm radiator at the front it's clear that you can also place a 280mm one.

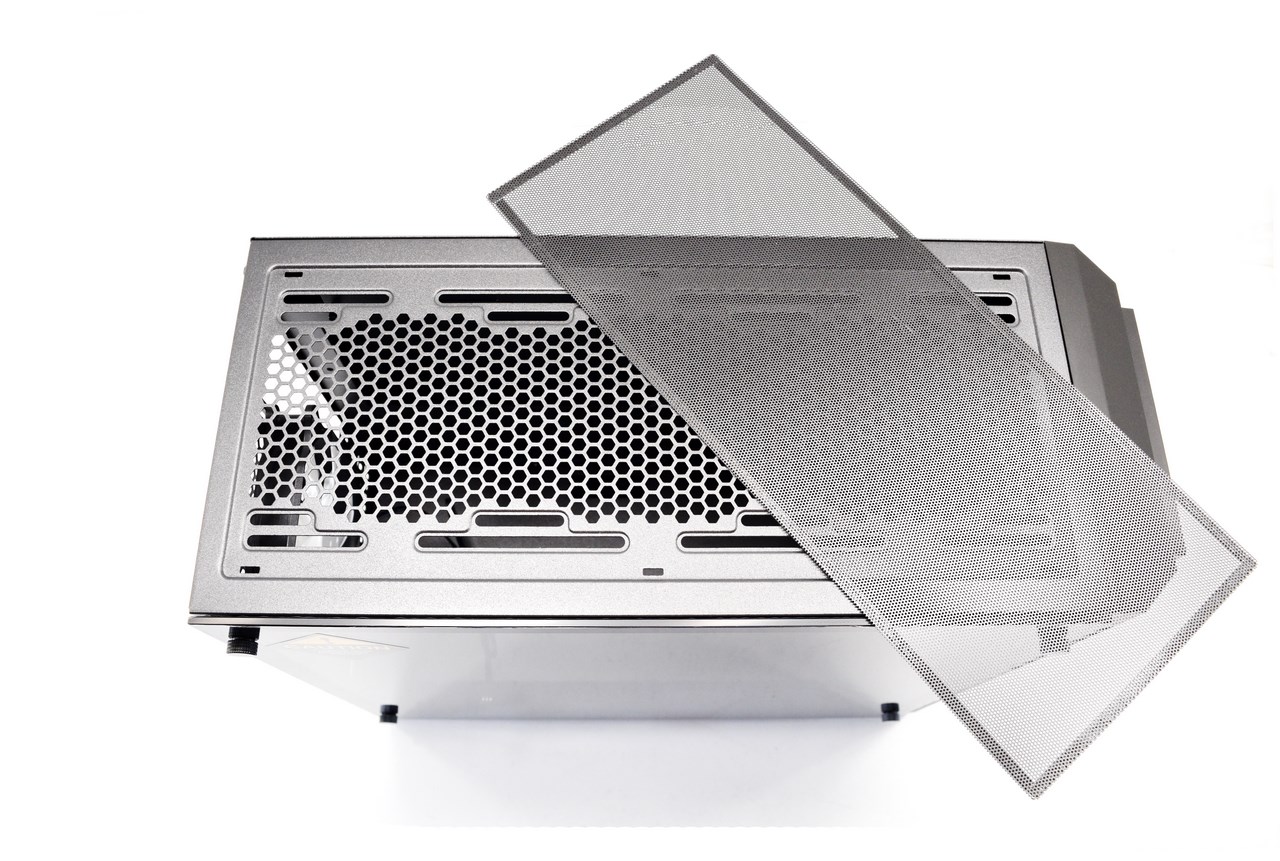

The entire top is covered by a magnetic air filter and beneath it you can place up to three 120mm or two 140mm fans (you should also be able to mount a 240mm radiator here).

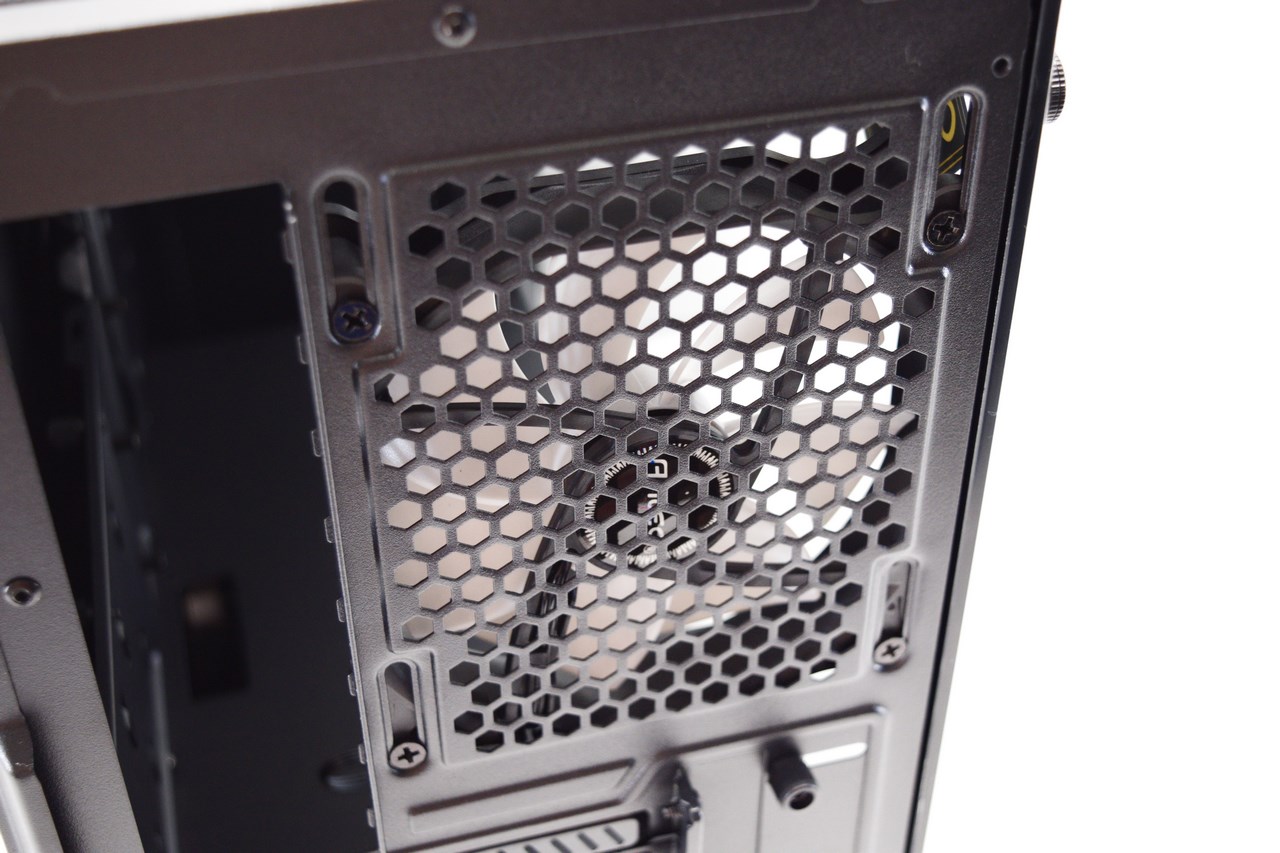

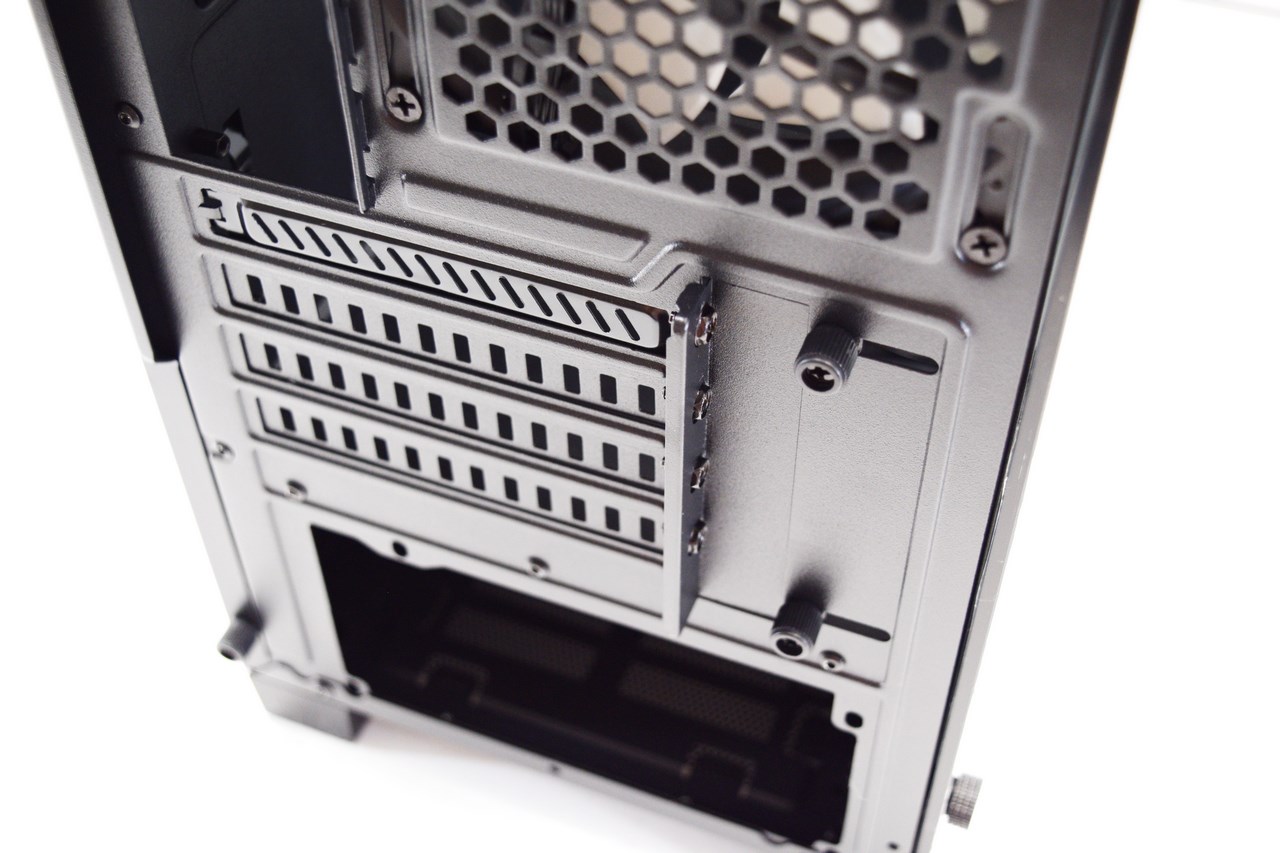

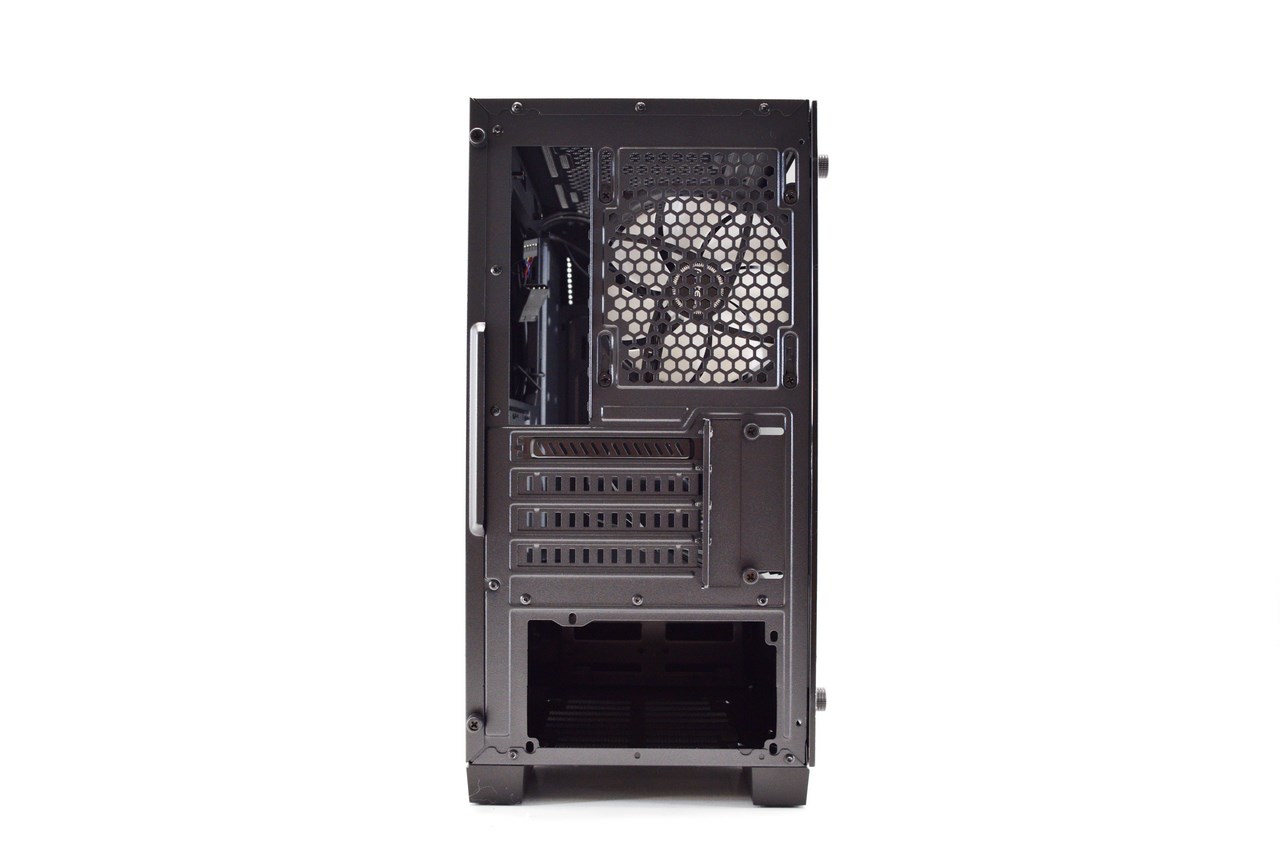

At the rear we find the pre-installed 120mm LED fan, the 4 PCI expansion slots and the PSU area.

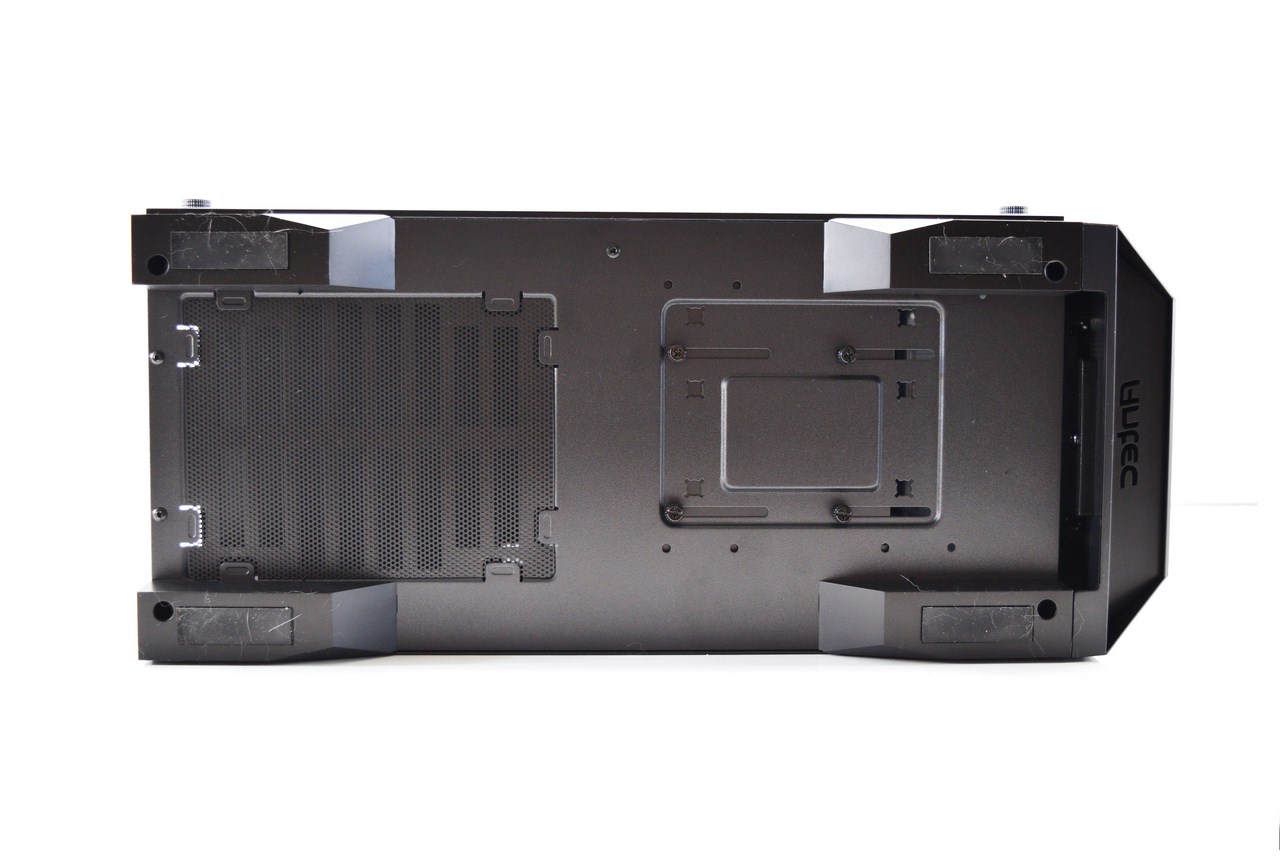

Turning the case over we find a removable air filter (not as easy to remove however as the magnetic ones) and four thumbscrews (more about those later on).
