INTRODUCTION

   Whenever a new power supply makes it in the lab i can't help but recall the days in the early 90's when we didn't have the luxury of choosing a power supply. To be precise we could choose between 2-3 very basic models (80 Plus efficiency, DC to DC, electrical protections, modular connectors/ports and even braided cables weren't a thing back then) which if you were lucky enough would get the job done for 2-3 years before having to be replaced. In contrast I'd just like to point out that i have 80 Plus Platinum models still working flawlessly almost 24/7 and for roughly 10 years now. So, picking up a high quality power supply is always recommended, regardless of whether or not you're a casual user, gamer, enthusiast or even a professional. The latest ION+ 2 Platinum 860W Power Supply Unit by Fractal Design is clearly one such model and it's also what today's review is all about.

   Fractal Design is a leading designer and manufacturer of premium PC hardware including cases, cooling, power supplies and accessories. Based in Gothenburg and with offices in the US as well as Taiwan, Fractal Design has gained a global reputation for innovative design, elegant aesthetics and solid build quality. Fractal Design products are available in over 45 countries worldwide, and are still growing.

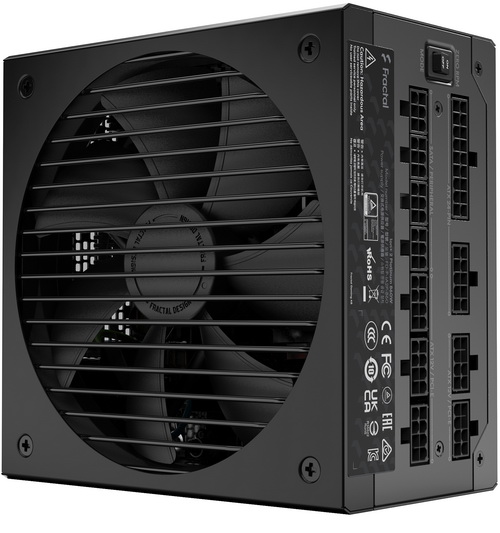

   The latest ION+ 2 line of power supply units by Fractal Design currently includes 560/660/760/860W models, all of which are fully modular and holding the 80 PLUS Platinum certification (up to 93% electrical efficiency). The 860W output model which landed in the lab roughly 20 days ago sports a continuous power output of 860W (maximum/peak power output of up to 998W) and packs numerous features including DC to DC design, DC to DC converter, semi-passive Zero RPM mode, temperature controlled 140mm fluid-dynamic bearing fan, 100% Japanese primary heavy-duty capacitors, ATX v2.52 compatibility, ultraflex modular cables, single +12V rail (71.6A) which can make use of the entire total rated power output of this unit (860W) and an array of industrial-grade electrical protections including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection) and OTP (Over Temperature Protection). Once again Fractal Design has decided to cover their entire top of the line power supply units with a rather generous 10-year limited warranty.
