THE ION+ 2 860W EXTERIOR

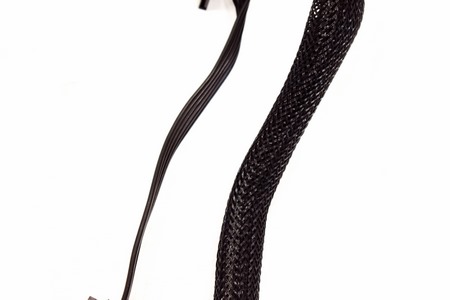

Even though for all secondary modular cables Fractal Design chose to go with slim ones the primary one (motherboard 24pin) is still thick (thanks to the ultraflex technology this is quite flexible).

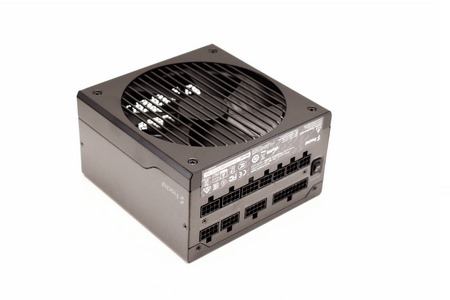

Just like its predecessor the chassis of the ION+ 2 860W measures 150mm in length, 150mm in width and 86mm in height.

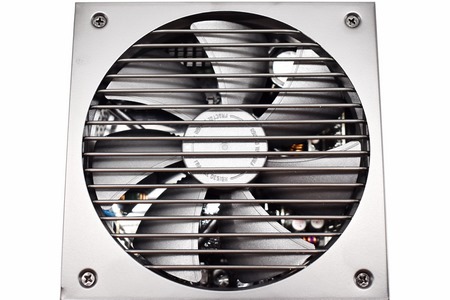

Again, we find a simple yet premium looking grille just over the 140mm FDB temperature controlled fan.

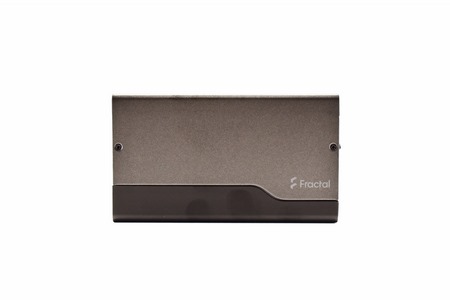

Just a small company logo is located on both sides of the enclosure.

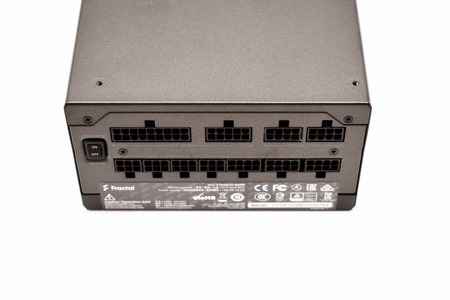

At the front of the chassis, we find the zero RPM mode switch and the 11 modular ports which are not only different in configuration but are also tagged.

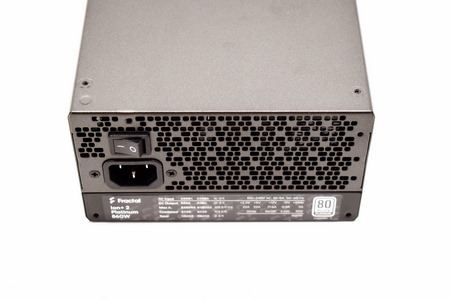

Moving at the rear we find the usual perforation right next to the power port, on/off power switch and a sticker with the unit’s electrical table.
