THE GX-850 EXTERIOR

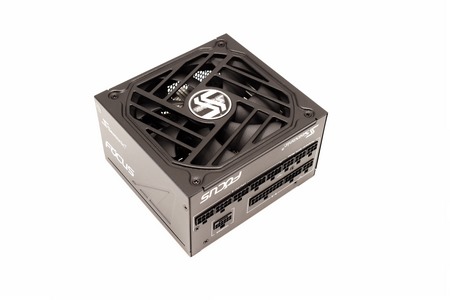

Just like with most models out there the GX-850 measures 140mm in length, 150mm in width and 86mm in height.





Seasonic has once again gone and used individually sleeved cables which are easier to bend/route and yes, that also includes the 600W 12VHPWR cable.

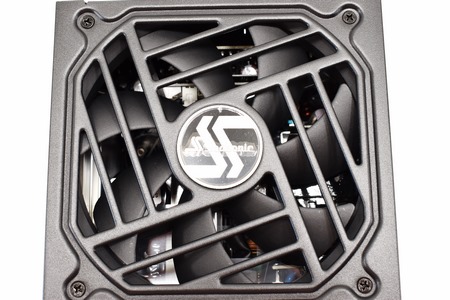

The 135mm intake fan sits behind a very nice looking grill that has the company logo at its center.





The company and product line names are printed on both sides.

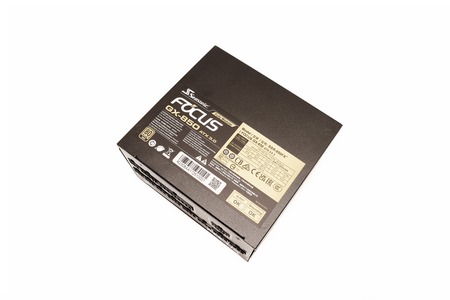

As expected, the electrical table sticker is located at the base of the enclosure.

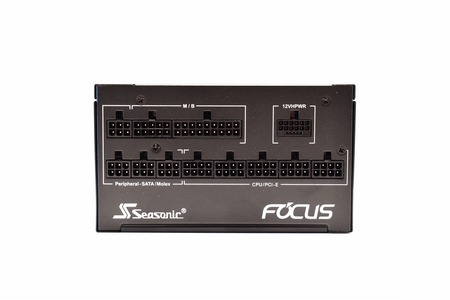

All 12 modular ports located at the front are tagged.

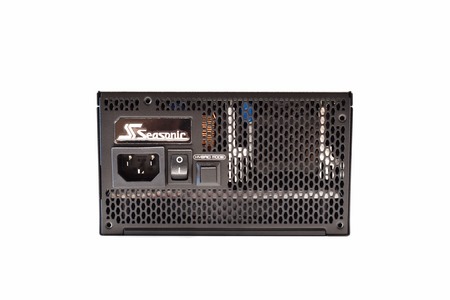

Moving at the rear we find the power switch, hybrid mode button and the power port.
