THE GX-850 INTERIOR

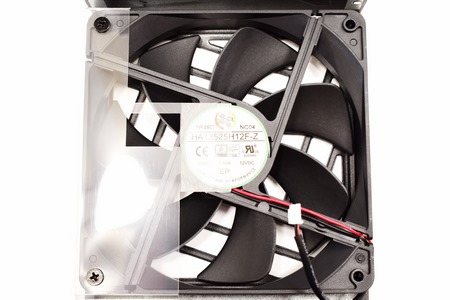

Hong Hua is behind the HA13525H12F-Z fluid-dynamic bearing fan used with the FOCUS GX-850 (up to 2300RPM).

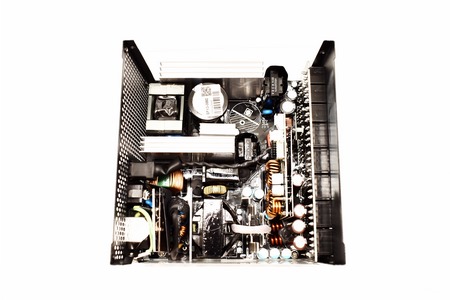

Interior layout is very good as is build quality (notice the empty primary capacitor spot, this could be for the 1KW output model).

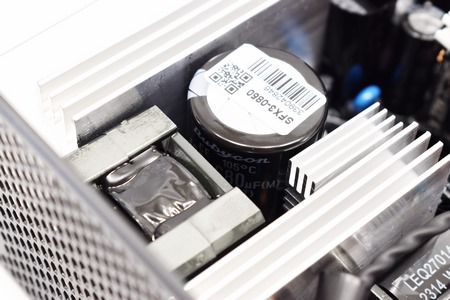

The model uses a primary capacitor by the Japanese Rubycon certified for use up to 105 degrees Celsius.

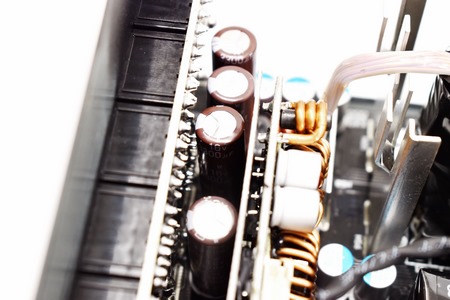

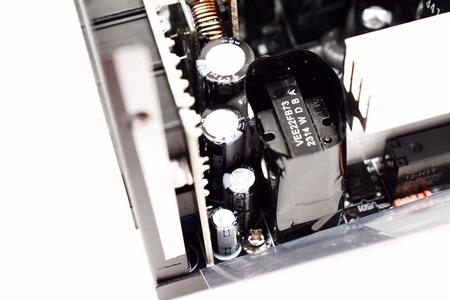

Secondary capacitors are manufactured by both Rubycon and Nippon Chemi-Con and are also certified for use up to 105 degrees.
