THE HYDRO TI PRO 850W EXTERIOR

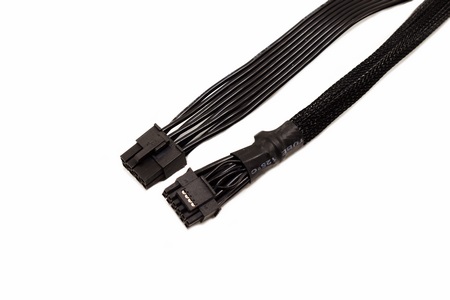

Aside the +12VHPWR cable which is braided every other modular cable is a low-profile (slim) one.

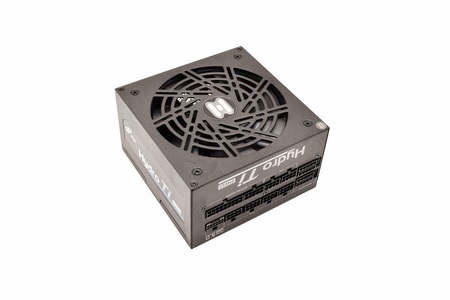

Measuring 150mm in length, 150mm in width and 86mm in height the Hydro Ti PRO 850W follows the typical ATX form factor.

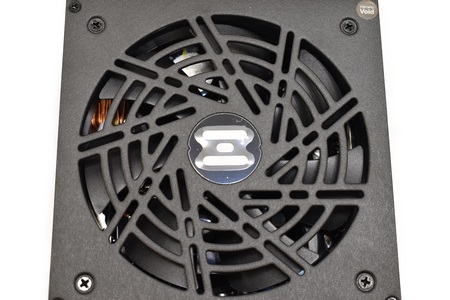

The 135mm FDB (fluid dynamic bearing) fan is located underneath a grille with the line logo at the center.

Both sides feature replaceable stickers which can be swapped with the bundled ones (whichever matches your PC case components more).

Turning the unit over we find a large sticker with the electrical table on it.

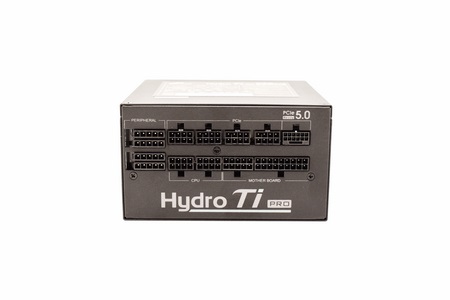

All 13 modular connectors are tagged and different in shape.

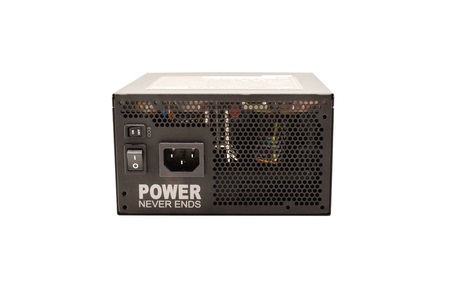

Moving at the rear we find the usual honeycomb perforation along with the eco and power on/off switches and of course the power port (for my tests ECO mode is disabled at all times).
