THE HYDRO TI PRO 850W INTERIOR

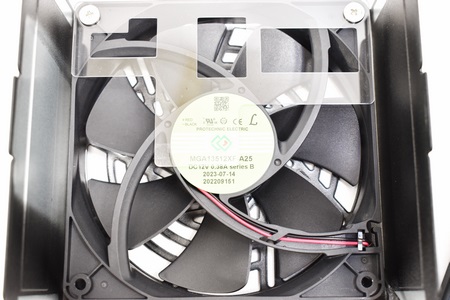

The 135mm FDB fan used with the Hydro Ti PRO 850W is manufactured by PROTECHNIC ELECTRIC and can reach a maximum rotational speed of up to 2300RPM (however this doesn't mean its profile/curve is set that high).

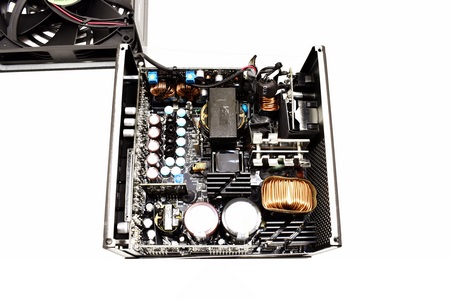

Interior layout is clean and on par with what one would expect from an FSP model so no issues here.

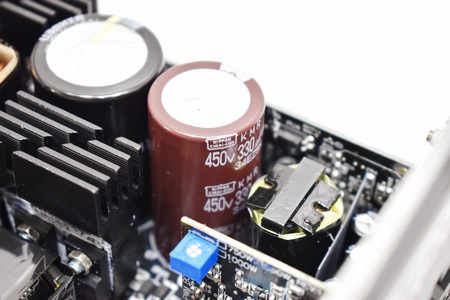

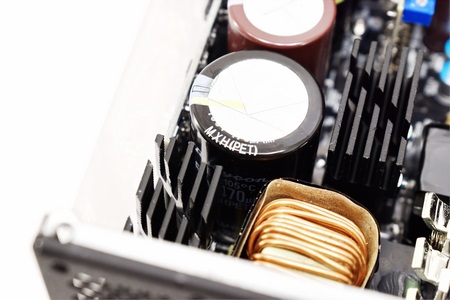

Strangely enough the two primary capacitors are manufactured by two different Japanese companies, Nippon Chemi-Con and rubycon (both are certified for use up to 105 degrees Celsius).

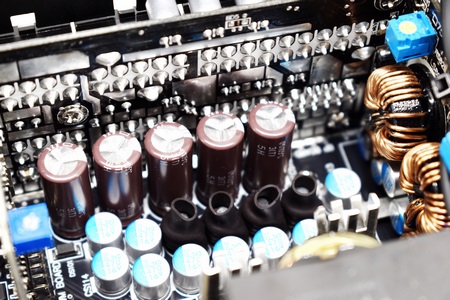

Secondary capacitors are again manufactured by both Nippon Chemi-Con and rubycon and are also certified for use up to 105 degrees Celsius.
