THE AURUM PT 1200W INTERIOR

















fsp aurum pt 1200w 12t

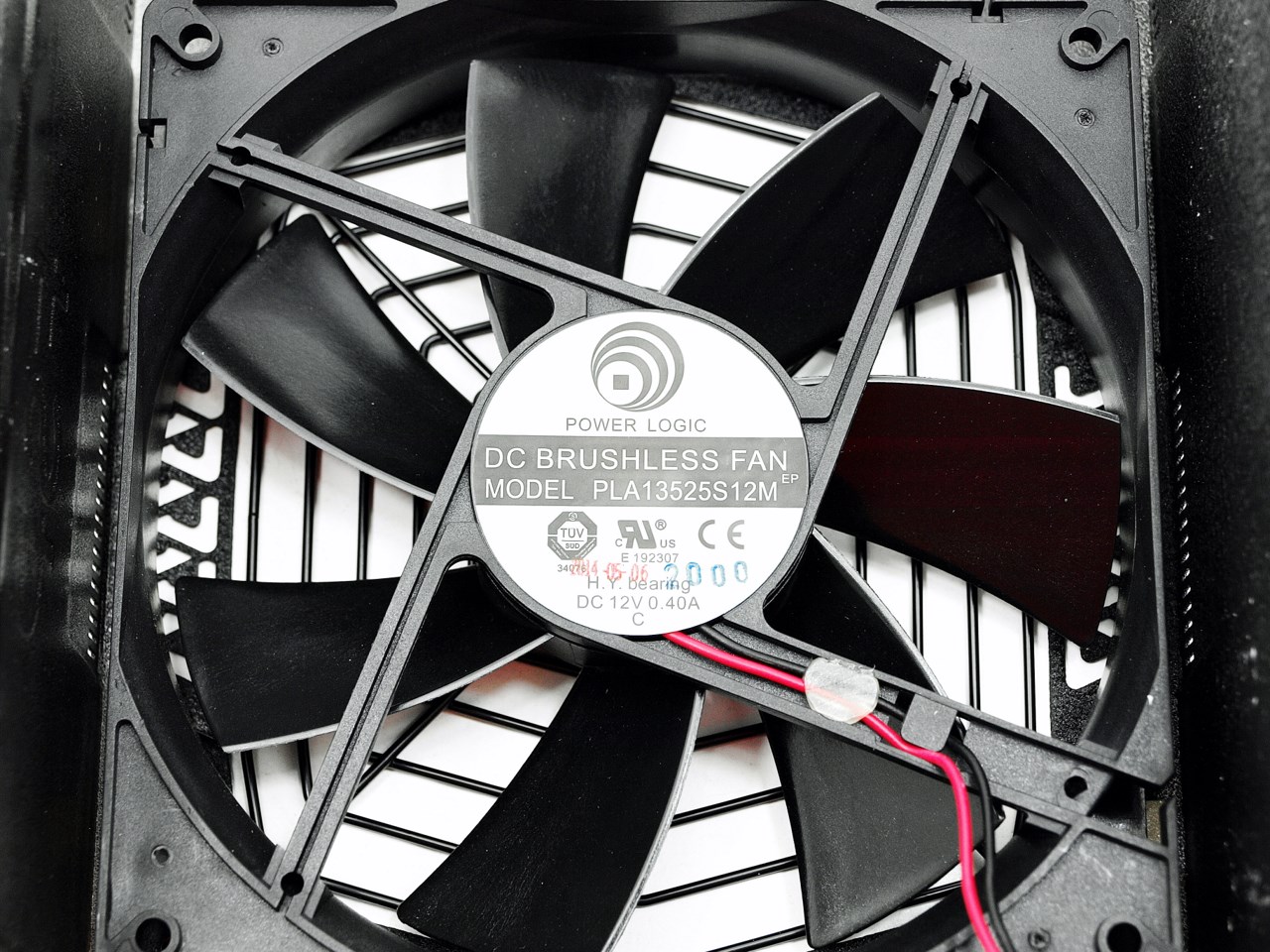

The fan used is actually a 135mm fluid dynamic bearing model which can spin up to 2000RPM (+-10%) to produce up to 111.1CFM of airflow with 41.6dBA of noise.





fsp aurum pt 1200w 13t

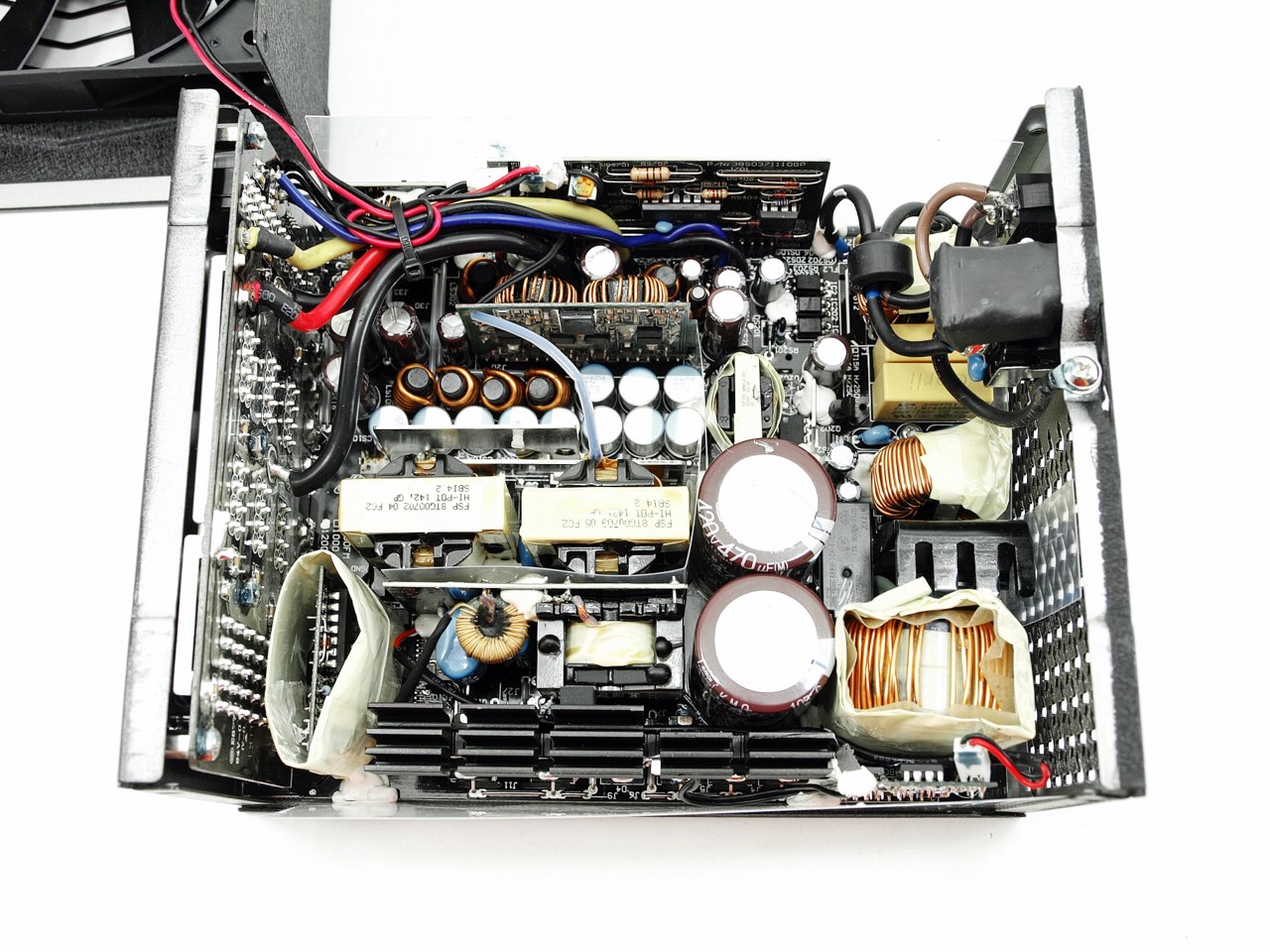

As expected from a 1200W PSU the interior is a little cramped (here we see the usual full-bridge topology and DC to DC converters).





fsp aurum pt 1200w 14tfsp aurum pt 1200w 15t

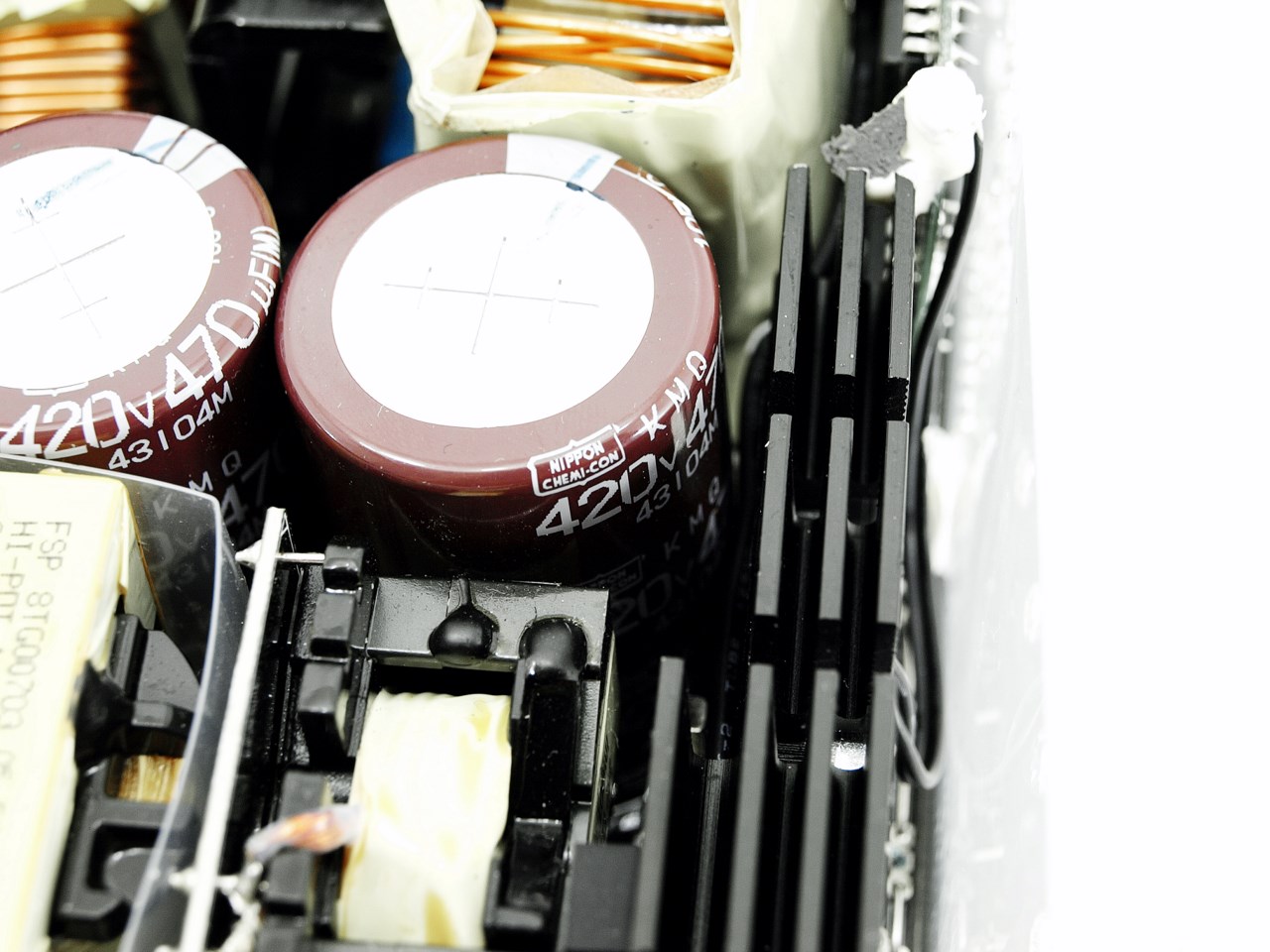

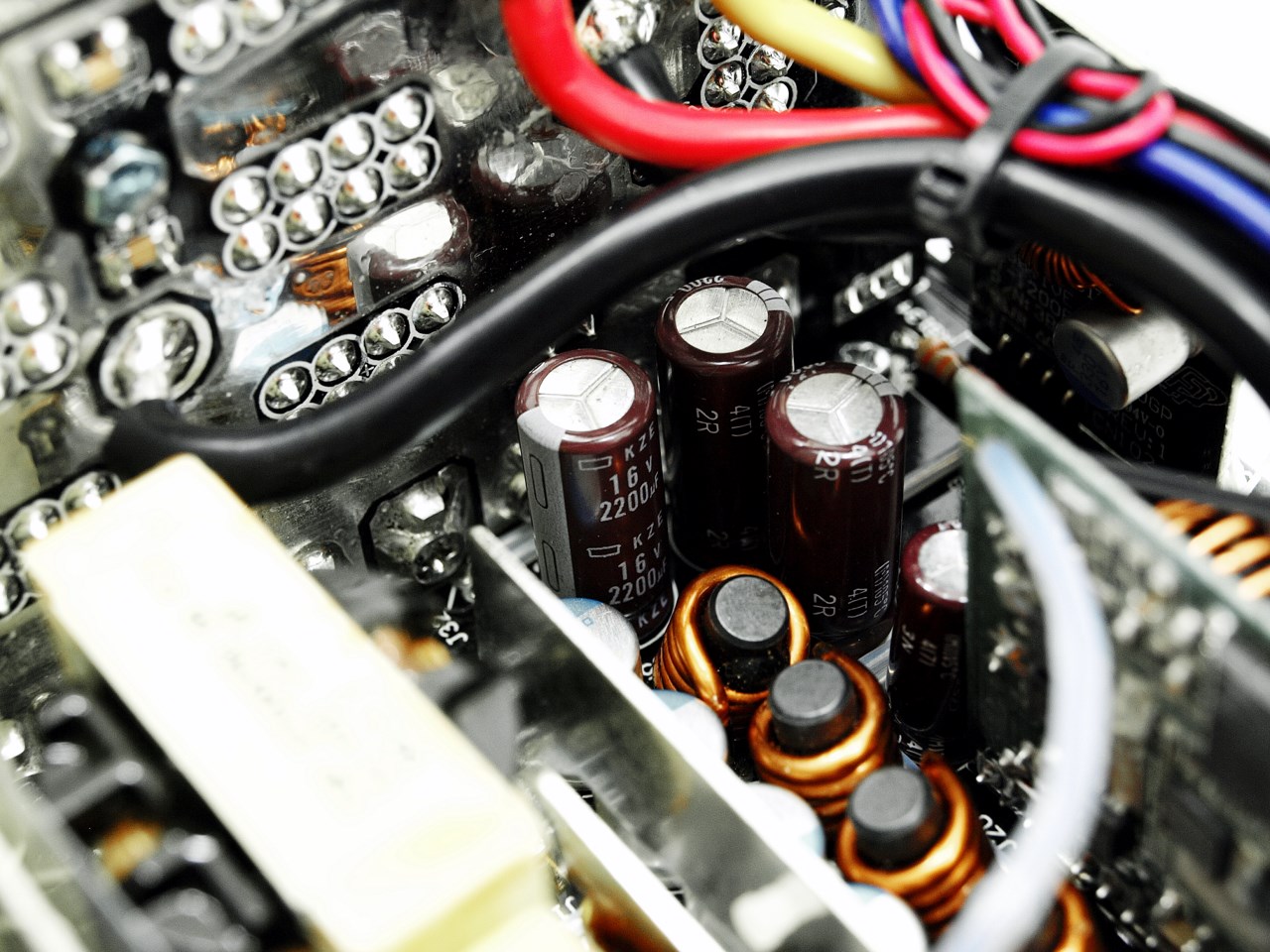

Our sample used primary capacitors manufactured by Nippon Chemi-Con and secondary capacitors manufactured by United Chemi-Con (all are rated for use up to 105 degrees Celsius).
