THE AS6204T INTERIOR

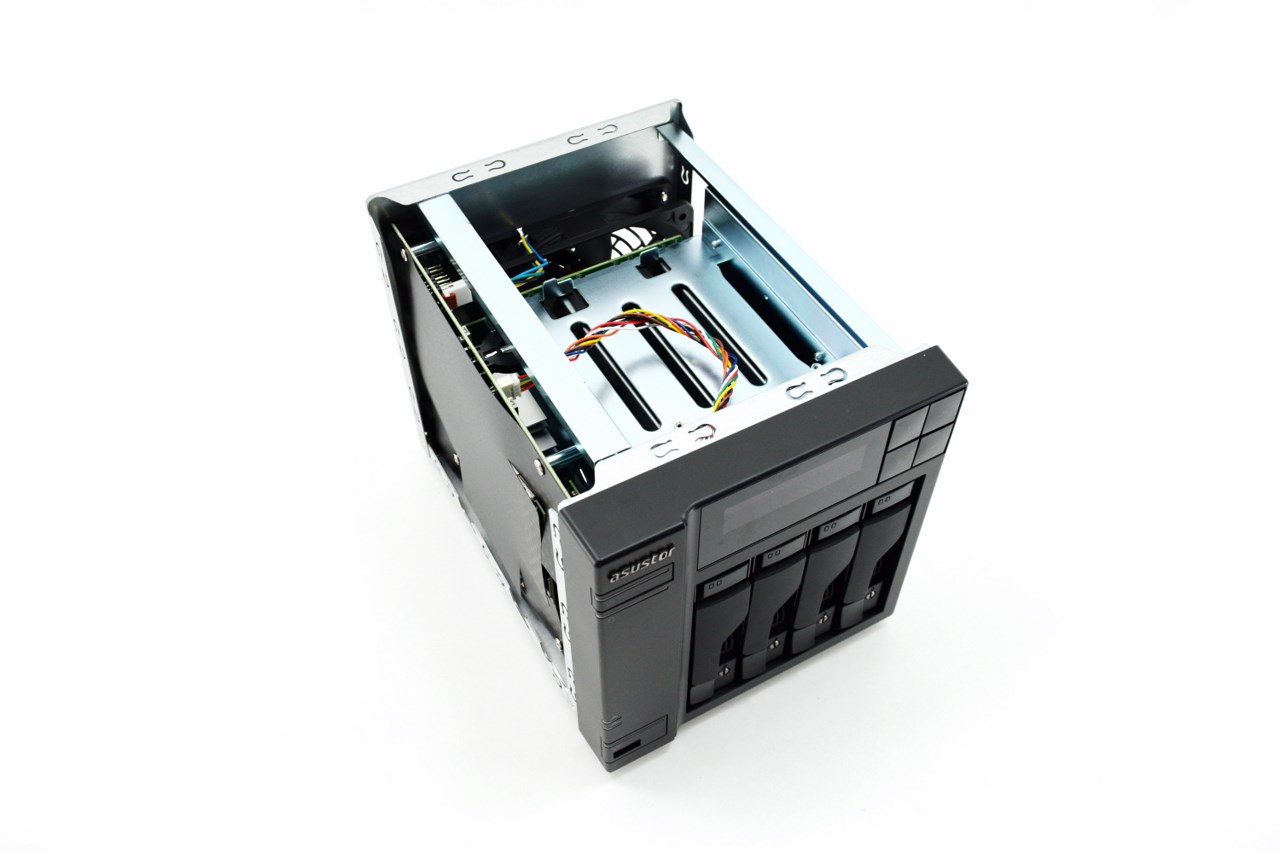

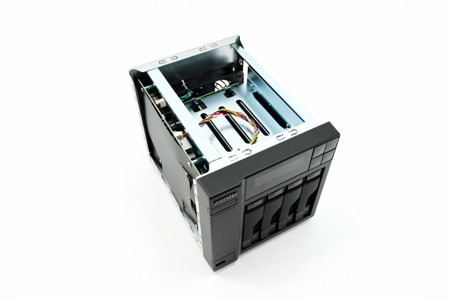

Accessing the interior requires the removal of the three rear screws (however we didn't take the unit completely apart).

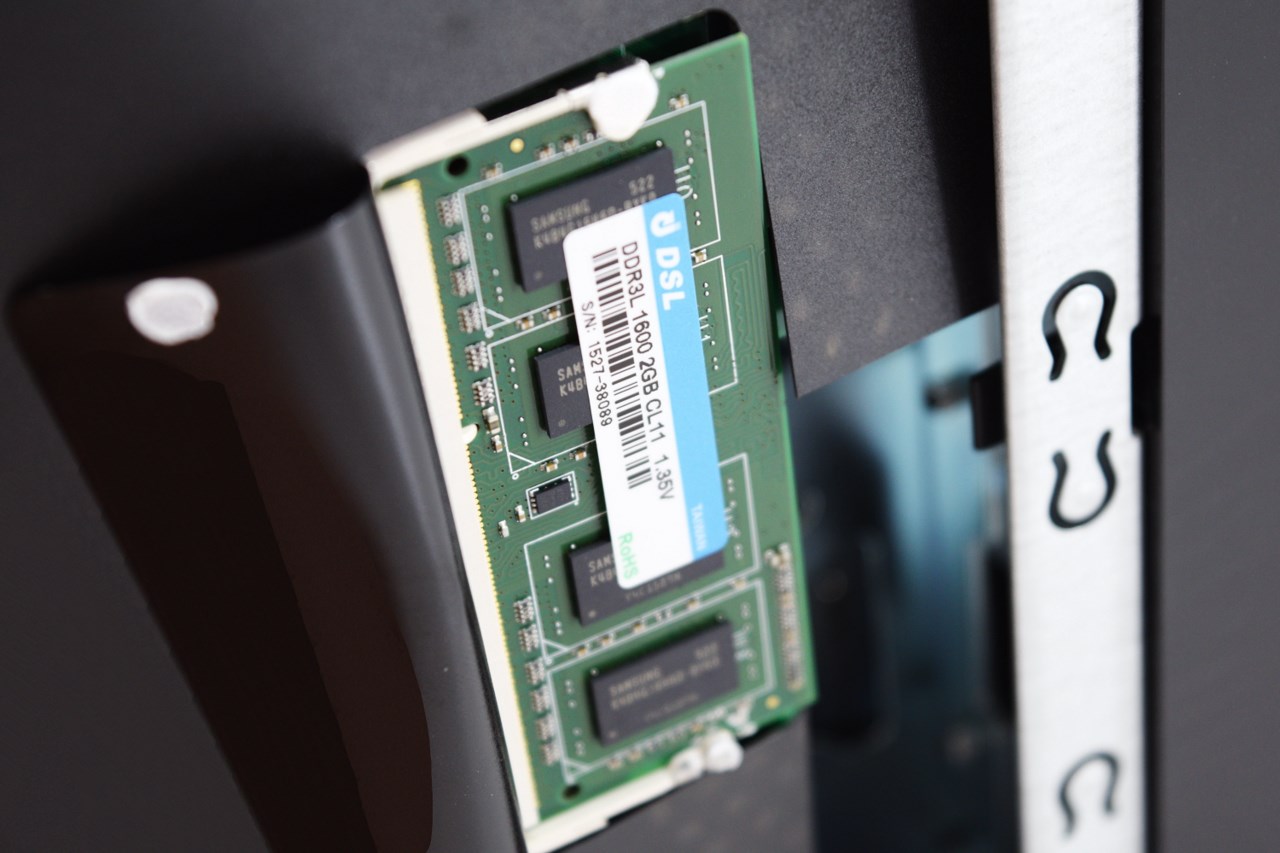

The AS6204T arrived with two 2GB DDR3L @ 1600MHz modules by DSL (Samsung modules) and according to the CPU specs you can use up to two 4GB ones if you want (8GB total).

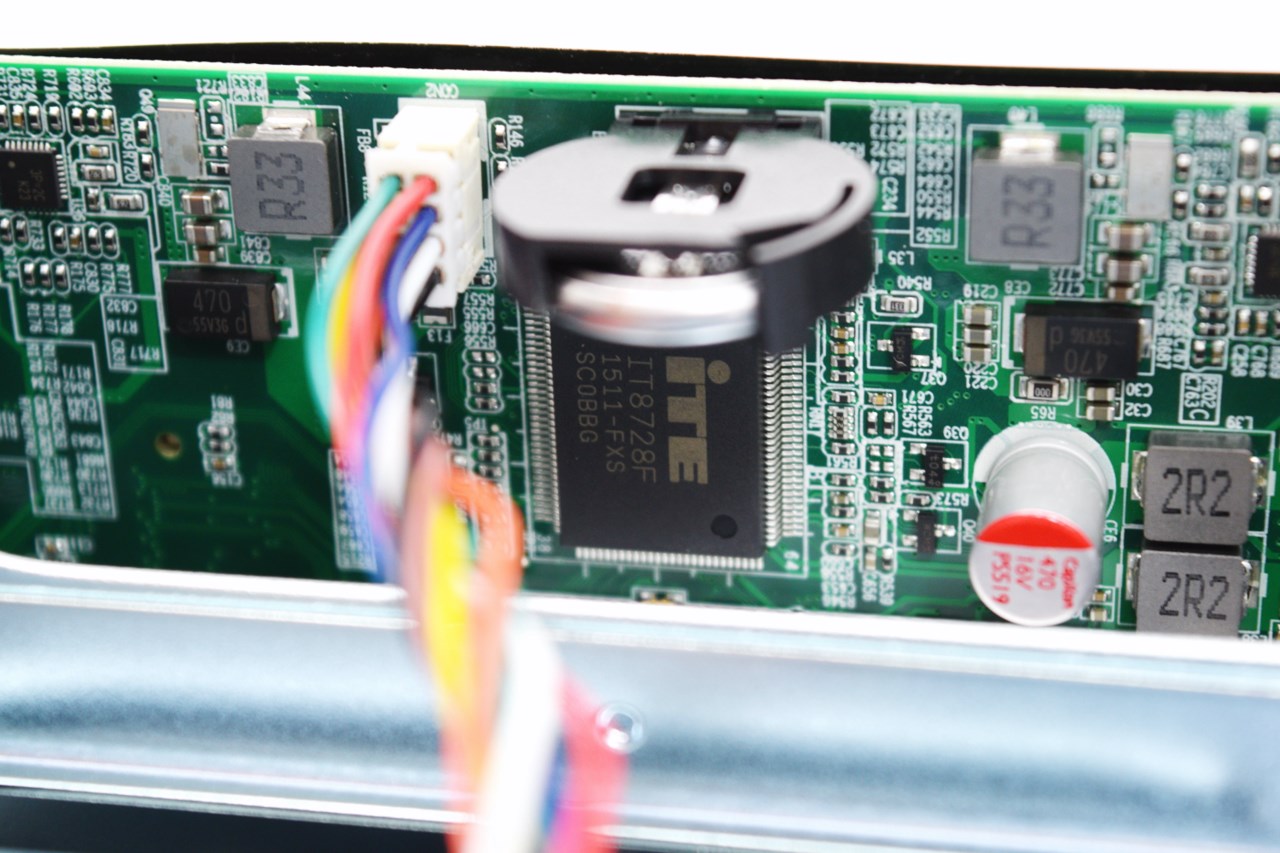

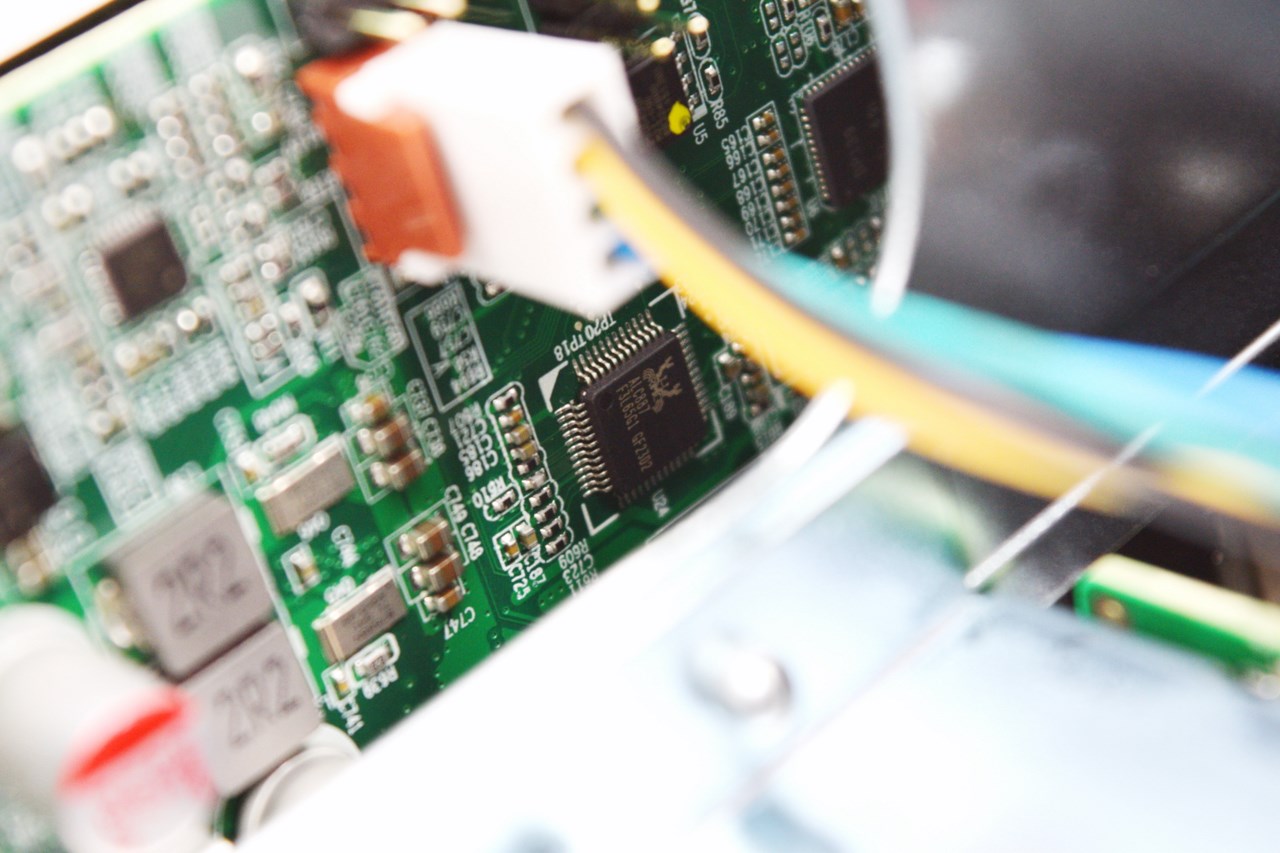

We also see the ITE IT8728F Super IO/LPC controller which is used to monitor the temperatures of the unit and the Realtek ALC887 7.1 Channel High Definition Audio Codec.

A large heatsink is placed above the new Intel Celeron Quad-Core N3150 CPU.

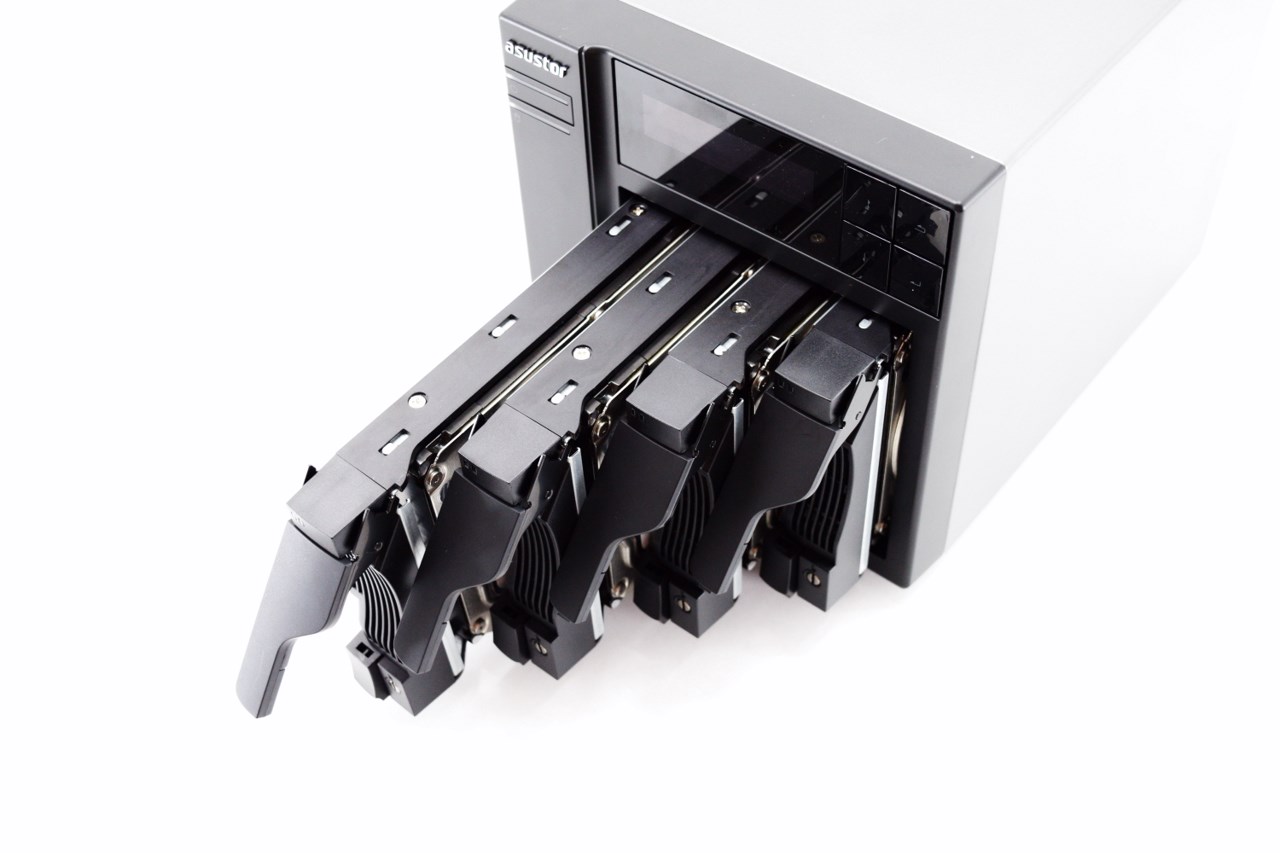

With our four Seagate Constellation ES.3 4TB drives mounted we are ready to proceed with our tests.
