THE 5PX 1500I RT2U NETPACK

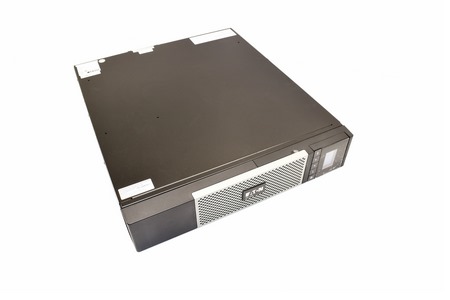

The 5PX 1500i RT2U Netpack model measures 522mm in length, 441mm in height/width and 86.2mm in thickness and just like every other tower/rack model it can be placed either horizontally or vertically.

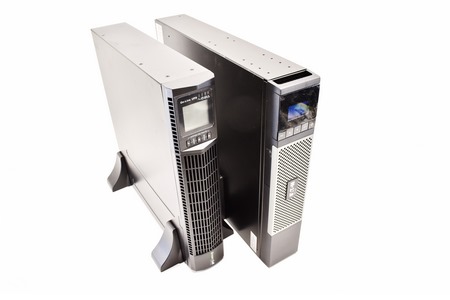

This is actually a medium to large sized UPS unit so it's larger than for example the RTII UPS13 model by Green Cell.

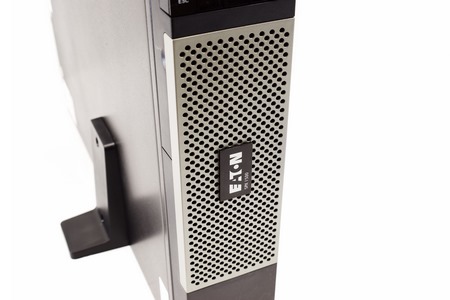

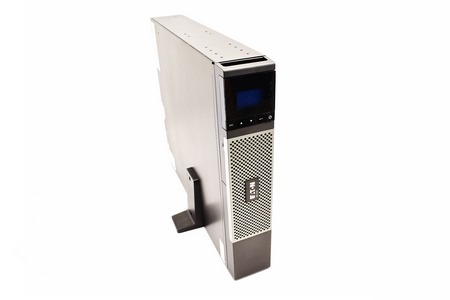

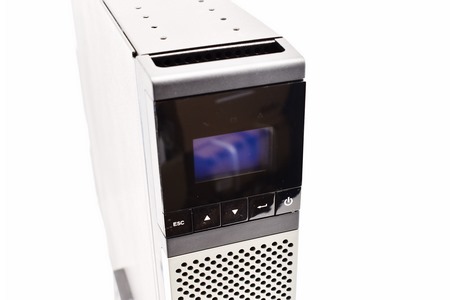

At the front of the UPS, we find the rotatable LCD screen together with 3 status LEDs, 5 menu buttons and the battery compartment right next/beneath them.

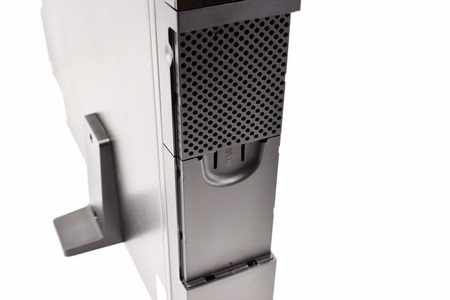

To access the battery compartment, you will need to detach the front plastic cover and slide the next cover downwards to remove it.

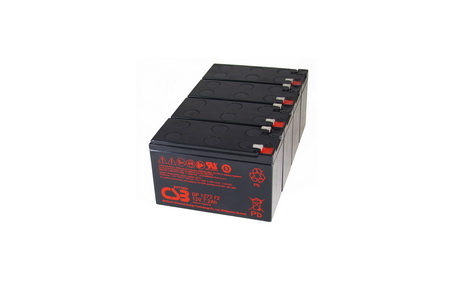

Inside you'll find no less than four 12V (48V total) 7.2Ah sealed lead batteries.

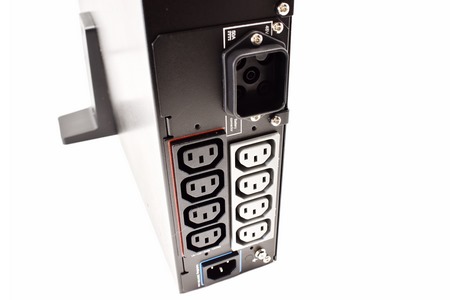

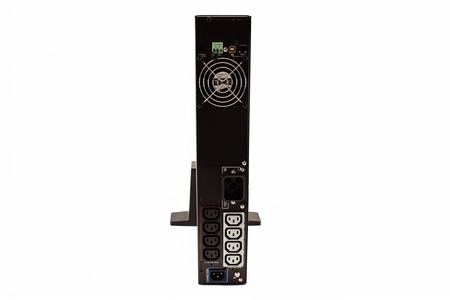

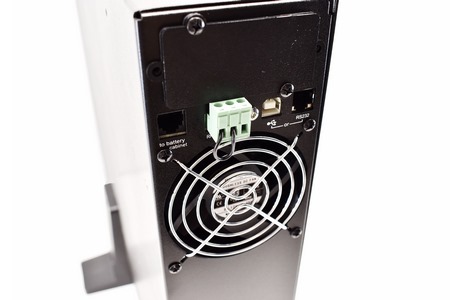

Turning the 5PX 1500i RT2U Netpack around we find the NMC mini card slot, extra battery connector, terminal block, USB host port, RS232 serial port, 80mm brushless DC fan, main extra battery connector, 8 IEC-C13 ports, IEC-C14 port and a grounding screw.

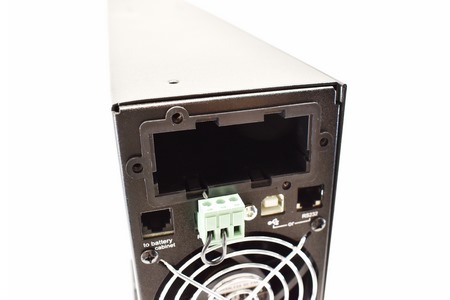

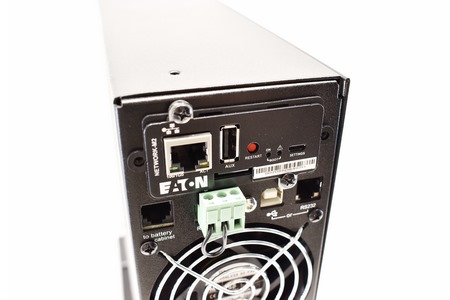

Mounting the bundled Network M2 card is easy, just remove the slot cover slide it in and secure it with the available screws as seen above.
