THE 5S 1500I

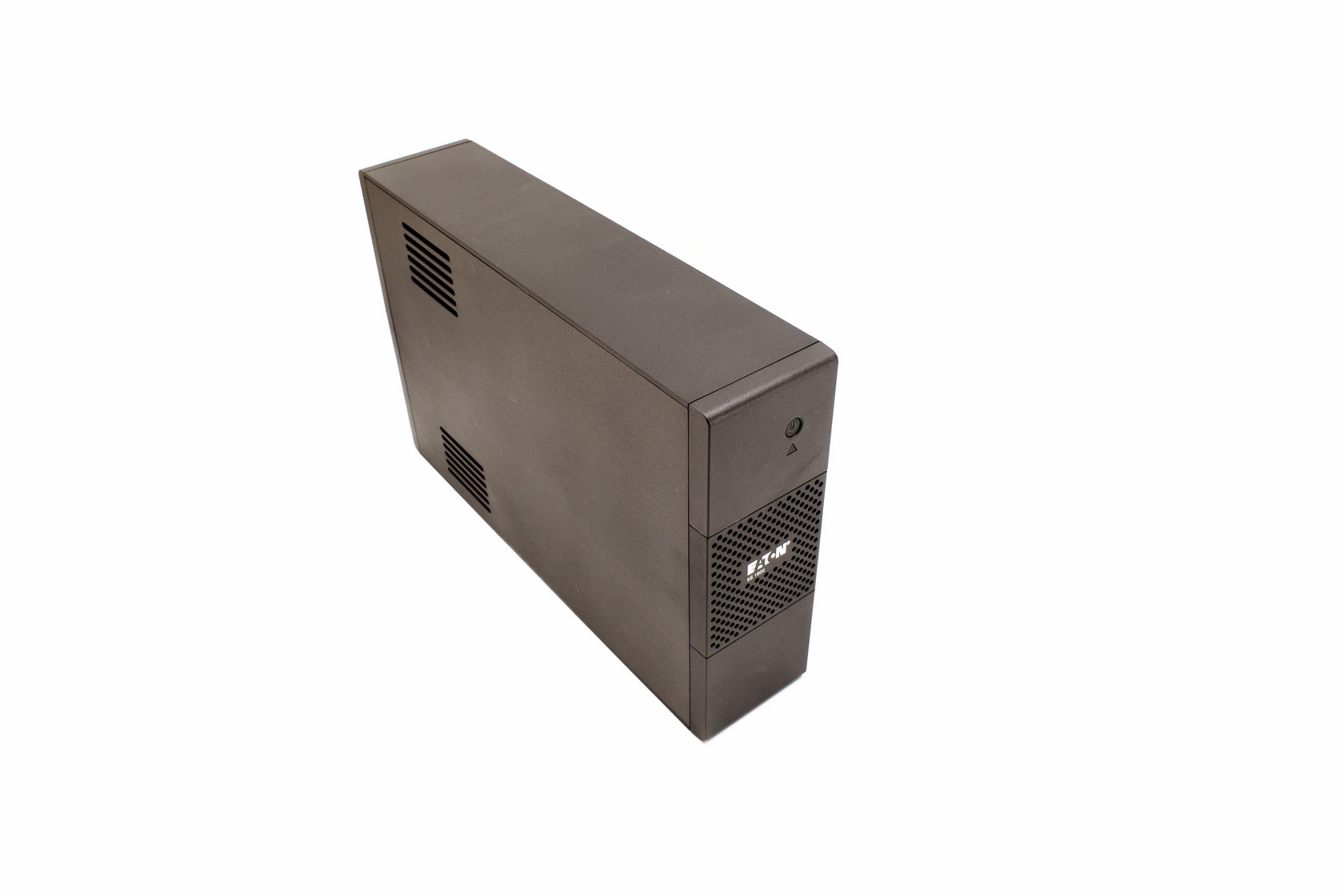

The 11.16Kg heavy 5S 1500i UPS measures  382mm in length,  87mm in width and 250mm in height.

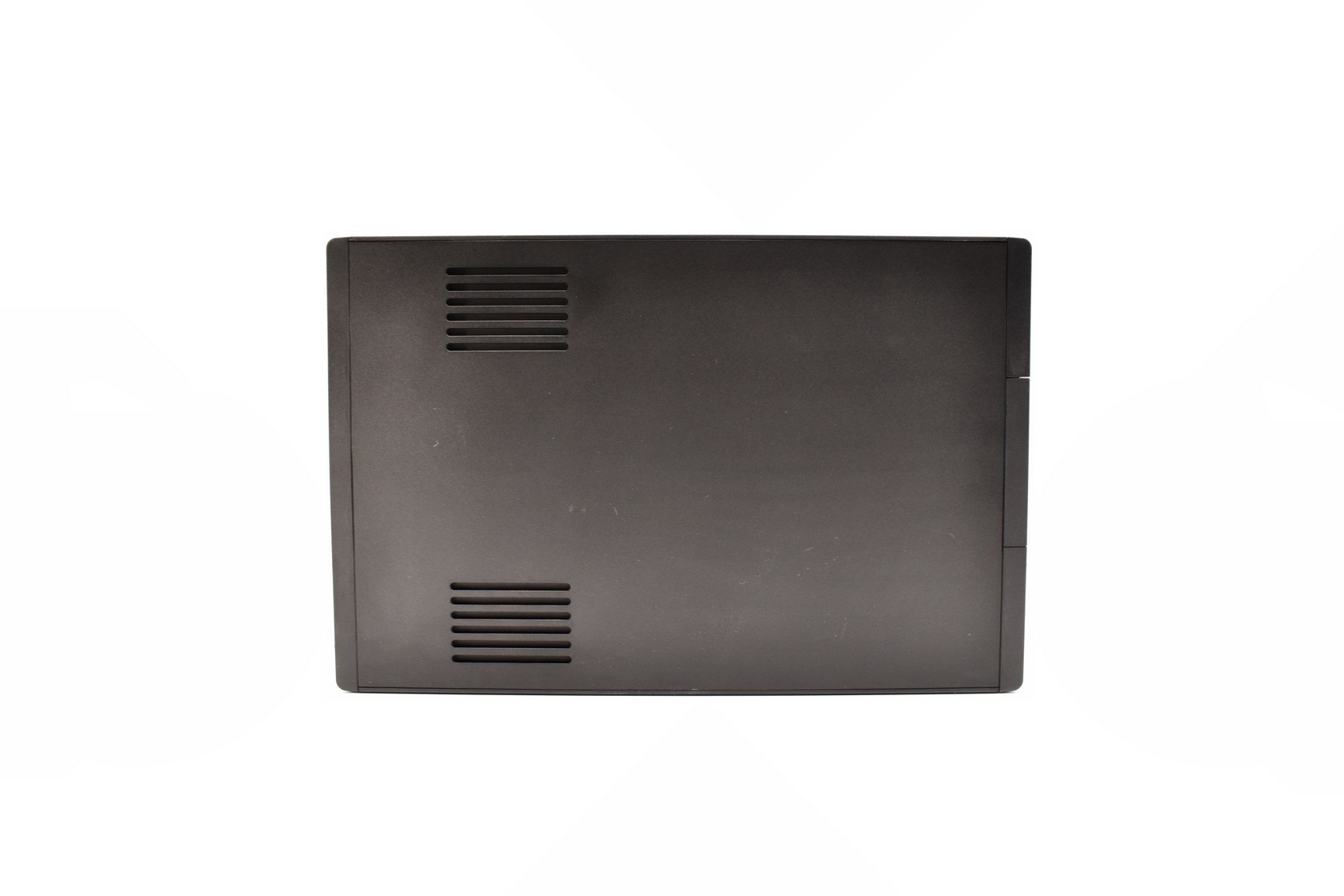

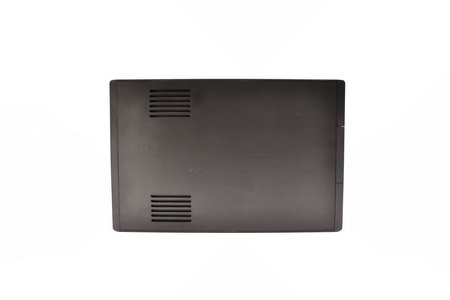

Eaton has placed vents on both sides of the 5S 1500i (actively cooled).

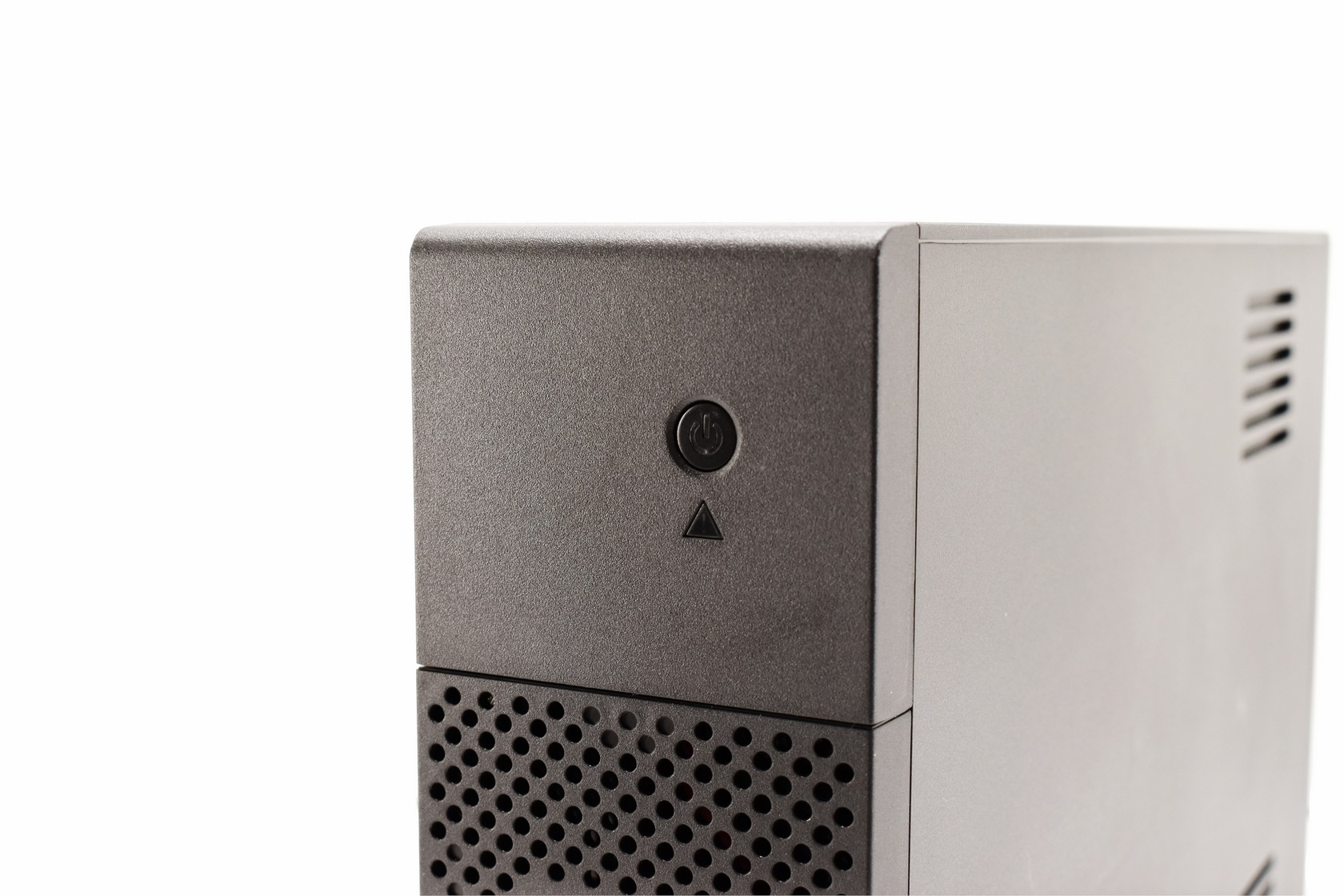

At the front we find the on/off power button with the single activity LED at its center.

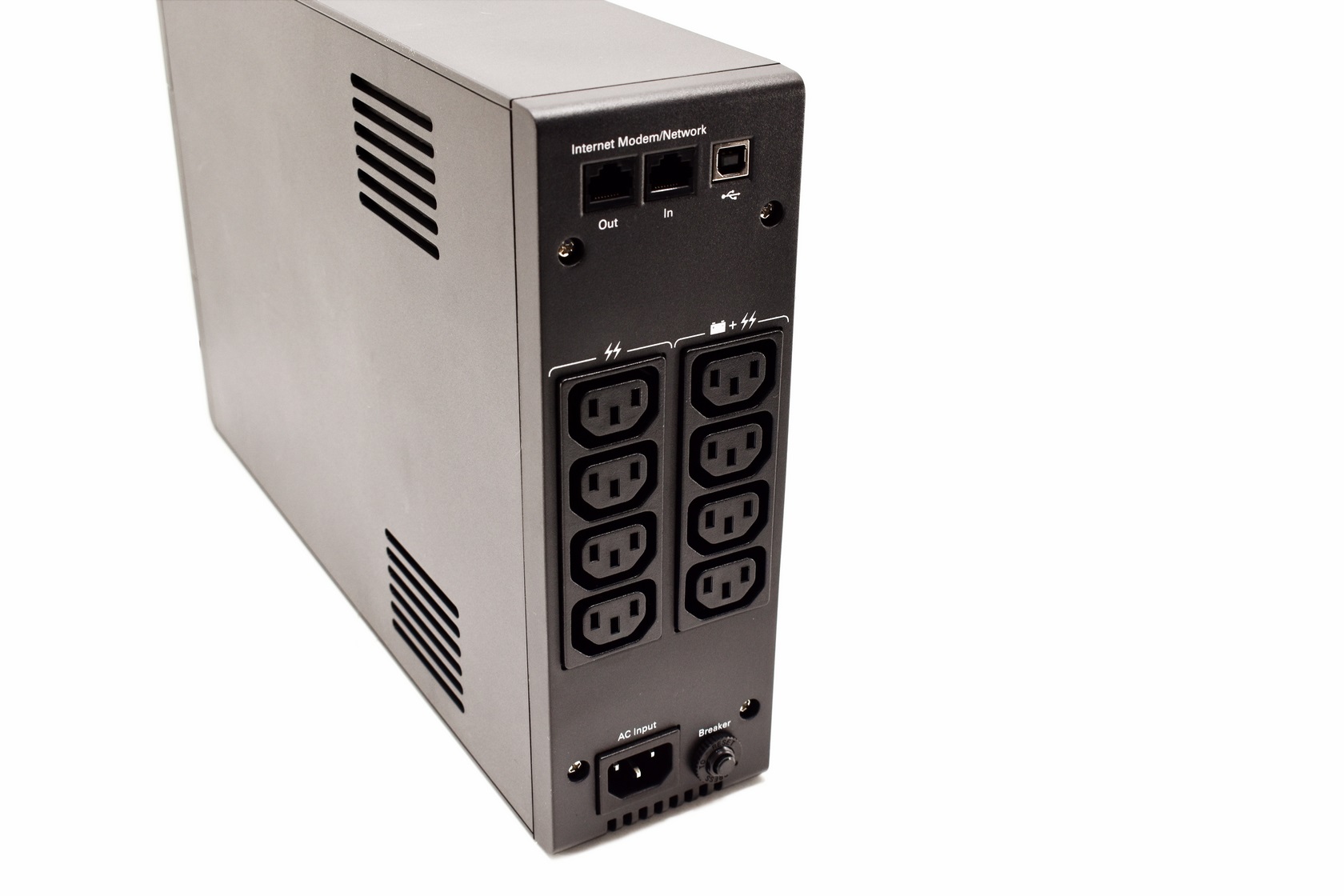

At the rear of the 5S 1500i we find the two RJ11 telephone line ports, USB host port, 8 IEC outlets (left are surge protected while the right ones are battery powered and surge protected), AC input and the breaker button.

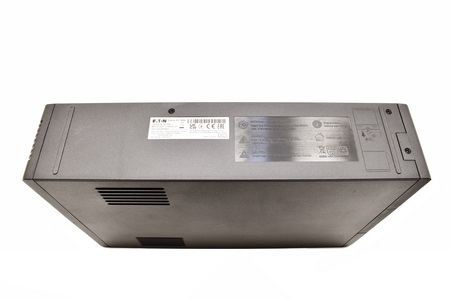

Turning the unit over we find a sticker with the serial number and barcode and instructions on how to access the lead-acid batteries.

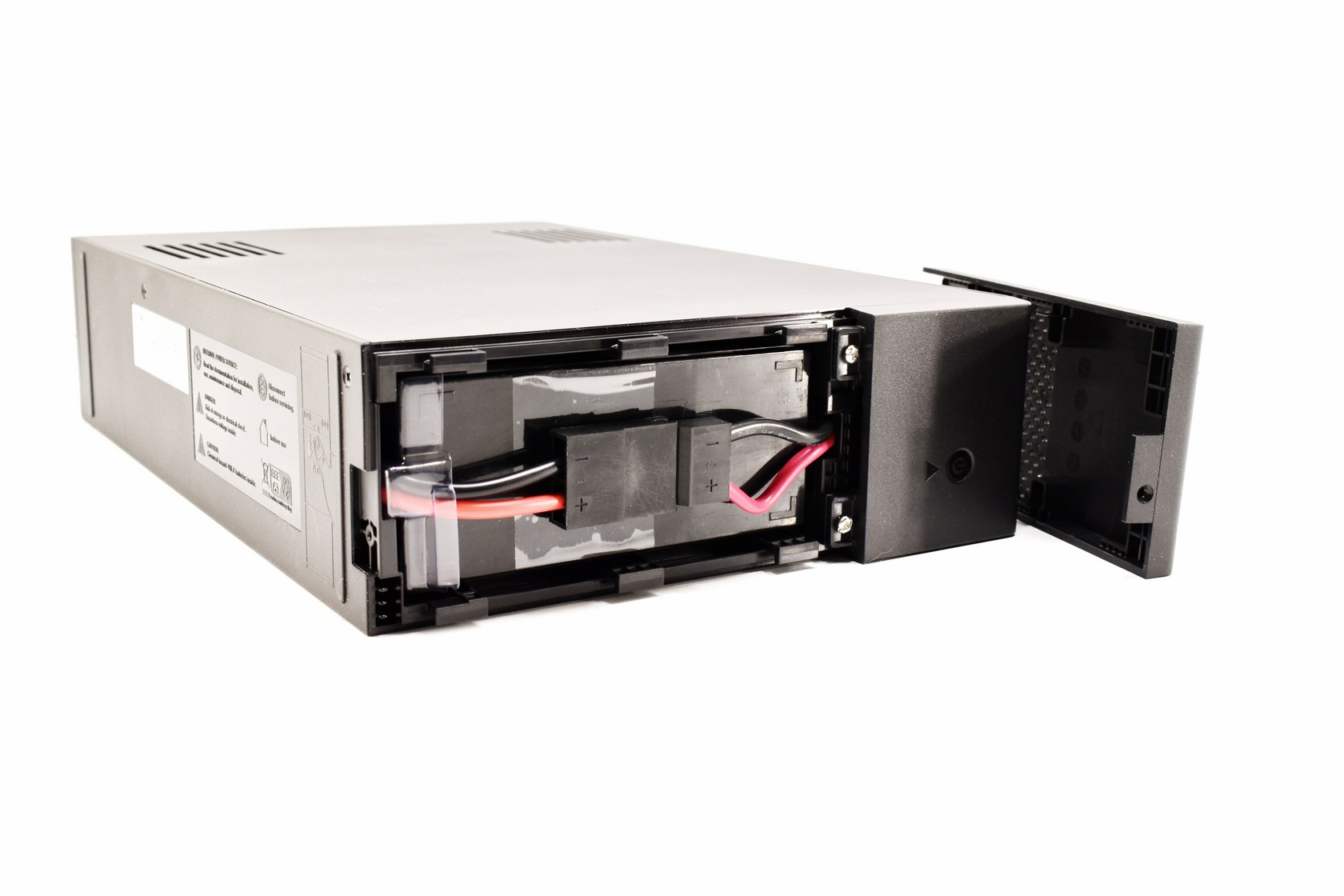

So, to access the batteries you need to remove the screw found at the bottom from and pull the lower fascia downwards.

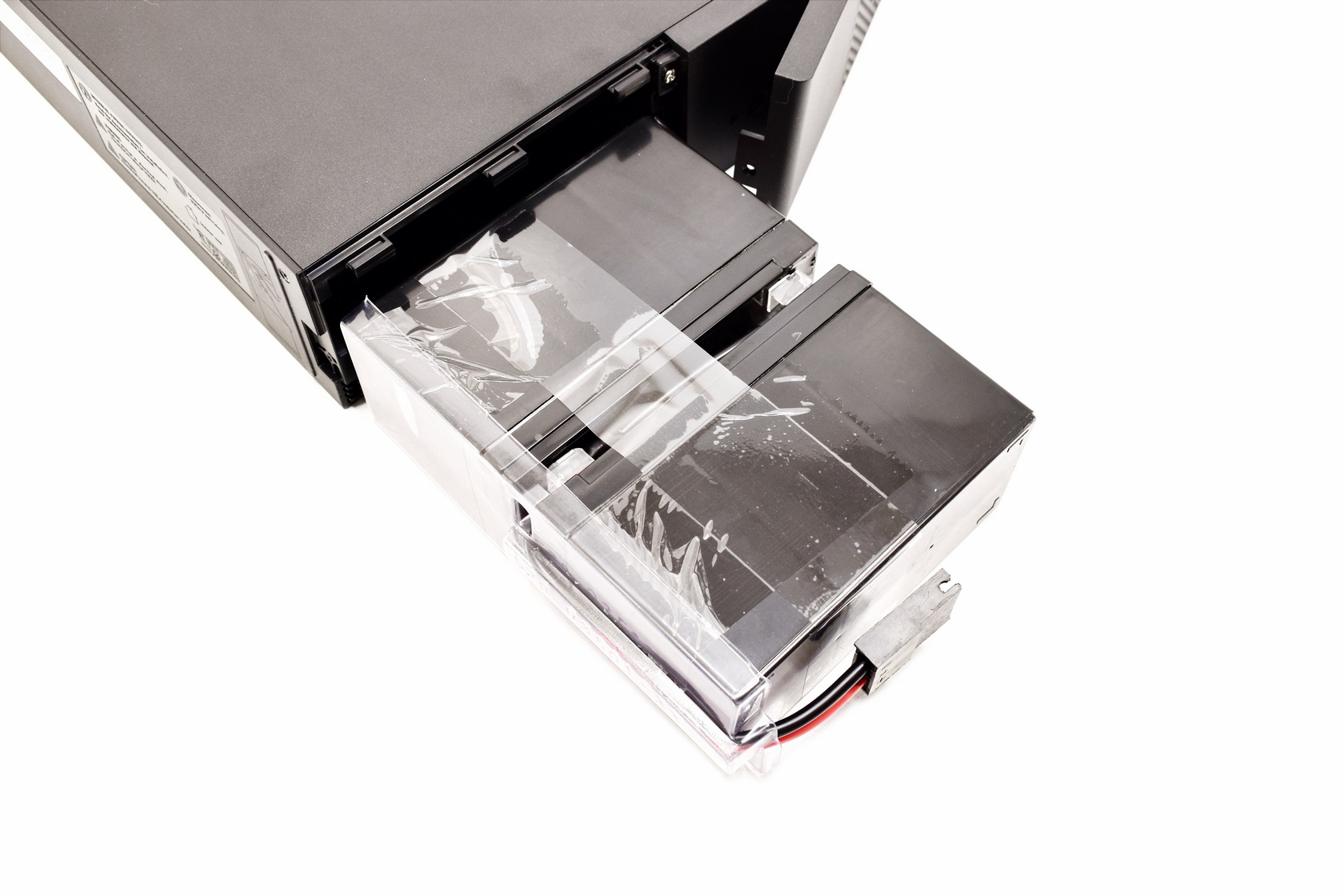

After that just disconnect the connector and slide the batteries out.

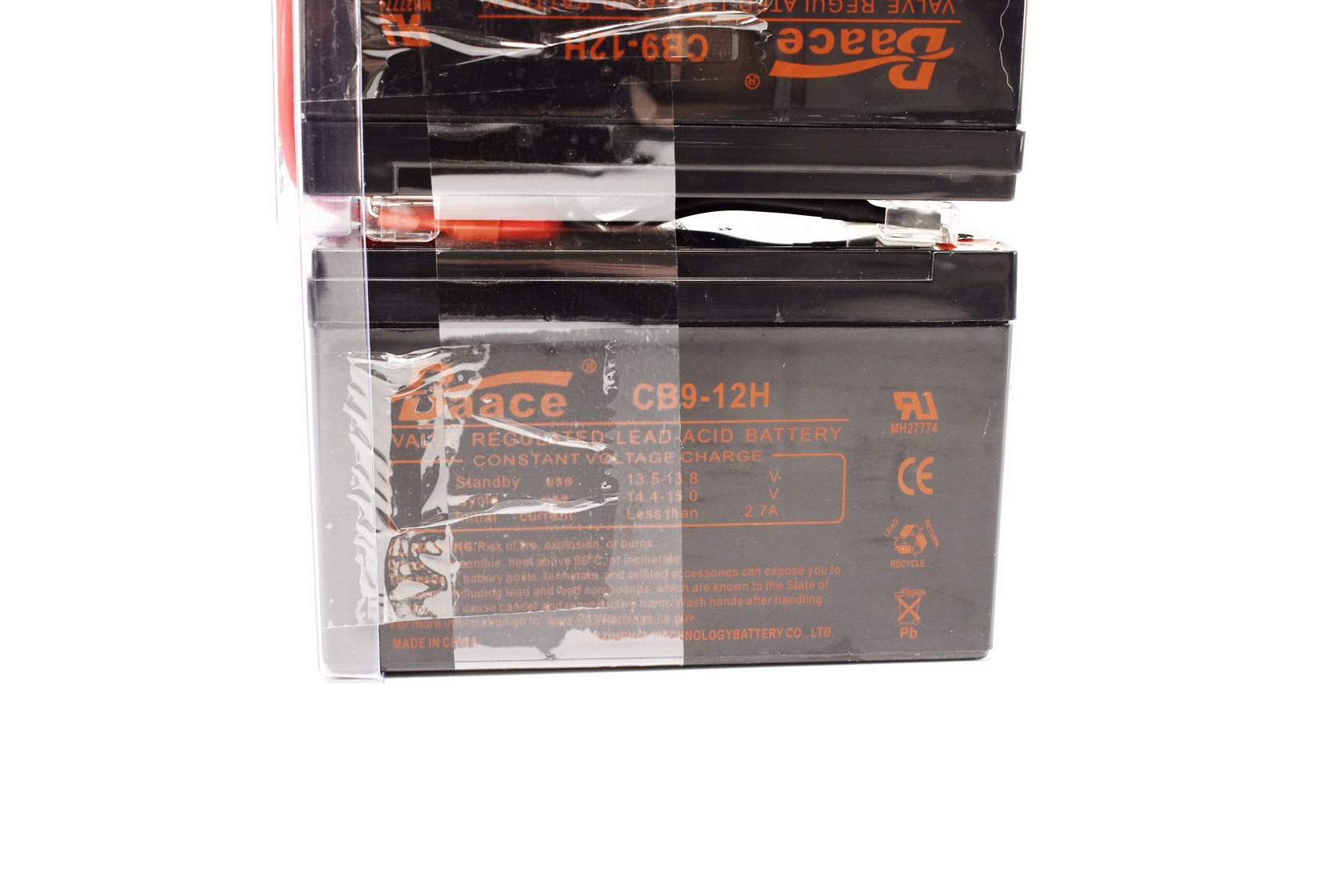

The batteries Eaton is using are manufactured by the Chinese Zhongshan Enduring Battery Co. Ltd (Baace).
