WEB INTERFACE PART 1

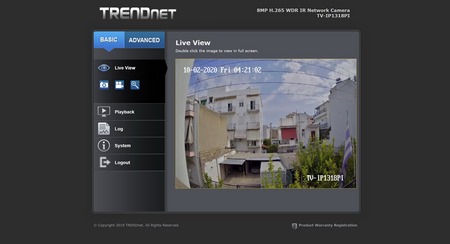

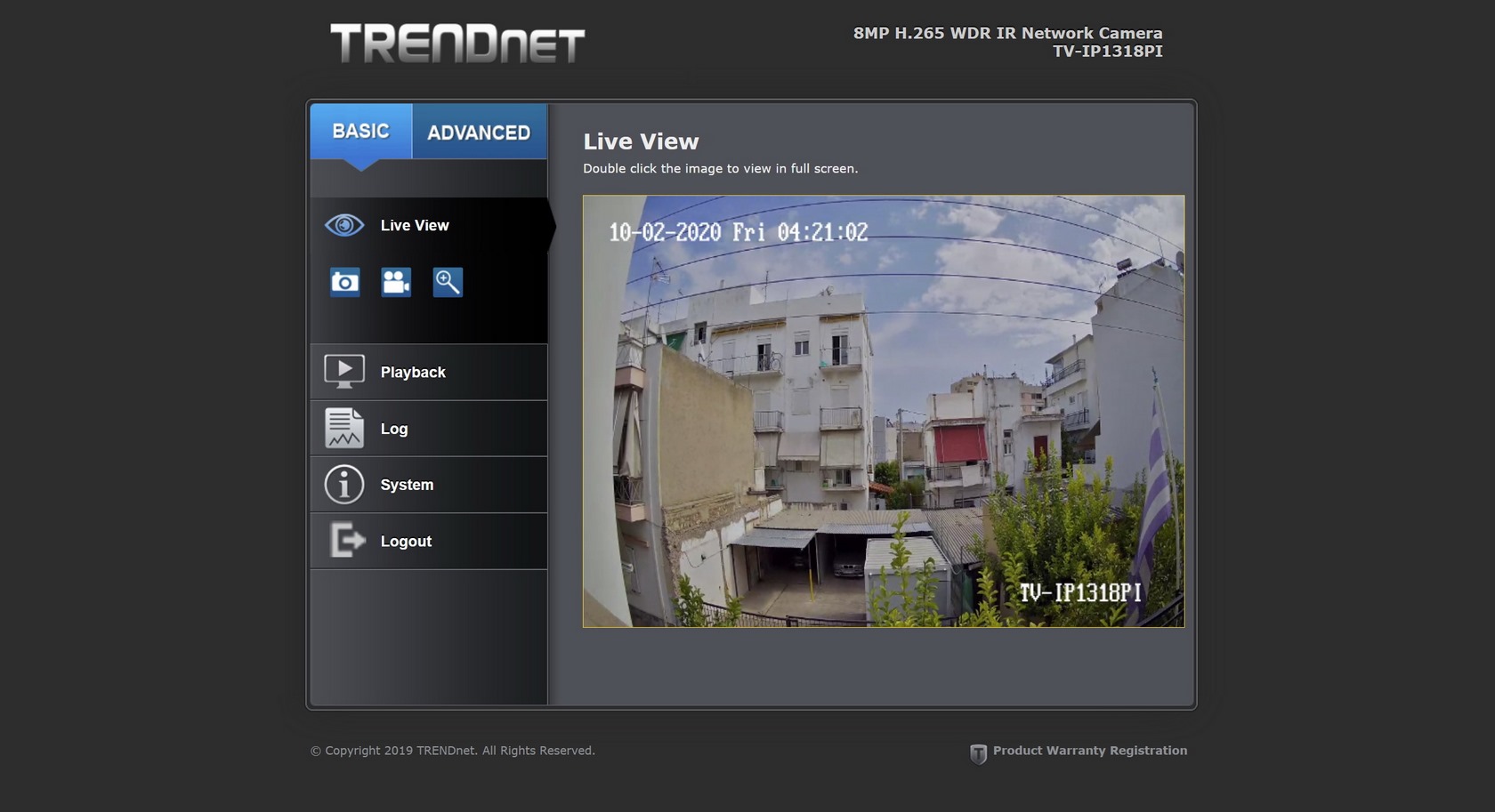

Once again, the gray web GUI has remained the same and so from the basic tab you can see the live camera feed.

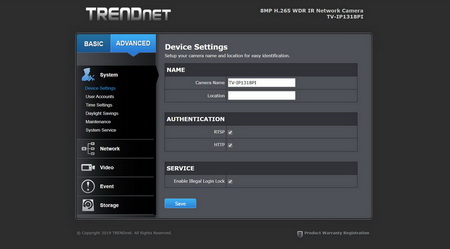

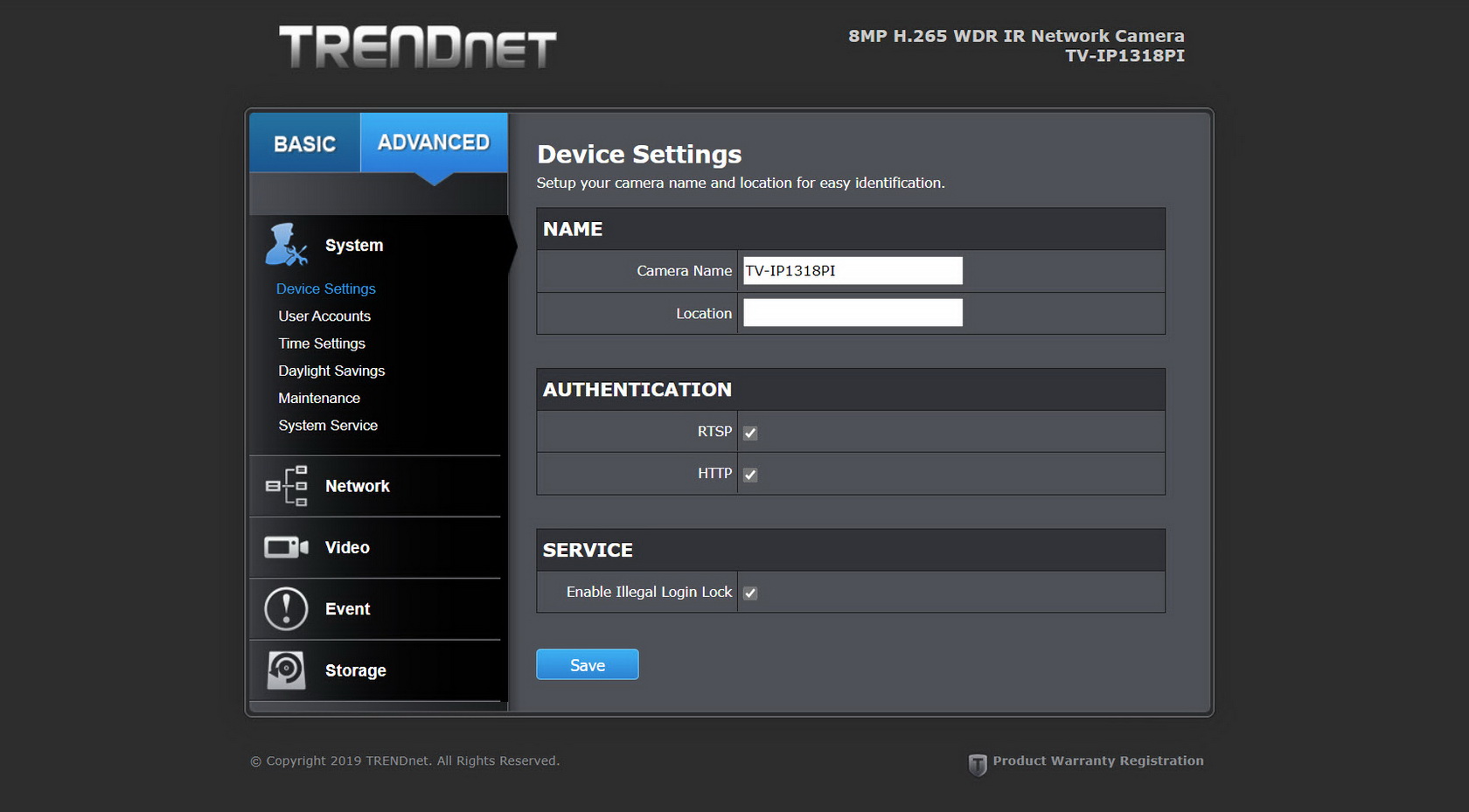

Going to the advanced tab first here is the system menu from where you can change the device name, enter a location, set the time, perform firmware updates, reboot the camera, save/restore settings, enable/disable security features (like RTSP, SSH and login hack) and add/remove users.

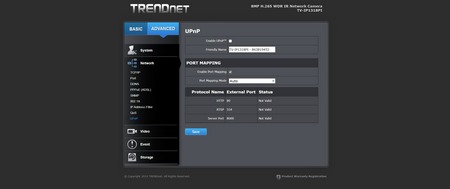

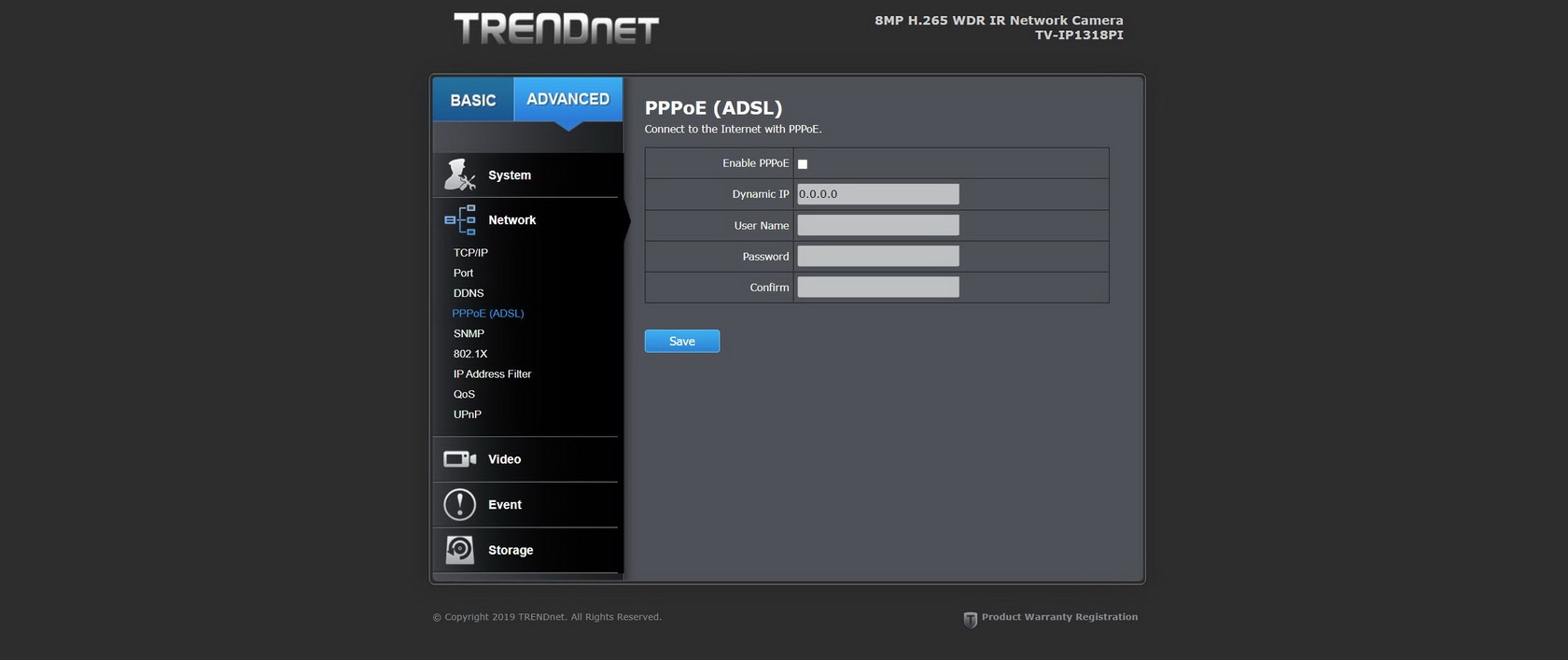

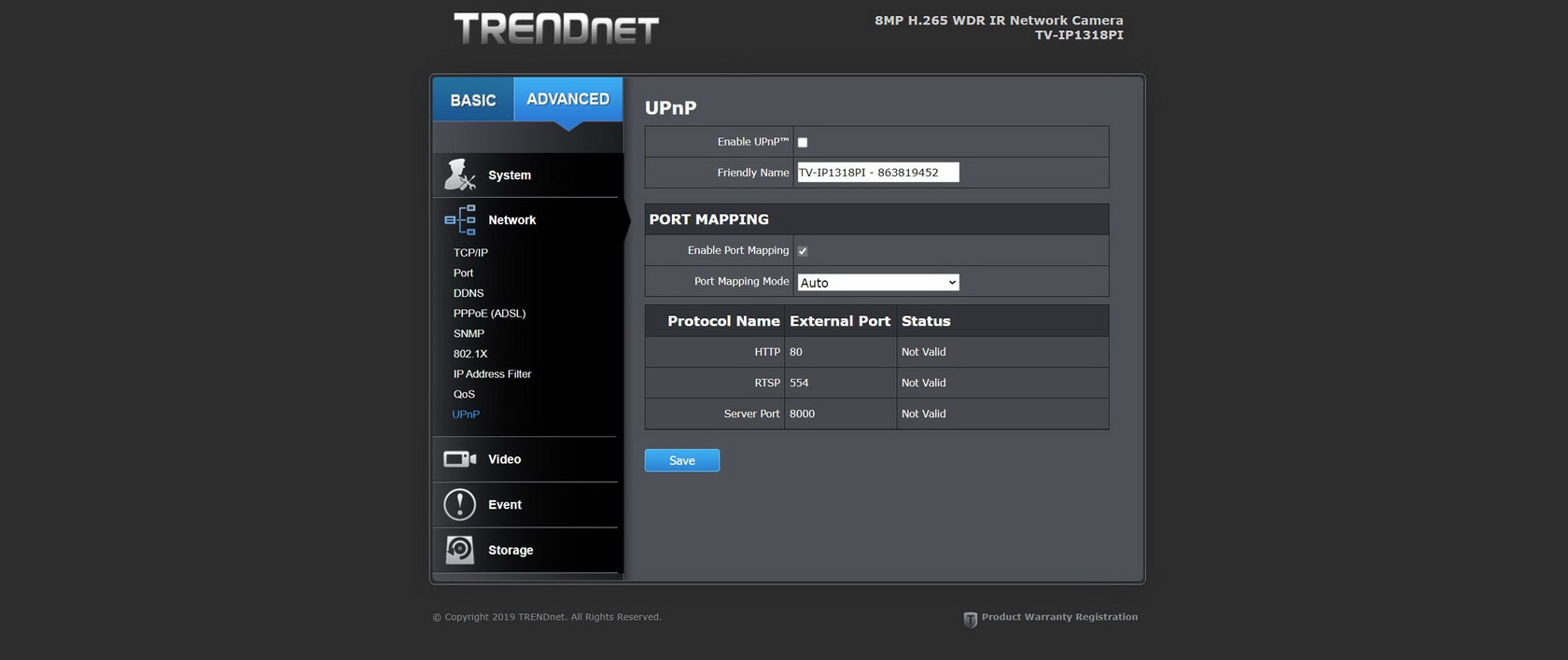

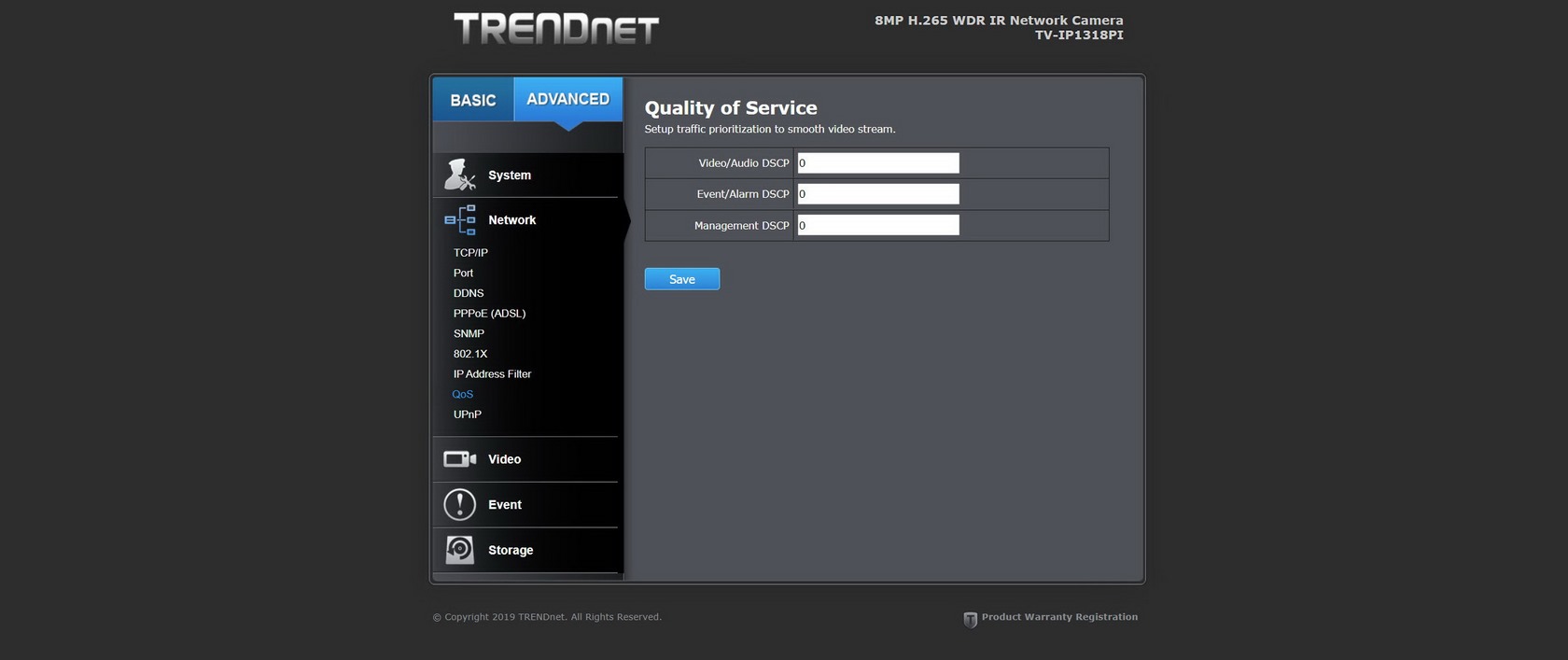

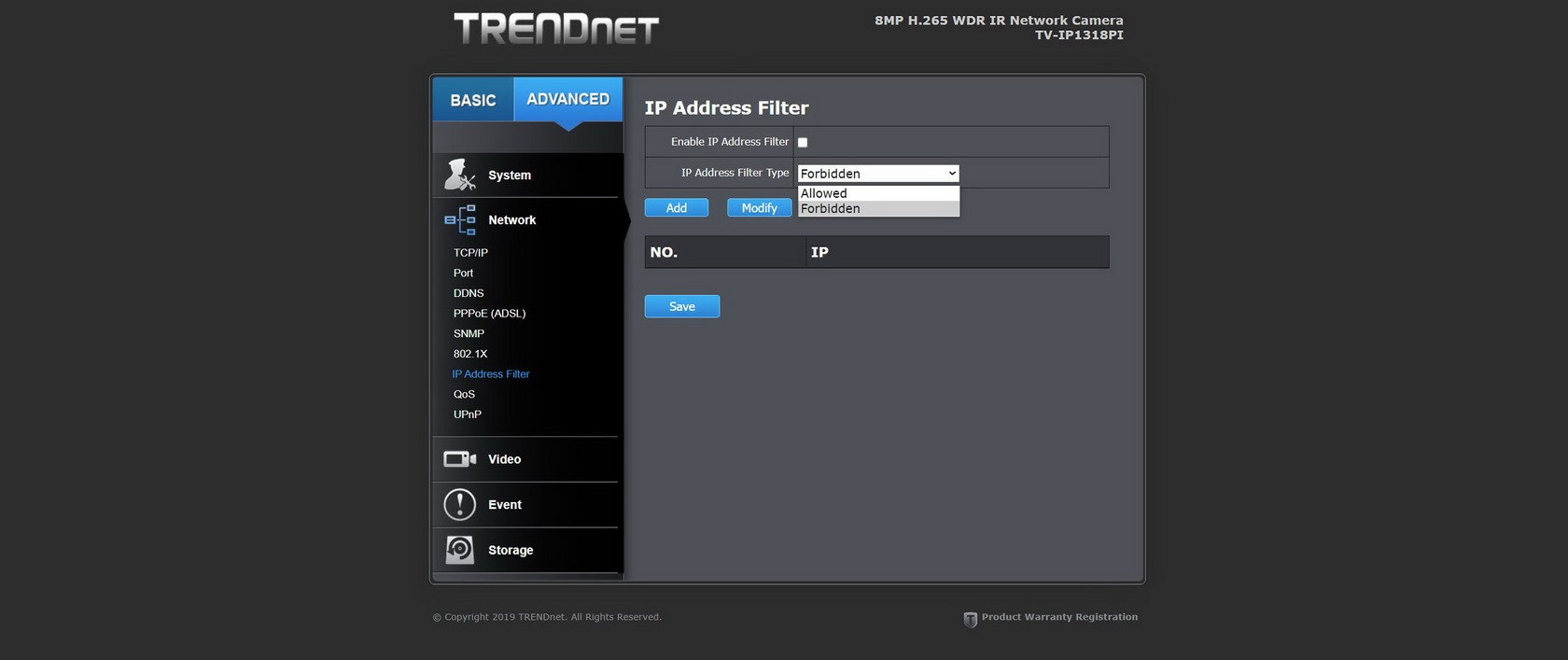

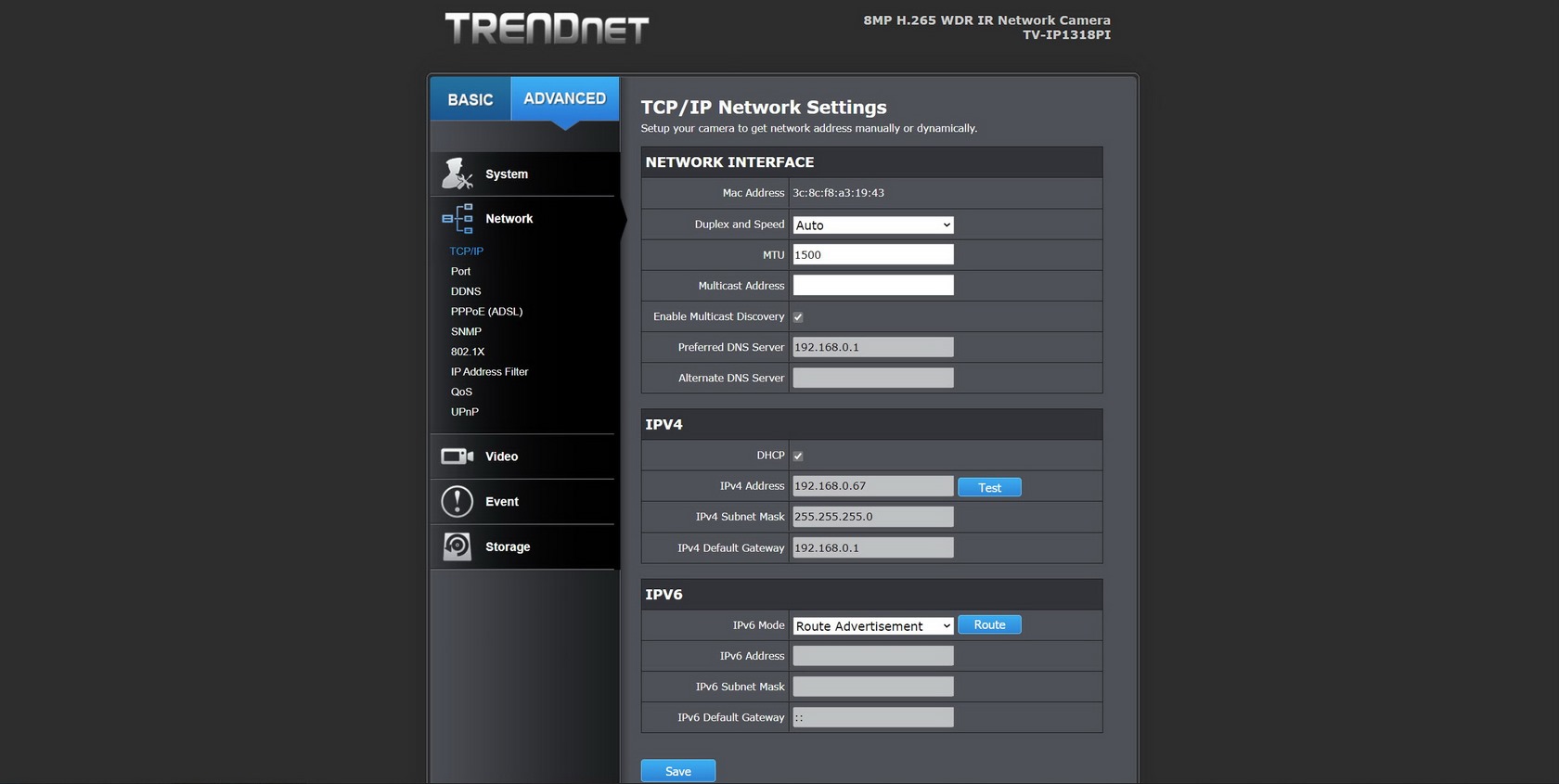

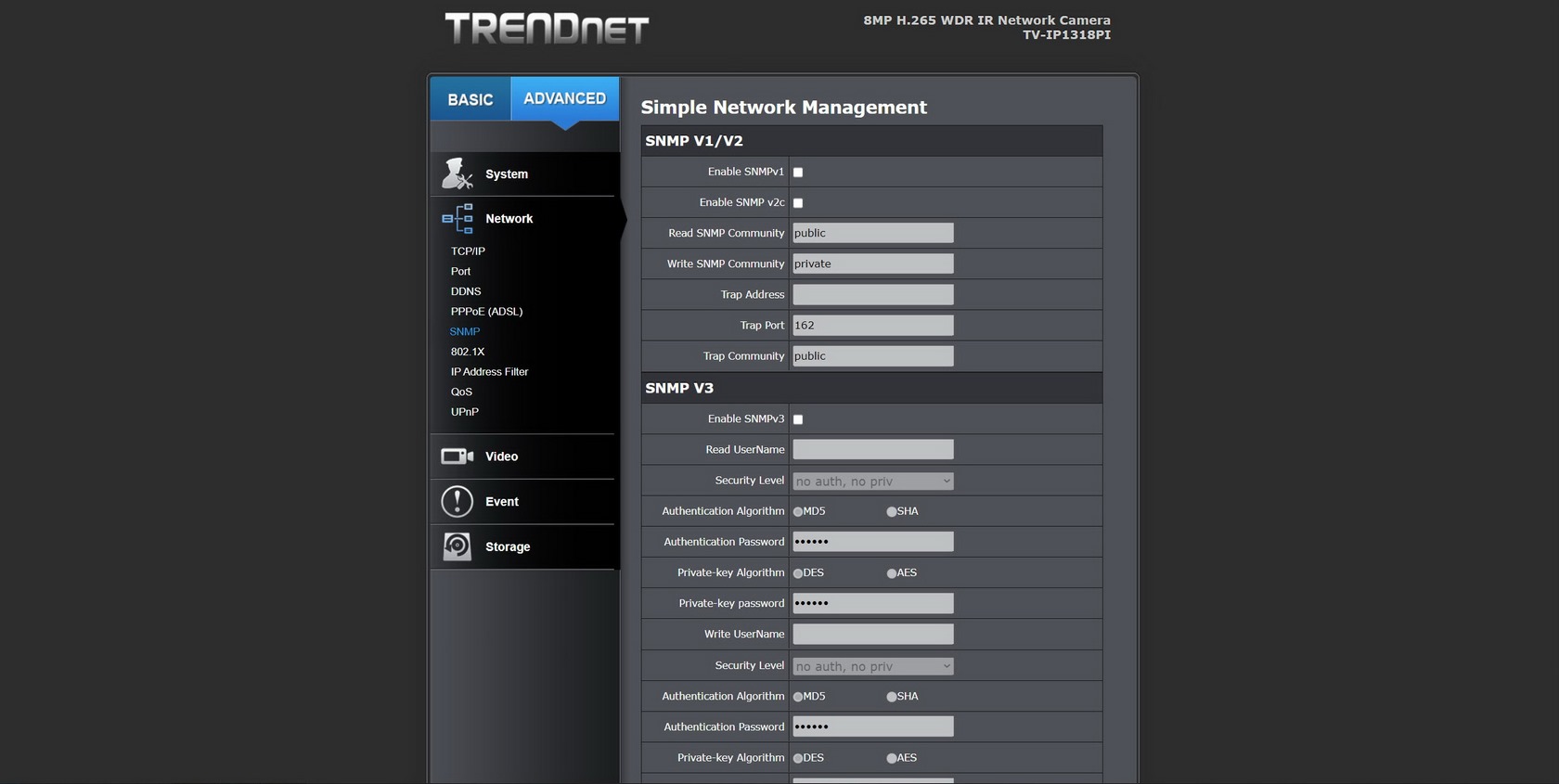

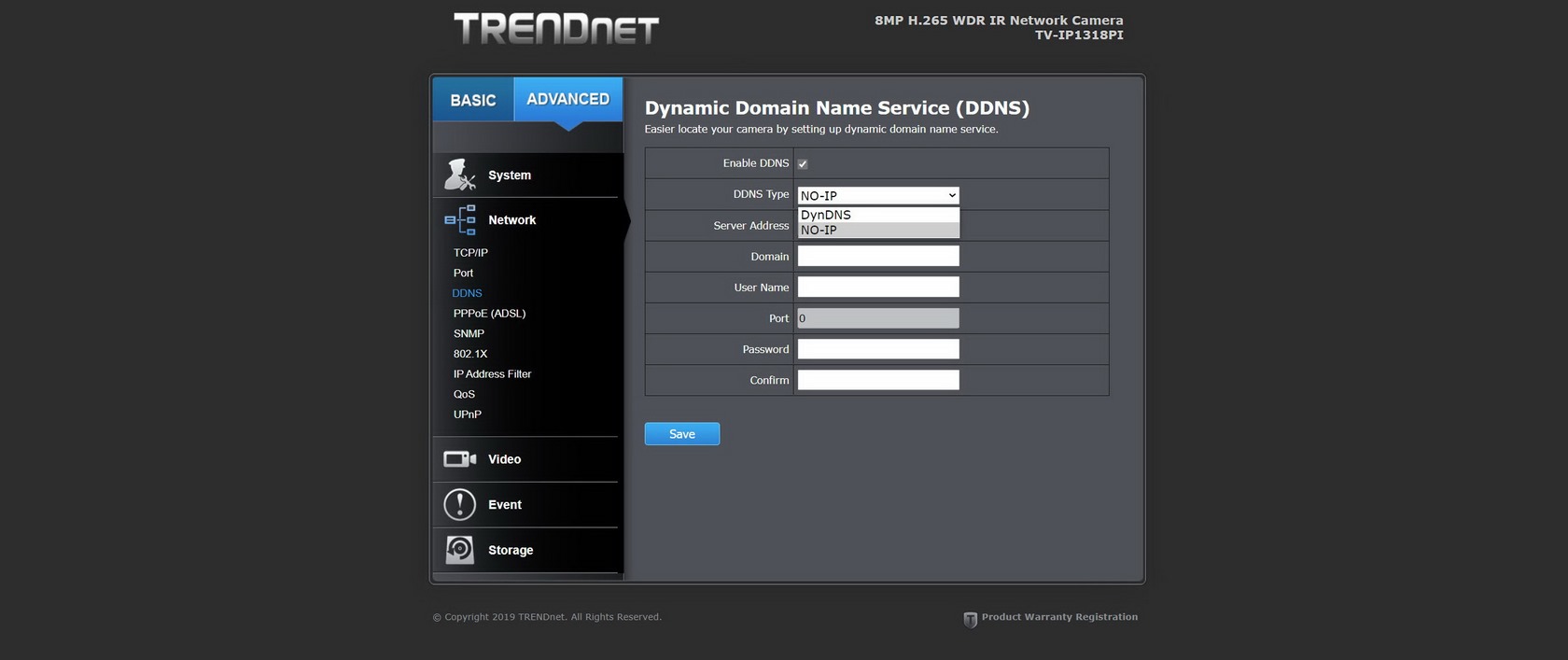

Everything related with the network is placed inside the network menu and so from here you can set the NIC type (10/100M speed), MTU number, IP address, enable IPV6, DNS, DDNS (remote access), enable PPPoE internet connectivity, setup SNMP, enable/disable UPNP, use port mapping, enable/disable HTTPS (secure web access), use QoS (quality of service) and enable/disable IEEE 802.1x authentication.

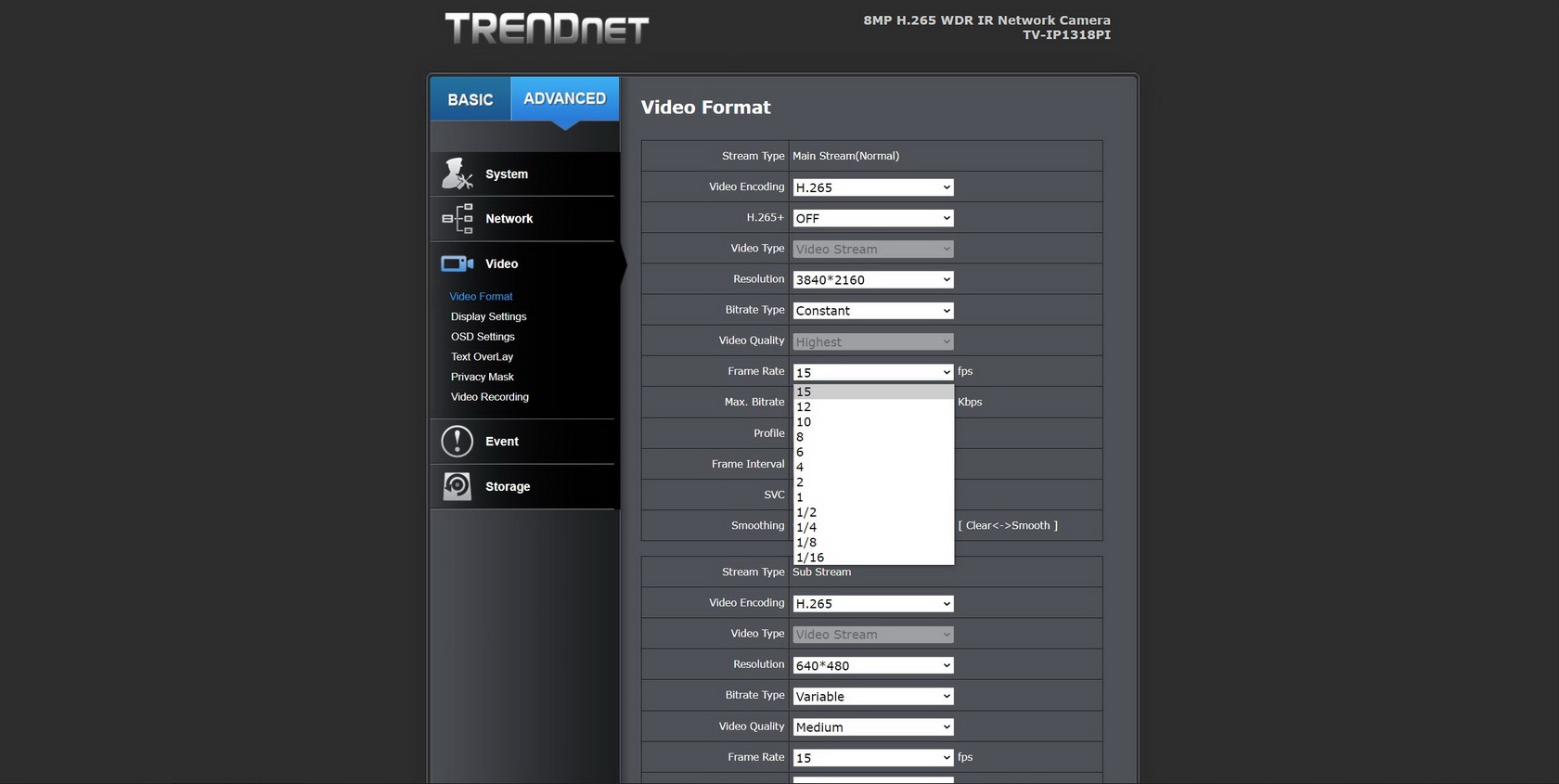

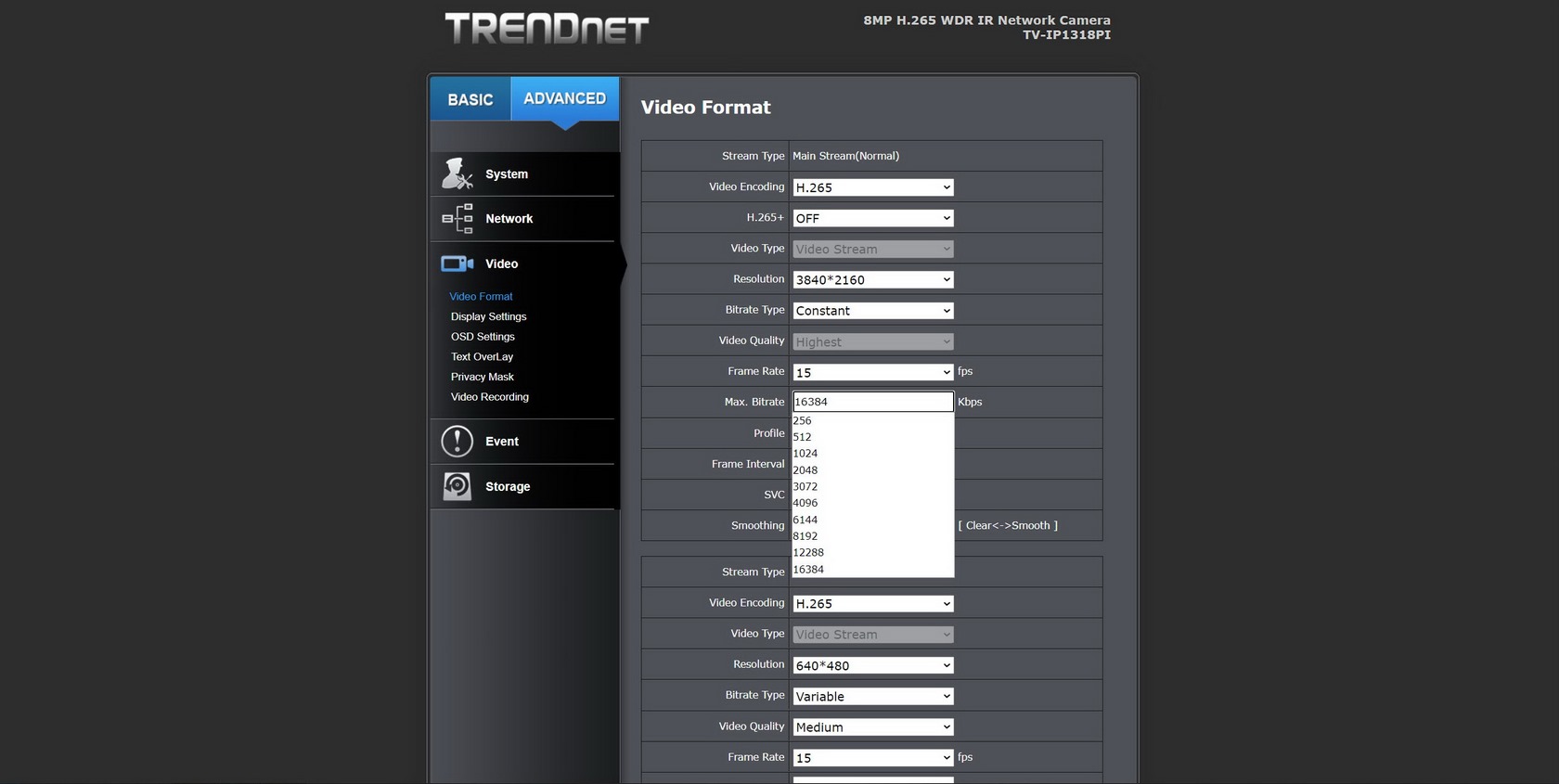

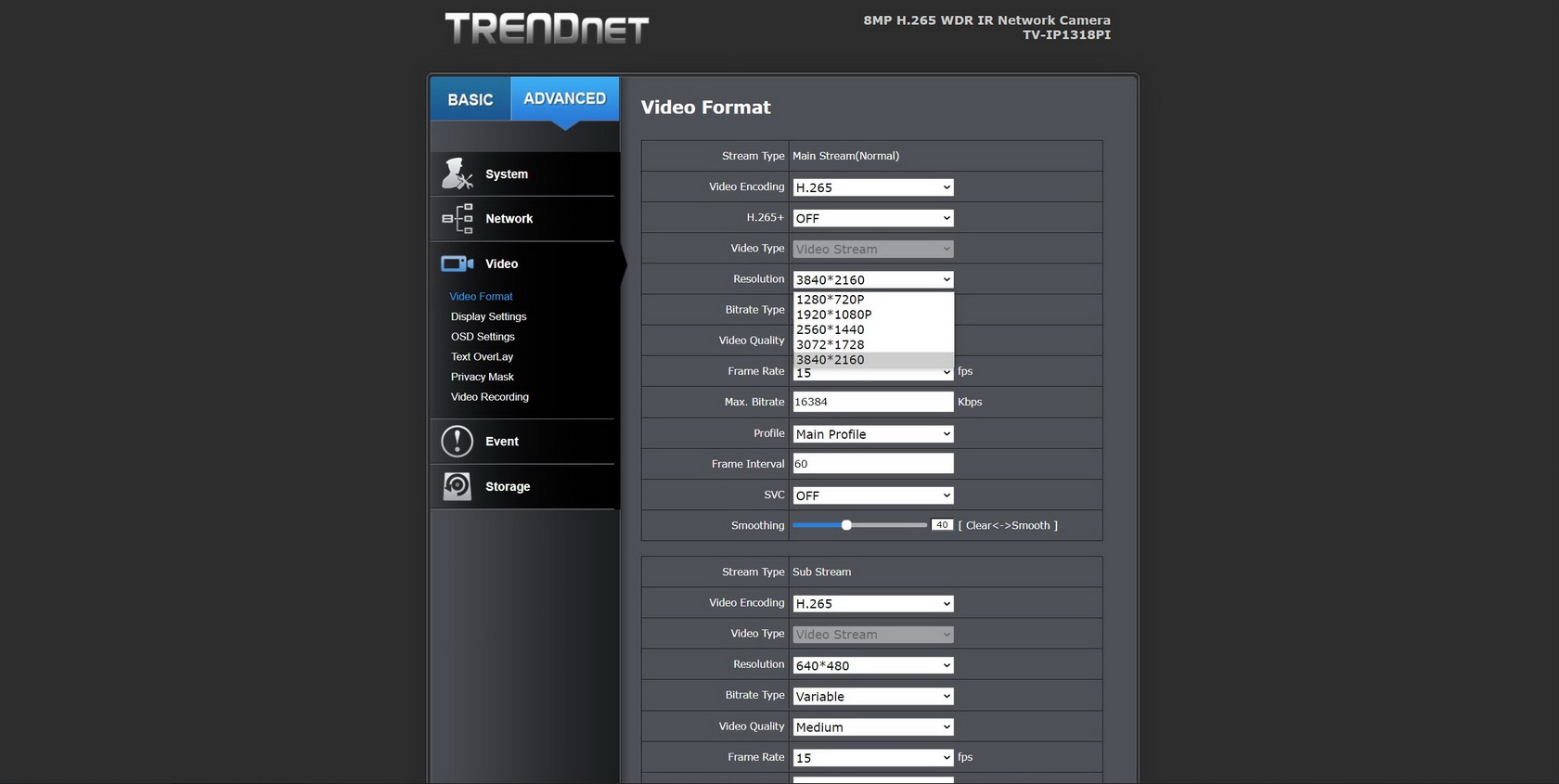

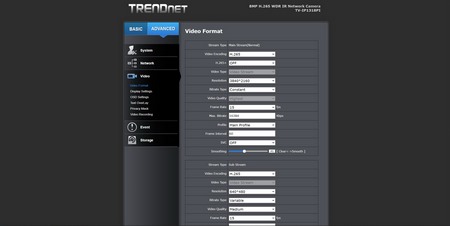

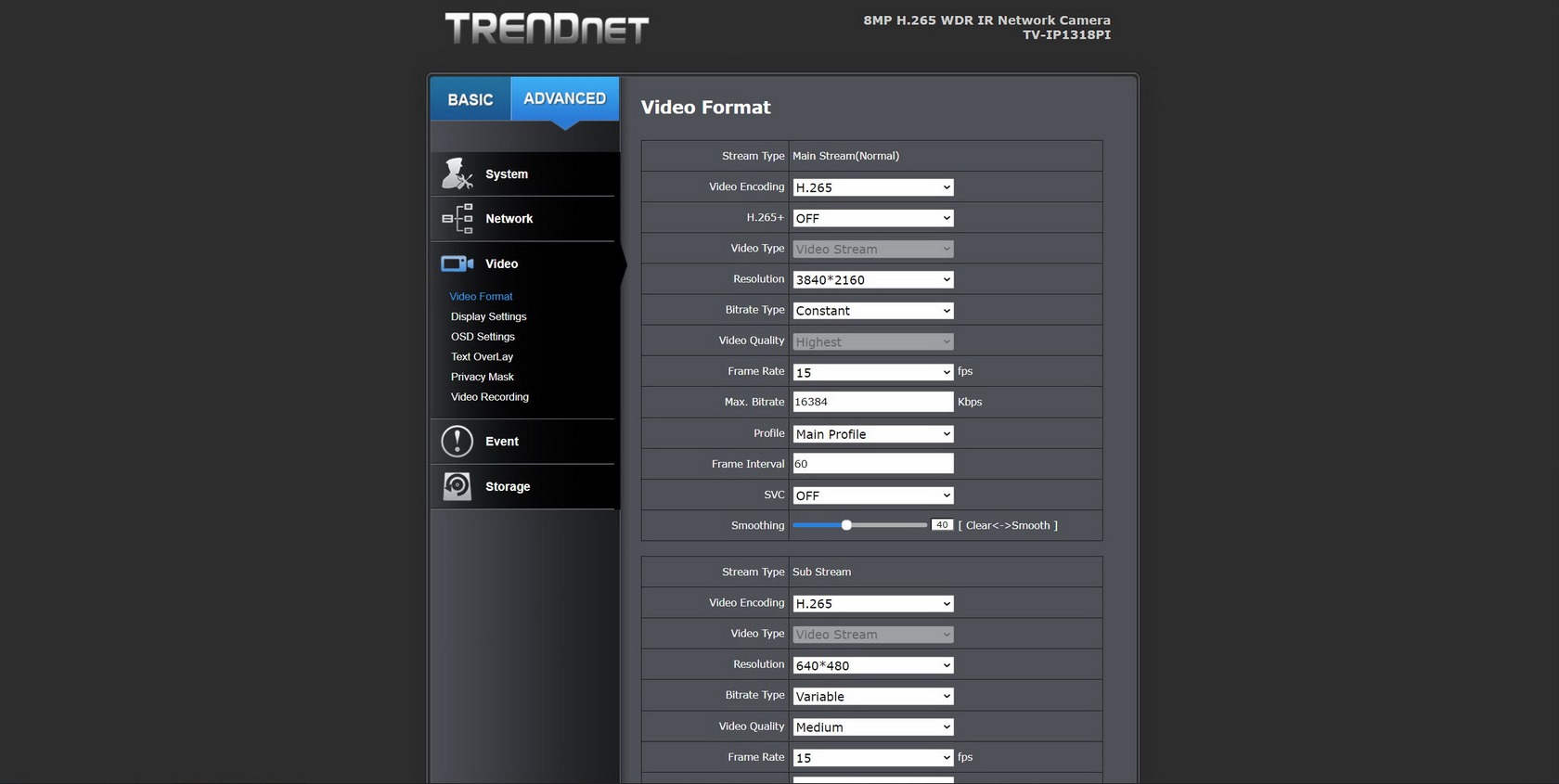

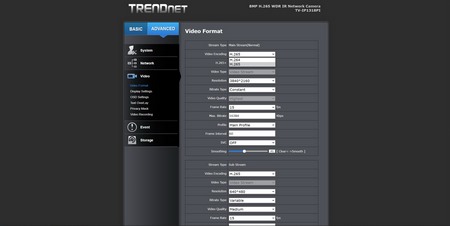

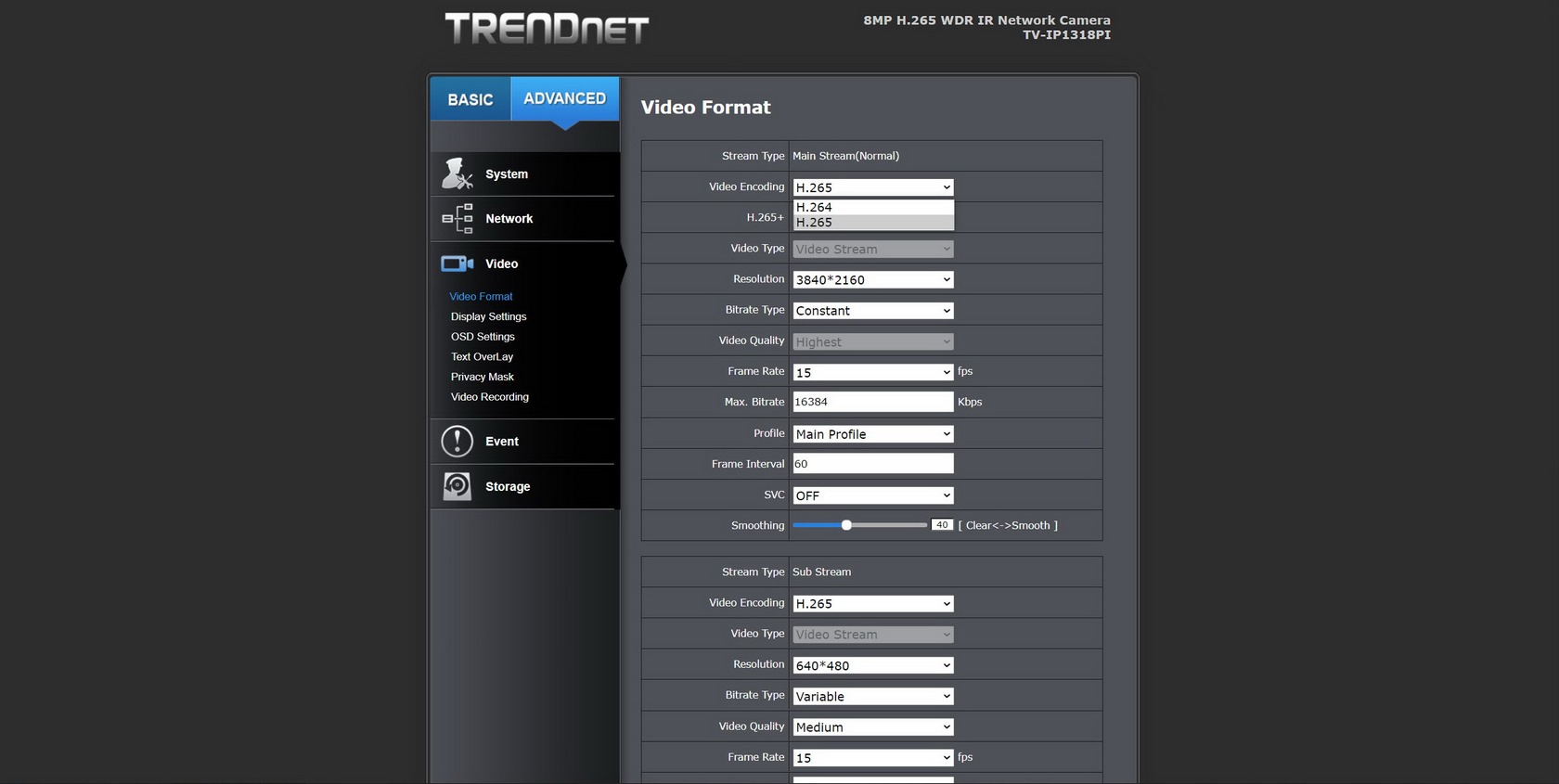

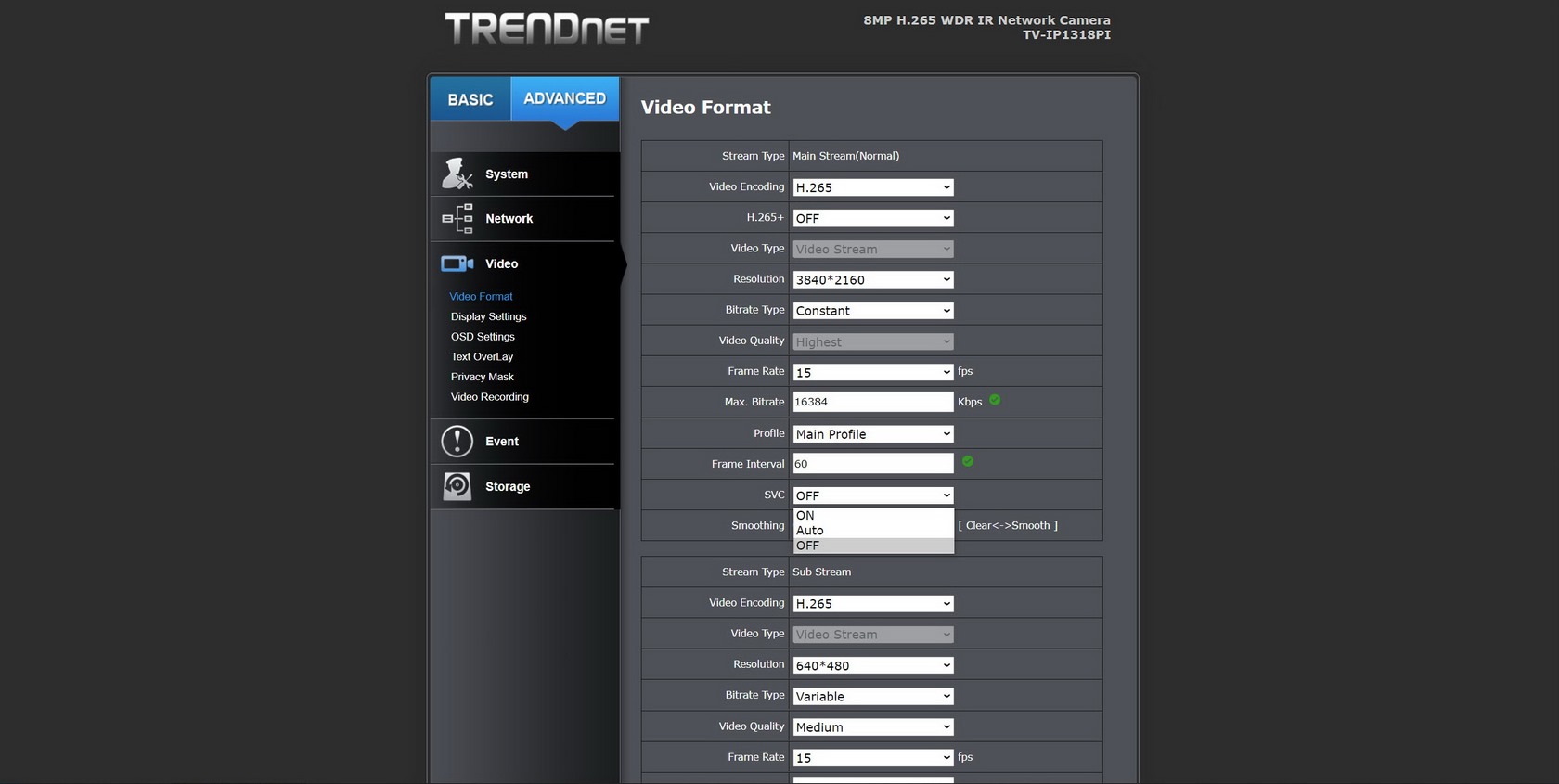

Video quality can be primarily controlled from the Video Format tab so from here you can adjust the following settings for both streams such as encoding compression, resolution, bitrate type, video quality (only for variable bitrate), frame rate, maximum bitrate, I frame interval (the number should be the same as the selected fps) and video smoothing.
