THE EUFYCAM S330













The 420g heavy IP67 certified enclosures are white and black in color and measure 12.9cm in length and 6.5cm in diameter.

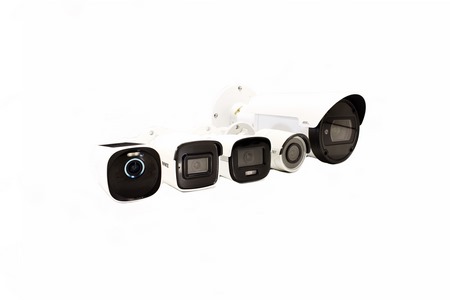

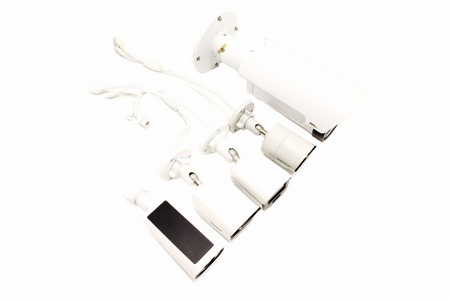

To have a better idea about size i placed an eufyCam 3 camera next to the ANNKE NC400 4MP and I91BL 8MP models, TRENDnet TV-IP1318PI 8MP model and what's clearly the best 4K camera to ever pass from the lab, the AXIS Q1798-LE 8MP model (massive in comparison however).

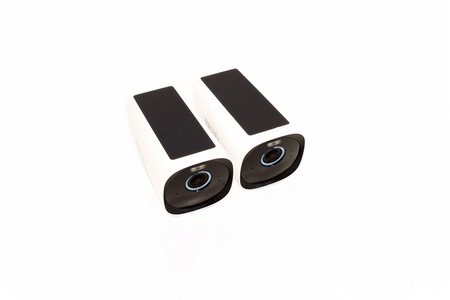

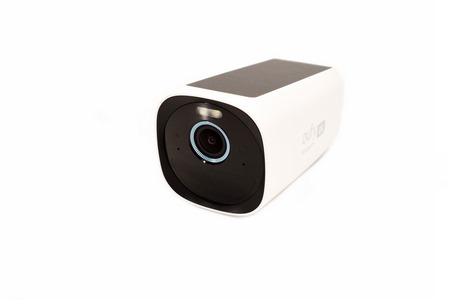

At the front of each camera, we find the 8MP 4k lens, two ports (probably microphone and speaker ones), 6 IR LEDs (3 on each side of the lens) and a motion sensing spotlight at the top.

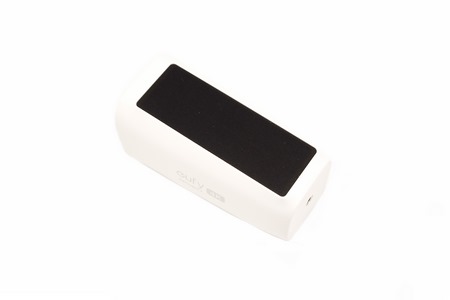

Around 90% of the total top surface is taken by the solar panel which is of good quality and according to eufy it requires just 2 hours of full sun per day to keep the camera running forever.

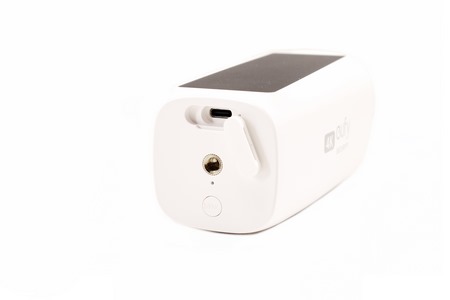

Turning the camera around we find the wall mount port, USB-C charging port and a sync button.

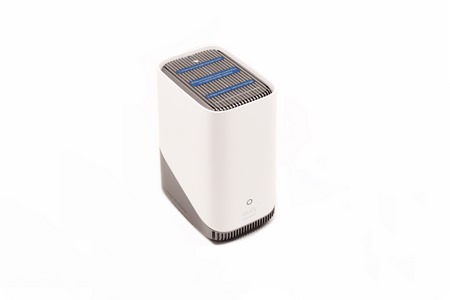

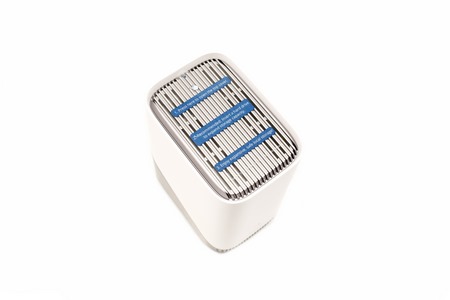

The 656g heavy HomeBase 3 station measures 14.4cm in height, 10.9cm in depth and 7.8cm in width and is white and grey in color.

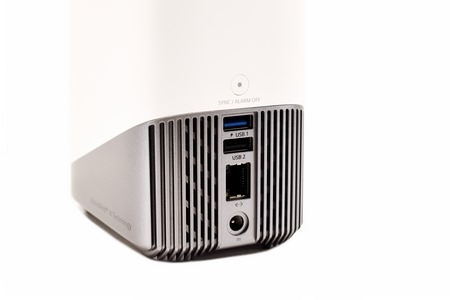

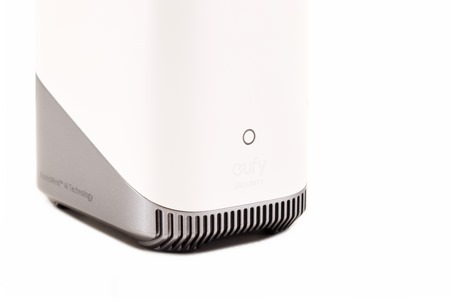

A round activity LED is placed at the lower front of the HomeBase 3 and as for the rear here we find the sync/alarm off button, two USB ports, RJ45 LAN port and the DC in.

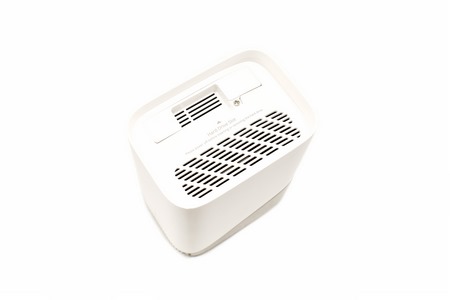

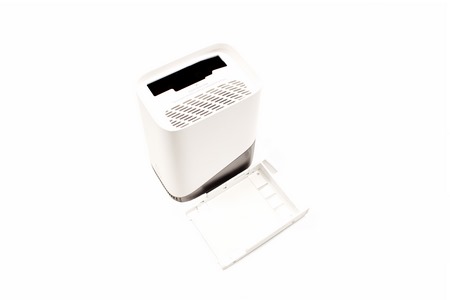

The top of the HomeBase 3 station opens up to reveal the 2.5" HDD tray.





Unfortunately, my sample didn't come with the 1TB HDD in it so eufy had to shipped it separately later on.





The drive ended up being a Seagate Barracuda SATA III drive with a rotational speed of 5400RPM and 128MB of cache.
