THE K2 PRO COMBO

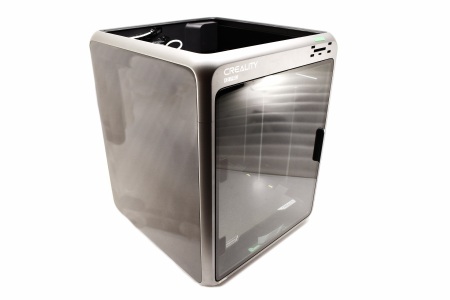

The K2 Pro is a medium to large size FDM printer that weighs 23.7Kg and measures 850mm in height, 445mm in width and 505mm in length/depth.

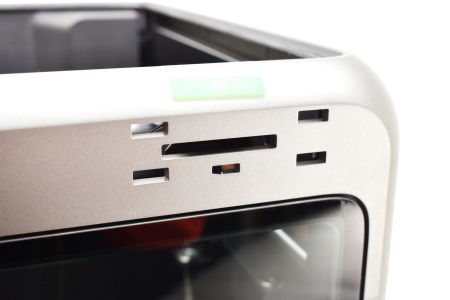

Creality has placed the LCD touchscreen mount on the front top right.

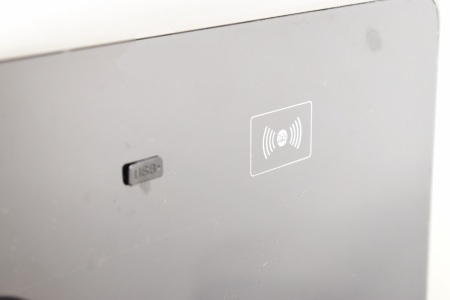

A USB-A port and the RFID scanner are located on the right side as seen above.

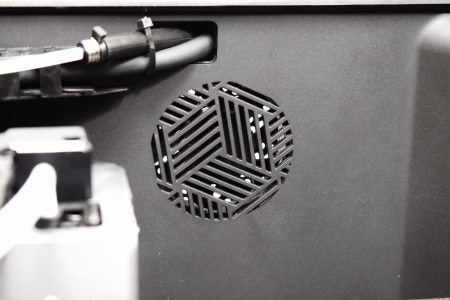

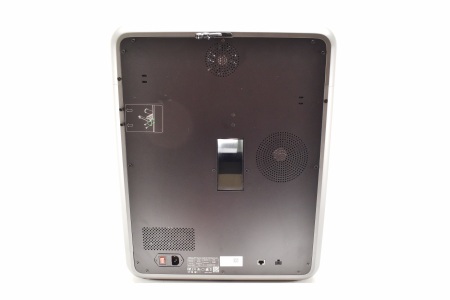

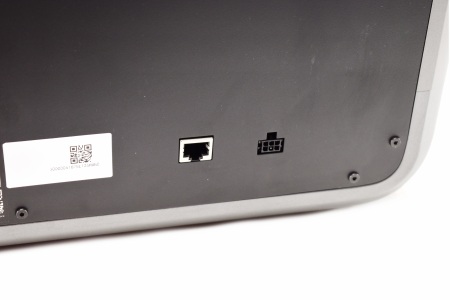

At the rear we find three perforated areas (exhausts), filament waste outlet, on/off switch, power port, RJ45 LAN port and a 485 port.

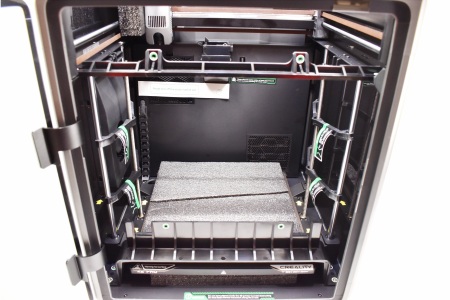

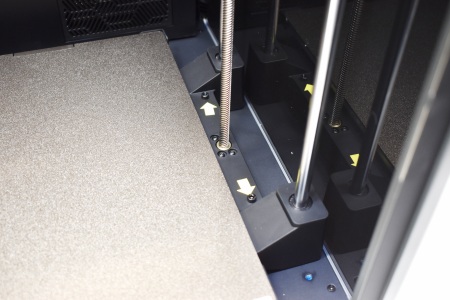

After you have removed the CFS from the interior of the K2 Pro you will also need to remove the two plastic pieces holding it in place and 6 more (you will need one of the bundled Allen keys for some of them).

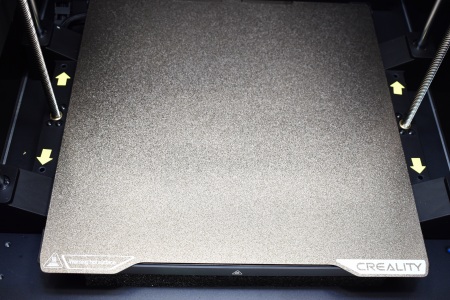

I was glad to see that Creality has used a flexible PEI plate (much like the one used in the Hi-Combo).

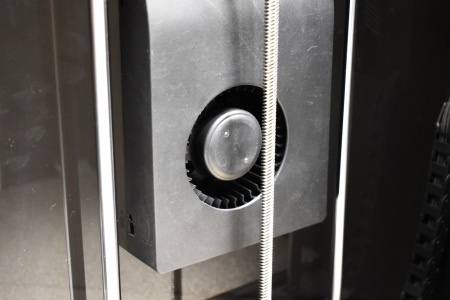

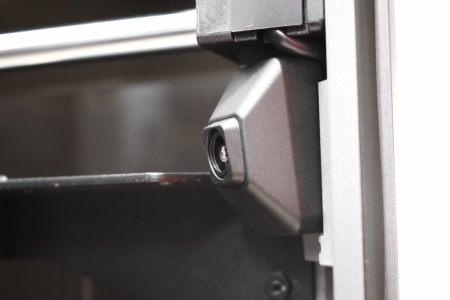

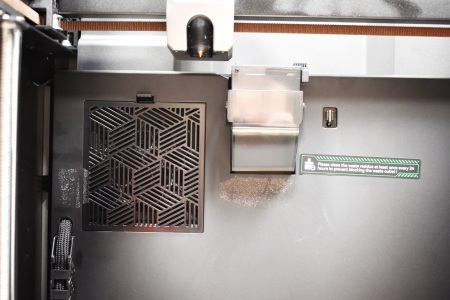

Inside the K2 Pro we also find a heater, blower fan (cooling), air-purifier compartment, residue cleaner and a HD (720p) camera.

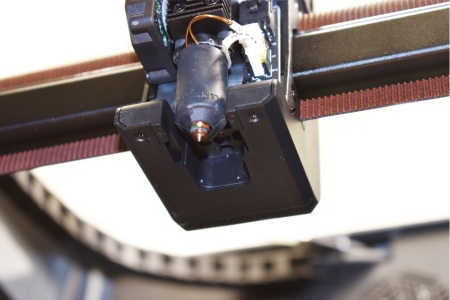

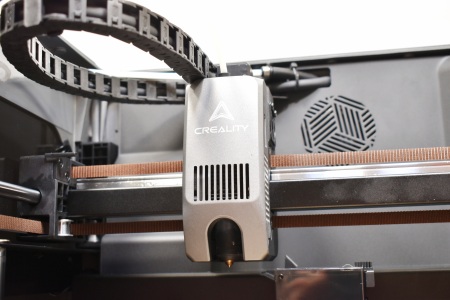

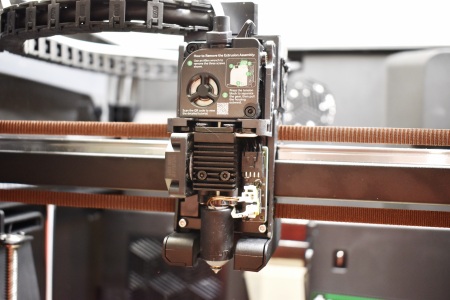

The direct drive extruder Creality has used features a built-in run out sensor and is very easy to take apart.

 According to Creality there’s also an AI camera right behind the extruder which ensures your prints complete properly.

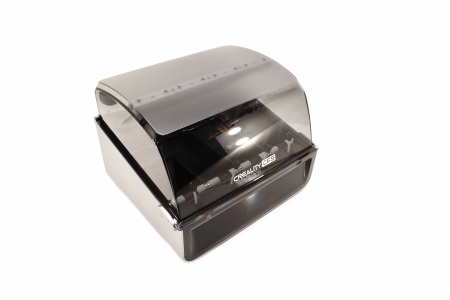

This is the 2^nd time I’ve received Creality’s CFS so once again it’s primarily made of plastic and measures 314mm in width, 276mm in height and 314mm in length/width.

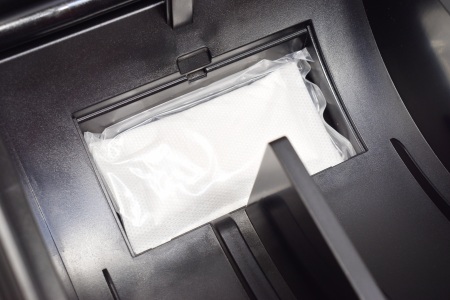

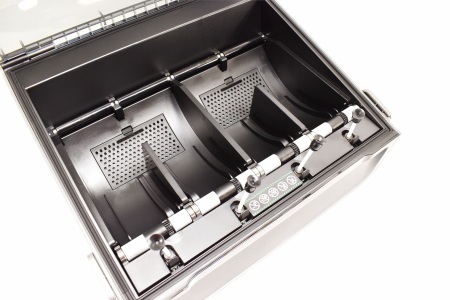

Inside we find 4 filament spots and two large silica gel packs placed in separate compartments.

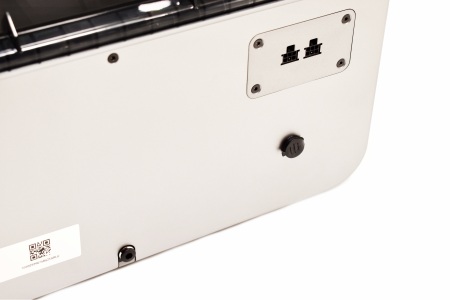

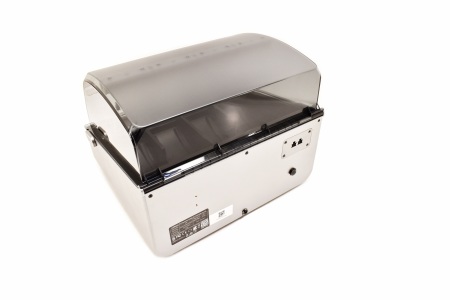

Turning the CFS around we find two PTFE ports and two 485 ports.
