THE VIEW 37 RGB EXTERIOR

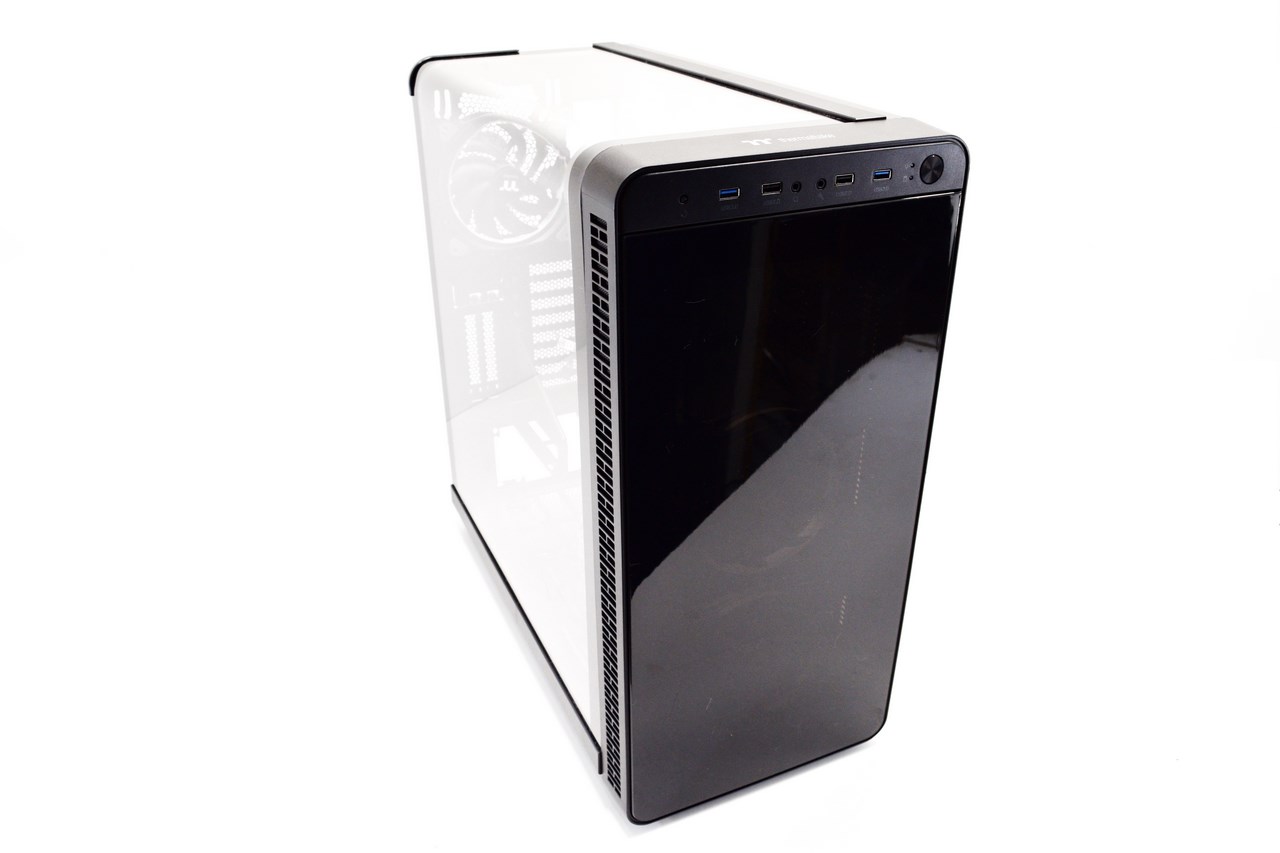

Measuring 525mm in height, 538mm in depth and 261mm in width the View 37 RGB is certainly not your average mid-tower.

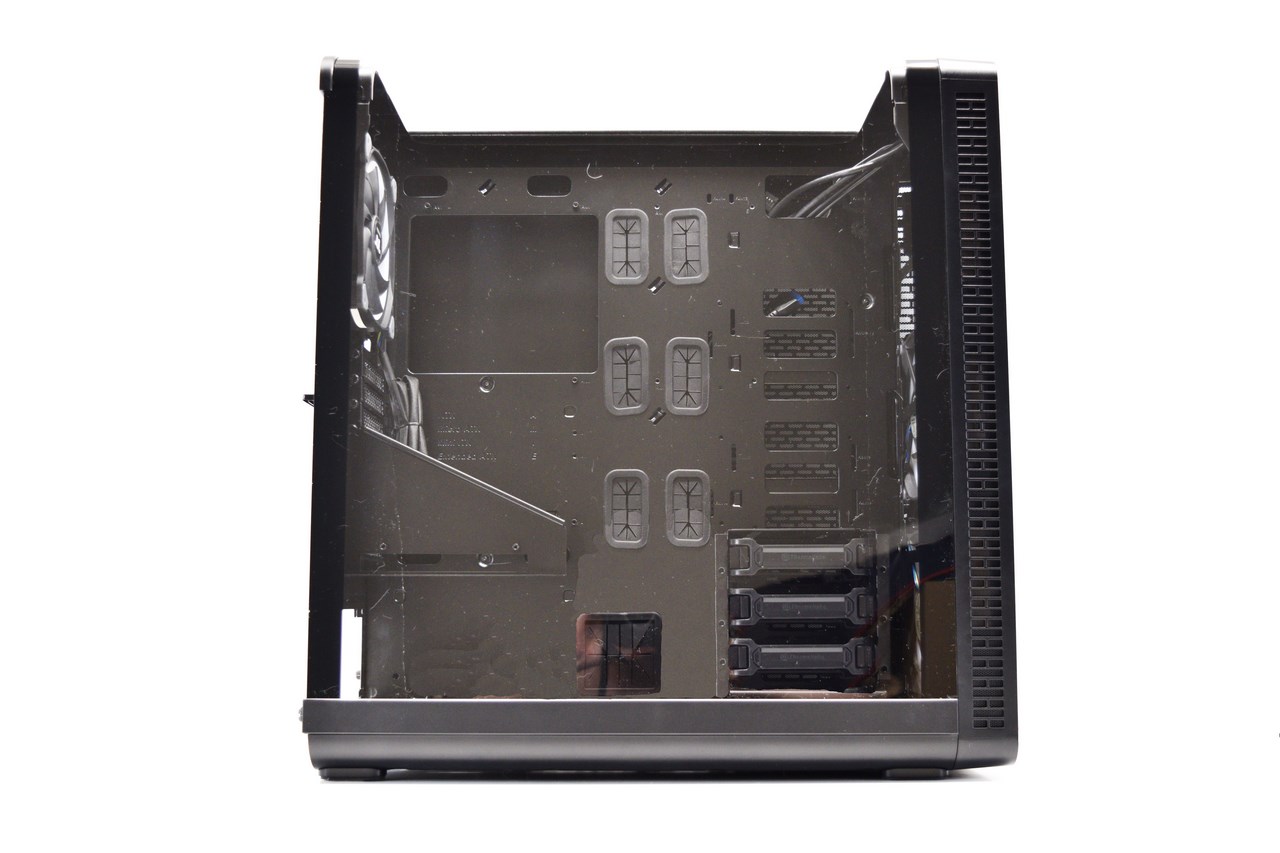

The gull-wing clear left side panel looks great even though it's not made out of tempered glass.

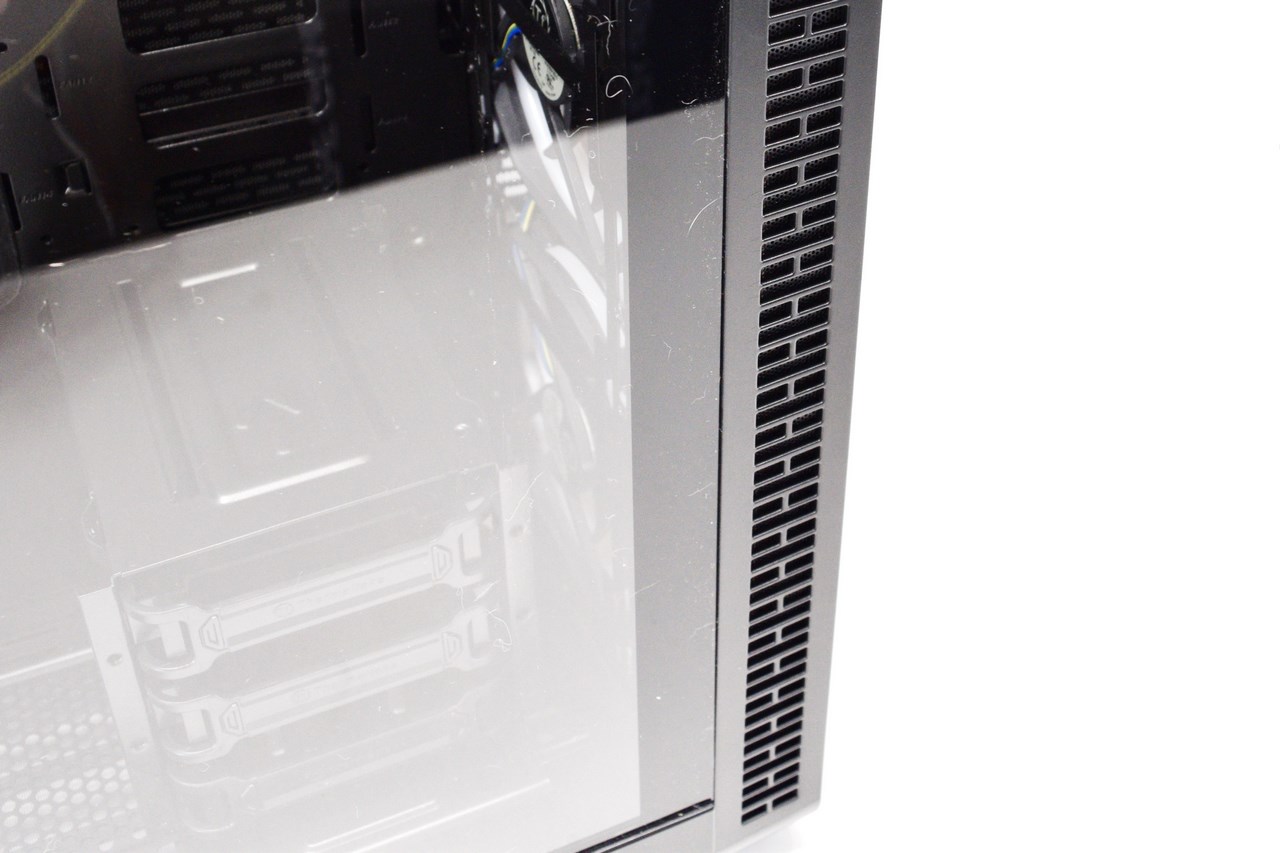

Both sides of the fascia are perforated to allow air to enter the interior (built-in filters keep dust out).

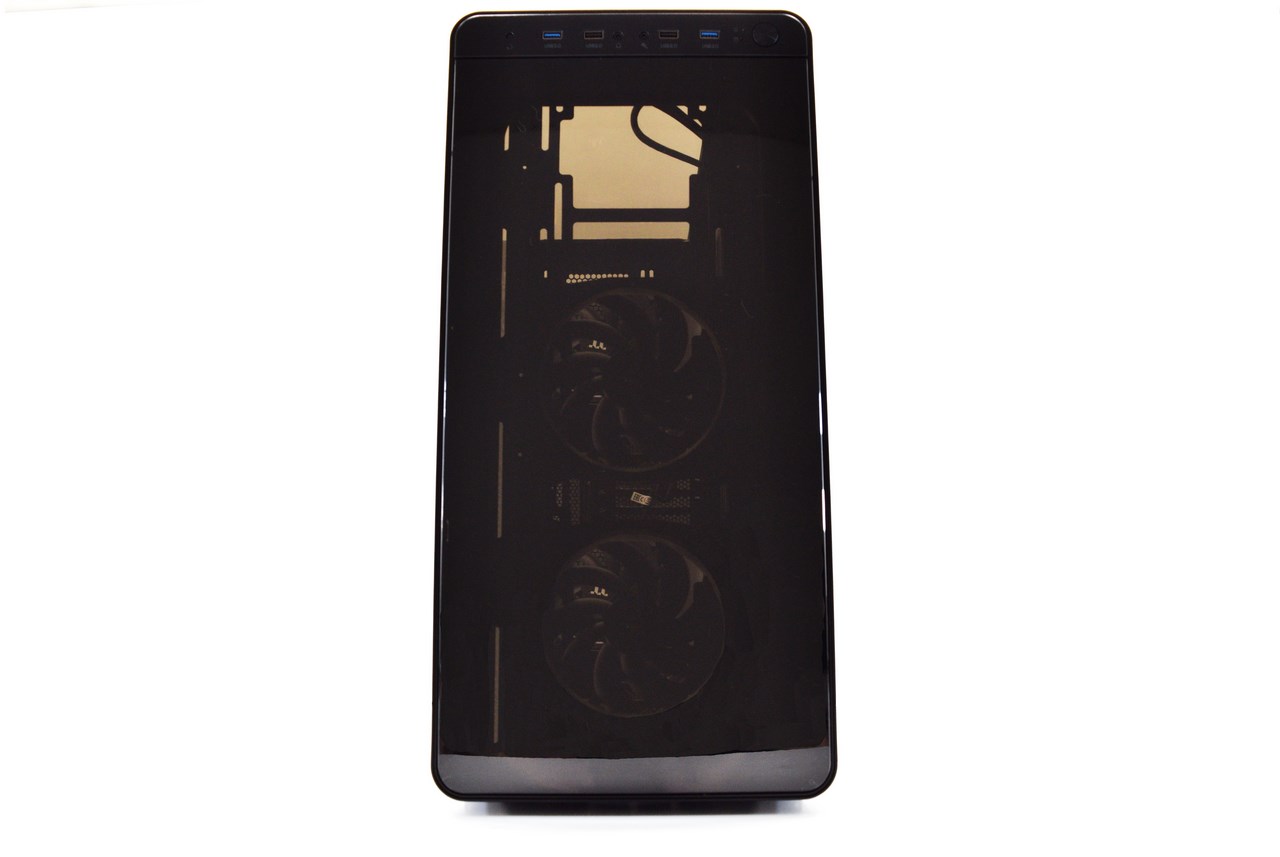

The front of the fascia is made out of smoked plexi allowing you to see the two Riing RGB Plus 140mm intake fans.

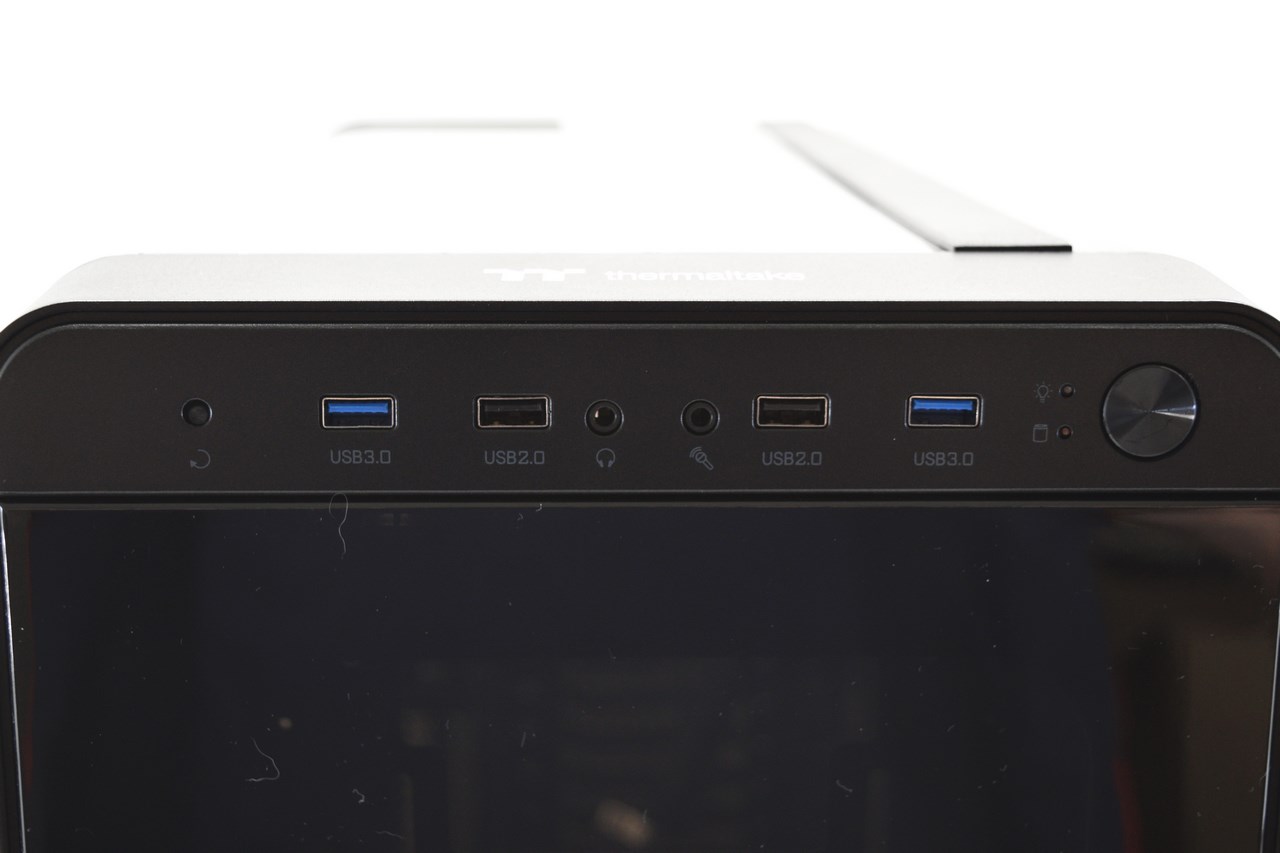

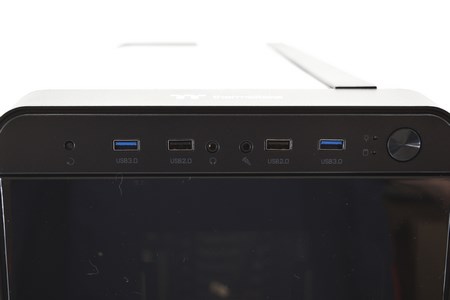

Moving at the top of the fascia we find the I/O which includes the reset button, two USB 3.0 ports, two USB 2.0 ports, headphones and microphone 3.5mm ports, power and HDD activity LEDs and the power on/off button.

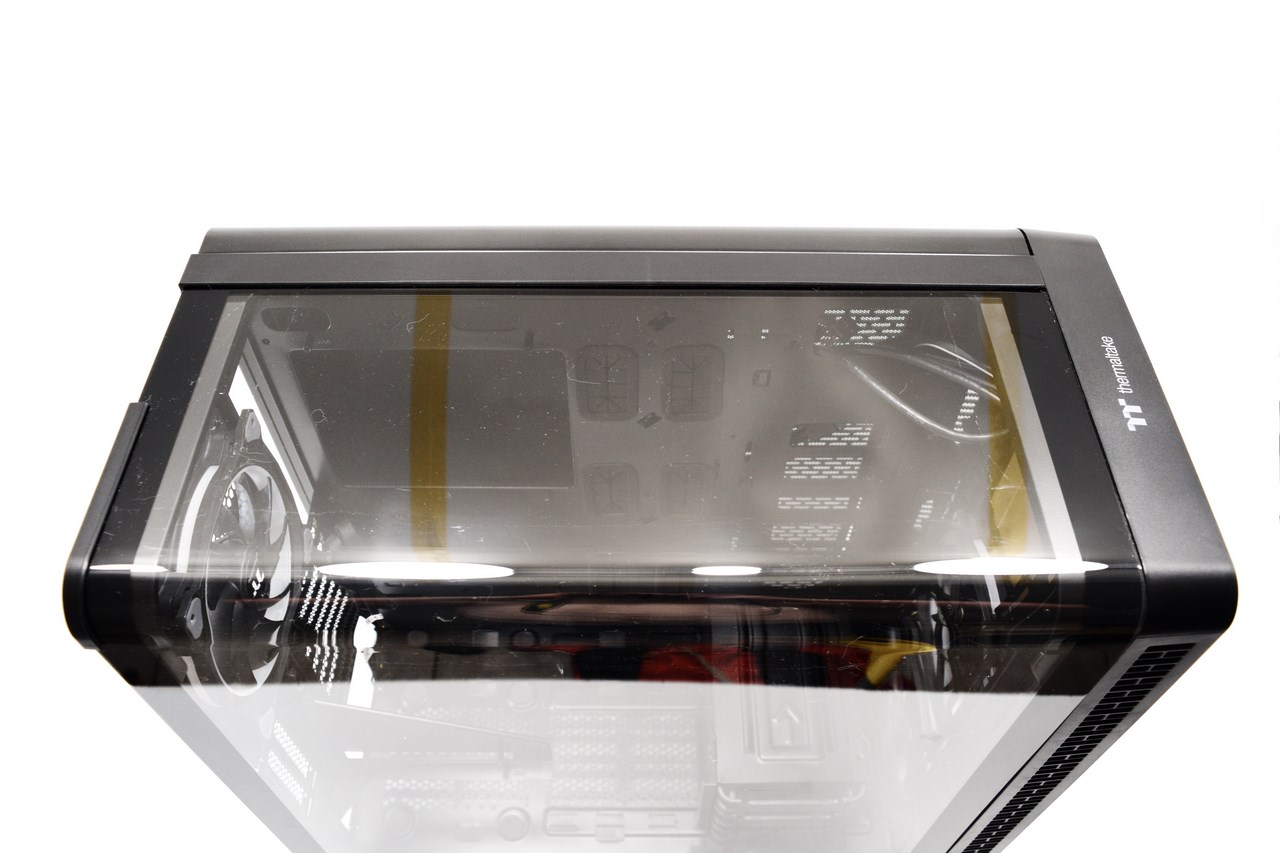

Using a gull-wing clear plexi may offer a panoramic view of the interior but it also means there's no top area for fans and/or a radiator (of course Thermaltake made up for that - at least partially - by having a right side mount for fans/radiator).

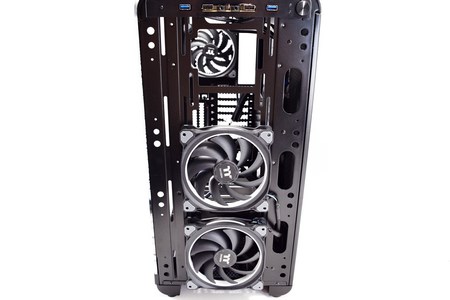

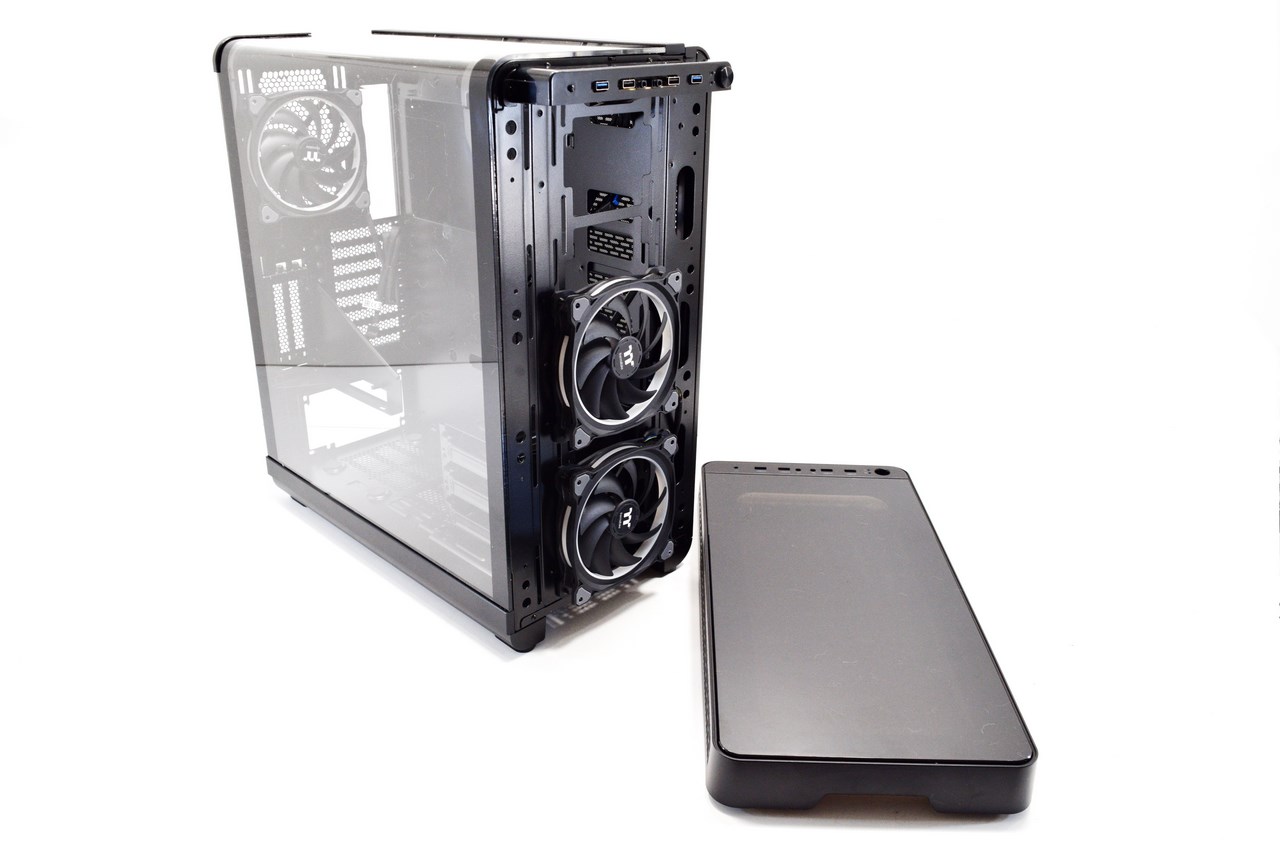

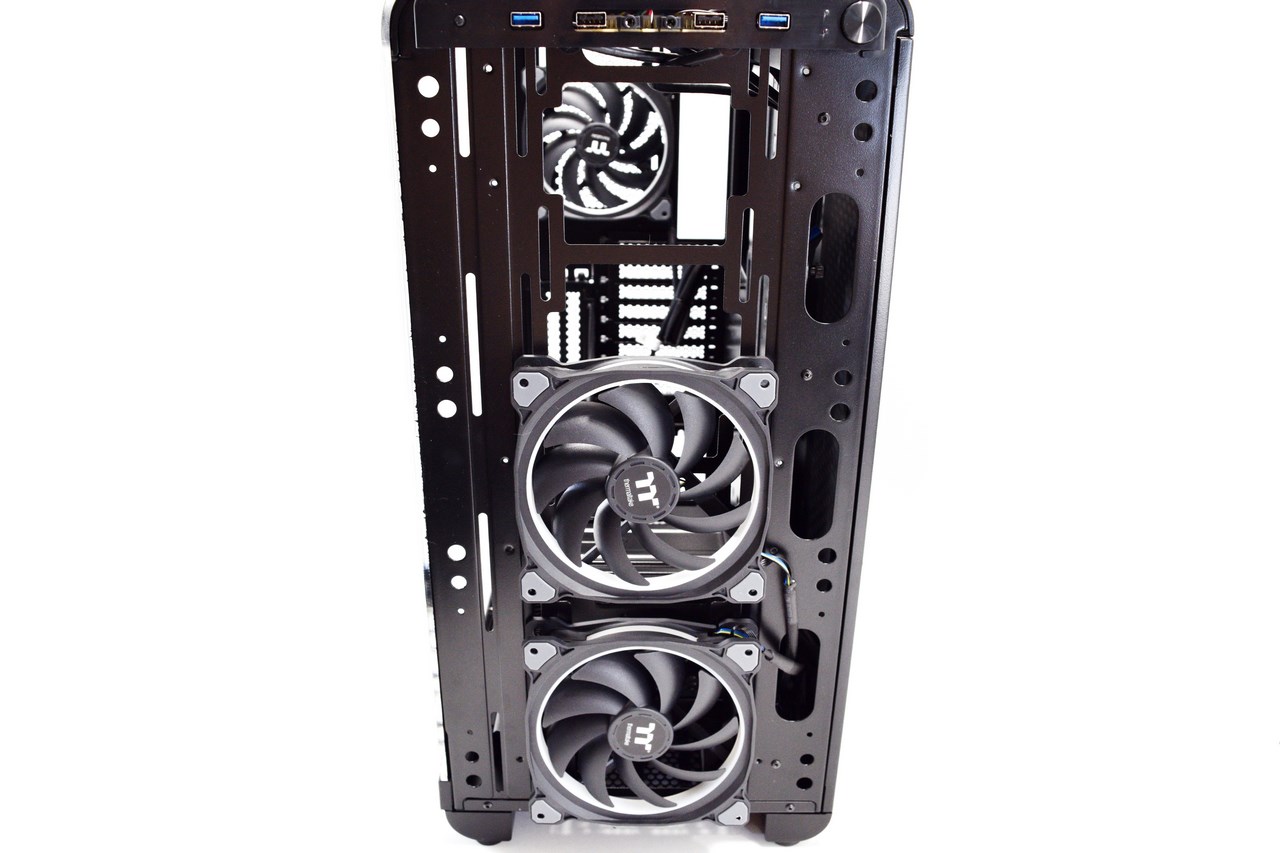

Removing the fascia is very easy (just pull from beneath) and here aside the two pre-installed Riing RGB Plus 14 fans we see enough space for yet another 120/140mm fan or 2x200mm fans (there's also enough room for 420/360/280/240mm radiators).

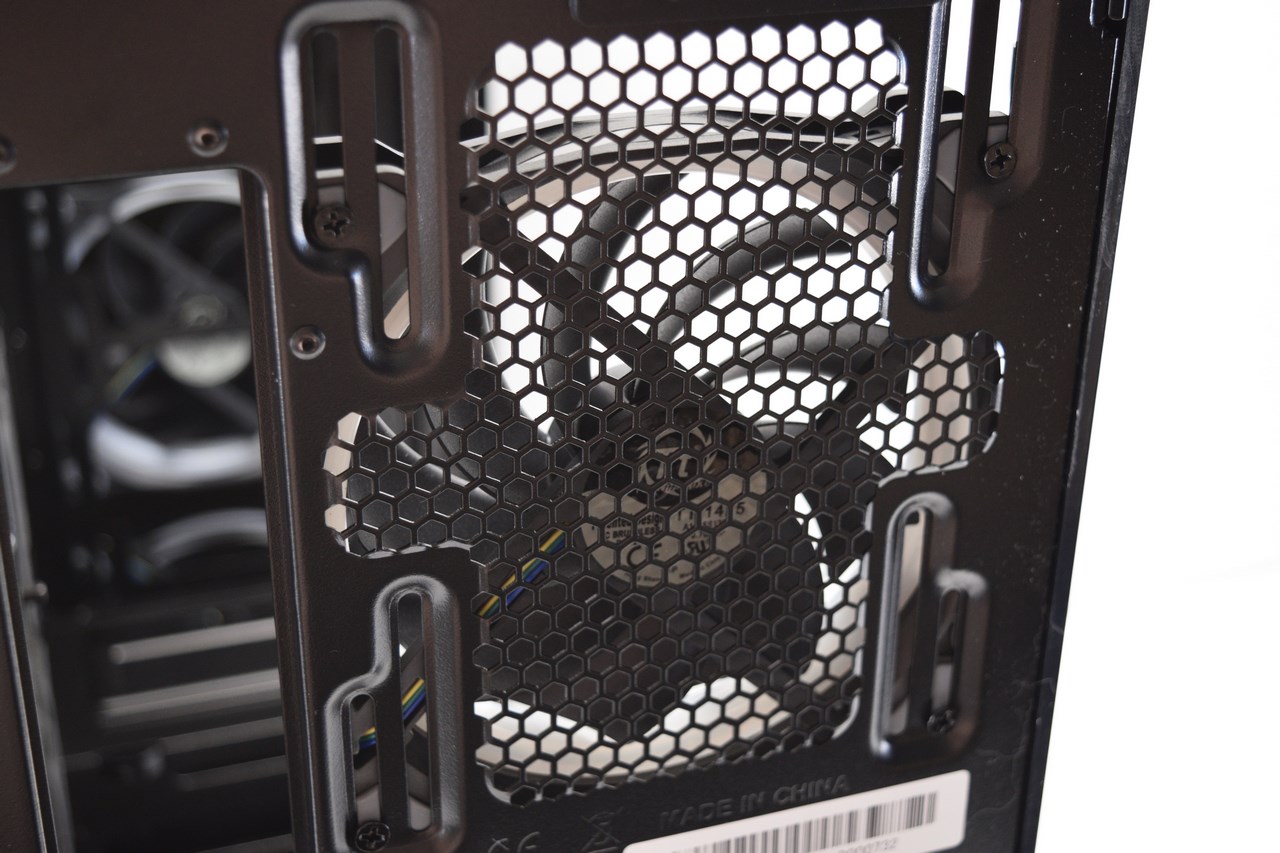

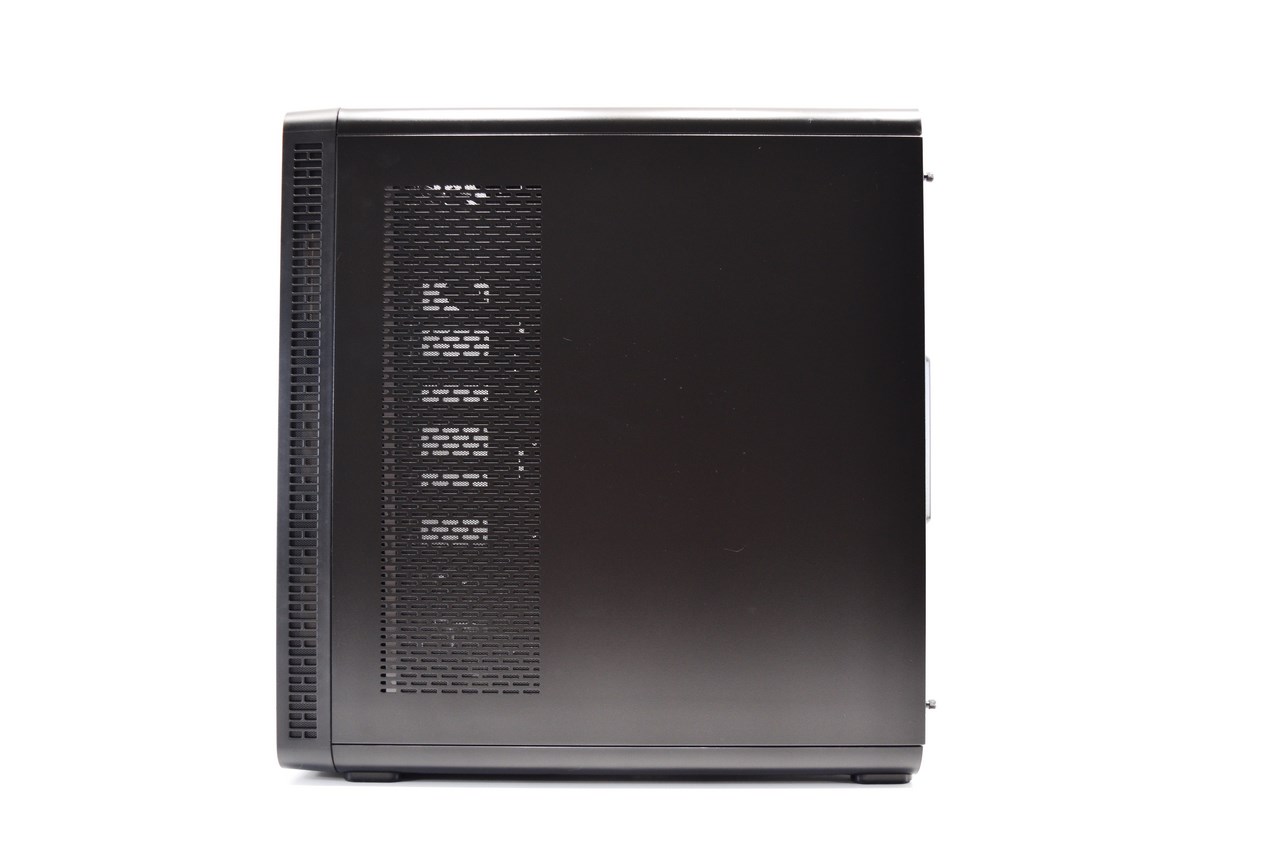

The left side panel is perforated just behind the fans/radiator mount located on the mainboard tray.

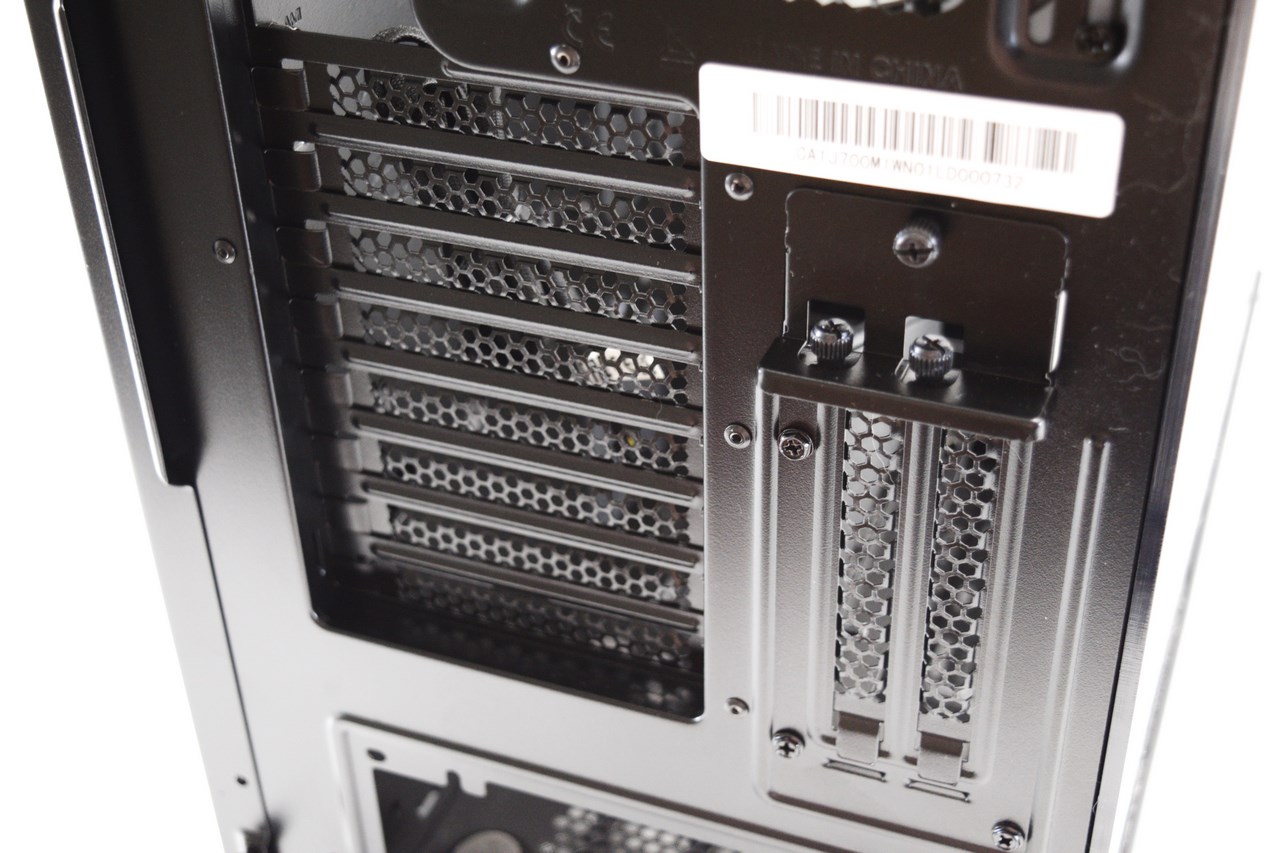

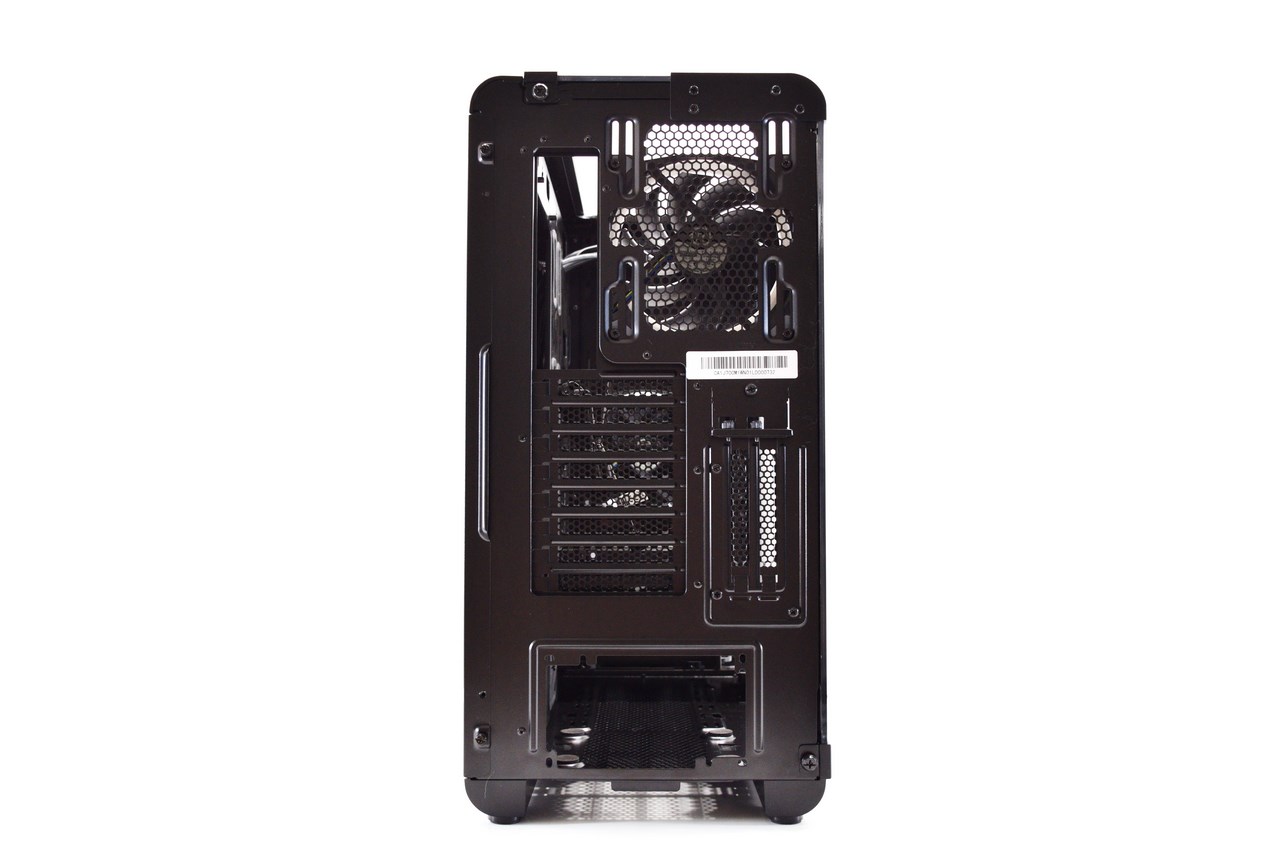

At the rear we find 8 horizontal PCI expansion slots, 2 vertical PCI expansion slots, 140mm Riing RGB Plus 14 exhaust fan and the PSU area.

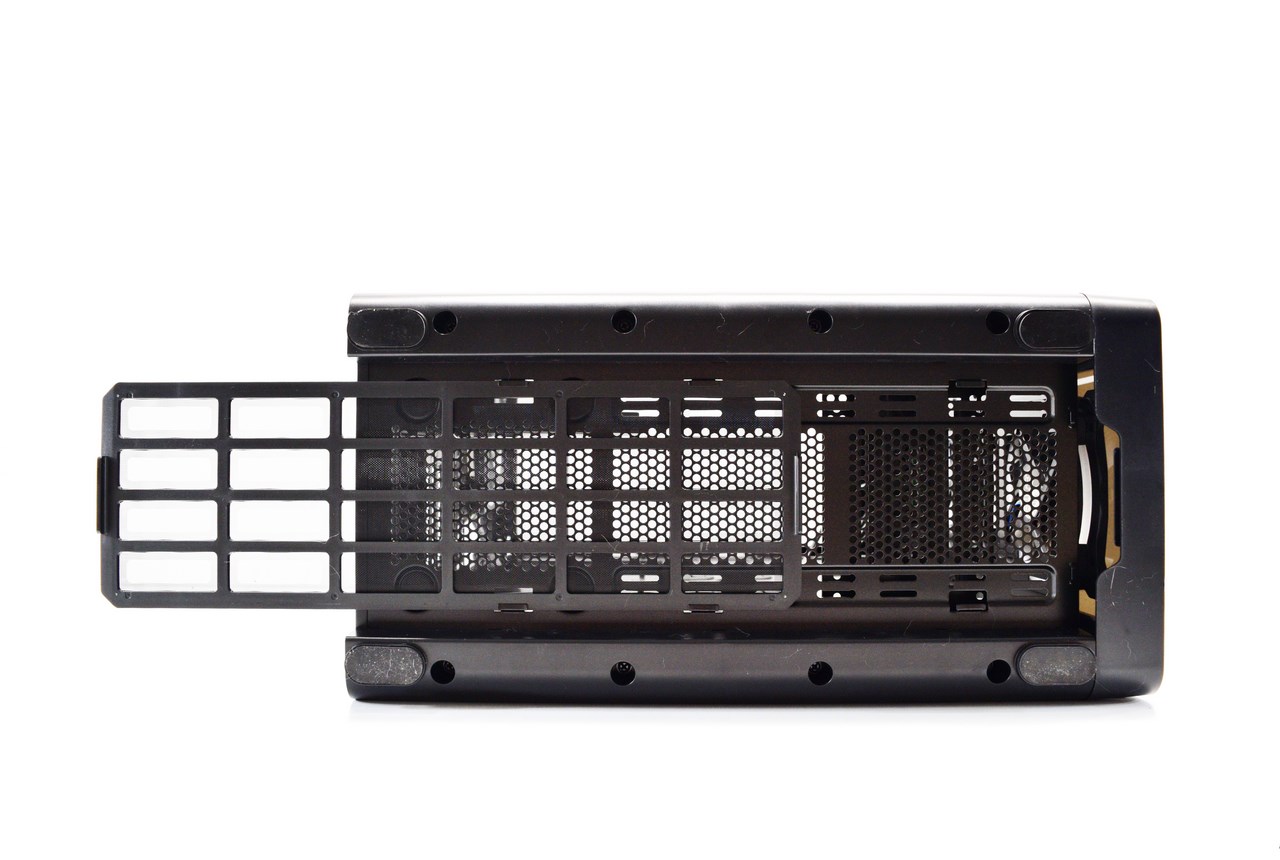

A very long slid-in/out air-filter is located at the base of the View 37 RGB.
