BUILDING THE SYSTEM

As always the purpose of this section is not to build a functional system but rather to showcase what you can expect from the case at hand in terms of interior space.

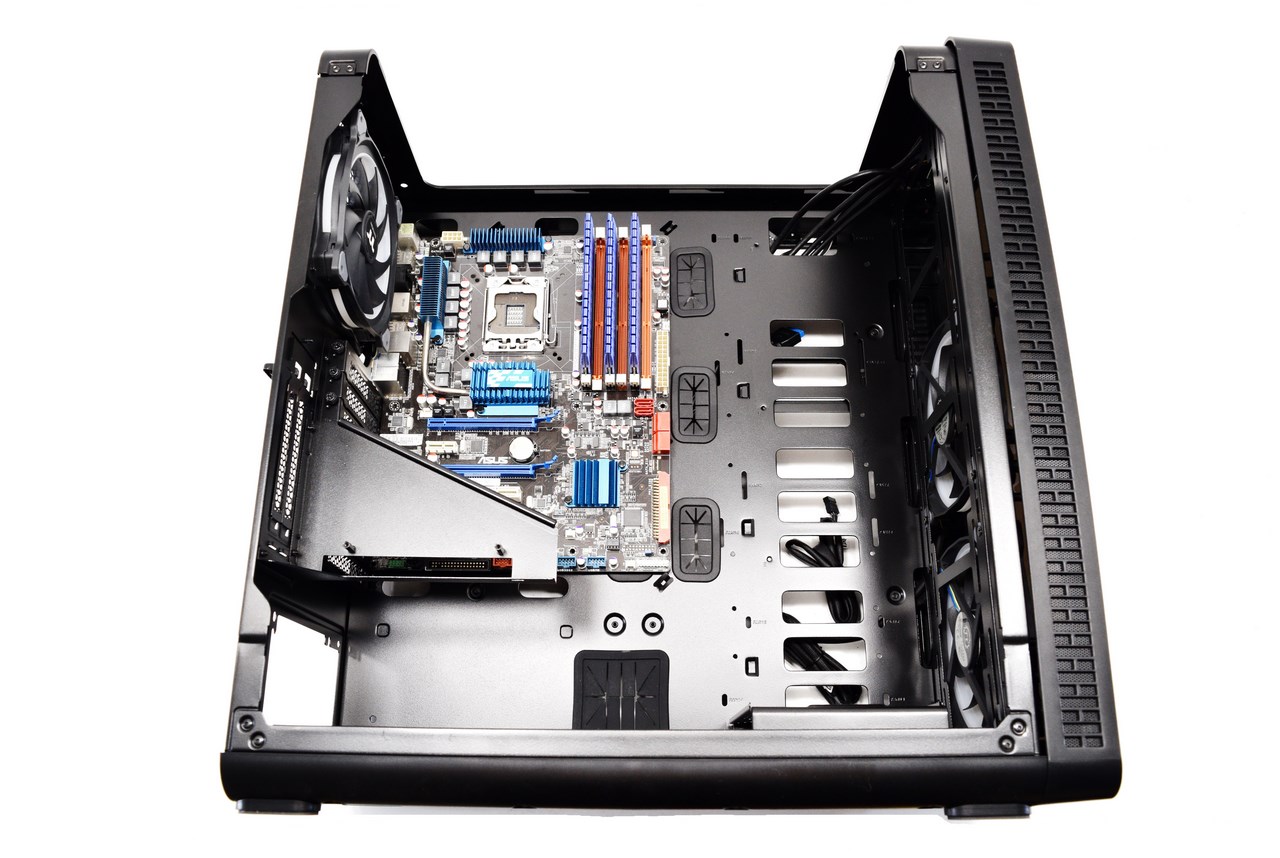

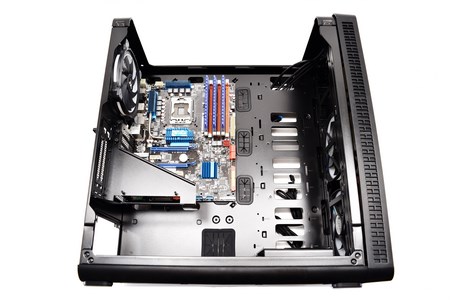

Since the View 37 RGB has enough room for up to E-ATX sized mainboards our regular ATX one leaves plenty of room around it.

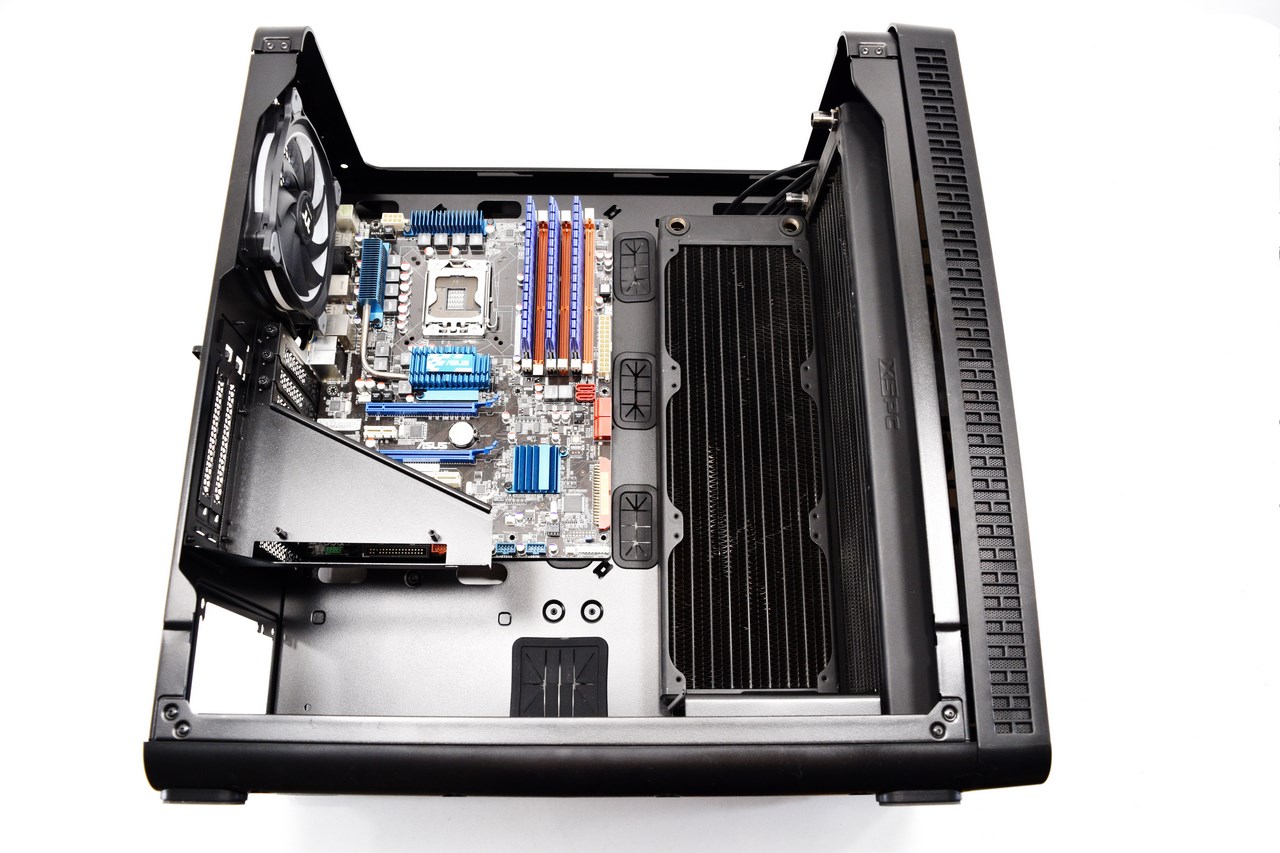

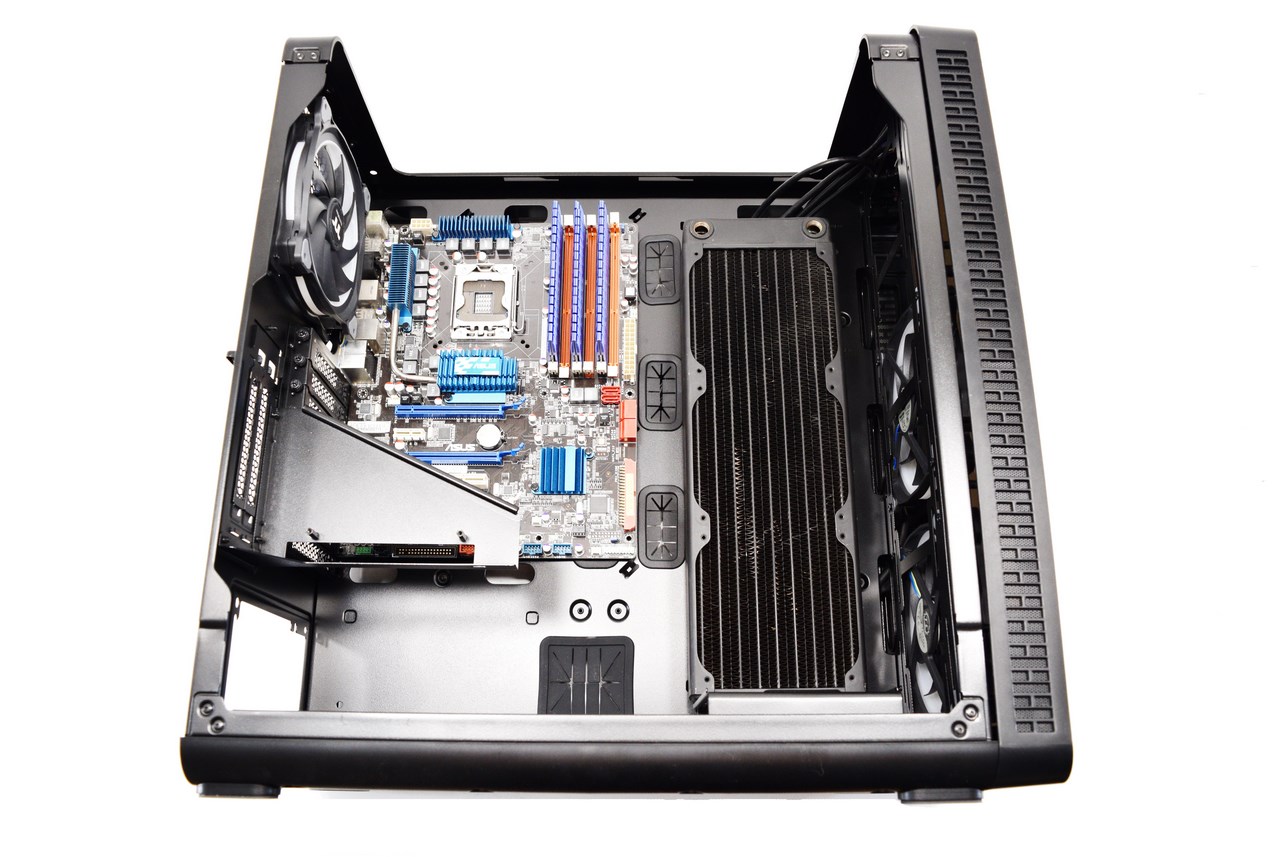

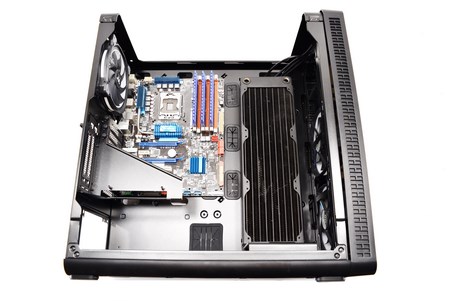

By removing the drive cage you can mount a 240/280/360/420mm long radiator on the mainboard tray regardless of thickness (we used a 360mm long and 56mm thick one).

The same applies for the front area (here we used a 420mm long and 35mm thick radiator without having to remove the drive cage base).

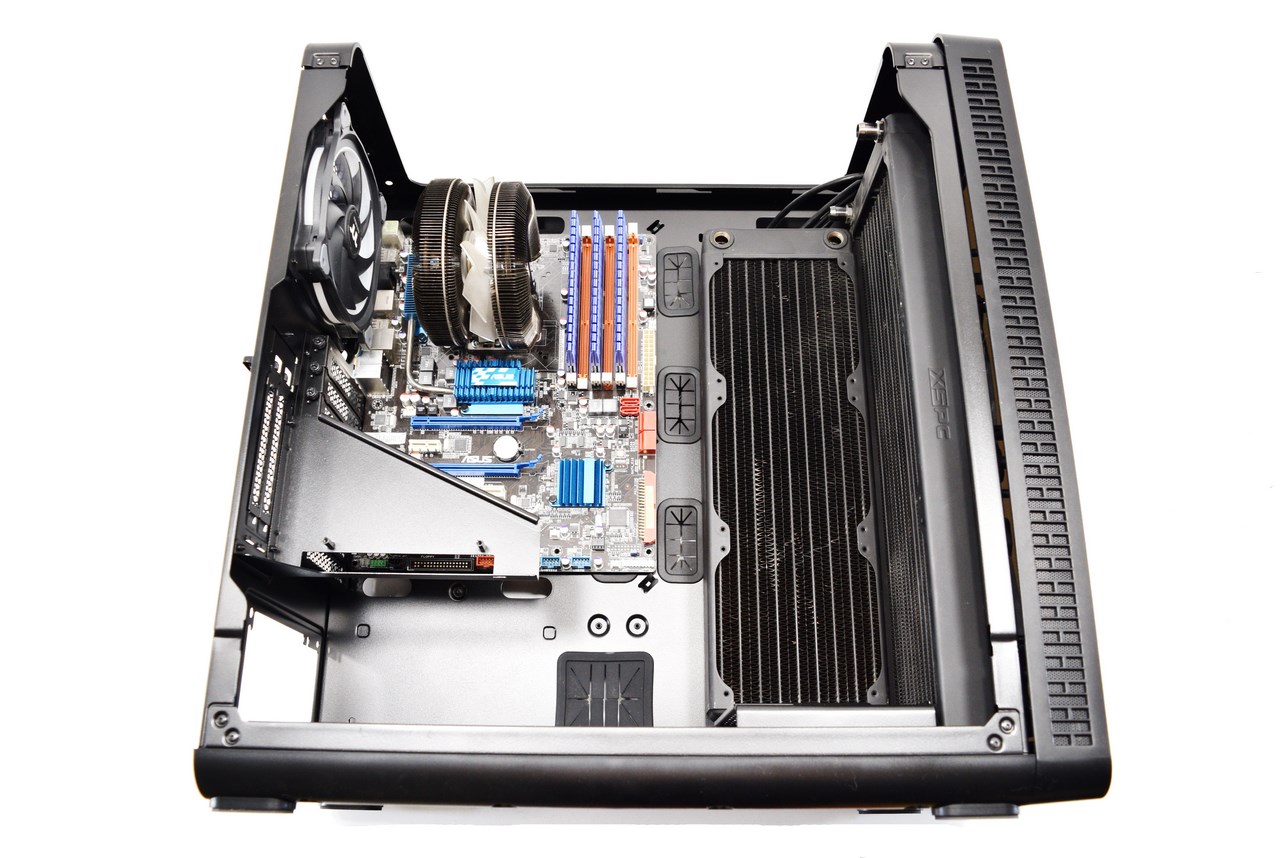

Of course we can't leave out the fact that you can also use CPU air coolers up to 180mm tall.

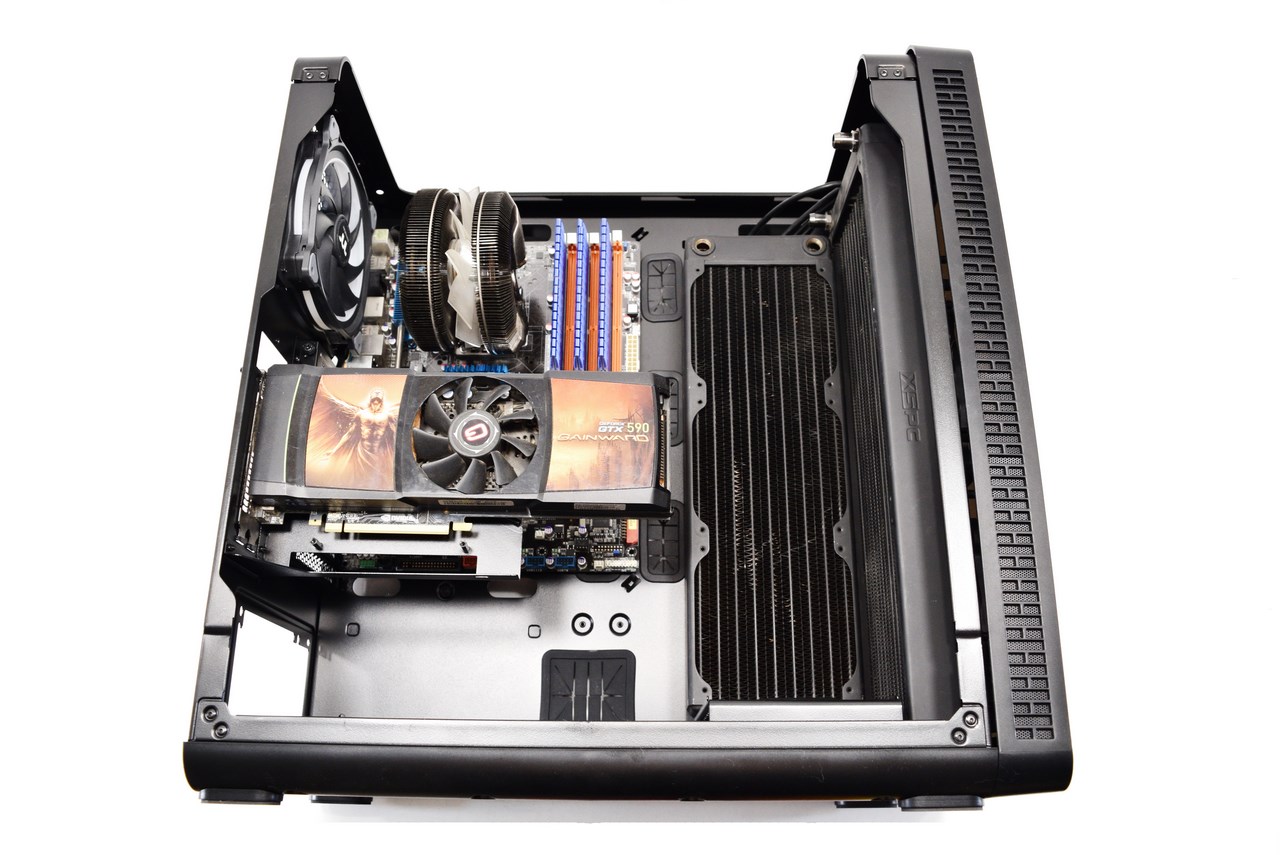

If you use the regular PCI expansion slots and you also decide to use the right area for fans or a radiator then you are limited to cards up to 285-290mm in length. However if you decide to use the vertical GPU mount there's no such limitation (at least not unless you use the thickest radiator possible with fans).

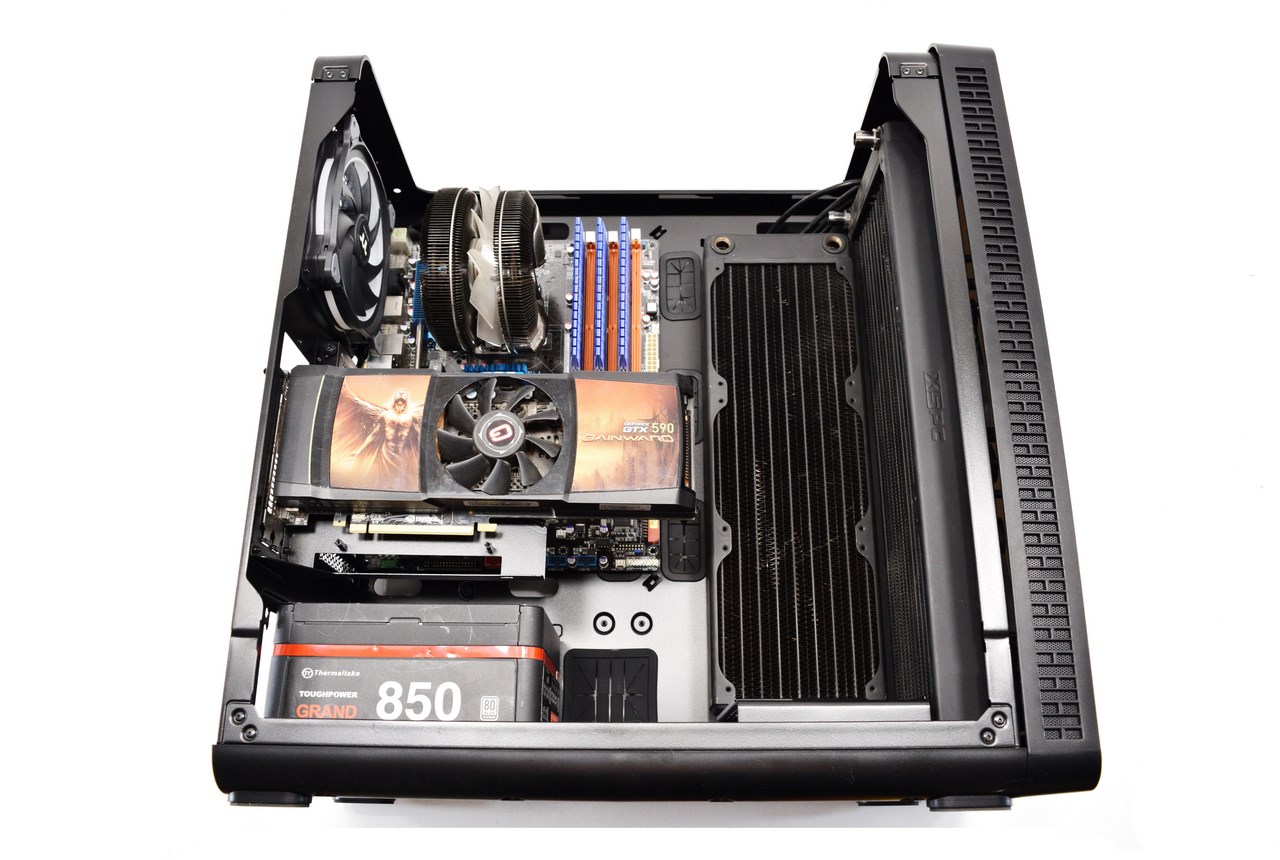

With enough room for up to 220mm long PSU's you can use even 1.5KW units with the View 37 RGB.
