THE FRITZ!BOX 6850 LTE EXTERIOR

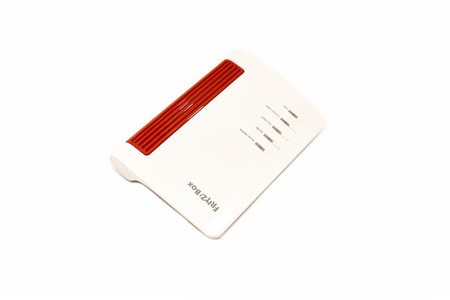

AVM has once again used the same plastic enclosure as all their previous models which this time measures just 208mm in length, 150mm in width and 37mm in height.

Here you can see how the FRITZ!Box 6850 LTE compares to the 7590 model.

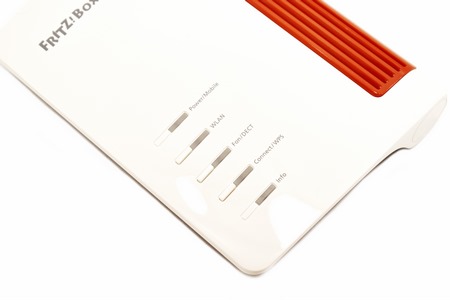

At the top of the modem, we find 3 buttons and 5 activity LEDs (power-mobile/wireless Lan/DECT phone/WPS/info).

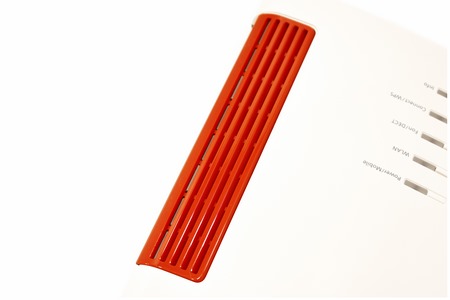

Most of the rear top is perforated to allow hot air to exit the interior.

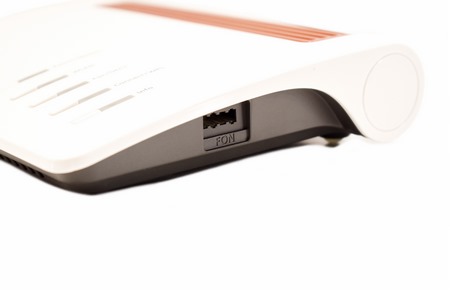

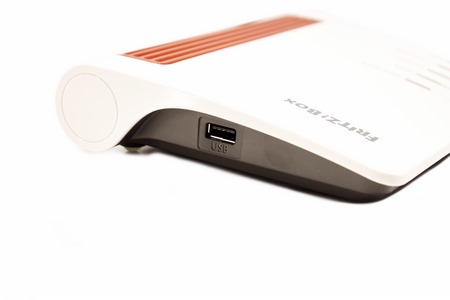

On the left side of the enclosure, we find a USB 3.0 port whereas on the right we find a TAE-N type connector (German standard).

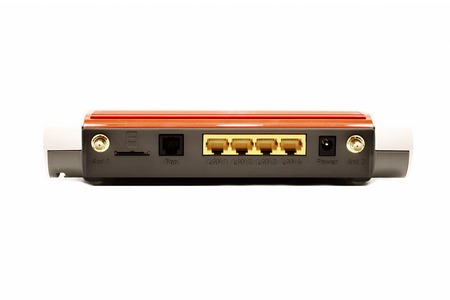

Moving at the rear we find two Antenna ports, mini SIM slot, RJ11 phone port, 4 Gigabit LAN ports and the power port.

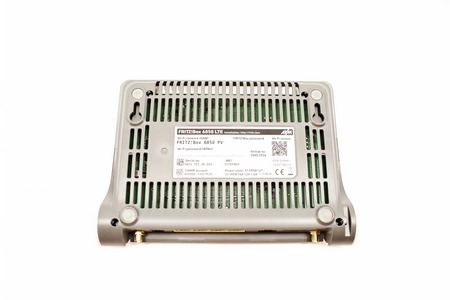

The bottom is also perforated and has four small rubber feet and two holes for wall mounting.
