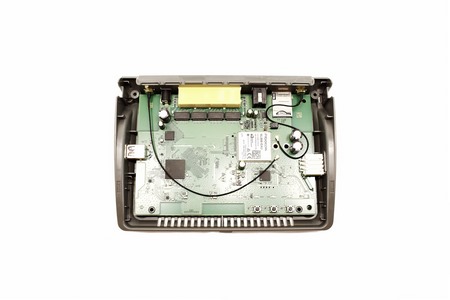

THE FRITZ!BOX 6850 LTE INTERIOR

Unlike other FRITZ!Box models there's not a large heatsink inside the enclosure and over the main Qualcomm module.

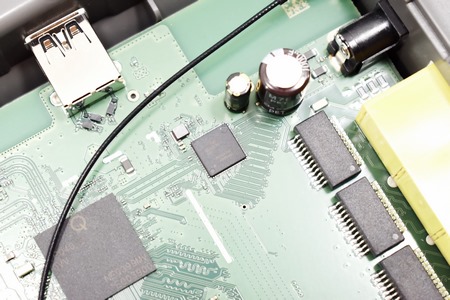

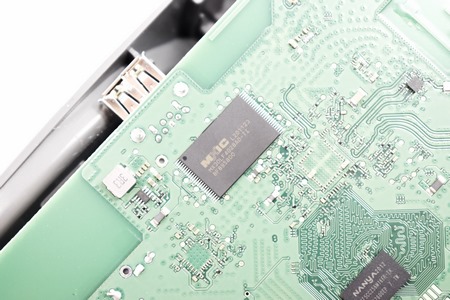

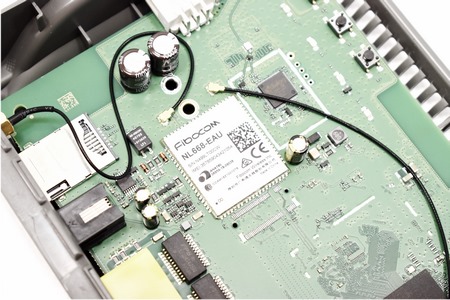

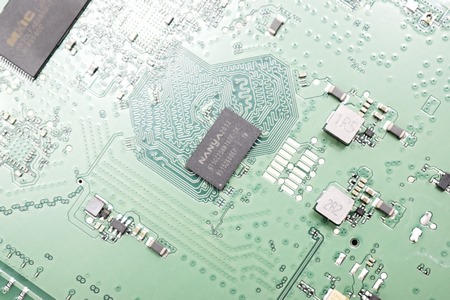

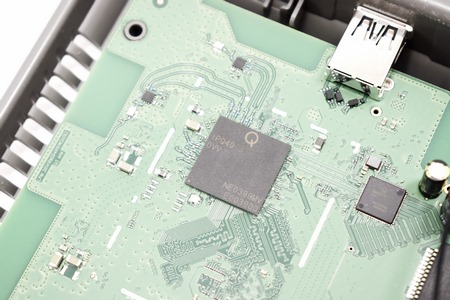

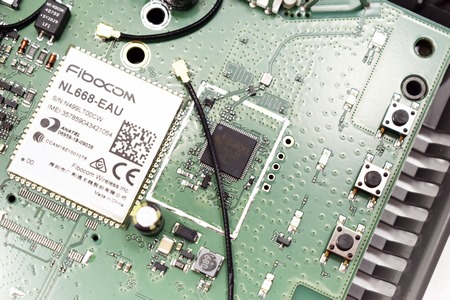

So, some of the components we find inside the 6850 LTE are the NL668-EAU LCC form factor LTE wireless communication module (supports LTE-TDD/ LTE-FDD/ WCDMA/ GSM 4 modes and 15 frequency bands) by Fibocom, IPQ4019 SoC (2x2+2x2 Dual Band, Dual Concurrent SoC with Wave 2 11ac) by Qualcomm, Ethernet transceiver (again by Qualcomm - part numbers were unreadable), DECT module by Dialog (again i was unable to make out the exact model - it's either the SC14446 or the SC14448), 256MB DDR3L 1866MHz DRAM by Nanya and 512MB SLC NAND Flash memory by Macronix.
