THE TBS-453A-8G-960GB INTERIOR



























qnap tbs 453A 8g 960gb 14tqnap tbs 453A 8g 960gb 15t

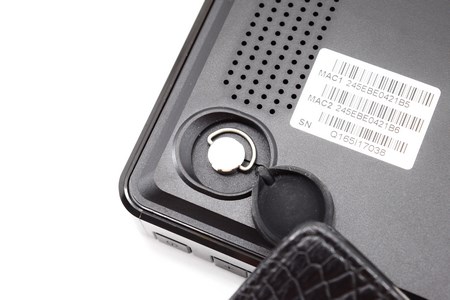

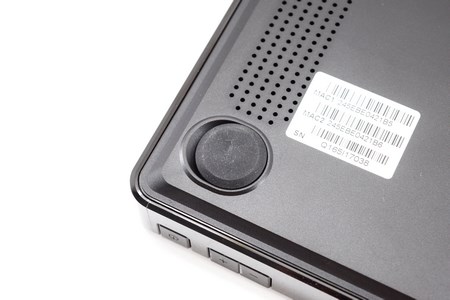

All 4 rubber feet are removable and beneath them QNAP has placed thumbscrews.





qnap tbs 453A 8g 960gb 16t

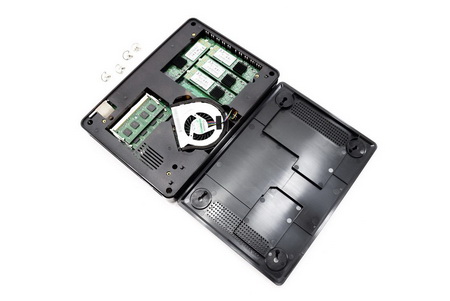

After you remove all 4 thumbscrews you just need to lift the base cover.





qnap tbs 453A 8g 960gb 17t

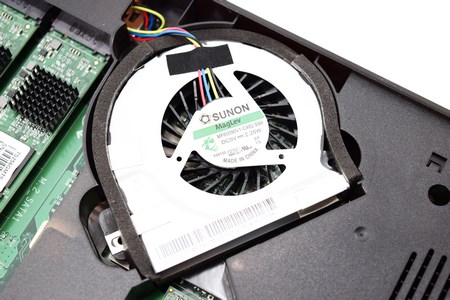

The CPU is cooled by a SUNON blower fan but unfortunately we don't have any info on it.





qnap tbs 453A 8g 960gb 18t

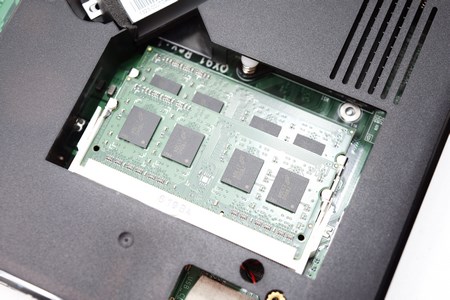

Two 4GB DDR3L-1600 SODIMM RAM modules from A-DATA are pre-installed in our sample.





qnap tbs 453A 8g 960gb 19t

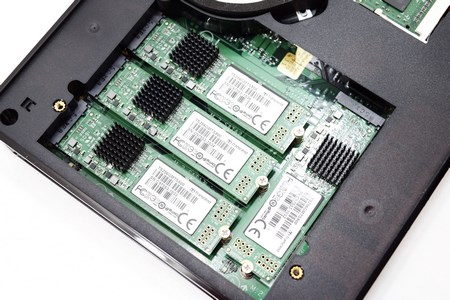

Our sample also came ready with a total of 4 M.2 256GB SSDs by Transcend (MLC NAND Flash memory model with transfer speeds of up to 560MB/s read and 460MB/s write).





qnap tbs 453A 8g 960gb 20t

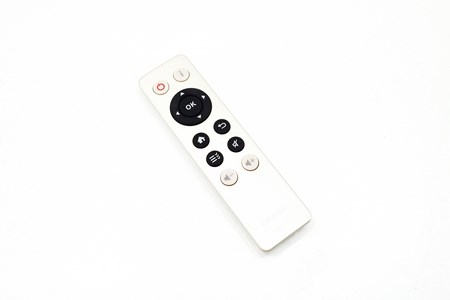

This is the typical remote control QNAP bundles with most of their HDMI capable NAS models and although not something impressive still it's much better than not having one at all (other manufacturers mostly sell them separately).
