THE FRITZ! REPEATER 6000 INTERIOR

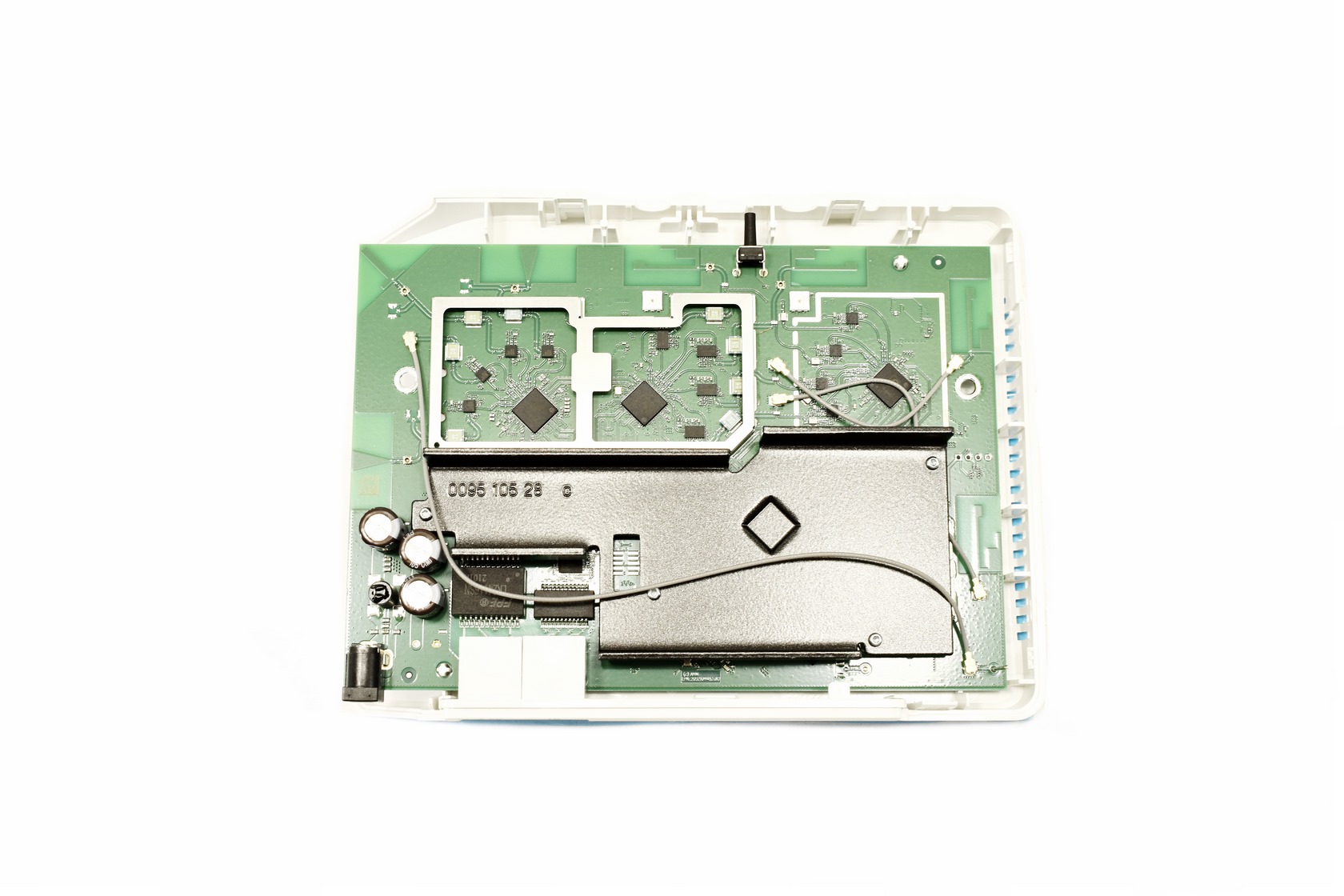

Opening the enclosure reveals two sections on the PCB.

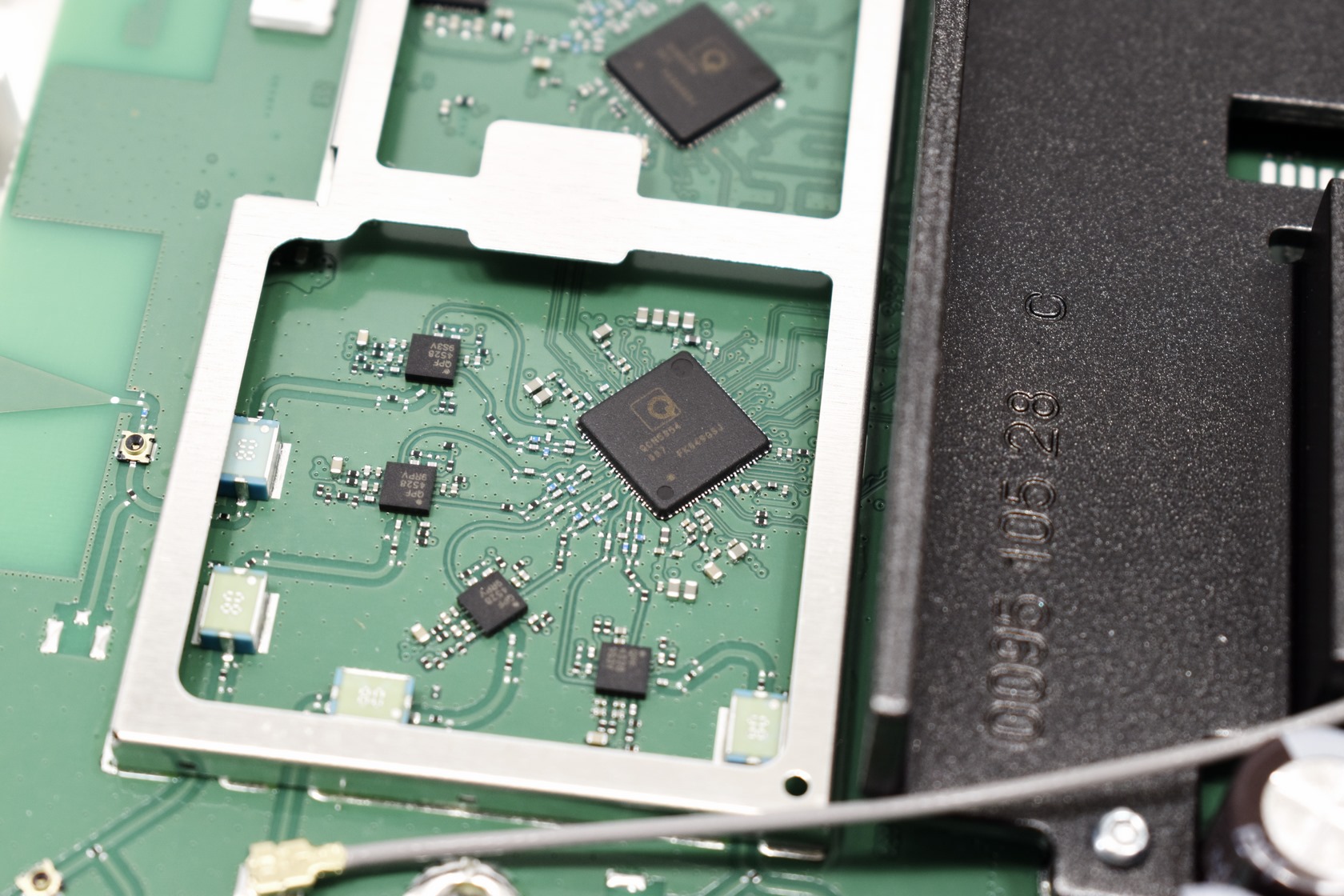

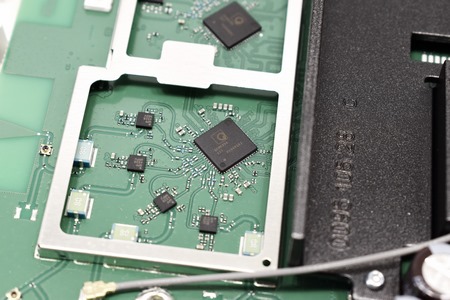

On the uncovered top section (as seen in the above picture) we find the QCN5054 (5GHzx2) and QCN5024 (2.4GHz) WiFi modules by Qualcomm all of which feature 12 high-efficiency (4x2.4GHz - 8x5GHz) front end modules by Qorvo (802.11ax - 12x12 MIMO Configuration).

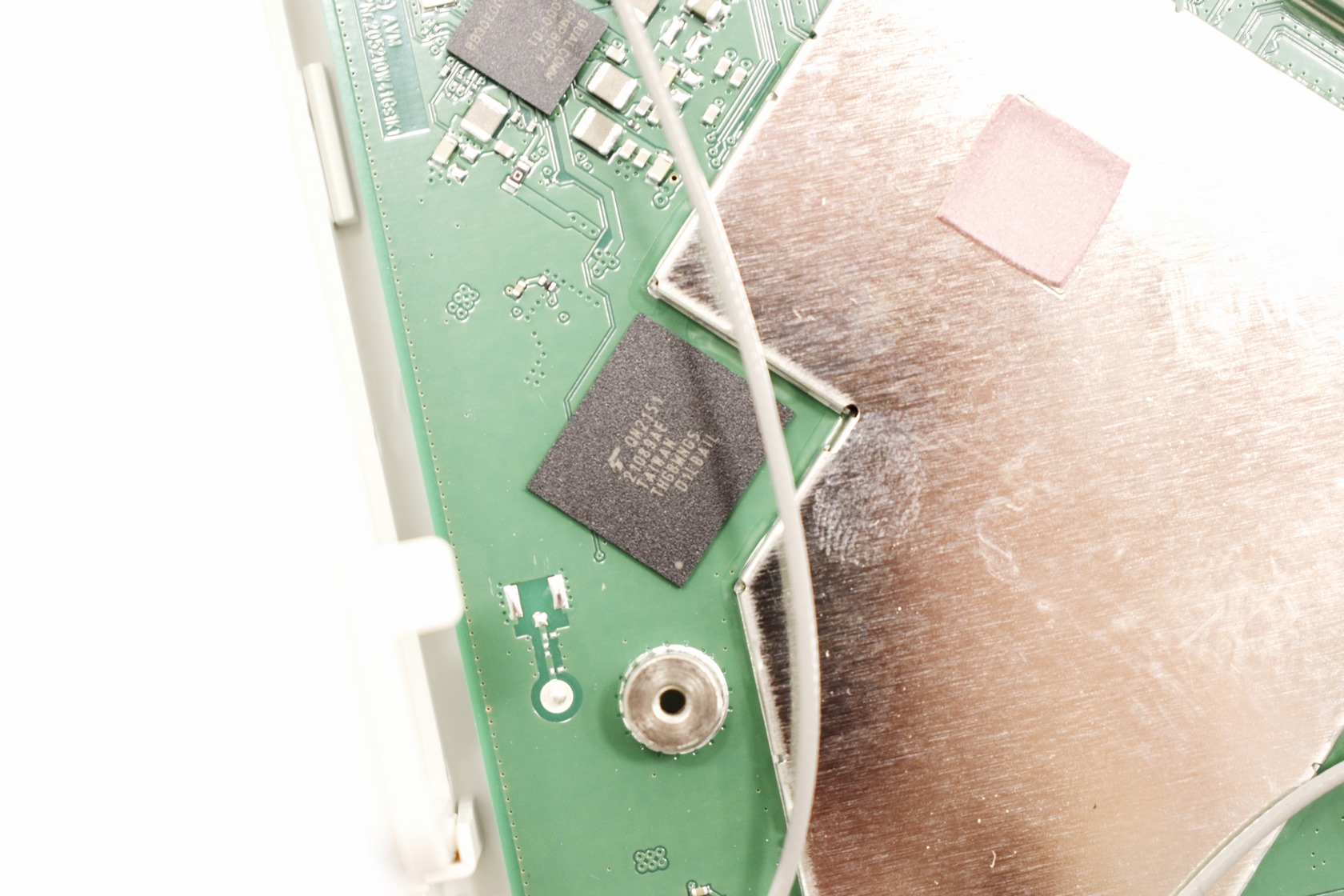

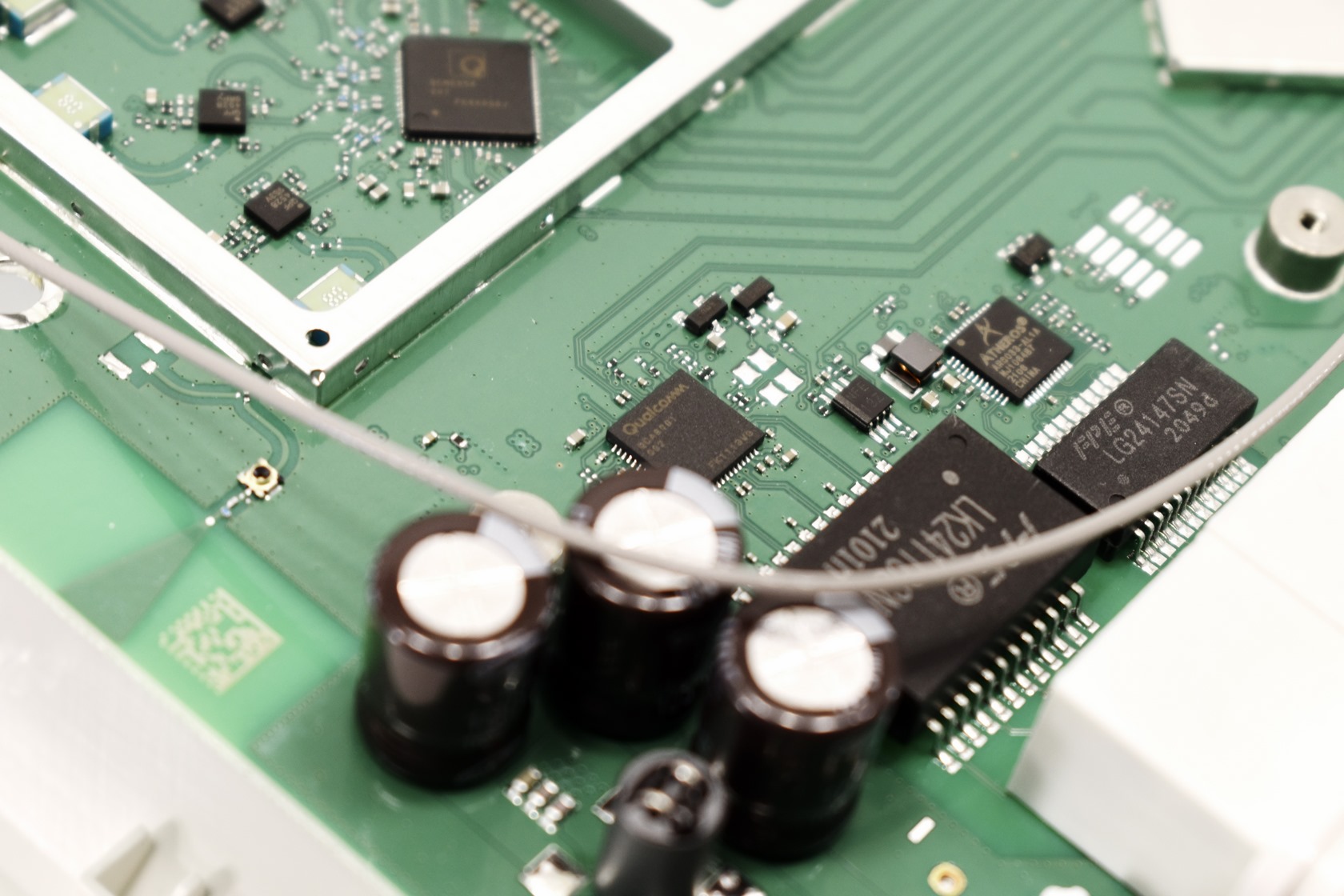

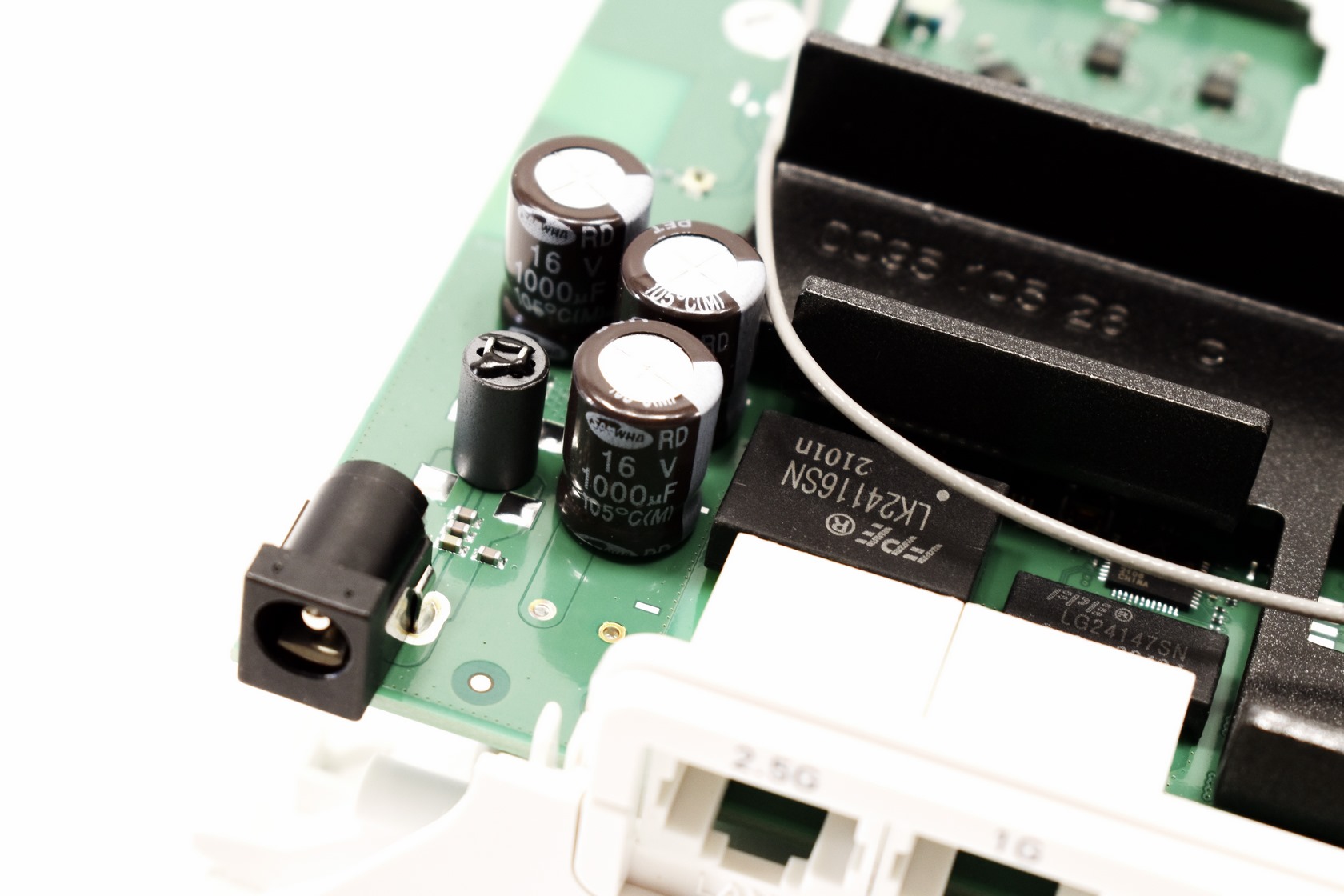

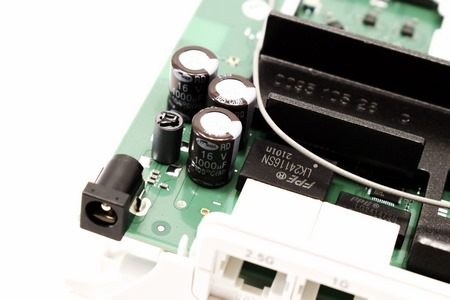

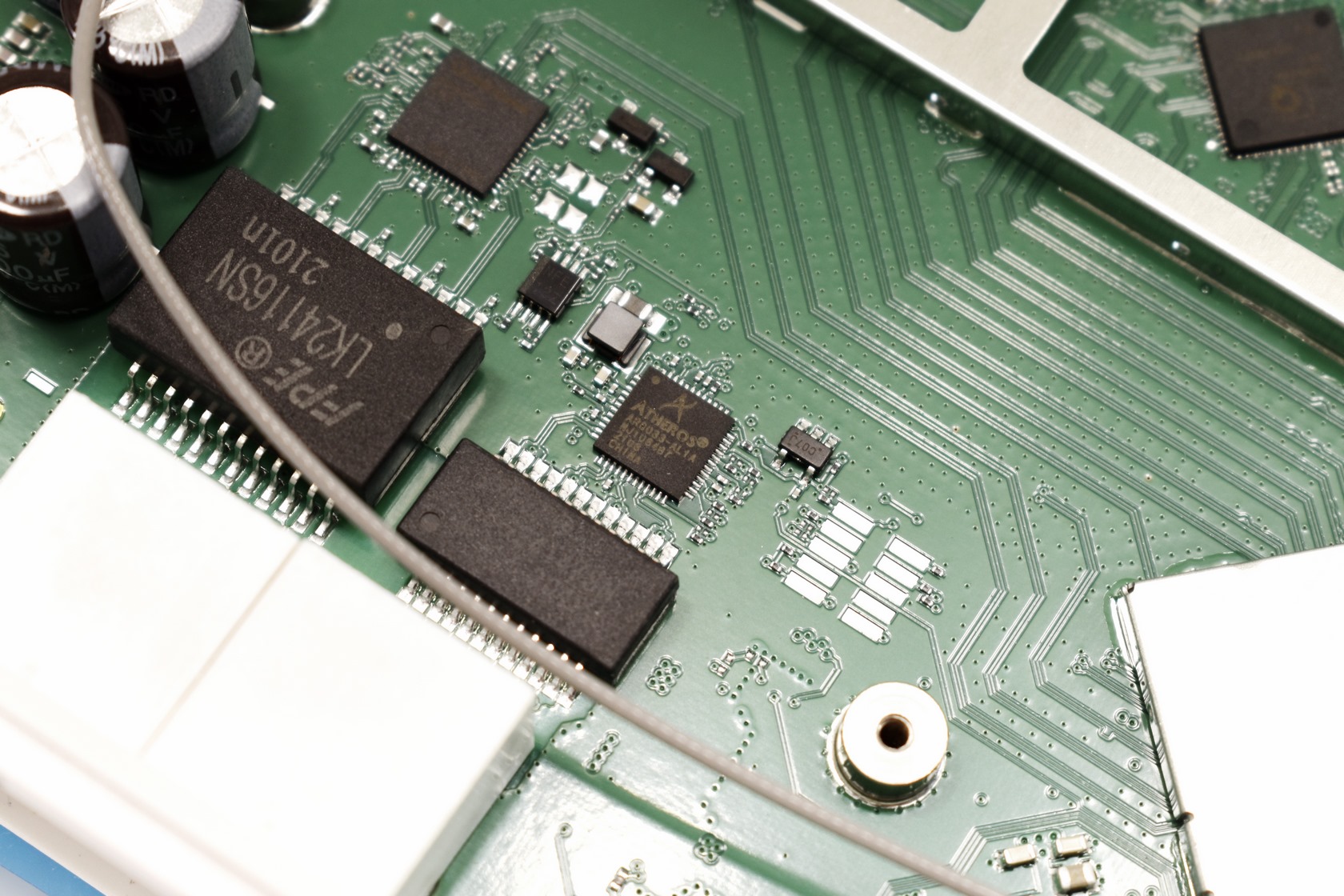

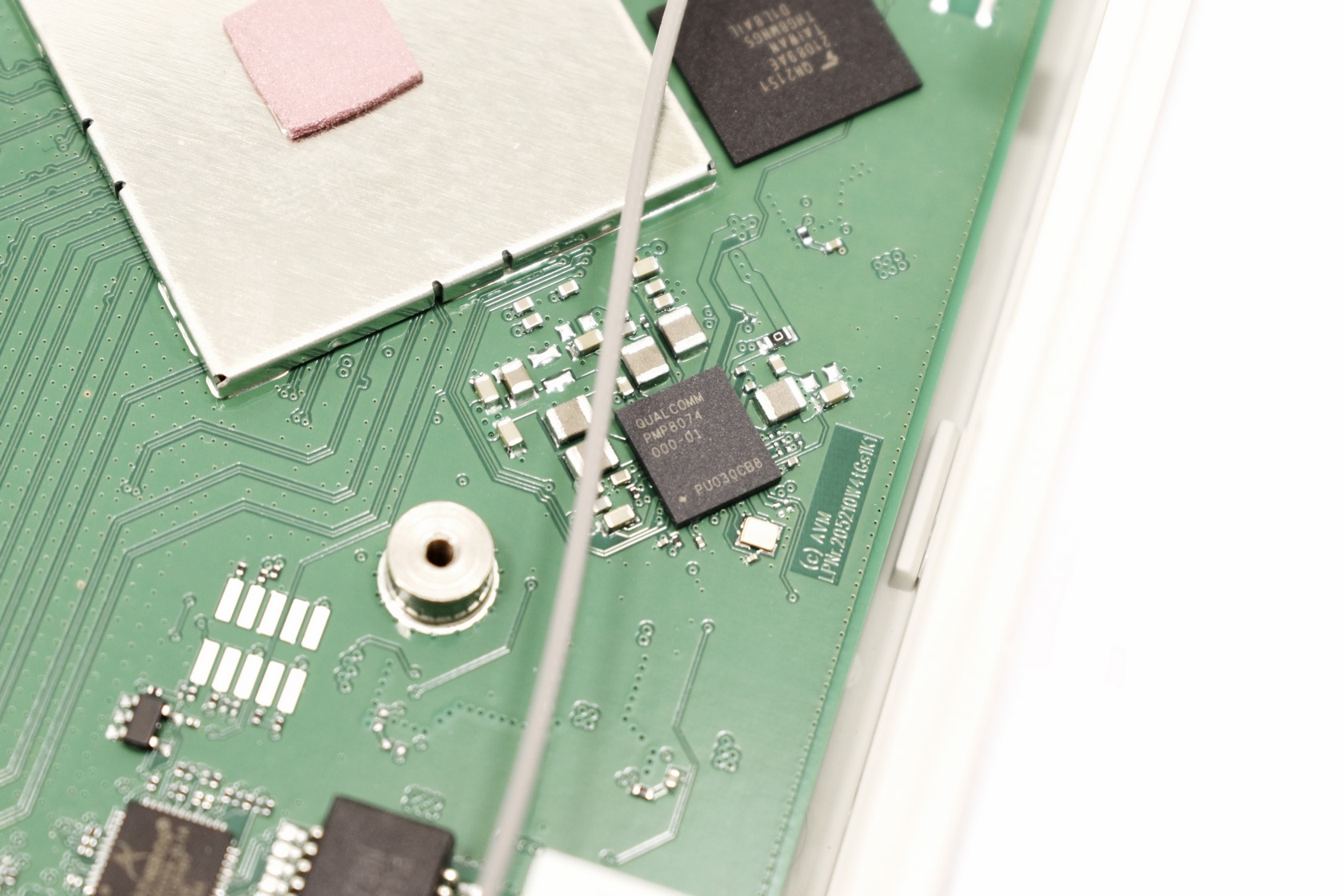

Moving on the lower area we find capacitors by Korean Samwha (105 degrees Celsius certified), along with the QCA8081 4-speed (10M/100M/1G/2.5G) Ethernet PHY transceiver by Qualcomm, AR8033-AL1A 10/100/1000 Mbps Ethernet PHY transceiver by Atheros, PMP8074 power distributor by Qualcomm, IPQ8074A 802.11ax SoC (quad-core ARM Cortex A53 running at 2GHz) located underneath the aluminum cover again by Qualcomm (supports advanced QoS, 1024 QAM, MU-MIMO, OFDMA, Uplink scheduling, TxBF, Qualcomm® Wi-Fi SON), 512MB of DDR3L SDRAM (running at 1866Mbps) by Nanya and an 2GB NAND flash module.
