THE NVR

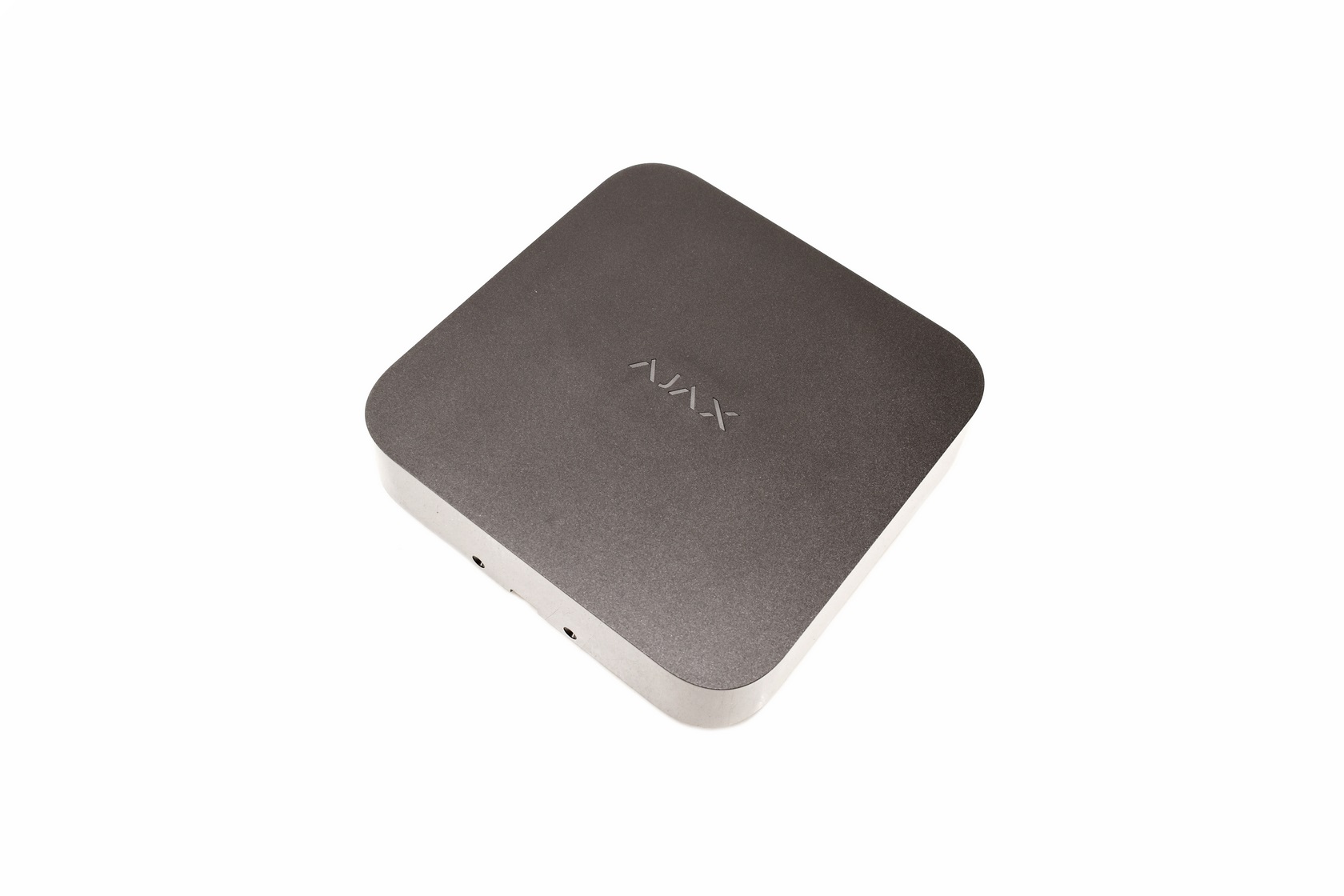

The 615g heavy enclosure of the NVR is made of IP20 certified plastic and measures 193mm in width, 193mm in length and 47mm in height (the company logo on top is illuminated).

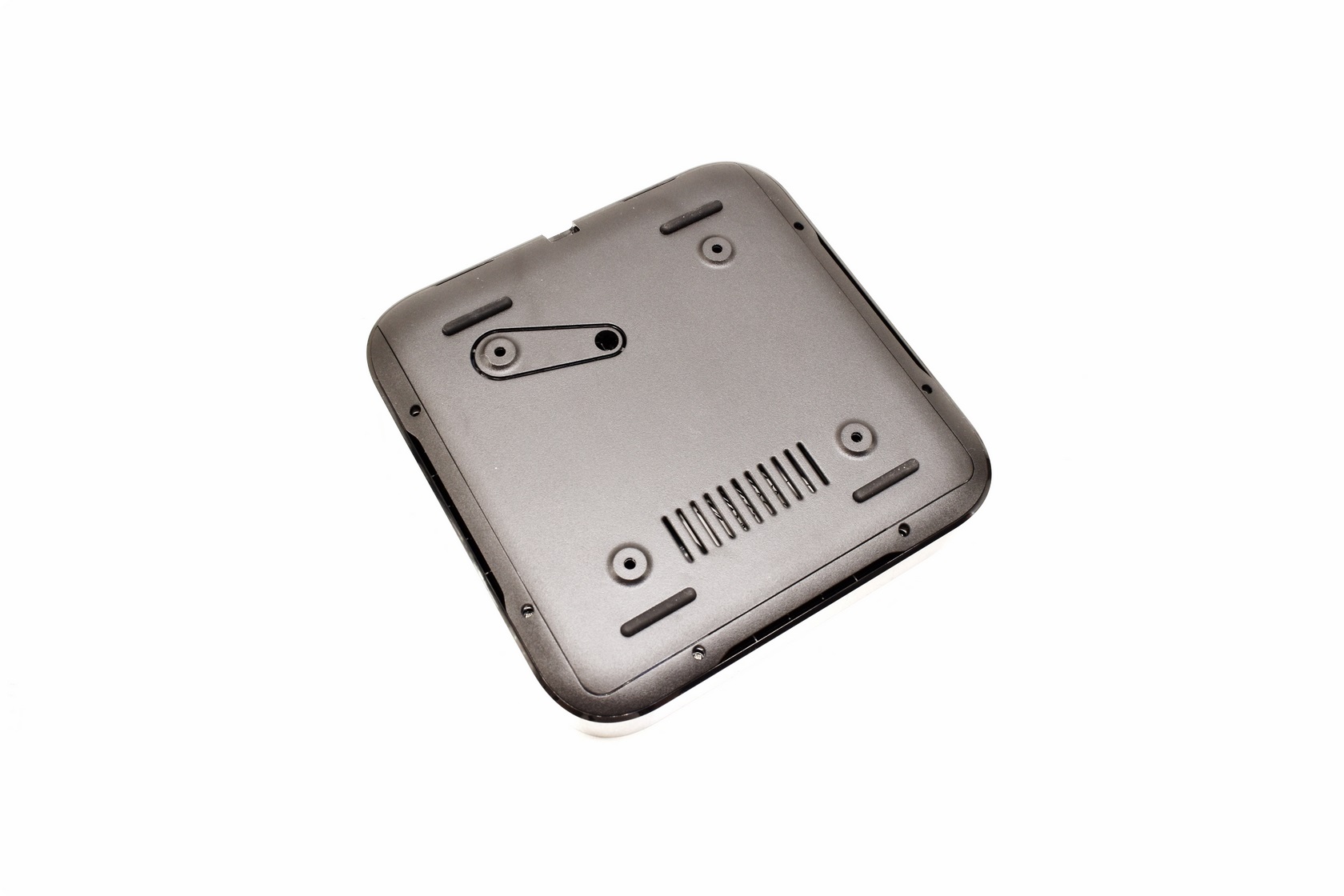

Turning the NVR over we find 4 rubber feet and the tamper alarm mechanism.

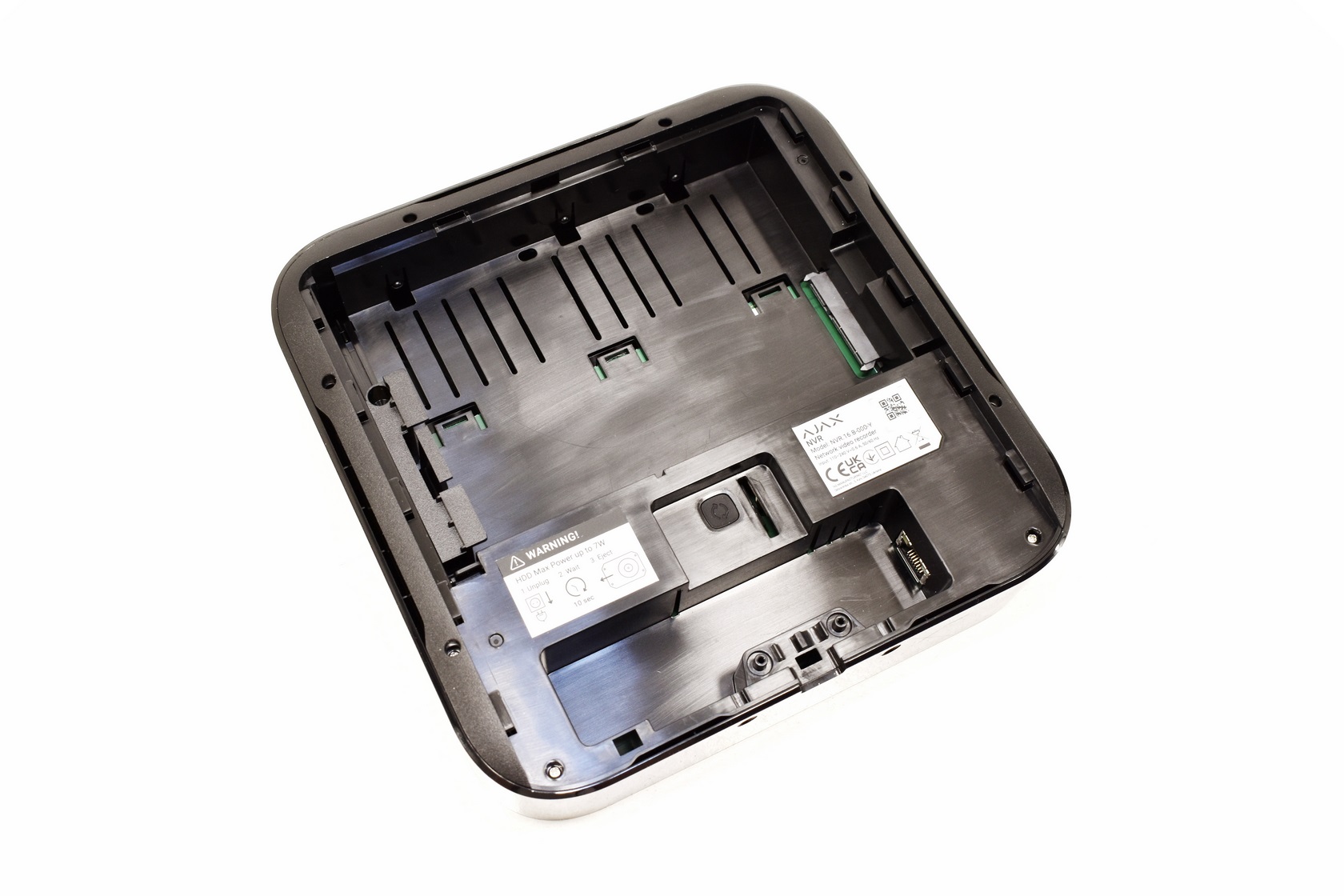

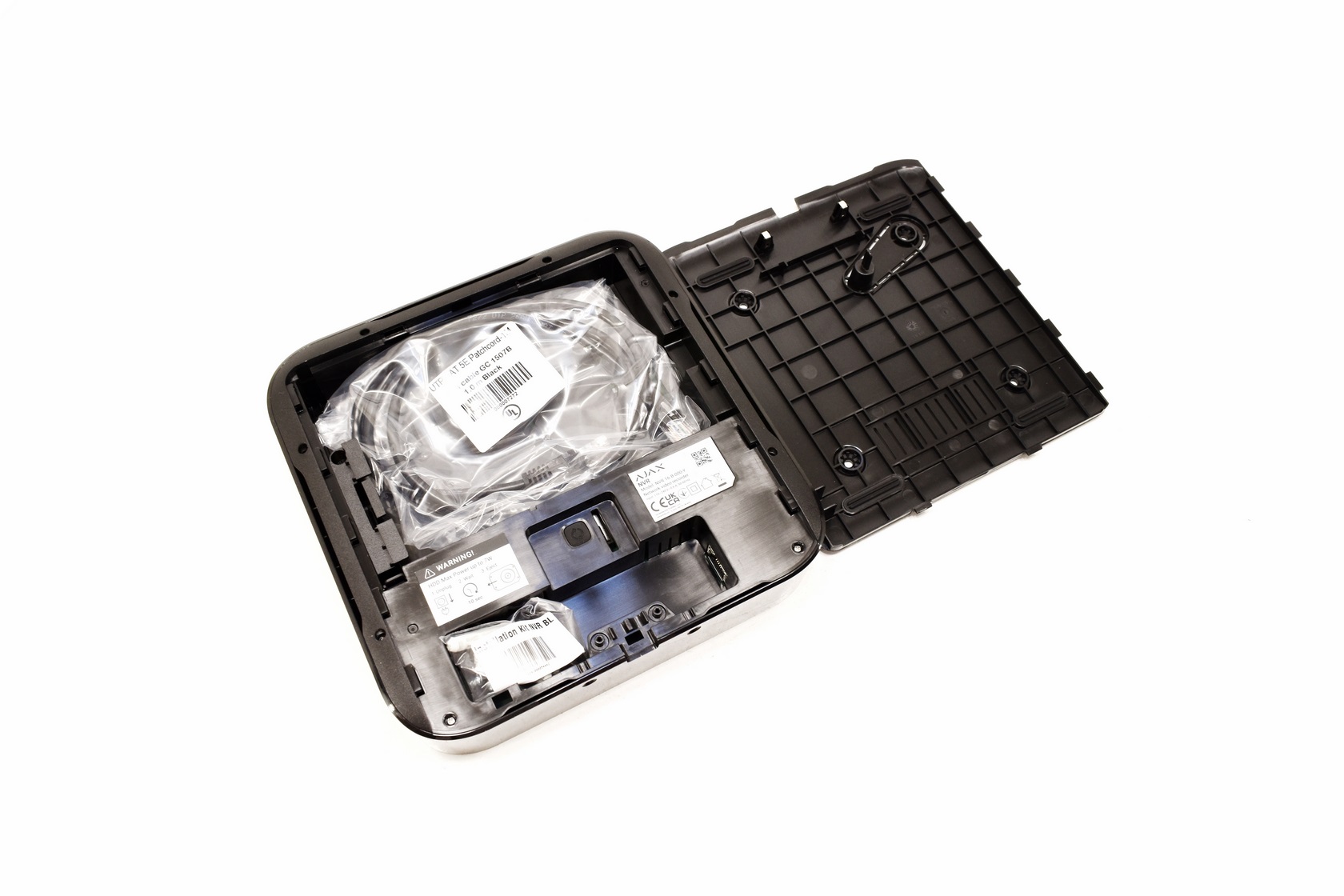

Once you open the enclosure, you'll find an RJ45 Ethernet cable and wall mounting bits.

The NVR by Ajax Systems can be used with  single SATA drive (2.5/3.5") up to 16TB in capacity.

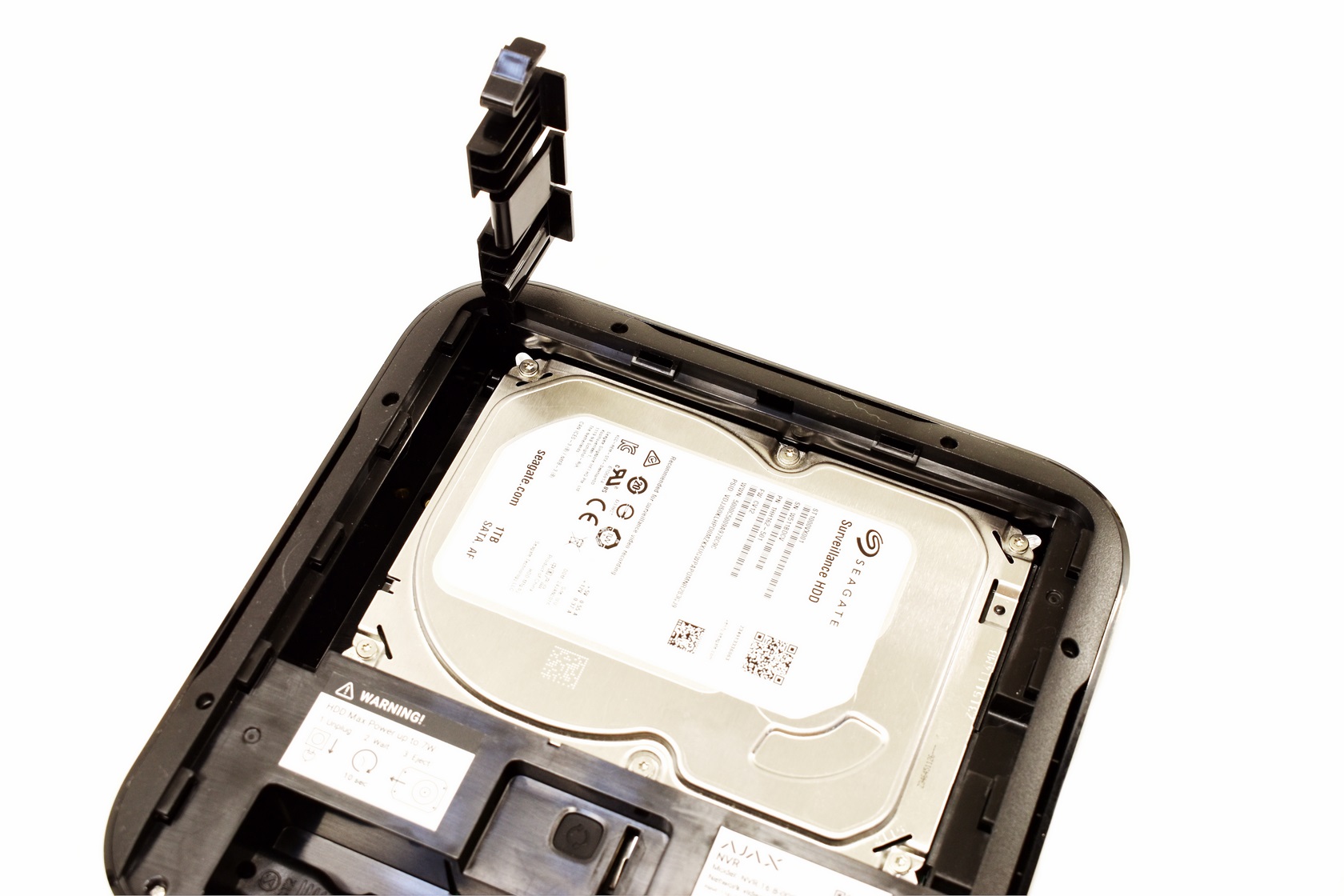

It's a tool-less design so just mount the drive and secure it with this plastic piece seen above.

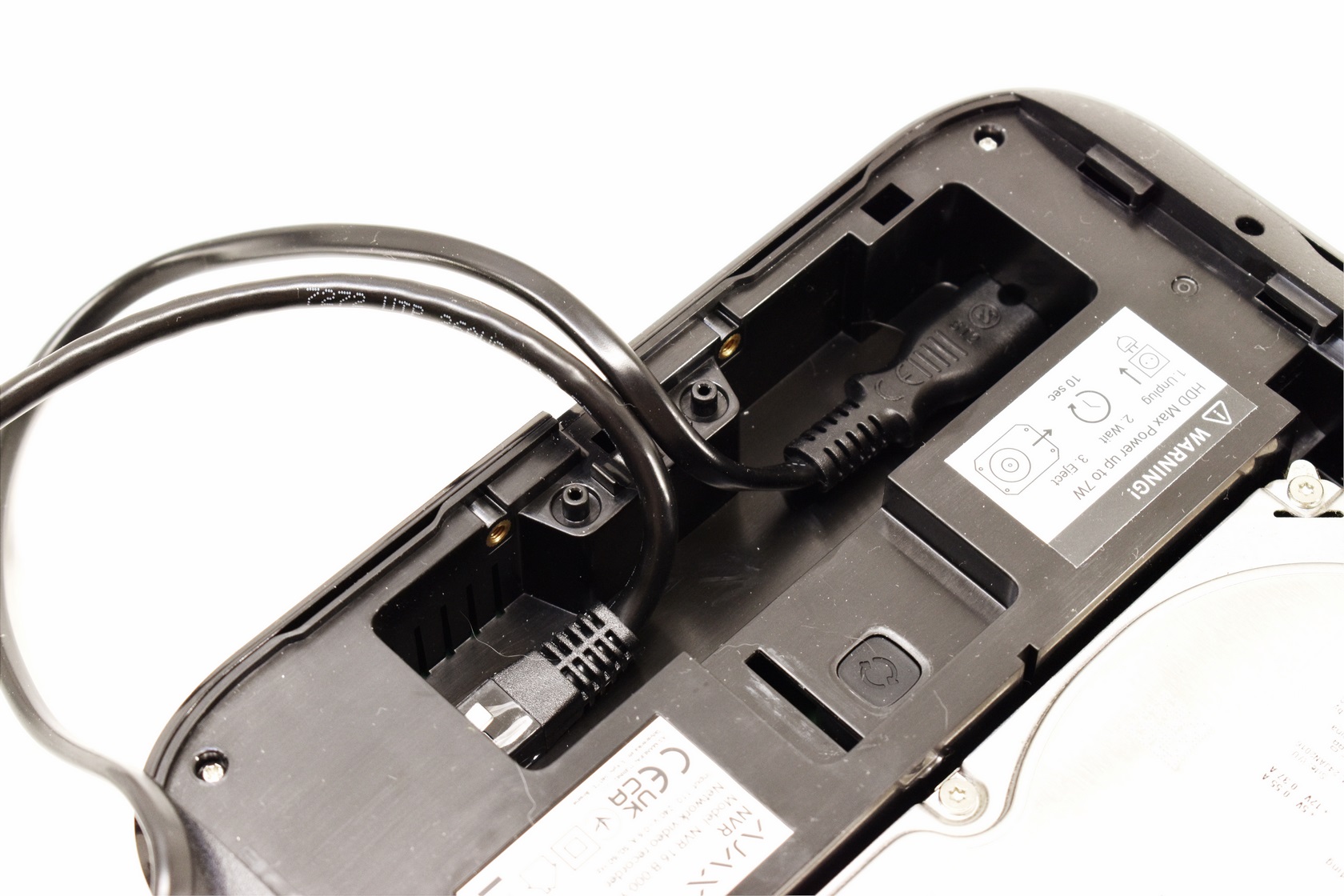

The power and RJ45 LAN ports are located inside the enclosure.
