INTRODUCTION

    As modern GPUs push well beyond the 400W envelope and routinely generate transient spikes that stress even high‑end PSUs, the electrical interface between the card and its power delivery has become a critical point of failure. Real‑time power monitoring isn’t just a convenience anymore, it’s a diagnostic necessity for validating load behavior, transient response, and connector integrity under sustained thermal and electrical stress. This is especially relevant today, as both the original 12VHPWR and its successor, the supposedly improved 12V‑2X6 connector, continue to exhibit documented cases of melting, pin‑row deformation, and partial‑seating failures under load. With incidents occurring even on undervolted or power‑limited cards, it’s clear the problem could be deeper and even tied to the connector design itself. Thermal Grizzly’s WireView Pro II directly addresses this vulnerability by inserting a precision measurement stage into the 12VHPWR/12V‑2X6 path, giving users an instrument‑grade view of real power draw and helping identify unsafe conditions long before they escalate into catastrophic connector damage.

    Thermal Grizzly was founded in 2013 as a sole proprietorship by Dipl.-Inf. (FH) Wolf Eike Salow in Hamburg. In 2015, the first thermal paste was launched after Eike Salow entered into a collaboration with B. Eng. Roman Hartung (der8auer e.K.) for product development. Eike and Roman merged from sole proprietors in 2020 to form the newly founded Thermal Grizzly Holding GmbH. In 2021, the company headquarters were relocated to Berlin, where a new location for development and production was established. After almost two years, the company moved to the new production site in Hohen Neuendorf, Brandenburg, in 2023. The logistics center has been located in Lippstadt since 2019.

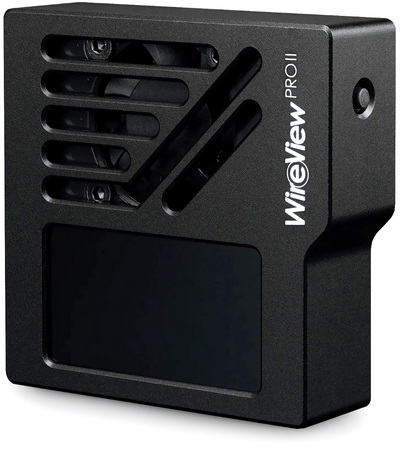

    The WireView Pro II represents a substantial evolution over the original WireView Pro, moving from a straightforward inline power‑monitoring tool to a far more advanced diagnostic platform tailored for modern 12VHPWR and 12V‑2X6 GPU power delivery. The first‑generation WireView Pro introduced core features such as an OLED display for real‑time power readouts, onboard and external temperature sensors, connector‑type detection, and an adjustable acoustic alarm for thermal or electrical irregularities. The WireView Pro II builds on this foundation with per‑pin current measurement, enabling users to detect uneven load distribution or poor terminal contact key contributors to connector overheating. It also adds PC software integration, allowing the device to be controlled, monitored, and logged directly from a computer for deeper analysis and long‑term data capture. Thermal Grizzly further enhances reliability by integrating an 30mm active cooling fan inside the unit to help dissipate heat around the connector area, reducing thermal stress during high‑load or extended testing scenarios. Additional improvements include automatic data logging, 320x170p TFT‑IPS display for higher‑clarity readouts, and an extended warranty on the GPU‑side connector. To accommodate different GPU layouts and cable‑routing constraints, Thermal Grizzly offers the WireView Pro II in two orientations, normal and reverse. Together, these upgrades position the WireView Pro II as a comprehensive, precision‑grade tool for monitoring total and per‑pin current, temperature behavior, connector integrity, and now full PC‑based control and even active cooling.
