THE WIREVIEW PRO II

What stands out at the front is without doubt the 320x170p TFT-IPS screen.

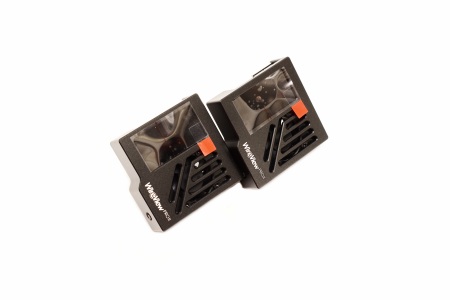

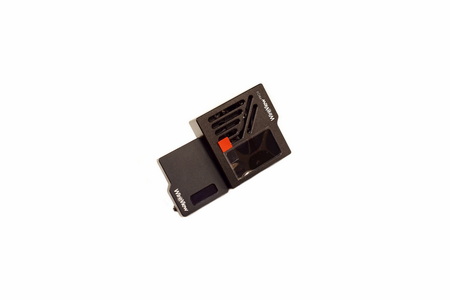

For any of you wondering this is how the WireView Pro II looks next to the original WireView/Pro device.

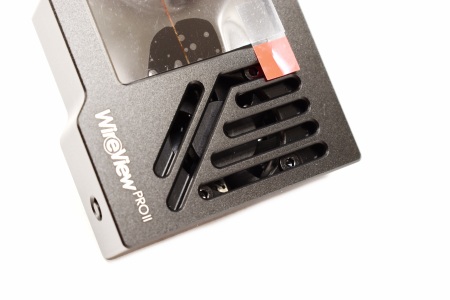

Right under the screen we find the 30mm cooling intake fan (an single button is placed on the right side).

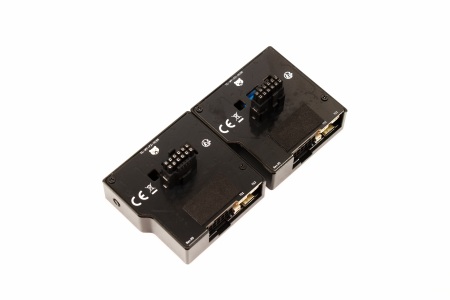

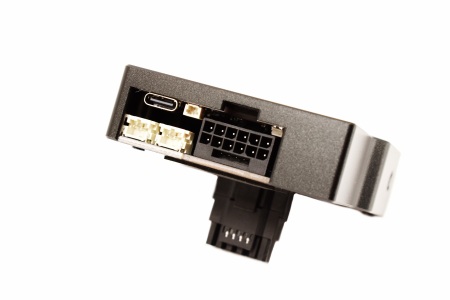

At the base both models have the 12VHPWR/12V-2X6 power connector, USB-C port, two temperature probe headers and the motherboard power on/off header.

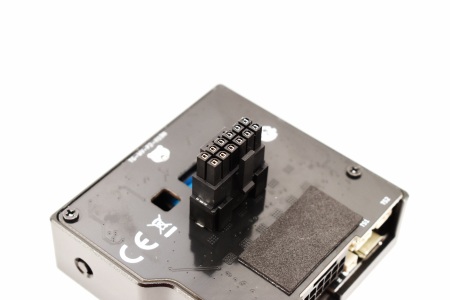

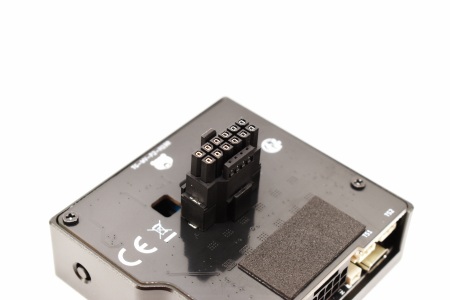

At the rear both have a small soft pad at the area where the devices touch the GPU and the 12V-2X6 connector, normal and reversed.

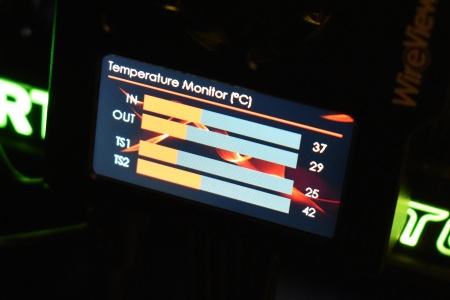

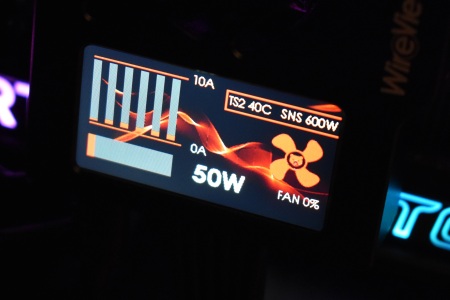

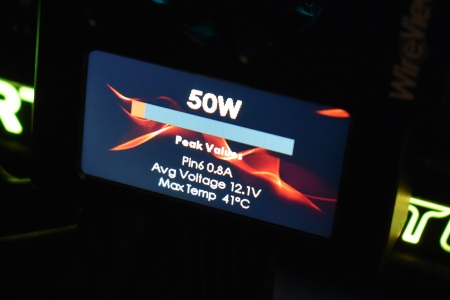

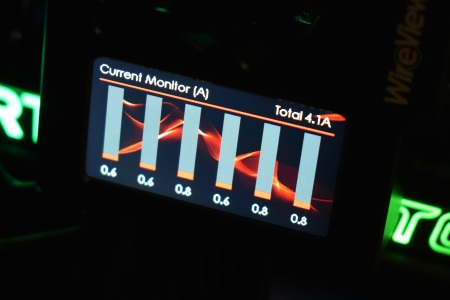

The 320x170p TFT-IPS display has a live view of power consumption (W), cable type/output, temperature, current (A) and voltages.

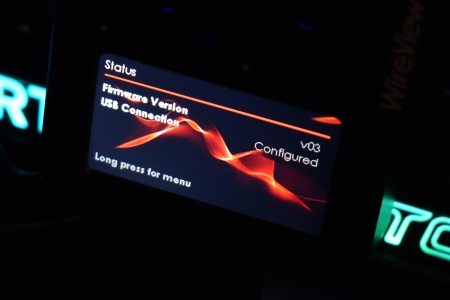

You can also check the firmware update (v03 for this review).

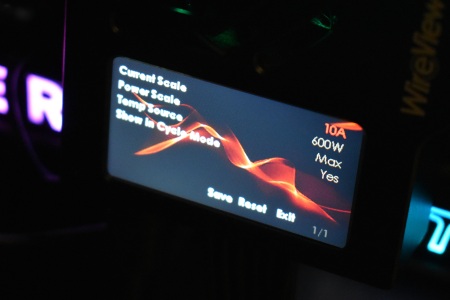

Finally, you can enter the menu to change the current and power scales, temperature source and information order (short clip is available on both YouTube and TikTok).
